Description

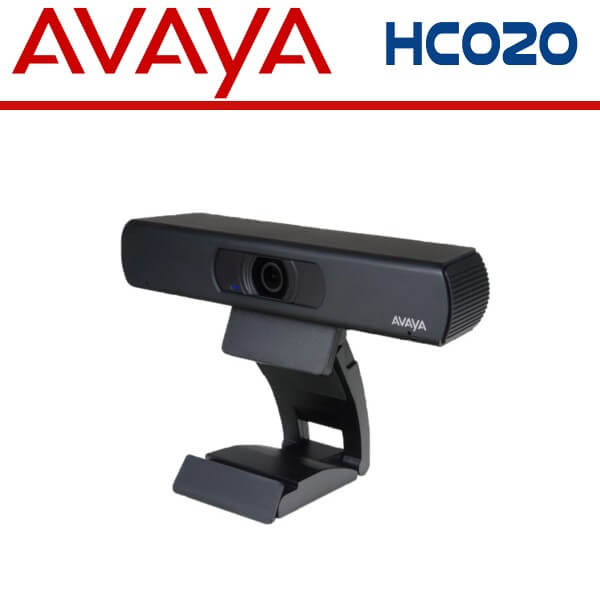

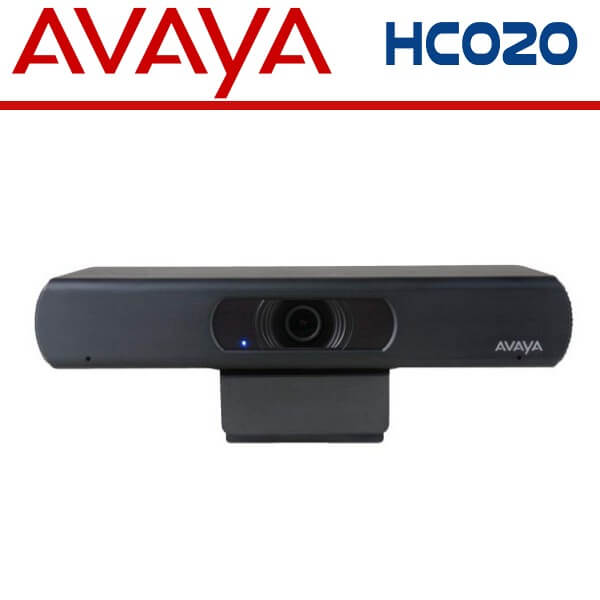

Avaya HC020 Huddle Video Conference Camera Dubai

The Avaya HC020 Dubai Huddle Camera offers exceptional flexibility, making it compatible with XT series products or as a laptop camera for both Windows and macOS systems. Equipped with an Ultra HD 4K sensor, it provides a 4K UHD video signal at 30fps, ensuring crystal clear images. The camera also features an impressive 8x digital zoom, which enhances image quality and detail. For superior audio clarity, the HC020 Dubai includes an omnidirectional microphone with 360° coverage, effective up to 9.8 feet. Additionally, the camera boasts a 123° horizontal and 80° vertical field of view, providing an optimal image area, and comes with a remote control for efficient zooming, panning, and backlight control.

The Avaya HC020 Dubai Huddle Camera is designed with an integrated USB 3.0 Type-B to Type-A cable for connection to your host system, supporting H.264 video compression. It also includes an HDMI port for uncompressed video sharing. For small rooms, an optional 1-way POD microphone is available. The camera’s user-friendly design ensures easy deployment without the need for technical expertise. It is ideal for individual workgroups, small to medium-sized businesses, and can seamlessly integrate with existing enterprise infrastructure.

The Avaya HC020 Dubai is the latest addition to the range of cameras designed for Huddle Rooms, usable with XT as either primary or additional cameras. These huddle cameras are perfect for enhancing small to medium meeting rooms and spaces, providing utility, security, and an exceptional experience for training, brainstorming, team, and customer meetings with a private connection. Their ease of installation and use makes them perfect for individual workgroups, small to mid-size businesses, or as part of an enterprise collaboration deployment. Simplify collaboration and video conferencing with the IX Huddle HC020 Full HD Web and Video Conference Camera from Avaya. This camera, designed for use with Avaya XT hardware or the Equinox client, delivers full HD video for small group conferences or individual users. With features like 8x digital zoom and USB 3.1 Gen 1 and HDMI interfaces, the HC020 can be clipped to a laptop or monitor or mounted on a tripod or ceiling. The integrated microphone offers omnidirectional pickup with a 3m radius and 360° coverage, ensuring clear audio for all participants.

General Features

Easy to use and deploy
- You do not need any technical expertise in operating the Avaya HC020 since it is designed to offer the easiest possible deployment process.
Maximum Efficiency
- Users can enjoy full control directly from the XT Room System through Remote Control, Scopia Control, Web Interface, APIs, and so on. Avaya Huddle Cameras HC020 Dubai is the Best solution from Video Conference Dubai.
Full-Scene Coverage
- For outstanding audio clarity, the HC020 Dubai is fitted with an omnidirectional microphone which offers a 360° coverage for those within a distance of 9.8′. A powerful 8x digital zoom capability further enhances the image quality and fine details. What’s more, a 123° horizontal and 80° fields of view offer a suitable image area while an included remote control allows for effective zooming, panning, as well as backlight control for maximum efficiency.
Perfect for small, medium and large meeting spaces
- The huddle cameras are great for enabling all of your small to medium meeting rooms and spaces, delivering utility, security, and an exceptional experience for training, brainstorming, team and customer meetings with a private connection. the benefit of installation and use make them ideal for individual workgroups, small to mid-size businesses, or complementing an enterprise collaboration deployment.
Camera output: USB-HDMI
- An integrated USB 3.0 Type-B to Type-A cable enables you to connect your Avaya HC020 Huddle Camera Dubai to your host system for H.264 video compression. An included HDMI port also provides uncompressed video which you may share with others as desired.

Specifications.

Camera Model: HC020 1080p@30
Image device : 4K@30/25 CMOS 1/2.5’’
Video Formats with laptop : 4K@30/25 1080p60/50/30/25
Video Formats with XT : 1080p30 / 720p30
Video signal : Compressed (H.264) on USB or uncompressed on HDMI
Focal Length : f=2.8mm
Min object distance (wide) : 500mm
Min illumination : 0.5 Lux @ (F1.8, AGC ON)
HFoV : 104° (up to 123°)
VFoV : 68°
Optical Zoom (*) : NA
Digital Zoom (*) : 8x
Pan Range : ePTZ (**)
Tilt Range : ePTZ (**)
Serial Control : Via USB
Ceiling Mount : Supported
Camera mount : Tripod screw hole (1/4-20 UNC)
Weight : 0.34Kg
Dimensions (w/h/d): 194mm x 34mm x 42mm (without bracket)
Current consumption (max): 0.6A
Video configurations : White balance (auto/manual); Focus Mode (auto/manual); Sharpness; Backlight; Exposure Compensation; Picture (auto/manual) and WDR level
Voltage Range : 5V(USB)
IR repeater as TTL signal : Not available
Camera Output : USB 3.0 – HDMI
Microphone : Included, frequency response 50Hz – 8KHz, 3m radius omni (6m diameter), coverage 360°
Presets : 122 (for all connected cameras, directly on XT codec)
Far end camera control : Through XT codec (H.224, H.281)
Interoperability : The Avaya HC020 camera is compatible with Avaya Conferencing clients such as Spaces and Avaya Workplace and with third-party conferencing clients such as Microsoft© Skype for Business, Microsoft© Teams, Zoom©, BlueJeans©, Google Hangouts, Pexip, Cisco WebEx, StarLeaf, Rainbow, Ring Central, Ring Central Meetings
