Description

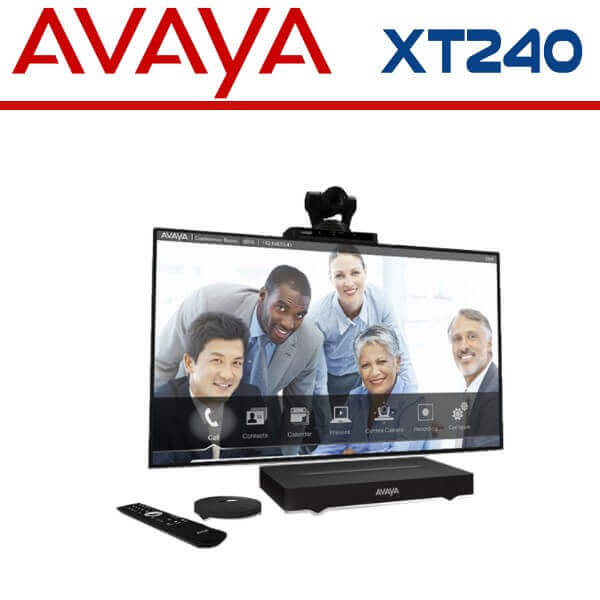

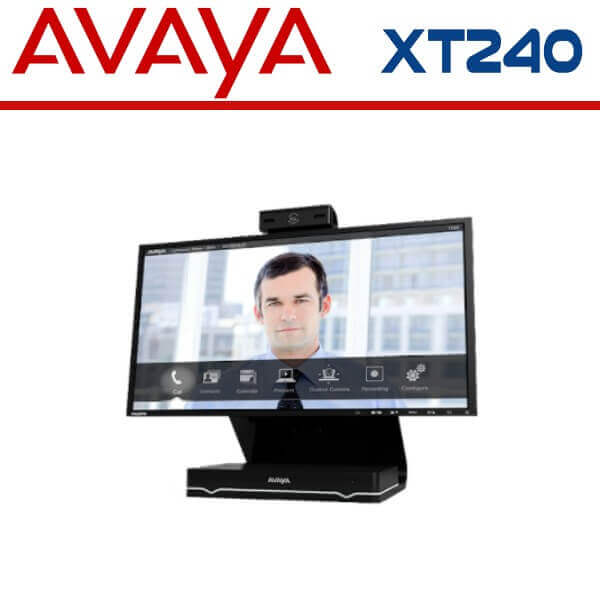

Avaya XT240 Rooms Systems Dubai

Experience seamless and high-quality video calls in stunning HD 1080p resolution with the Avaya XT240 Dubai Rooms System . This advanced system enhances content sharing and interaction through built-in features like multi-party conferencing, making collaboration effortless.

The Avaya XT240 Dubai is an all-in-one video conferencing solution built on the XT-platform, featuring a 24″ Full HD LCD monitor designed for desktop use. This system is engineered for compatibility with various space systems and infrastructure components, offering 1080p60 video and content channels, an integrated 4-port MCU, and an external HD camera with 10x zoom. It employs H.264 High Profile technology to deliver exceptional video quality at half the usual bandwidth. The Executive Scopia XT 240’s intuitive user interface can function as both a PC monitor and a remote control, enhancing usability.

The Scopia XT Executive boasts a 24″ full HD LED display, an HD camera, high-fidelity speakers, an echo-canceling microphone, and an advanced video conferencing platform, creating an elegant, all-in-one desktop video conferencing system and PC display.

The Avaya XT240 Dubai Rooms System in Dubai also offers optional embedded multi-party conferencing for spontaneous group meetings, unique HD 1080p for detailed content sharing, and simultaneous 1080p video for an exceptional experience. Utilizing H.264 High Profile and H.264 Scalable Video Coding (SVC), it ensures bandwidth-efficient, high-performance video collaboration across real-world networks.

Features:

Integrated Desktop Video Conferencing & PC Display
- With a 24” full HD LED display, HD camera, high fidelity speakers, echo cancelling microphone, and advanced video conferencing platform, the Scopia XT Executive delivers an elegant all-in-one desktop video conferencing system and PC display. The modern design of the XT Executive complements any executive’s desktop.
Exceptional HD Experience
- HD 1080p for highly detailed content sharing and simultaneous 720p (1080p optional) video deliver an outstanding experience. H.264 High Profile provides ultimate bandwidth efficiency and H.264 Scalable Video Coding (SVC) offers high performance over congested networks. The XT Executive delivers an exceptional experience for real-world user applications and network conditions.
Intuitive and Easy-to-Use
- Making video calls is easy, instant and intuitive with no training required. A simple-to-use application provides complete control from a PC or Mac. With Microsoft Exchange calendar support, users can join meetings directly from the integrated system calendar. The advanced on-screen participants list gives leaders full meeting moderation. For a Multi-Touch experience, the XT Executive can be enabled for management by the Apple iPad device.
Embedded Multi-Party Conferencing
- The Avaya XT240 Dubai Rooms System Dubai offers optional embedded multi-party conferencing with support for up to four participants. This dedicated multipoint collaboration capability is always at the ready for impromptu group meetings in today’s fast-paced business environment.
All-in-one Conferencing Solution
- The Avaya XT240 Dubai Rooms System Dubai is also offered as a unique all-in-one video conferencing solution. It combines the XT Executive’s video capabilities with embedded four-way multi-party conferencing, Scopia Desktop and Mobile for remote participants and BYOD initiatives, along with firewall traversal to deliver an easily deployed all-in-one collaboration solution.

Technical Specifications

Display

Screen size: 23.6” widescreen
LED technology
Native resolution: 1920 x 1080 (16:9, 1080p)
Viewing angle: 170/160° (typical)
Brightness: 250cd/m2 (typical)
Contrast ratio: 1000:1 (typical)
Response time: 2ms
Swivel stand

Communications

IP: H.323, SIP (RFC 3261)
ISDN¹Supported through Scopia Gateway
Bit rate: H.323, SIP: up to 6/12¹Mbps
320: up to 2 Mbps
MCU compatibility: H.243, H.231

Video

2 simultaneous channels: 720p camera + content
263, H.263+, H.263++, H.264, H.264 High Profile, H.264 SVC (both using Baseline and High Profile)
Dual video: H.239 (H.323); BFCP (SIP)
HDMI input formats for auxiliary camera:1920 x 10up to 80 @ 25, 30, 50, 60fps¹, 1280 x 720 @ 25, 30, 50¹, 60fps¹
Live video encoding formats: up to 1280 x 720 @ 25, 30, 50, 60fps: HD720p 25, 30, 50, 60fps
DVI input formats: up to 1920 x 1080 @ 25, 30, 50, 60fps
PC content encoding formats: Same as DVI input formats @ 60fps

Camera

Resolution: 720p 30fps (optional 180p30)
Digital Zoom: 1.8x
Field of View (H): 68°

Recording

Recording on USB key / disk, not available with encrypted call
USB disk formats: FAT32, EXT2, EXT3, EXT4
Recording formats: MP4 file

Audio

Acoustic echo cancellation
Adaptive post filtering
Audio error concealment
Automatic Gain Control (AGC)
Automatic noise suppression
Frequency response:
- 711: 300 – 3,400 Hz
- G.728: 50 – 3,400 Hz¹
- G.729A: 50 – 3,400 Hz¹
- G.722, G.722.1: 50 – 7,000 Hz
- G.722.1 Annex C: 50 – 14,000 Hz
- AAC-LD: 50 – 14,000 Hz
- G.719: 50 – 20,000 Hz

Microphone

180º range

Integrated Speakers

Audio/Video Interfaces

Video inputs: 1 x HDMI, 1 x DVI-I
Audio inputs: 1 x HDMI, 1 x Microphone Array Pod (RJ-11), 1 x 3.5 mm (1/8”) line in jack for audio source (analog / digital with mini-TOSLINK adapter)
Audio outputs: 1 x 3.5 mm (1/8”) line out jack (analog / digital with mini-TOSLINK adapter)

USB Ports

1 x USB3

Network Features

IPv4 and IPv6 simultaneous support
Auto Gatekeeper discovery
QoS support: IP Precedence, IP Type of Service (ToS), Differentiated Services (diffserv)
Avaya NetSense bandwidth adaptation for high quality over unmanaged networks
DTMF tones: H.245, RFC2833
SNTP date and time synchronization
IP adaptive packet management including: Flow control, Packet Loss based down-speeding, Packet Loss recovery policies

Network Protocols
