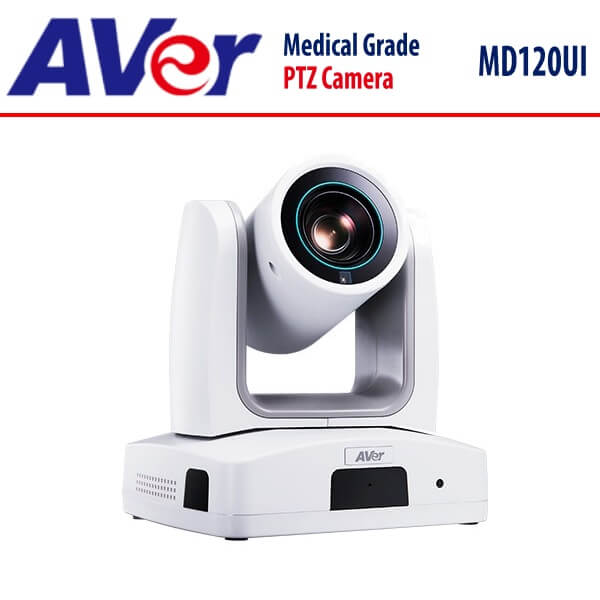

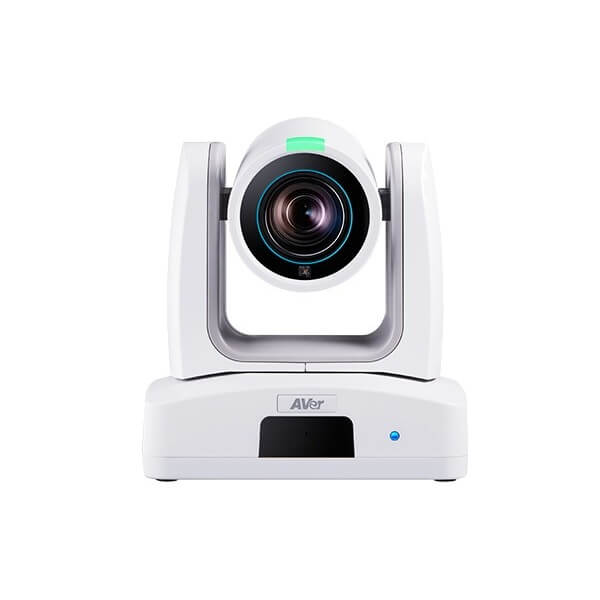

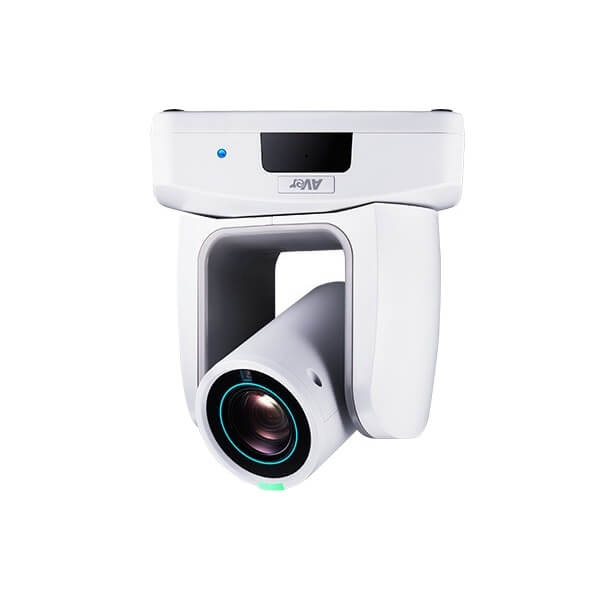

AVer MD120UI Medical Grade PTZ Camera Dubai

The AVer MD120UI Dubai stands as a groundbreaking innovation in the realm of patient monitoring, heralding a new era of precision and efficiency in healthcare provision. Pioneering the market as the world’s inaugural PTZ (Pan-Tilt-Zoom) camera tailored explicitly for patient surveillance, its design represents a fusion of cutting-edge technology and healthcare ingenuity. Infused with the latest advancements in artificial intelligence (AI), the MD120UI Dubai revolutionizes the landscape of patient care, empowering healthcare practitioners with unparalleled capabilities to monitor, assess, and respond to patient needs promptly and effectively. Gone are the days of cumbersome monitoring systems; with the MD120UI Dubai, healthcare providers can seamlessly integrate advanced surveillance into their workflow, enhancing patient safety and well-being.

Equipped with a formidable array of features, the AVer MD120UI Dubai sets a new standard for patient monitoring excellence. Its 20X optical zoom capability coupled with 4K imaging prowess ensures that every detail is captured with stunning clarity, facilitating accurate observation and assessment of patient conditions. Furthermore, the inclusion of an IR (Infrared) night view function extends its monitoring capabilities into the dark, enabling uninterrupted surveillance around the clock, without the limitations of traditional lighting conditions. The implications of such technological advancements are profound, offering healthcare facilities the means to uphold constant vigilance over patient welfare with unprecedented precision. No longer constrained by blind spots or inadequate visual fidelity, the AVer MD120UI Dubai empowers healthcare providers to maintain a comprehensive understanding of patient status, facilitating timely interventions and ensuring optimal care outcomes.

In essence, the AVer MD120UI Dubai epitomizes the convergence of innovation and compassion in healthcare, heralding a transformative shift in patient monitoring practices. By harnessing the power of AI and cutting-edge imaging technologies, it not only enhances the efficiency of healthcare delivery but also underscores a commitment to patient-centric care that is unrivaled in its dedication and efficacy.

Specifications

Camera

• Image Sensor
  • 1/2.8′ CMOS
• Effective Picture Elements
  • 8 Megapixels

• Output Resolutions
  • Resolutions: 4K / 1080p / 720p
  • Frame Rates: 60 / 59.94 / 50 / 30 / 29.97 / 25
• Minimum Illumination
  • 0.5 lux (50 IRE, F1.6, Max. AGC, 1/30)

• S/N Ratio
  • ≥ 50 dB
• Gain
  • Auto, Manual

• TV Lines
  • 1000 (Center / Wide)
• Shutter Speed
  • 1/1s to 1/10,000s

• Exposure Control
  • Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
• White Balance
  • Auto / Manual

• Optical Zoom
  • 20X
• Digital Zoom
  • 1X

• Total Zoom
  • 20X
• Viewing Angles
  • DFOV: 69.2° (Wide) to 4.1° (Tele)
  • HFOV: 62.3° (Wide) to 3.6° (Tele)
  • VFOV: 37.7° (Wide) to 2.1° (Tele)

• Focal Length
  • f = 4.5 mm (Wide) to 90 mm (Tele)
• Aperture (Iris)
  • F = 1.8 (Wide) to 4.7 (Tele)

• Minimum Working Distance
  • 0.1 m (Wide) , 1.2 m (Tele)
• Pan / Tilt Angles
  • Pan: ±170°, Tilt: +90° / -30°

• Pan / Tilt Speed (Manual)
  • Pan: 0.1° to 100° / sec, Tilt: 0.1° to 100° / sec
• Preset Speed
  • Pan: 200° / sec, Tilt: 200° / sec
• Preset Positions
  • 10 (IR), 256 (RS-232, RS-422, IP)
• Camera Control – Interfaces
  • RS-232 / RS-422 / Ethernet
• Camera Control – Protocols
  • VISCA (RS-232 / RS-422 / IP), CGI (IP)
• Image Processing
  • Mirror / Flip / Freeze / WDR / BLC
• Power Frequencies
  • 50 Hz, 60 Hz

AI Function

• Mode
  • Eye Tracking

Privacy

• Protection Mode
  • Privacy Mode, Privacy Indicator

General

• Power Requirement
  • 12V
• Power Consumption
  • 24W

• PoE
  • PoE+ (IEEE802.3at)
• Dimensions
  • 180(W) x 145(D) x 183.5(H) mm

• Net Weight
  • 1.7 ± 0.1 kg
• Housing Material
  • Anti-UV

• Application
  • Indoor
• IR Night Vision
  • Yes

• Security
  • Kensington Slot
• IR Remote Control
  • Yes

• Operating
  • Temperature: 0 °C to +40 °C
  • Humidity: 20% to 80%
• Storage Conditions
  • Temperature: -20 °C to +60 °C
  • Humidity: 20% to 95%

Audio

• Channels
  • 2ch Stereo
• Codec
  • AAC-LC (48K)

• Built-in Microphone
  • 1 (Omni-Directional)

Interface

• Video Outputs
  • HDMI, IP, USB
• Audio Outputs
  • HDMI, IP, USB

• Audio Inputs
  • N/A

IP Streaming

• Resolution
  • 4K 60fps
• Network Video Compress Formats
  • H.264, H.265, MJPEG

• Maximum Frame Rate
  • 4K 60fps
• Bit-Rate Control Modes
  • VBR, CBR

• Range of Bit-Rate
  • 512Kbps to 64Mbps
• Network Interface
  • 10 / 100 / 1000 Base-T

• Multi-Stream Capability
  • 2 (RTSP / Web page), 4K 60fps Max.
• Network Protocols
  • IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP RTP/RTCP, RTSP, RTMP,VISCA over IP

USB

• Connector
  • USB 3.0 (Type-B)
• Video Formats
  • MJPEG

• Maximum Video
  • 2160p
• USB Video Class (UVC)
  • UVC 1.1

• USB Audio Class (UAC)
  • UAC 1.0

Web UI

• Live Video Preview
  • Yes
• Camera PTZ Control
  • Pan, Tilt, Zoom, Focus, Preset Control

• Camera / Image
  • Exposure, White Balance, Picture
• Network Configuration
  • DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

• IP Search and Configuration Tool
  • Support Windows® 7 or later
• PTZ Management
  AVer ViewCare
  • Support Windows® 7 or later

• PTZ Control Panel
  • Supports iOS & iPadOS® 11 or later
• Camera Setting Tool
  • Supports Windows® 7 or later, macOS® 10.14 or later

Warranty

• Camera
  • 3 Years
• Accessories
  • 1 Year

• Package Contents
  • Camera, Drilling Paper, Ceiling Mount Bracket, QR Code Card, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), USB Cable (Type-B)
• Optional Accessories
  • AVer CL01 PTZ Camera Controller, L-Type Wall Mount
