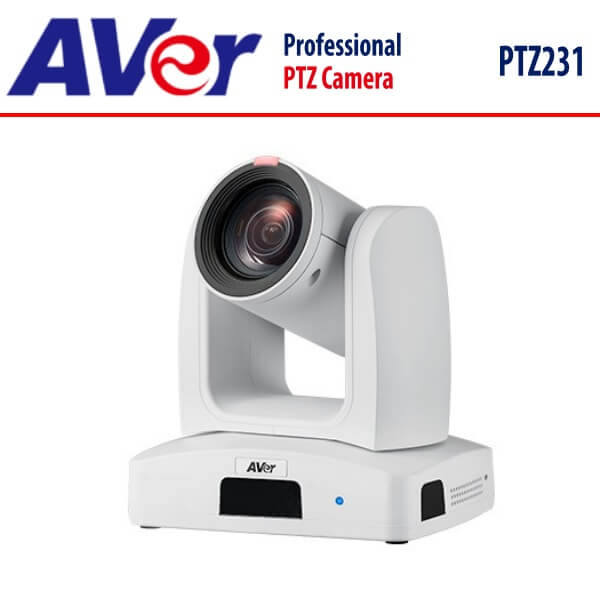

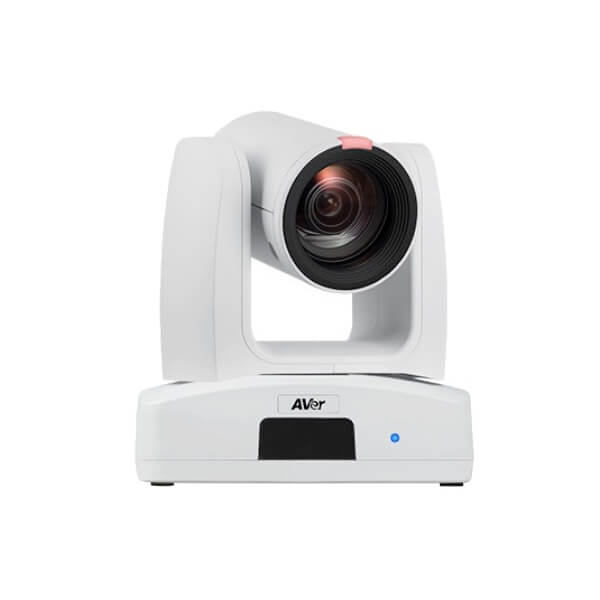

Aver PTZ231 Professional PTZ Camera Dubai

Step into the realm of superior streaming experiences with the AVer PTZ231 Dubai, a cutting-edge PTZ camera designed to elevate your content creation to unprecedented heights. Immerse yourself in the realm of professional-grade streaming, where every frame comes to life in stunning Full HD 1080p resolution at an impressive 60 frames per second.Equipped with a powerful 30X optical zoom, the AVer PTZ231 Dubai grants you the freedom to capture every intricate detail with precision and clarity, no matter the distance. Whether you’re broadcasting a live event, hosting a webinar, or engaging with your audience through online gaming, this camera ensures that every visual aspect is rendered with unparalleled sharpness and fidelity.

But the AVer PTZ231 Dubai doesn’t stop there—it goes beyond conventional streaming solutions with its innovative SmartShoot feature. With SmartShoot, you have the ability to automate camera movements, allowing for dynamic and seamless transitions between different shots without the need for manual adjustments. Say goodbye to static visuals and hello to a more engaging and immersive viewing experience for your audience.By choosing the AVer PTZ231 Dubai, you’re not just investing in a camera—you’re investing in a tool that empowers you to unlock your creative potential and captivate your audience like never before. Elevate your livestream performances, stand out from the crowd, and leave a lasting impression with the AVer PTZ231 Dubai.

Specifications

Camera

Image Sensor
- 1/2.8” 1080p Exmor CMOS
Effective Picture Elements
- 2 Megapixels

Output Resolutions
- 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
Minimum Illumination
- 0.5 lux (IRE50, F1.6, 30fps)

S/N Ratio
- ≥ 50 dB
Gain
- Auto, Manual

TV Lines
- 1000 (Center)
Shutter Speed
- 1/1 to 1/32,000 sec

Exposure Control
- Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White Balance
- Auto, Manual, ATW, One Push

Optical Zoom
- 30X
Digital Zoom
- 1X

Total Zoom
- 30X
Viewing Angles
- DFOV: 69.2° (Wide) to 2.8° (Tele)
- HFOV: 62.3° (Wide) to 2.5° (Tele)
- VFOV: 37.3° (Wide) to 1.4° (Tele)

Focal Length
- f = 4.5 mm (Wide) to 135 mm (Tele)
Aperture (Iris)
- F = 1.8 (Wide) to 4.7 (Tele)

Minimum Working Distance
- 0.1 m (Wide)
- 1.2 m (Tele)
Pan / Tilt Angles
- Pan : ±170°
- Tilt : +90° / -30°

Pan / Tilt Speed (Manual)
- Pan : 0.1° to 100° / sec
- Tilt : 0.1° to 100° / sec
Preset Speed
- Pan : 200° / sec
- Tilt : 200° / sec

Preset Positions
- 10 (IR)
- 256 (RS-232, RS-422, IP)
Camera Control – Interfaces
- RS-232 (DIN8)
- RS-422 (RJ45)
- IP

Camera Control – Protocols
- VISCA (RS-232 / RS-422 / IP)
- PELCO-D & PELCO-P (RS-232 / RS-422)
- CGI (IP)
- ONVIF
Image Processing
- Noise Reduction (2D / 3D)
- Flip
- Mirror

Power Frequencies
- 50 Hz, 60 Hz

AI Function

Mode
- SmartShoot

Audio

Channels
- 2ch Stereo
Codecs
- AAC-LC

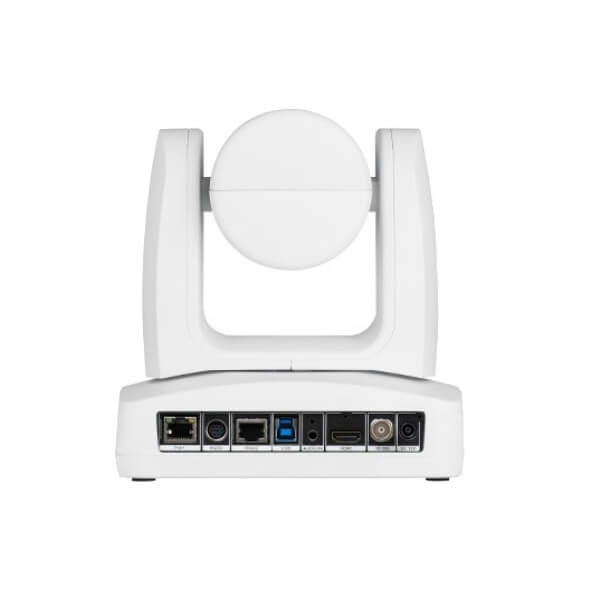

Interface

Video Outputs
- 3G-SDI, HDMI, IP, USB
Audio Outputs
- 3G-SDI, HDMI, IP, USB

Audio Inputs
- MIC in, Line in

General

Power Requirement
- AC 100 – 240V to DC 12V/2A
Power Consumption
- 19W

PoE
- PoE+
Dimensions (W x H x D)
- 180.0 x 192.0 x 145.0 mm

Net Weight
- 2.0 (±0.1) kg
Application
- Indoor

Tally Lamp
- Yes
Security
- Kensington Slot

Remote Control
- Infrared
Operating Conditions
- Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%

Storage Conditions
- Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%

IP Streaming

Resolution
- 1080p 60fps
Network Video Compress Formats
- H.264, H.265, MJPEG

Maximum Frame Rate
- 1080p 60fps
Bit-Rate Control Modes
- VBR, CBR (selectable)

Range of Bit-Rate Setting
- 512 Kbps to 120 Mbps
Network Interface
- 10 / 100 / 1000 Base-T

Multi-Stream Capability
- 4
- 1080p 60fps: RTSP, HDMI, USB & 3G-SDI
Network Protocols
- IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP

NDI^®HX
- License Upgrade to NDI HX2 available in 2024Q2

USB

Connector
- USB 3.1
Video Formats
- MJPEG, YUY2

Maximum Video Resolution
- 1080p
USB Video Class (UVC)
- UVC 1.1

USB Audio Class (UAC)
- UAC 1.0

Web UI

Live Video Preview
- Yes
Camera PTZ Control
- Pan, Tilt, Zoom, Focus, Preset Control

Camera / Image Adjustment
- Exposure, White Balance, Picture
Network Configuration
- DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

IP Search and Configuration Tool
- Support Windows^® 7 or later
PTZ Management
- Support Windows^® 7 or later

PTZ Control Panel
- Supports iOS & iPadOS^® 11 or later
PTZ Link
- Supports Windows^® 7 or later, macOS^® 10.14 or later

OBS Plugin for PTZ Cameras
- Supports Windows^® 8 or later, macOS^® High Sierra v10.13 or later
CaptureShare
- Supports Windows^® 7 or later, macOS^® 10.14 or later

Warranty

Camera
- 5 Years
Accessories
- 1 Year

Package Contents
- Camera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate (x2), M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Tie (x4)
