The Aver UE1 Dubai USB Extender is expertly engineered to surpass the conventional limitations associated with USB distance, empowering you to extend the range of your PTZ cameras far beyond the boundaries of standard connections.

Category:

Description

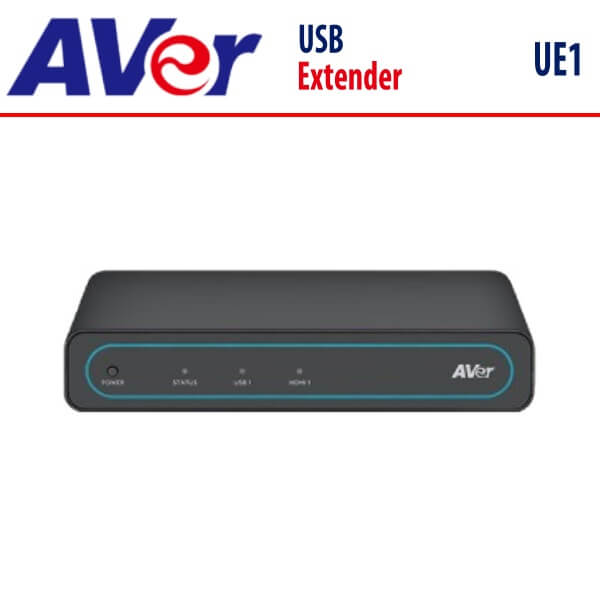

Aver UE1 USB Extender Dubai

The Aver UE1 Dubai USB Extender is expertly engineered to surpass the conventional limitations associated with USB distance, empowering you to extend the range of your PTZ cameras far beyond the boundaries of standard connections. With this advanced USB 3.0 extension solution, you can transmit crystal-clear, high-bandwidth signals across substantial distances, ensuring uninterrupted, high-definition video performance. The Aver UE1 Dubai is an ideal choice for settings that require seamless and dependable connectivity, such as conference rooms, lecture halls, studios, and live-streaming environments.

By utilizing your existing cabling infrastructure, the UE1 offers an easy and cost-efficient method to maintain exceptional video quality, even when PTZ cameras are installed in remote or difficult-to-access locations. Its sleek and unobtrusive design ensures that the extender kit integrates smoothly into any professional setting, without drawing unnecessary attention.

Whether you are live-streaming events, recording important meetings, or enabling remote learning, the Aver UE1 Dubai USB Extender delivers smooth and reliable video transmission. This allows you to broaden your operational scope without ever compromising on performance.

Features

Effortless Extension

Place your PTZ camera farther away while maintaining high-quality 4K video.

Flexible Deployment

Utilizes readily-available CAT cabling for a cost-effective and adaptable installation.

Compact Design

Takes up minimal space and integrates seamlessly into any environment.

Plug-and-Play Simplicity

Operates immediately upon connection, eliminating the need for installing drivers.

Technical Specifications

  • USB Audio Class (UAC) Protocol
    • USB 3.0
  • USB Video Class (UVC) Protocol
    • USB 3.0
  • Output Resolution
    • USB: Up to 4K 60fps
    • HDMI: Up to 4K 60fps (Available in 2024Q4)
  • Transmission Rate
    • Up to 5 Gbps
  • Network Bandwidth
    • 1 Gbps
  • Transmission Distance
    • 100m (328ft.) over CAT5e/6/7 cable
  • Connections
    • Output
      • USB 3.0 Type-B x 1
      • RJ-45 x 1
      • HDMI x 1
    • Input
      • RJ-45 x 1
  • LED Indicators
    • Yes, status and connections LED
  • Power Source
    • AC 100 – 240V to DC 54V/1.2A
  • Power Consumption
    • 65W
  • Power Supply to Cameras
    • PoE++
  • Dimensions (W x H x D)
    • 0 x 32.5 x 118.0 mm
  • Net Weight
    • 62 kg
  • Operating Conditions
    • Temperature: 0 °C to +40 °C
    • Humidity: 20% to 80%
  • Storage Conditions
    • Temperature: -20 °C to +60 °C
    • Humidity: 20% to 95%
  • Warranty
    • 5 Years
  • Package Content
    • UE1, Power Adapter & Power Cord, USB 3.0 Type-A to B Cable, DIN Rail Mounting Clip, Cable Fixing Plate, Cable Tie (x3), M3 x 5.1 mm Screw (x4), Quick Start Guide
