Description

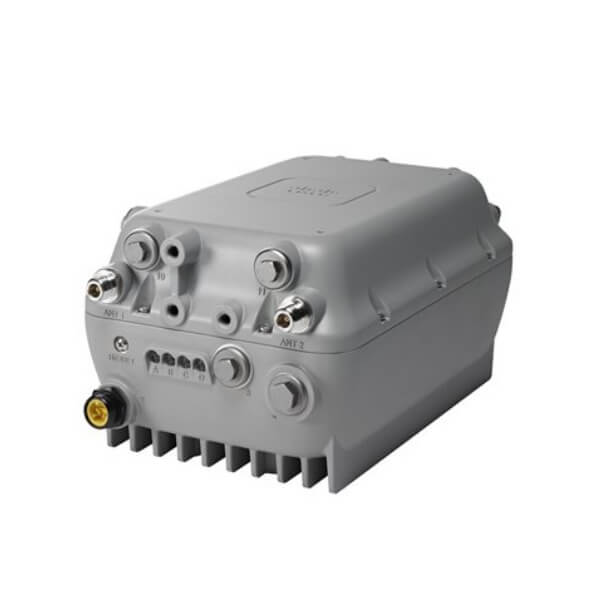

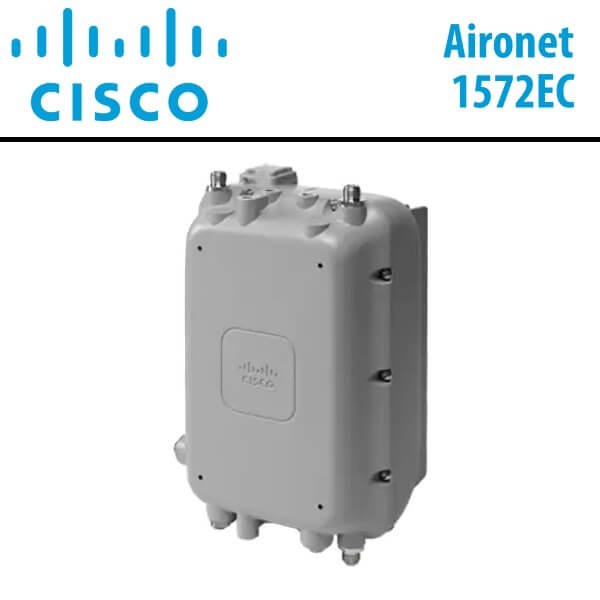

Cisco Aironet1572EC Dubai
The Cisco Aironet1572EC Dubai outdoor access point is the preferred choice for both enterprise and carrier-class network operators seeking to expand Wi-Fi coverage in outdoor settings. Recognized as the industry’s premier outdoor access point, it adheres to the latest Wi-Fi standard, 802.11ac, offering data connection speeds of up to 1.3 Gbps. The industrial-grade Cisco Aironet1572EC Dubai supports 4×4 Multiple-Input and Multiple-Output (MIMO) smart antenna technology and three spatial streams, ensuring optimal performance.
The Cisco Aironet1572EC Dubai excels in delivering higher throughput across a broader area, providing more extensive coverage. Particularly effective in high-density environments where the close proximity of numerous users generates RF interference, the AP is well-suited for managing such scenarios. Environments that stand to benefit from the Aironet 1570 Series include:
- Outdoor university and school campuses
- Public venues such as stadiums, train stations, and airports
- Service provider networks requiring Wi-Fi offload for mobile, fixed-line, and cable operators
- Mining operations
- Manufacturing yards
- Municipalities
- Large metropolitan areas
Cisco Aironet1572EC Dubai access points come equipped with four separate N-type female connectors capable of carrying dual-band signals. Through software control, users can configure these connectors in various ways, such as having the bottom pair carry only 2.4-GHz signals and the top pair carry only 5-GHz signals, providing multiple configuration options.
Features:
802.11ac support with 4×4 MIMO, three spatial streams-Delivers higher data rates over a greater area with pervasive coverage than any competing AP. Provides a data rate of up to 1.3 Gbps, roughly triple the rates offered by today’s high-end 802.11n access points.
Maximum RF radiated power allowable on both 2.4 and 5 GHz radios- Lets you use the fewest number of APs to get the greatest possible area coverage and highest throughput rates.
Modular architecture design- The architecture of the Cisco Aironet1572EC Dubai models provides the flexibility for a potential add-on module for future proofing and investment protection. For example, you could add external modules with technology options such as a 4G LTE picocell or a sensor. Such a module could be field-upgradeable to an existing 1570 network.
GPS support- Keeps track of the location of all outdoor APs deployed. With a built -in GPS receiver, the coordinates of the AP can be located by your WLAN controller or management system.
Technical Specs:
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Outdoor |
| Built-in Devices | GPS |
| Width | 7.9 in |
| Depth | 6.3 in |
| Height | 11.8 in |
| Weight | 13.45 lbs |
| Localization | Puerto Rico, United States |
| Expansion / Connectivity | |
| Interfaces |
|
| Power | |
| Power Over Ethernet (PoE) Supported | UPOE |
| Voltage Required | DC 10 – 16 V |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 1.3 Gbps |
| Line Coding Format | CCK |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Spread Spectrum Method | DSSS |
| Network / Transport Protocol | L2TP, IPSec |
| Remote Management Protocol | CLI |
| Frequency Band | 2.4 GHz, 5 GHz |
| Status Indicators | Status, uplink |
| Features | Auto-sensing per device, MAC address filtering, DFS support, VPN passthrough, CleanAir technology, reset button, pole mountable, Maximum Ratio Combining (MRC), 4T4R MIMO technology, GPS sync compatible, ClientLink 3.0 technology, cyclic shift diversity (CSD), Cisco Flexible Antenna Port technology, power over cable (PoC), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, diplex filter split of 5-42 / 88-1000 MHz |
| Encryption Algorithm | LEAP, AES, TLS, PEAP, TTLS, TKIP, WPA, WPA2 |
| Authentication Method | X.509 certificates, Extensible Authentication Protocol (EAP) |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac |
| Manufacturer Warranty | |
| Service & Support | Limited warranty – 1 year |
| Service & Support Details | Limited warranty – 1 year |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 149 °F |
| Communications | |
| Protocols & Specifications | NA-DOCSIS3.0 |
| Miscallaneous | |
| Compliant Standards | ANSI C62.41, ICES-003, FCC Part 15.247, OET 65 C, RSS-210, RSS-102, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, NEMA Type 4X, UL 60950-1 Second Edition, FCC Part 15.107, FCC Part 15.109, AS/NZS 4268, FCC Part 15.407, ARIB STD-T66, ARIB STD-T71, IP67, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, EN 300 328, EN 301 489-1, EN 301 893, EN 301 489-17 |
