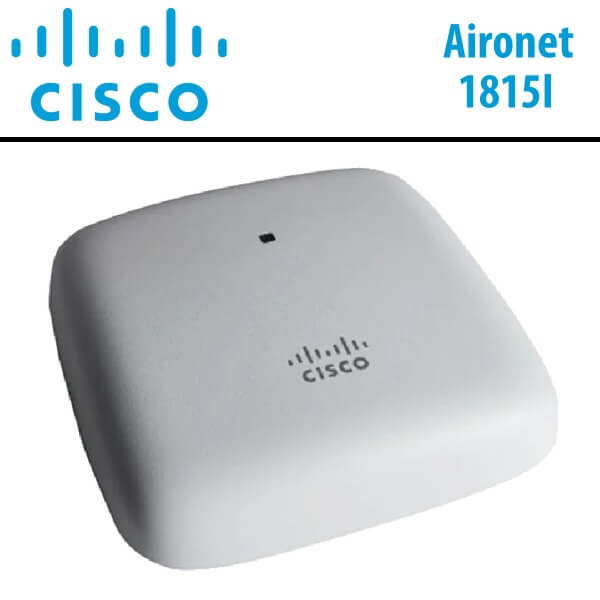

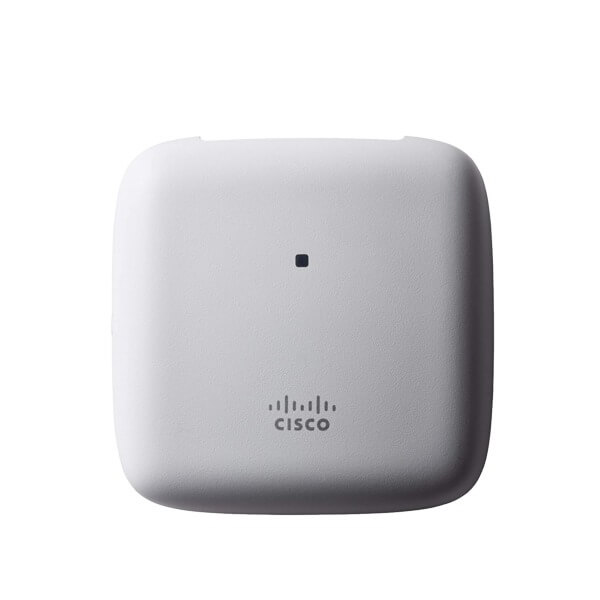

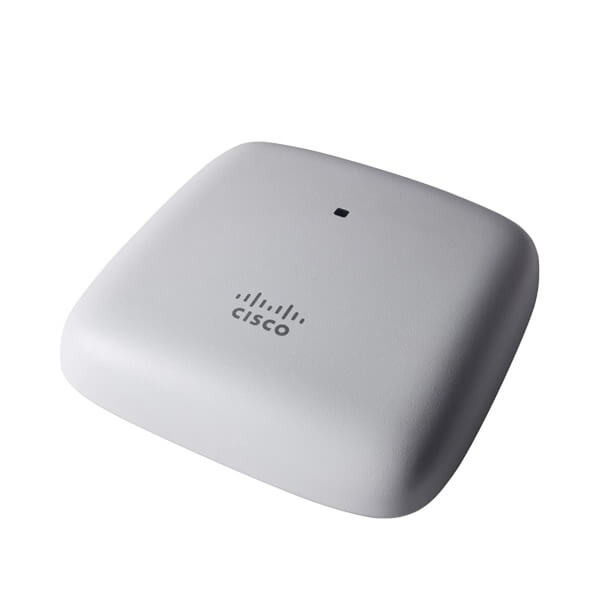

Cisco Aironet1815i Dubai

The Cisco Aironet1815i Dubai sets the benchmark for wireless performance, supporting the latest Wi-Fi standard, IEEE’s 802.11ac Wave 2. It effectively addresses the evolving demands of wireless networks, ensuring an enhanced user experience.

Extending its support to a new generation of Wi-Fi clients such as smartphones, tablets, and high-performance laptops with integrated 802.11ac Wave 1 or Wave 2 support, the Cisco Aironet1815i Dubai stays at the forefront of technological advancements.

Complying with the 802.11ac Wave 2 standard, the 1815i achieves an impressive data rate of up to 867 Mbps on the 5-GHz radio, surpassing the rates offered by access points supporting the 802.11n standard. This results in a total aggregate dual-radio data rate of up to 1 Gbps, laying a solid foundation for enterprise and service provider networks to meet and exceed the performance expectations of their wireless users.

Features:

Increased wireless performance

The Cisco Aironet1815i Dubai access point supports the latest 802.11ac Wave 2 standard for higher performance, greater access, and higher-density networks. With simultaneous dual radios and dual band with 802.11ac Wave 2 MU-MIMO functionality, this access point can handle the increasing number of high-bandwidth devices that will soon become a common part of the network.

Wired access

The Cisco Aironet1815i Dubai allows wired access via a single RJ-45 10/100/1000 auto-detection port. It supports full operation modes using PoE 802.3af power.

Mounting

These sleek access points with a small form factor are designed with flexible mounting options in mind. You can mount them directly on the ceiling or a wall. They are also easy to install.

MU-MIMO-

Multiuser (MU) Multiple-Input Multiple-Output (MU-MIMO) allows transmission of data to multiple 802.11ac Wave 2–capable clients simultaneously to improve the client experience. Prior to MU-MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time, typically referred to as Single-User MIMO (SU‑MIMO).

802.11ac Wave 2 with 2×2:2 MIMO technology uses two spatial streams when operating in SU-MIMO or MU-MIMO mode, offering 867-Mbps rates for more capacity and reliability than competing access points.

Cisco Mobility Express solution

Flexible deployment through the Mobility Express solution is ideal for small to medium-sized deployments. Easy setup allows the 1815i to be deployed on networks without a physical controller.

Integrated Bluetooth 4.1

Integrated Bluetooth Low-Energy (BLE) 4.1 radio for location and asset tracking (future availability).

Specifications

General
Device Type	Wireless access point
Ruggedized Design	Indoor
Width	5.9 in
Depth	5.9 in
Height	1.3 in
Weight	14.11 oz
Localization	Colombia, Venezuela, Canada, Chile, Bolivia, Uruguay, Peru, Paraguay, Ecuador, Costa Rica, El Salvador
Processor / Memory / Storage
Processors Installed	710 MHz
RAM	1 GB
Flash Memory	256 MB
Expansion / Connectivity
Interfaces	1 x 1000Base-T (PoE) – RJ-45 1 x console – RJ-45
Power
Power Over Ethernet (PoE) Supported	PoE
Power Consumption Operational	8.3 Watt
Antenna
Antenna	Internal
Networking
Form Factor	External
Connectivity Technology	Wireless
Data Transfer Rate	1 Gbps
Data Link Protocol	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Frequency Band	2.4 GHz, 5 GHz
Status Indicators	Status
Features	VLAN support, Wi-Fi Multimedia (WMM) support, 2T2R MIMO technology, Maximum Ratio Combining (MRC), 802.1x authentication, cyclic shift diversity (CSD), MU-MIMO technology, WPA encryption, packet aggregation A-MPDU, packet aggregation A-MSDU, SU-MIMO technology, Dynamic Frequency Selection (DFS)
Encryption Algorithm	AES, TLS, PEAP, TTLS, WPA, WPA2
Authentication Method	RADIUS, MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST
Compliant Standards	IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.3at, Bluetooth 4.1, IEEE 802.11r, IEEE 802.11ac Wave 2
Manufacturer Warranty
Service & Support	Limited warranty – advance hardware replacement – lifetime – response time: 10 days
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	10 – 90% (non-condensing)
Miscellaneous
Included Accessories	Mounting brackets, Torx security screw
Compliant Standards	VCCI, ICES-003, FCC Part 15.247, RSS-102, UL 2043, FCC, AES, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.107, FCC Part 15.109, FCC Part 15.407, ARIB STD-T66, ARIB STD-T71, EMI, EN 300 328, RSS-247, EN 301 893, AAA, CAN/CSA-C22.2 No. 60950-1, EN 301 489-17
