Description

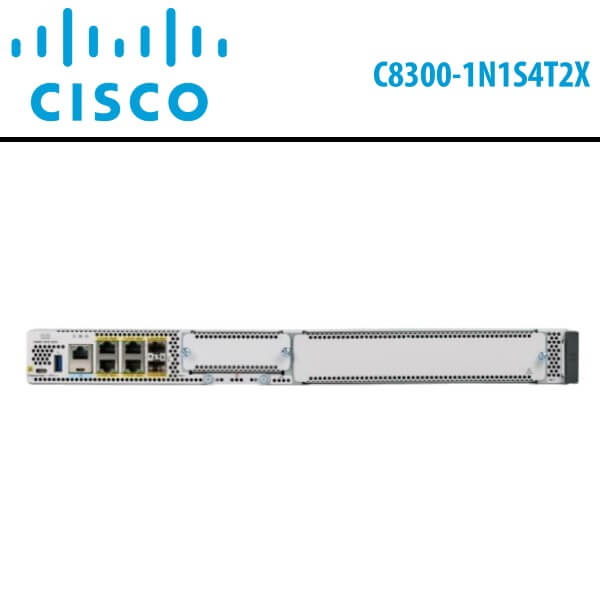

Cisco C8300-1N1S4T2X Dubai
The Cisco C8300-1N1S4T2X Dubai is meticulously designed for optimal performance, integrating SD-WAN Services seamlessly and offering flexibility to deliver security and networking services either from the cloud or on premises. This platform boasts increased WAN port density and redundant power supply capabilities. The Cisco C8300-1N1S4T2X Dubai Edge Platforms provide a diverse array of interface options, accommodating both lower and higher module density with backward compatibility to various existing WAN, LAN, voice, and compute modules. Fueled by Cisco IOS XE, a fully programmable software architecture, and API support, these platforms enable large-scale automation, achieving zero-touch IT capability while facilitating the migration of workloads to the cloud. Additionally, the Catalyst 8300 Series Edge Platforms are equipped with Trustworthy Solutions 2.0 infrastructure, ensuring platform security against threats and vulnerabilities through integrity verification and threat remediation.
Features :
Multicore processors-
- Intel x86 CPU with 8-GB memory default (up to 32 GB memory upgrade)
- High-performance multicore processors support high-speed WAN connections.
- Dynamic core allocation architecture that can leverage data plane cores for I/O and service plane as per-user configuration.
Embedded IPsec VPN hardware acceleration-
- Up to 5 Gbps of IPSec Internet Mix (IMIX) traffic
- Increases scalability for IPSec throughput needs for medium- and large-sized branches
- SSL and crypto hardware acceleration
Integrated Gigabit Ethernet ports-
- Cisco C8300-1N1S4T2X Dubai provides 6 built-in Layer 3 Ethernet ports for WAN or LAN with port speeds ranging from 10Mbps, 100Mbps, 1Gbps and up to 10Gbps, depending on platform model
- All platforms have at least 2 Ethernet ports that can support Small Form-Factor Pluggable (SFP or SFP+) based connectivity in addition to 4 RJ-45 connections, enabling fiber or copper connectivity.
DRAM-
- Cisco C8300-1N1S4T2X Dubai has 8G default DRAM and can be upgraded to 16G and 32G for higher scale and performance.
M.2 storage-
- The Cisco C8300-1N1S4T2X Dubai ship with default 16G M.2 USB for SD-WAN logging and additional storage on the platform. It can be upgraded to 32G M.2 USB and 600G M.2 Non-Volatile Memory Express (NVMe).
Technical Details
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | C8300-1N1S-4T2X |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 8300 |
| Product Name | Catalyst 8300 Router |
| Product Type | Router |
| Product UPC | 889728309479 |
| Interfaces/Ports : | |
| Total Number of Ports | 4 |
| Management Port | Yes |
| I/O Expansions : | |
| Number of Total Expansion Slots | 5 |
| Network & Communication : | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T
10GBase-X |
| Power Description : | |
| Redundant Power Supply Supported | Yes |
| Physical Characteristics : | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.7″ |
| Width | 17.5″ |
| Depth | 16.3″ |
| Weight (Approximate) | 20 lb |
