Description

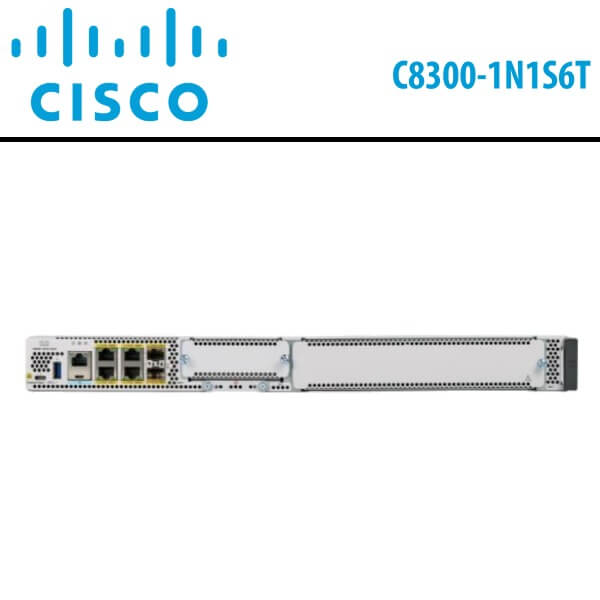

Cisco C8300-1N1S6T Dubai

The Cisco C8300-1N1S6T Dubai platforms bring forth Cisco’s secure, cloud-scale SD-WAN solution tailored for branch deployments. Engineered for superior performance, the Catalyst 8300 series seamlessly integrates integrated SD-WAN services, offering the flexibility to deliver security and networking services either from the cloud or on premises. The Cisco C8300-1N1S6T Dubai platform enhances WAN port density and incorporates a redundant power supply capability. Fueled by Cisco’s fully programmable software architecture and supported by APIs, these platforms enable scalable automation, achieving zero-touch IT capability during the transition of workloads to the cloud. The Cisco C8300-1N1S6T Dubai series edge platforms are additionally equipped with infrastructure that safeguards against threats and vulnerabilities, employing integrity verification and threat remediation measures.

Features:

Multicore processors-

• Intel x86 CPU with 8-GB memory default (up to 32 GB memory upgrade)
• High-performance multicore processors support high-speed WAN connections.
• Dynamic core allocation architecture that can leverage data plane cores for I/O and service plane as per-user configuration.

Embedded IPsec VPN hardware acceleration-

• Up to 5 Gbps of IPSec Internet Mix (IMIX) traffic
• Increases scalability for IPSec throughput needs for medium- and large-sized branches
• SSL and crypto hardware acceleration

Integrated Gigabit Ethernet ports-

• Cisco C8300-1N1S6T Dubai provides 6 built-in Layer 3 Ethernet ports for WAN or LAN with port speeds ranging from 10Mbps, 100Mbps, 1Gbps and up to 10Gbps, depending on platform model
• All platforms have at least 2 Ethernet ports that can support Small Form-Factor Pluggable (SFP or SFP+) based connectivity in addition to 4 RJ-45 connections, enabling fiber or copper connectivity.

DRAM-

• Cisco C8300-1N1S6T Dubai has 8G default DRAM and can be upgraded to 16G and 32G for higher scale and performance.

M.2 storage-

• The Cisco C8300-1N1S6T ships with default 16G M.2 USB for SD-WAN logging and additional storage on the platform. It can be upgraded to 32G M.2 USB and 600G M.2 Non-Volatile Memory Express (NVMe).

Technical Details

Part number	C8300-1N1S-6T
Description	C8300 1RU w/ 1G WAN (1 SM slot and 1 NIM slot, and 6 x 1-Gigabit Ethernet ports)
Multicore processors	Intel x86 CPU with 8 GB memory default
Embedded IPsec VPN hardware acceleration	Up to 5 Gbps of IPSec Internet Mix (IMIX) traffic
DRAM	8 GB
SD-WAN overlay tunnels scale	6000
Integrated Gigabit Ethernet ports	6 built-in 10/100/1000/10G Ethernet ports for WAN or LAN 2 SFP Ethernet ports, 4 RJ45 ports
Flash memory support	8-GB flash
M.2 storage	With default 16G M.2 USB for SD-WAN logging and additional storage on the platform and can be upgraded to 32G M.2 USB and 600G M.2 NVMe Storage
