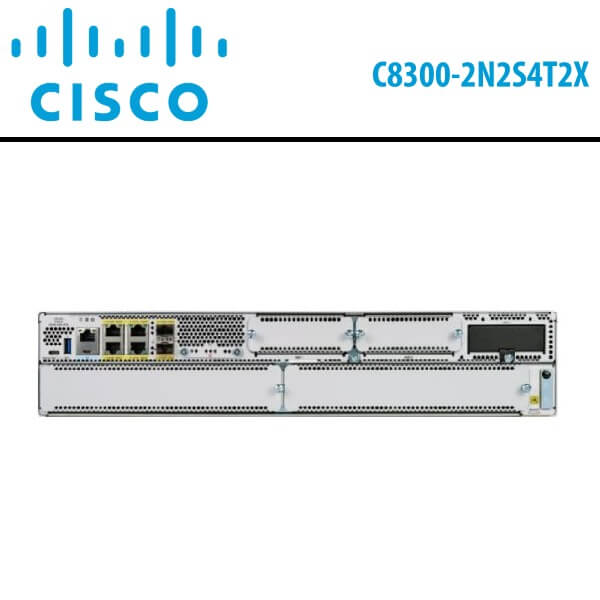

Cisco C8300-2N2S4T2X Dubai

The Cisco C8300-2N2S4T2X Dubai Series Edge Platforms, also known as Catalyst 8300, equipped with Cisco IOS XE SD-WAN Software, deliver Cisco’s secure and cloud-scalable SD-WAN solution designed for branch usage. Purpose-built for superior performance, the Catalyst 8300 Series seamlessly integrates integrated SD-WAN services and provides flexibility to deliver security and networking services either from the cloud or on premises.

The Cisco C8300-2N2S4T2X Dubai platform enhances WAN port density and includes a redundant power supply capability. Within the Catalyst 8300 Series Edge Platforms, there is a diverse array of interface options available, offering both lower and higher module density with backward compatibility to various existing WAN, LAN, voice, and compute modules. Fueled by Cisco IOS XE, a fully programmable software architecture, and supported by APIs, these platforms enable scalable automation, achieving zero-touch IT capability during the migration of workloads to the cloud. Additionally, the Catalyst 8300 Series Edge Platforms are fortified with Trustworthy Solutions 2.0 infrastructure, ensuring platform security against threats and vulnerabilities through integrity verification and threat remediation.

Features :

Multicore processors-

• Intel x86 CPU with 8-GB memory default (up to 32 GB memory upgrade)
• High-performance multicore processors support high-speed WAN connections.
• Dynamic core allocation architecture that can leverage data plane cores for I/O and service plane as per-user configuration.

Embedded IPsec VPN hardware acceleration-

• Up to 5 Gbps of IPSec Internet Mix (IMIX) traffic
• Increases scalability for IPSec throughput needs for medium- and large-sized branches
• SSL and crypto hardware acceleration

Integrated Gigabit Ethernet ports-

• Cisco C8300-2N2S4T2X Dubai provides 6 built-in Layer 3 Ethernet ports for WAN or LAN with port speeds ranging from 10Mbps, 100Mbps, 1Gbps and up to 10Gbps, depending on platform model
• All platforms have at least 2 Ethernet ports that can support Small Form-Factor Pluggable (SFP or SFP+) based connectivity in addition to 4 RJ-45 connections, enabling fiber or copper connectivity.

DRAM-

• Cisco C8300-2N2S4T2X Dubai has 8G default DRAM and can be upgraded to 16G and 32G for higher scale and performance.

M.2 storage-

• The Cisco C8300-2N2S4T2X Dubai ship with default 16G M.2 USB for SD-WAN logging and additional storage on the platform. It can be upgraded to 32G M.2 USB and 600G M.2 Non-Volatile Memory Express (NVMe)
