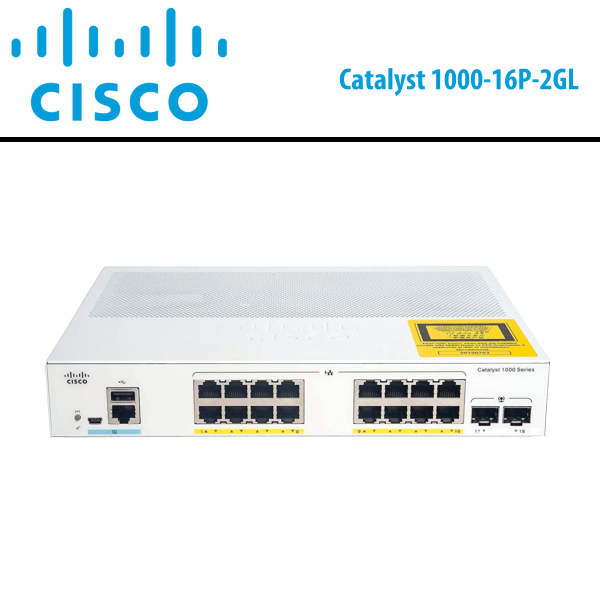

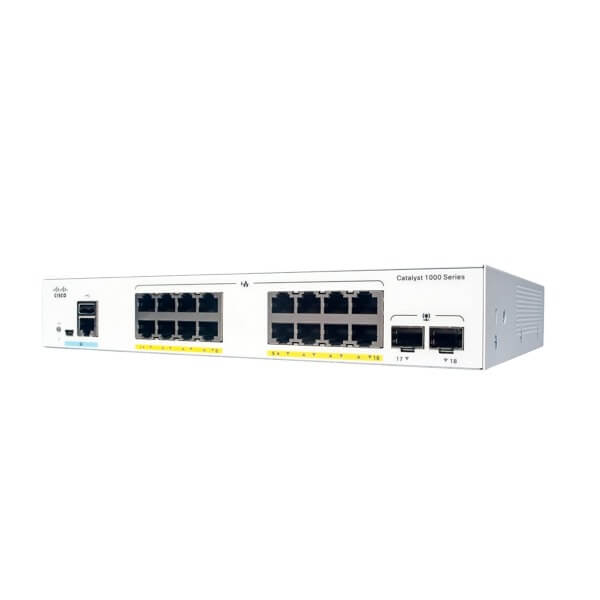

Cisco Catalyst1000-16P2GL Dubai

The Cisco Catalyst1000-16P2GL Dubai Network Switch is a fixed, enterprise-class Gigabit Ethernet Layer 2 switch specially crafted for small businesses and branch offices. Geared towards enhancing network security, reliability, and operational efficiency for smaller organizations.

Category:

Description

Cisco Catalyst1000-16P2GL Dubai

The Cisco Catalyst1000-16P2GL Dubai Network Switch is a fixed, enterprise-class Gigabit Ethernet Layer 2 switch specially crafted for small businesses and branch offices. Geared towards enhancing network security, reliability, and operational efficiency for smaller organizations, this switch is a dependable choice. The Cisco Catalyst1000-16P2GL Dubai is a simple, flexible, and secure network switch, making it ideal for critical Internet of Things (IoT) deployments.

Operating on Cisco IOS Software, it offers a Command-Line Interface (CLI) and an intuitive web user interface for easy device and network management. The Cisco Catalyst1000-16P2GL Dubai supports both IEEE 802.3af PoE and IEEE 802.3at PoE+ (up to 30W per port), providing a cost-effective solution for deployments incorporating Cisco IP phones, Cisco Aironet® and Catalyst wireless access points, or other standards-compliant PoE and PoE+ end devices.

This switch eliminates the need for wall power to PoE-enabled devices, reducing costs associated with additional electrical cabling and circuits that would typically be required in IP phone and WLAN deployments. With its comprehensive features and capabilities, the Cisco Catalyst1000-16P2GL Dubai ensures a lower total cost of ownership for various network configurations.

Features

Network management

The Cisco Catalyst1000-16P2GL Dubai switch offers a superior CLI for detailed configuration and administration.

Intelligent PoE+

Cisco Catalyst1000-16P2GL Dubai switch support both IEEE 802.3af PoE and IEEE 802.3at PoE+ (up to 30W per port) to deliver a lower total cost of ownership for deployments that incorporate Cisco IP phones, Cisco Aironet® and Catalyst wireless access points, or other standards-compliant PoE and PoE+ end devices. PoE removes the need to supply wall power to PoE-enabled devices and eliminates the cost of adding electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments. The PoE power allocation in the Cisco Catalyst1000-16P2GL Dubai is dynamic, and power mapping scales up to a maximum of 740W of PoE+ power. Intelligent power management allows flexible power allocation across all ports. With Perpetual PoE, the PoE+ power is maintained during a switch reload. This is important for critical endpoints such as medical devices and for IoT endpoints such as PoE-powered lights, so that there is no disruption during a switch reboot.

Network security

Cisco Catalyst1000-16P2GL Dubai provide a range of security features to limit access to the network and mitigate threats, including:

  • Comprehensive 802.1X features to control access to the network, including flexible authentication, 802.1X monitor mode, and RADIUS change of authorization.
  • 1X support with Network Edge Access Topology (NEAT), which extends identity authentication to areas outside the wiring closet (such as conference rooms).
  • IEEE 802.1X user distribution, which enables you to load-balance users with the same group name across multiple different VLANs.
  • Ability to disable per-VLAN MAC learning to allow you to manage the available MAC address table space by controlling which interface or VLANs learn MAC addresses.
  • Multi-domain authentication to allow an IP phone and a PC to authenticate on the same switch port while being placed on the appropriate voice and data VLANs.
  • Authentication, Authorization, and Accounting (AAA) command authorization in PnP to enable seamless PnP provisioning.
  • Access Control Lists (ACLS) for IPv6 and IPv4 security and Quality-of-Service (QoS) ACL elements (ACEs).
  • Port-based ACLs for Layer 2 interfaces to allow security policies to be applied on individual switch ports.
  • SSH, Kerberos, and SNMP v3 to provide network security by encrypting administrator traffic during Telnet and SNMP sessions. SSH, Kerberos, and the cryptographic version of SNMP v3 require a special cryptographic software image because of U.S. export restrictions.
  • SPAN, with bidirectional data support, to allow the Cisco Intrusion Detection System (IDS) to take action when an intruder is detected.
  • TACACS+ and RADIUS authentication to facilitate centralized control of the switch and restrict unauthorized users from altering the configuration.
  • MAC address notification to notify administrators about users added to or removed from the network.
  • MAC Authentication Bypass (MAB) and WebAuth with downloadable ACLs to allow per-user ACLs to be downloaded from the Cisco Identity Services Engine (ISE)as policy enforcement after authentication using MAB or web authentication in addition to IEEE 802.1X.
  • Web authentication redirection to enable networks to redirect guest users to the URL they had originally requested.
  • Multilevel security on console access to prevent unauthorized users from altering the switch configuration.
  • BPDU Guard to shut down Spanning Tree PortFast-enabled interfaces when BPDUs are received, to avoid accidental topology loops.
  • IP Source Guard to restrict IP traffic on nonrouted Layer 2 interfaces by filtering traffic based on the Dynamic Host Configuration Protocol (DHCP) snooping binding database or by manually configuring IP source bindings.
  • SSH v2 to allow use of digital certificates for authentication between user and server.
  • Spanning Tree Root Guard (STRG) to prevent edge devices that are not in the network administrator’s control from becoming Spanning Tree Protocol (STP) root nodes.
  • Internet Group Management Protocol (IGMP) filtering to provide multicast authentication by filtering out nonsubscribers and to limit the number of concurrent multicast streams available per port.
  • Dynamic VLAN assignment through implementation of VLAN Membership Policy Server client capability to provide flexibility in assigning ports to VLANs. Dynamic VLAN facilitates the fast assignment of IP addresses.

Redundancy and resiliency

Cisco Catalyst1000-16P2GL Dubai Switch offer a number of redundancy and resiliency features to prevent outages and help ensure that the network remains available:

  • IEEE 802.1s/w Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree Protocol (MSTP) provide rapid spanning-tree convergence independent of spanning-tree timers and also offer the benefits of Layer 2 load balancing and distributed processing.
  • Per-VLAN Rapid Spanning Tree (PVRST+) allows rapid spanning-tree re-convergence on a per-VLAN spanning-tree basis, without requiring the implementation of spanning-tree instances.
  • Switch-port auto-recovery (error disable) automatically attempts to reactivate a link that is disabled because of a network error.
  • Link state tracking binds the link state of multiple interfaces. The server Network Interface Cards (NICs) form a group to provide redundancy in the network. When the link is lost on the primary interface, network connectivity is transparently changed to the secondary interface.

Enhanced QoS

Cisco Catalyst1000-16P2GL Dubai switch offer intelligent traffic management that keeps everything flowing smoothly. Flexible mechanisms for marking, classifying, and scheduling deliver superior performance for data, voice, and video traffic, all at wire speed. Primary QoS features include:

  • Up to eight egress queues and two thresholds per port, supporting egress bandwidth control, shaping, and priority queuing so that high-priority packets are serviced ahead of other traffic.
  • Ingress policing to allow the analysis of IP service levels for IP applications and services using active traffic monitoring — generating traffic in a continuous, reliable, and predictable manner — for measuring network performance. The number of ingress policers available per port is 64.
  • QoS through Differentiated Services Code Point (DSCP) mapping and filtering.
  • QoS through traffic classification.
  • Trust boundary to configure device-based trust.
  • AutoQoS to simplify the deployment of QoS features.
  • Shaped Round Robin (SRR) scheduling and Weighted Tail Drop (WTD) congestion avoidance.
  • 1p Class of Service (CoS) classification, with marking and reclassification.

Energy management

Cisco Catalyst 1000 Series Switches offer a range of industry-leading features for energy efficiency and management:

  • IEEE 802.3az Energy Efficient Ethernet (EEE) enables ports to dynamically sense idle periods between traffic bursts and quickly switch the interfaces into a low-power idle mode, reducing power consumption.
  • Loop detection is a new method to detect network loops in the absence of STP.
  • Cisco AutoConfig determines the level of network access provided to an endpoint based on the type of device. This feature also permits hard binding between the end device and the interface.
  • Cisco Auto SmartPorts enables automatic configuration of switch ports as devices connect to the switch with settings optimized for the device type, resulting in zero-touch port-policy provisioning.
  • Cisco Smart Troubleshooting is an extensive array of diagnostic commands and system health checks in the switch, including Smart Call Home. The Cisco Generic Online Diagnostics (GOLD) and online diagnostics on switches in live networks help predict and detect failures more quickly.

Operational simplicity

  • Cisco AutoSecure provides a single-line CLI to enable baseline security features (port security, DHCP snooping, Dynamic Address Resolution Protocol [ARP] Inspection). This feature simplifies security configurations with a single touch.
  • DHCP auto configuration of multiple switches through a boot server eases switch deployment.
  • Auto negotiation on all ports automatically selects half- or full-duplex transmission mode to optimize bandwidth.
  • Dynamic Trunking Protocol (DTP) facilitates dynamic trunk configuration across all switch ports.
  • Port Aggregation Protocol (PAgP) automates the creation of Cisco Fast EtherChannel groups or Gigabit EtherChannel groups to link to another switch, router, or server.
  • Link Aggregation Control Protocol (LACP) allows the creation of Ethernet channeling with devices that conform to IEEE 802.3ad. This feature is similar to Cisco EtherChannel technology and PAgP.
  • Automatic Media-Dependent Interface Crossover (MDIX) automatically adjusts transmit and receive pairs if an incorrect cable type (crossover or straight-through) is installed.
  • Unidirectional Link Detection Protocol (UDLD) and Aggressive UDLD allow unidirectional links caused by incorrect fiber-optic wiring or port faults to be detected and disabled on fiber-optic interfaces.
  • Local Proxy ARP works in conjunction with Private VLAN Edge to minimize broadcasts and maximize available bandwidth.
  • VLAN1 minimization allows VLAN1 to be disabled on any individual VLAN trunk.
  • IGMP snooping for IPv4 and IPv6 and Multicast Listener Discovery (MLD) v1 and v2 snooping provide fast client joins and leaves of multicast streams and limit bandwidth-intensive video traffic to only the requesters.
  • Per-port broadcast, multicast, and unicast storm control prevents faulty end stations from degrading overall system performance.
  • Voice VLAN simplifies telephony installations by keeping voice traffic on a separate VLAN for easier administration and troubleshooting.
  • Cisco VLAN Trunking Protocol (VTP) supports dynamic VLANs and dynamic trunk configuration across all switches.
  • Layer 2 trace route eases troubleshooting by identifying the physical path that a packet takes from source to destination.
  • Trivial File Transfer Protocol (TFTP) reduces the cost of administering software upgrades by downloading from a centralized location.
  • Network Time Protocol (NTP) provides an accurate and consistent timestamp to all intranet switches.

Specifications

Models 8-port models 16-port models 24-port models (1/10G uplinks) 48-port models (1/10G uplinks)
Console ports
RJ-45 Ethernet 1 1 1 1
USB mini-B 1 1 1 1
USB-A port for storage and Bluetooth console 1 1 1 1
Memory and processor
CPU ARM v7 800 MHz ARM v7 800 MHz ARM v7 800 MHz ARM v7 800 MHz
DRAM 512 MB 512 MB 512 MB 512 MB
Flash memory 256 MB 256 MB 256 MB 256 MB
Performance
Forwarding bandwidth 10 Gbps 18 Gbps FE : 6.4 Gbps

1G : 28 Gbps

10G : 64 Gbps

FE : 8.8 Gbps

1G : 52 Gbps

10G : 88Gpbs

Switching bandwidth 20 Gbps 36 Gbps FE : 12.8 Gbps

1G : 56 Gbps

10G : 128 Gbps

FE : 17.6 Gbps

1G : 104 Gbps

10G : 176 Gbps

Forwarding rate
(64‑byte L3 packets)
14.88 Mpps 26.78 Mpps FE : 9.52 Mpps

1G : 41.67 Mpps

10G : 95.23 Mpps

FE : 13.09 Mpps

1G : 77.38 Mpps

10G : 130.94

MAC addresses 16000 16000 16000 16000
IPv4 unicast direct routes 542 542 542 542
IPv4 unicast indirect routes 256 256 256 256
IPv6 unicast direct routes 414 414 414 414
IPv6 unicast indirect routes 128 128 128 128
IPv4 multicast routes and IGMP groups 1024 1024 1024 1024
IPv6 multicast groups 1024 1024 1024 1024
IPv4/MAC security ACEs 600 600 600 (FE : 384) 600 (FE : 384)
IPv6 security ACEs 600 600 600 (FE : 256) 600 (FE : 256)
Maximum active VLANs 256 256 256 256
VLAN IDs available 4094 4094 4094 4094
Maximum STP instances 64 64 64 64
Maximum SPAN sessions 4 4 4 4
MTU-L3 packet 9198 bytes 9198 bytes 9198 bytes 9198 bytes
Jumbo Ethernet frame 10,240 bytes 10,240 bytes 10,240 bytes 10,240 bytes
Dying Gasp Yes Yes Yes (FE : No) Yes (FE : No)
MTBF in hours (data) 2,171,669 2,165,105 2,026,793 1,452,667
MTBF in hours (PoE) 1,786,412, 1,706,649 (External PS) 706,983 698,220 856,329
MTBF in hours (Full PoE) 1,706,649 698,220 856,329
Environmental
Operating temperature
Sea level -5 to 50ºC
Up to 5,000ft (1500 m) -5 to 45ºC
Upto 10,000 (3000 m) -5 to 40ºC
Operating altitude 10,000 ft (3,000m)
Operating relative humidity 5% to 90% at 40ºC (non-condensing)
Storage temperature -13 to 158F (-25 to 70ºC)
Storage altitude 15,000 ft (4500m)
Storage relative humidity 5% to 95% at 65ºC (non-condensing)
*Note : 50ºC operation is supported for short term operation only;

When using C1000-8T-E-2G-L, C1000-8T-2G-L, C1000-8P-E-2G-L, C1000-8P-2G-L, C1000-8FP-E-2G-L, C1000-8FP-2G-L, C1000-16T-E-2G-L, C1000-16T-2G-L, C1000-16P-E-2G-L, C1000-16P-2G-L, C1000-16FP-2G-L, C1000-24T-4G-L, C1000-24P-4G-L with GLC-BX-U or GLC-BX-D SFP module, the thermal limitations are as follows :

Up to 5,000 feet, the operation temperature should not exceed 45ºC.

Up to 10,000 feet, the operation temperature should not exceed 40ºC.

When using C1000-24T-4X-L, C1000-24P-4X-L with SFP-10G-ER or SFP-10G-ER-S SFP+ module, the thermal limitations are as follows :

Up to 5,000 feet, the operation temperature should not exceed 45ºC.

Up to 10,000 feet, the operation temperature should not exceed 40ºC.

Minimum ambient temperature for cold start is at 0ºC (32 F)

Electrical Data Data Ext.PS Data Data Ext. PS Data FE Data Data FE Data
Voltage (auto ranging) 110 to 220V AC in 110 to 220V AC in 110 to 220V AC in 110 to 220V AC in
Frequency 50 to 60 Hz 50 to 60 Hz 50 to 60 Hz 50 to 60 Hz
Current 0.13A to 0.22A 0.16A to 0.26A 0.16A to 0.26A 0.19A to 0.31A 0.20A to 0.33A 0.12A to 0.34A 0.29A to 0.48A 0.24A to 0.69A
Power rating
(maximum consumption)
0.04 kVA 0.017 kVA 0.05 kVA 0.05 kVA 0.06 kVA 0.02 kVA 0.09 kVA 0.035 kVA
Electrical PoE PoE Ext. PS PoE PoE Ext. PS PoE FE PoE PoE FE PoE
Voltage (auto ranging) 110 to 220V AC in 110 to 220V AC in 110 to 220V AC in 110 to 220V AC in
Frequency 50 to 60 Hz 50 to 60 Hz 50 to 60 Hz 50 to 60 Hz
Current 0.22A to 0.27A 0.22A to 0.37A 0.24A to 0.28A 0.14A to 0.24A 0.37A to 0.64A 0.23A to 0.35A 0.37A to 0.64A 0.26A to 0.46A
Power rating
(maximum consumption)
0.11 kVA 0.087 kVA 0.19 kVA 0.20 kVA 0.48 kVA 0.025 kVA 0.48 kVA 0.046 kVA
Electrical Full PoE Full PoE Ext. PS Full PoE Full PoE Full PoE
Voltage (auto ranging) 110 to 220V AC in 110 to 220V AC in 110 to 220V AC in 110 to 220V AC in
Frequency 50 to 60 Hz 50 to 60 Hz 50 to 60 Hz 50 to 60 Hz
Current 0.23A to 0.28A 0.15A to 0.2A 0.35A to 0.37A 0.29A to 0.48A 0.45A to 0.94A
Power rating
(maximum consumption)
0.15 kVA 0.15 kVA 0.45 kVA 0.8 kVA 0.95 kVA
Power consumption (watts) Data Data Ext.PS Data Data Ext. PS Data FE Data Data FE Data
0% traffic 14.04 13.15 14.52 14.4 1G : 15.84 11.22 1G : 27.37 21.41
10G : 18 10G : 29.4
10% traffic 14.06 13.76 16.44 16.44 1G : 22.08 12.83 1G : 41.57 23.02
10G : 24.48 10G : 42.28
100% traffic 14.26 14 16.68 16.68 1G : 22.8 17.15 1G : 53.66 23.03
10G : 25.68 10G : 54.73
Weighted average 14.12 13.64 15.88 15.84 1G : 20.2 13.73 1G : 40.87 22.49
10G : 22.7 10G : 42.1
Power consumption (watts) PoE PoE Ext. PS PoE PoE Ext. PS PoE FE PoE PoE FE PoE
0% traffic 10.22 9.13 14.64 13.68 1G : 15.84 14.5 1G : 27.9 21.62
10G : 18 10G : 28.0
10% traffic 12.02 15.39 16.56 15.48 1G : 22.44 16.1 1G : 42.77 24.74
10G : 24.72 10G : 42.73
100% traffic 12.19 15.71 16.92 16.32 1G : 23.16 18.58 1G : 54.25 24.75
10G : 25.68 10G : 54.49
Weighted average 11.48 13.41 16.04 15.16 1G : 20.48 16.39 1G : 41.64 23.70
10G : 22.8 10G : 41.74
Power consumption (watts) Full PoE Full PoE Ext. PS Full PoE Full PoE Full PoE
0% traffic 13.44 14.3 14.4 1G : 18.36 1G : 30.61
10G : 19.68 10G : 30.91
10% traffic 14.4 14.9 16.68 1G : 26.16 1G : 45.16
10G : 26.28 10G : 45.78
100% traffic 14.52 15.7 16.8 1G : 35.4 1G : 61.66
10G : 36 10G : 62.26
Weighted average 14.12 14.97 15.96 1G : 26.68 1G : 45.81
10G : 27.32 10G : 46.31
Acoustic noise (48-port PoE models only)
Sound pressure (Typical) C1000-24FP-4G-L, C1000-24FP-4X-L – 34.8 dB C1000-48T-4G-L, C1000-48T-4X-L – 31.5 dB
C1000-48P-4G-L, C1000-48P-4X-L – 36.1 dB
C1000-48FP-4G-L

C1000-48FP-4X-L – 47.6dB

Note : Bystander positions operating mode at 77°F (25°C) ambient; All other models are fanless for silent operations
Safety and compliance
Safety UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1

GB 4943.1-2011

EMC : Emissions 47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A
EMC : Immunity EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco Common Language Equipment Identifier (CLEI) code
U.S. government certifications USGv6 and IPv6 Ready Logo
Connectors and interfaces
Ethernet interfaces 10BASE-T ports : RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted Pair (UTP) cabling
100BASE-TX ports : RJ-45 connectors, 2-pair Category 5 UTP cabling
1000BASE-T ports : RJ-45 connectors, 4-pair Category 5 UTP cabling
1000BASE-T SFP-based ports : RJ-45 connectors, 4-pair Category 5 UTP cabling
Indicator LEDs Per-port status : link integrity, disabled, activity
System status : System
Console cables CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45
CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors

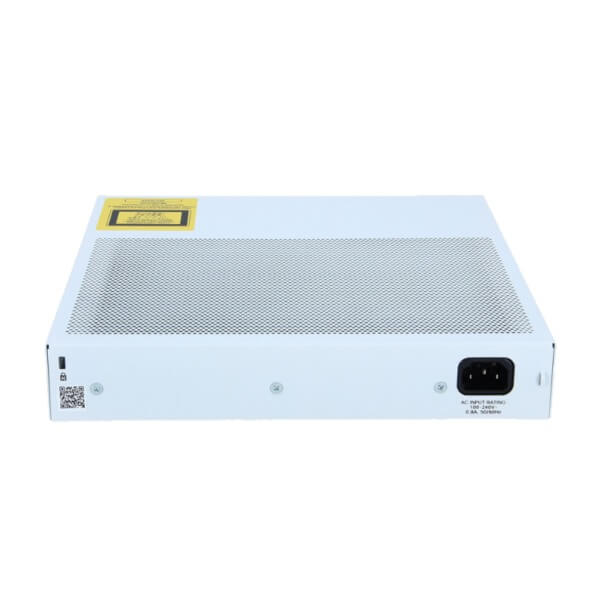

Power Use the supplied AC power cord to connect the AC power connector to an AC power outlet

Models have external power supply

Management
BRIDGE-MIBCISCO-CABLE-DIAG-MIB

CISCO-CDP-MIB

CISCO-CLUSTER-MIB

CISCO-CONFIG-COPY-MIB

CISCO-CONFIG-MAN-MIB

CISCO-DHCP-SNOOPING-MIB

CISCO-ENTITY-VENDORTYPE-OID-MIB

CISCO-ENVMON-MIB

CISCO-ERR-DISABLE-MIB

CISCO-FLASH-MIB

CISCO-FTP-CLIENT-MIB

CISCO-IGMP-FILTER-MIB

CISCO-IMAGE-MIB

CISCO-IP-STAT-MIB

CISCO-LAG-MIB

CISCO-MAC-NOTIFICATION-MIB

CISCO-MEMORY-POOL-MIB

CISCO-PAGP-MIB

CISCO-POE-EXTENSIONS-MIB

CISCO-PORT-QOS-MIBCISCO-PORT-SECURITY-MIB

CISCO-PORT-STORM-CONTROL-MIB

CISCO-PRODUCTS-MIB

CISCO-PROCESS-MIB

CISCO-RTTMON-MIB

CISCO-SMI-MIB

CISCO-STP-EXTENSIONS-MIB

CISCO-SYSLOG-MIB

CISCO-TC-MIB

CICSO-TCP-MIB

CISCO-UDLDP-MIB

CISCO-VLAN-IFTABLE

CISCO-VLAN-MEMBERSHIP-MIB

CISCO-VTP-MIB

ENTITY-MIB

ETHERLIKE-MIB

IEEE8021-PAE-MIB

IEEE8023-LAG-MIB

IF-MIBINET-ADDRESS-MIB

OLD-CISCO-CHASSIS-MIB

OLD-CISCO-FLASH-MIB

OLD-CISCO-INTERFACES-MIB

OLD-CISCO-IP-MIB

OLD-CISCO-SYS-MIB

OLD-CISCO-TCP-MIB

OLD-CISCO-TS-MIB

RFC1213-MIB

RMON-MIB

RMON2-MIB

SNMP-FRAMEWORK-MIB

SNMP-MPD-MIB

SNMP-NOTIFICATION-MIB

SNMP-TARGET-MIB

SNMPv2-MIB

TCP-MIB

UDP-MIB

Standards
IEEE 802.1D STPIEEE 802.1p CoS Prioritization

IEEE 802.1Q VLAN

IEEE 802.1s

IEEE 802.1w

IEEE 802.1X

IEEE 802.1ab LLDP

Bluetooth v4.0

IEEE 802.3adIEEE 802.3af and IEEE 802.3at

IEEE 802.3ah (100BASE-X single/multimode fiber only)

IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-TIEEE 802.3z 1000BASE-X

RMON I and II standards

SNMP v1, v2c, and v3

IEEE 802.3az

IEEE 802.3ae 10 Gigabit Ethernet

IEEE 802.1ax

RFC compliance
RFC 768 – UDPRFC 783 – TFTP

RFC 791 – IP

RFC 792 – ICMP

RFC 793 – TCP

RFC 826 – ARP

RFC 854 – Telnet

RFC 951 – Bootstrap Protocol (BOOTP)

RFC 959 – FTP

RFC 1112 – IP Multicast and IGMP

RFC 1157 – SNMP v1

RFC 1166 – IP Addresses

RFC 1256 – ICMP Router DiscoveryRFC 1305 – NTP

RFC 1492 – TACACS+

RFC 1493 – Bridge MIB

RFC 1542 – BOOTP extensions

RFC 1901 – SNMP v2C

RFC 1902-1907 – SNMP v2

RFC 1981 – Maximum Transmission Unit (MTU) Path Discovery IPv6

FRC 2068 – HTTP

RFC 2131 – DHCP

RFC 2138 – RADIUS

RFC 2233 – IF MIB v3
