Description
Cisco Catalyst2960-24S Dubai

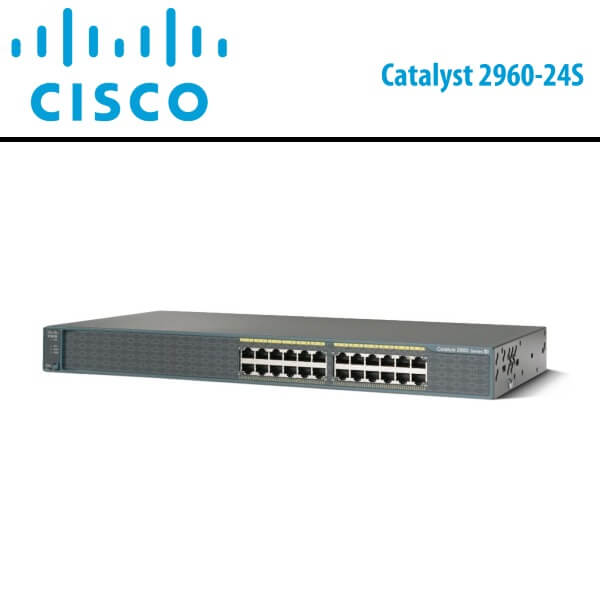

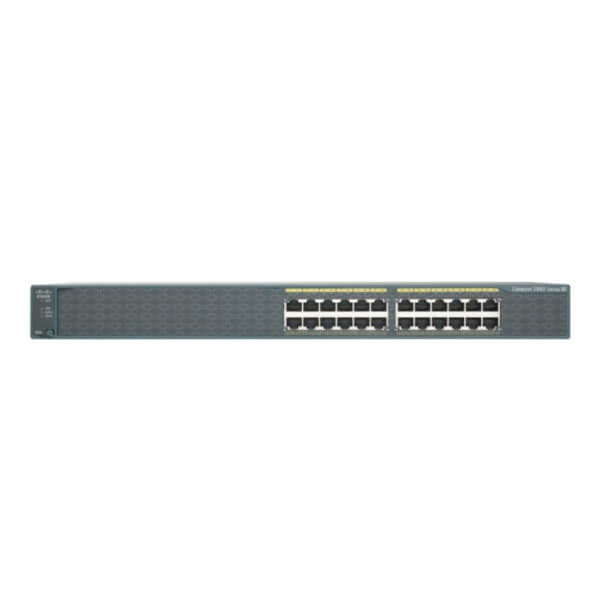

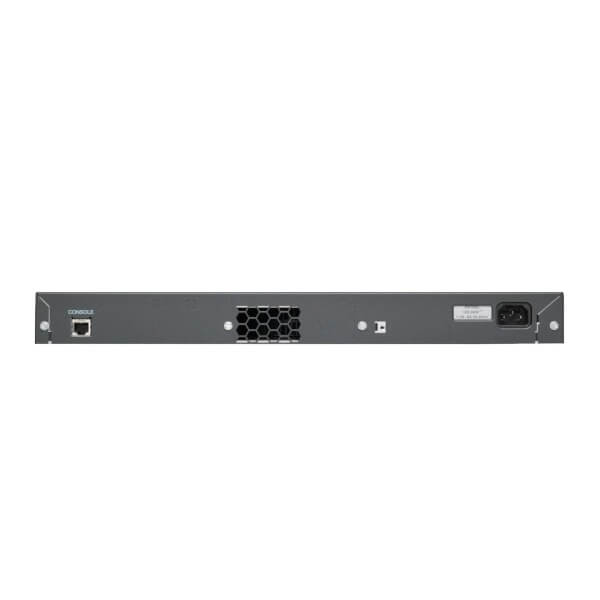

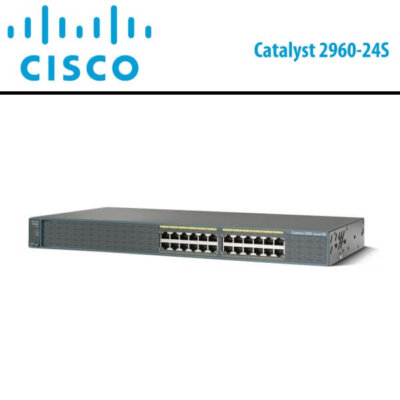

The Cisco Catalyst2960-24S Dubai Switch is a fixed-configuration Fast Ethernet switch designed to deliver enterprise-class Layer 2 switching for branch offices, conventional workspaces, and infrastructure applications. It ensures reliable and secure operations while offering a lower total cost of ownership, thanks to various Cisco IOS software features, including Cisco Catalyst SmartOperations.
Features
- Cisco Catalyst2960-24S Dubai has dual-purpose uplinks for Gigabit Ethernet uplink flexibility, allowing use of either a copper or a fiber uplink. A dual-purpose uplink port has one 10/100/1000 Ethernet port and one Small Form-Factor Pluggable (SFP)-based Gigabit Ethernet port, with one port active at a time
- Scalable and secure ease of use functionality such as auto configuration with Auto Smart Ports and easy installation with Auto Install to lower total cost of ownership.
- Cisco Catalyst2960-24S Dubai supports enhanced troubleshooting for problem solving including link connectivity and cable diagnostics
- QoS for traffic classification and shaping to prioritize various applications including voice, video, and multicast applications.
- Single IP address, syslog, and Simple Network Management Protocol (SNMP) management for a stack of up to 16 switches
- Baseline Network Admission Control based on users, ports, and MAC addresses
- Limited lifetime hardware warranty
- Cisco Catalyst2960-24S Dubai offers Software updates at no additional cost
Technical Specs
| Co2 Savings | 343.78 |
| Rack mounting | Yes |
| Stackable | No |
| Form factor | 1U |
| Colour of product | Grey |
| LED indicators | Yes |
| Electromagnetic compatibility | FCC Part 15 Class A, EN 55022 Class A (CISPR22), EN 55024 (CISPR24), AS/NZS CISPR22 Class A, CE, CNS13438 Class A, MIC, GOST, China EMC |
| Energy Star certified | No |
| Certification | CE, TUV GS, cUL, EN 60950, EN55022, NOM, VCCI Class A ITE, IEC 60950, EN55024, FCC Part 15, UL 1950 (3), CSA 22.2 No. 950 (3) |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 2 |
| Networking standards | IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| 10G support | No |
| Full duplex | Yes |
| Number of VLANs | 64 |
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Maximum data transfer rate | 0.1 Gbit/s |
| Jumbo frames support | Yes |
| DHCP features | DHCP server,DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| MAC address filtering | Yes |
| Management protocols | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP |
| Switching protocols | Ethernet |
| Data link protocols | Ethernet, Fast Ethernet |
| Memory type | RAM |
| Internal memory | 64 MB |
| Flash memory | 32 MB |
| Mean time between failures (MTBF) | 429847 h |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | No |
