Description

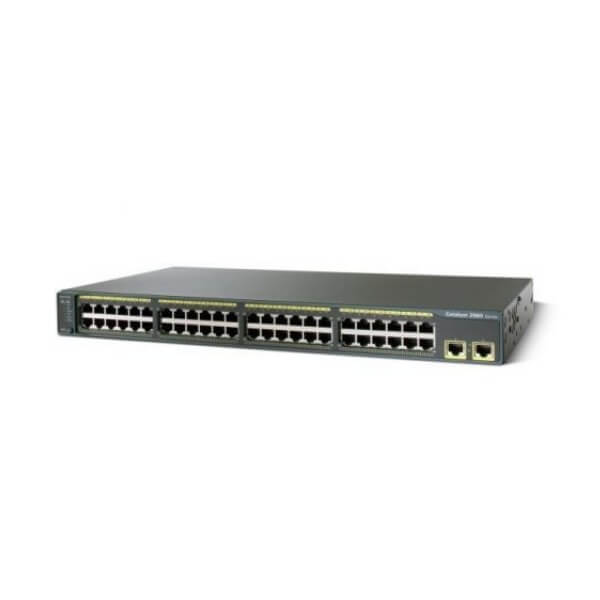

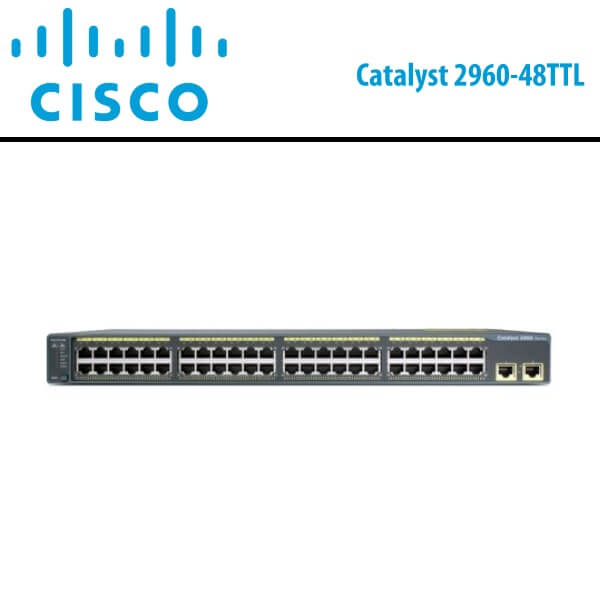

Cisco Catalyst2960-48TTL Dubai

The Cisco Catalyst2960-48TTL Dubai is a sophisticated fixed configuration Ethernet switch with 48 ports, offering both fast Ethernet and Gigabit Ethernet connectivity. Noteworthy features encompass integrated NAC (Network Admission Control), advanced QoS (Quality of Service), and scalable network management capabilities.

Features

Intelligence : Prioritize voice traffic or data exchange so delivery of information is aligned with your business requirements using the premium Cisco Catalyst2960-48TTL Dubai.

Enhanced Security : Cisco Catalyst2960-48TTL Dubai enables you to protect important information, keep unauthorized users off the network, and maintain uninterrupted operation.

Reliability : Take advantage of standards-based methods or FlexStack stacking for increasing dependability and rapid recovery from problems. You can also add redundant power supply for extra reliability.

Easy Configuration : Use integrated Cisco Catalyst Smart Operations and Cisco Network Assistant to simplify set-up, upgrades, and troubleshooting of the Cisco Catalyst2960-48TTL Dubai switch.

Technical Specifications

General

Device Type

Switch – 48 ports – managed

Enclosure Type

Rack-mountable 1U

Subtype

Fast Ethernet

Ports

48 x 10/100 + 2 x 10/100/1000

Performance

Switching capacity : 32 Gbps

Forwarding performance (64-byte packet size) : 10.1 Mpps

MAC Address Table Size

8K entries

Remote Management Protocol

SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH

Encryption Algorithm

SSL

Authentication Method

Secure Shell (SSH), RADIUS, TACACS+

Features

Layer 2 switching, auto-sensing per device, dynamic IP address assignment, auto-negotiation, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN)

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP)

RAM

64 MB

Flash Memory

32 MB flash

Status Indicators

Port transmission speed, port duplex mode, power, link OK, system, link/activity

Expansion / Connectivity

Interfaces

48 x 100Base-TX RJ-45 ¦ 2 x 1000Base-T RJ-45

Power

Power Device

Internal power supply

Voltage Required

AC 120/230 V (50/60 Hz)

Power Consumption Operational

42 Watt

Miscellaneous

Rack Mounting Kit

Optional

MTBF

339,743 hours

Compliant Standards

TUV GS, CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, NOM, VCCI Class A ITE, EN55024, CB, EMC, MIC, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, RoHS, CSA C22.2 No. 60950-1, FCC Part 15 B Class A
