Description

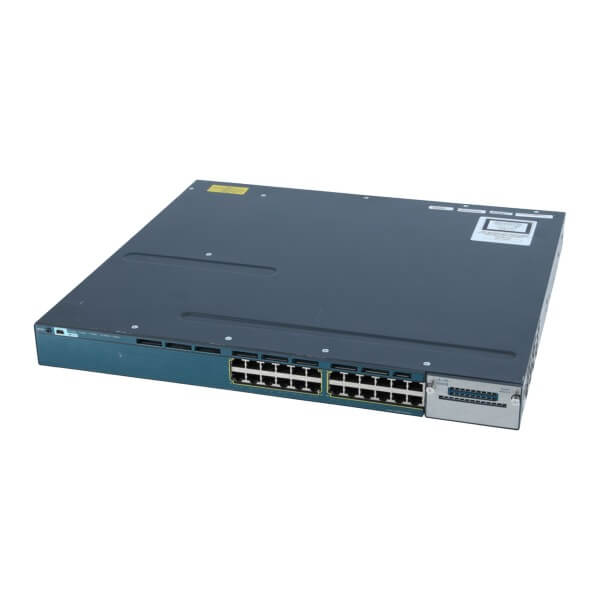

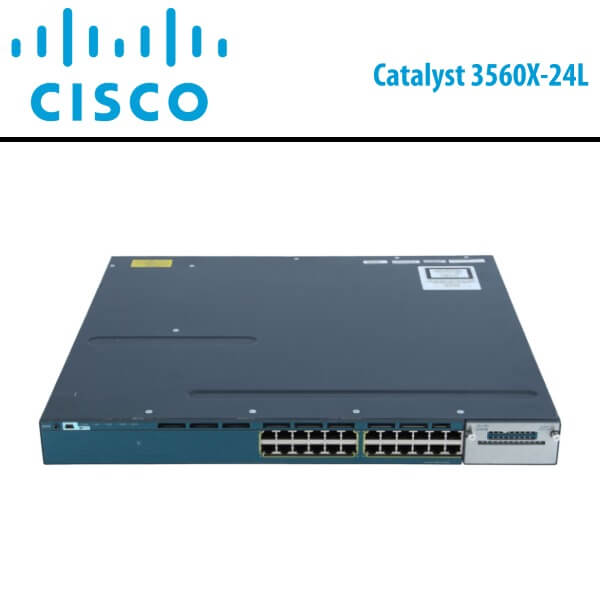

Cisco Catalyst3560X-24L Dubai
The Cisco Catalyst3560X-24L Dubai is a standalone switch featuring 24 Gigabit Ethernet POE+ ports in the LAN base feature set, with no stacking option available. It provides flexibility, scalability, and feature extensibility through four optional network modules and license-based software features, thereby reducing the cost of adapting to evolving business needs.
Compliant with the IEEE802.3at standard, the Cisco Catalyst3560X-24L allocates up to 30W power on each port, with a total POE budget of 435W for powering IP phones, wireless devices, and video equipment. Users have the ability to specify power settings for individual ports through command line settings. The LAN base feature set supports up to 255-VLANs and offers comprehensive layer 2 features, including static routing and SVI interface support.

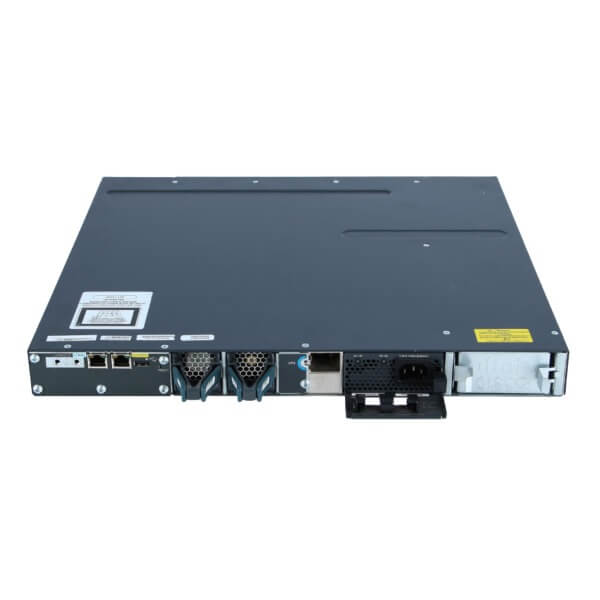

Primarily designed for enterprise access layer switching, the Cisco Catalyst3560X-24L allows customers to seamlessly upgrade software features by purchasing either an IP base license or an IP services license to activate layer 3 capabilities, supporting up to 1005 VLANs. The C3560X24L is equipped with one default power supply module, and users have the option to purchase an additional power supply for insertion into power supply bay 2 to ensure power redundancy.
Features
- 24 * 10/100/1000 Gigabit Ethernet POE+ ports with optional uplink network modules
- 435W POE power budget with up to 30W per port
- Dual redundant, modular power supplies and fans
- LAN base feature set with upgrade option to IP base or IP service
- Layer 2 switching with static routing and SVI supporting64MB flash and 256 memory (DRAM)USB Type-A
- Type-B ports for storage and console respectively and an out-of-band Ethernet management port
Technical Specs
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | WS-C3560X-24P-L |
| Product Type | Switch – 24 ports – Managed |
| Form Factor | Rack mountable – 1U |
| Switch Ports | 24 x 10/100/1000 Ethernet Ports Ethernet Ports |
| Power Over Ethernet (PoE) | Yes |
| Performance | Switching capacity : 160 Gbps |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, FTP, TFTP, SSH, CLI |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Hot swap module replacement, Layer 2 switching, dynamic IP address assignment , DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Per-VLAN Spanning Tree Plus (PVST+) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
| DRAM Memory | 256 MB |
| Flash Memory | 64 MB Flash |
| Status Indicators | Port status, link activity, port transmission speed, port duplex mode, power, system |
| Connectivity Slots | |
| Interfaces | 24 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – PoE
USB : 1 x 4 PIN USB Type A 1 x console – mini-USB Type B – management 1 x RS-232 – RJ-45 – management 1 x 10Base-T/100Base-TX – RJ-45 – management |
| Expansion Slots Total (Free) | 1 ( 1 ) x Expansion Slot |
