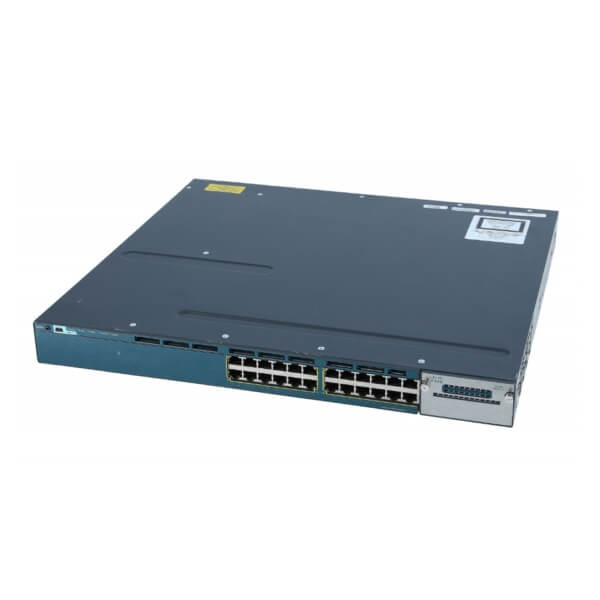

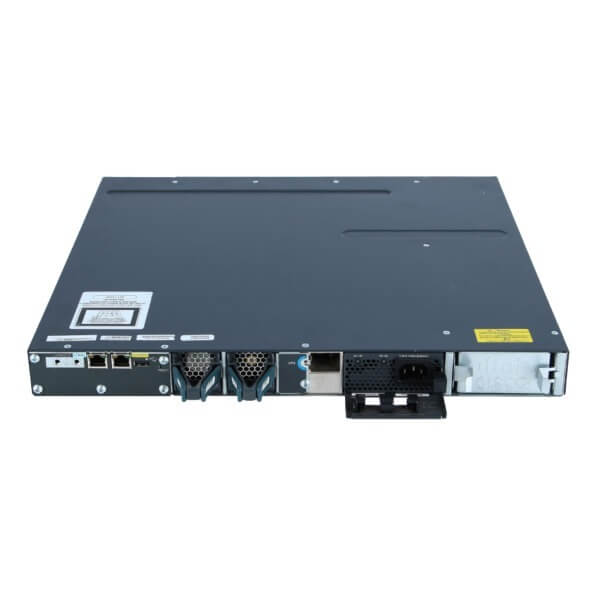

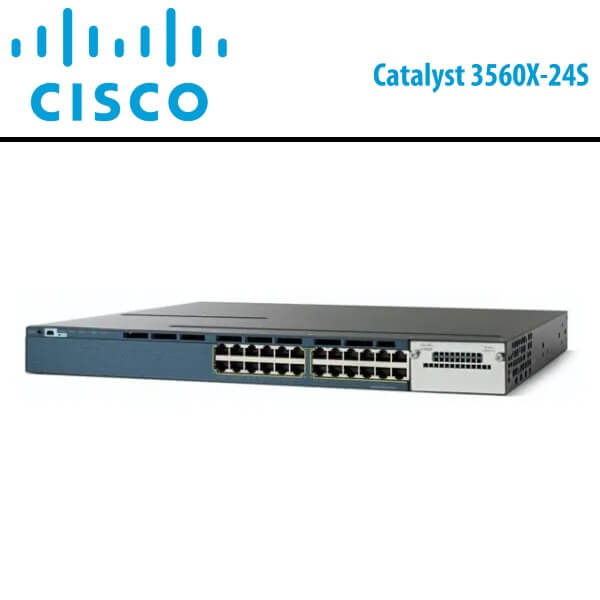

Cisco Catalyst3560X-24S Dubai
The Cisco Catalyst3560X-24S Dubai is a standalone switch designed for enterprise use, delivering high availability, scalability, security, energy efficiency, and operational simplicity. It incorporates innovative features including IEEE 802.3at Power over Ethernet Plus (PoE+) configurations, optional network modules, redundant power supplies, and Media Access Control Security (MACsec). By supporting applications like IP telephony, wireless, and video, the Cisco Catalyst3560X-24S Dubai enhances productivity, providing a borderless network experience.
Primary features
- 24 and 48 10/100/1000 PoE+, non-PoE models, and 12 and 24 GE SFP port models
- 24 and 48 10/100/1000 UPOE-capable models with Energy Efficient Ethernet (EEE) support
- Four optional uplink network modules with GE or 10GE ports
- Industry first PoE+ with 30W power on all ports in 1 rack unit (RU) form factor
- Cisco Catalyst3560X-24S Dubai is fitted with dual redundant, modular power supplies and fans
- Media Access Control Security (MACsec) hardware-based encryption
- Flexible NetFlow and switch-to-switch hardware encryption with the Service Module uplink
- Open Shortest Path First (OSPF) for routed access in IP Base image
- IPv4 and IPv6 routing, Multicast routing, advanced quality of service (QoS), and security features in hardware
- Cisco Catalyst3560X-24S Dubai comes with enhanced limited lifetime warranty (LLW) with next business day (NBD) advance hardware replacement and 90 day access to Cisco Technical Assistance Center (TAC) support
- The Cisco Catalyst3560X-24S Dubai is integrated with enhanced Cisco EnergyWise for operational cost optimization by measuring actual power consumption of the PoE devices, reporting, and reducing energy consumption across the network
- USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port
Technical Details
| Co2 Savings | 343.78 |
| Rack mounting | Yes |
| Stackable | No |
| Form factor | 1U |
| Colour of product | Blue |
| LED indicators | Yes |
| Safety | UL60950-1, C-UL CAN/CSA 22.2 No.60950-1, TUV/GS, CB, AS/NZS 60950-1CE, NOM, GOST |
| Electromagnetic compatibility | FCC, EN 55022B, VCCI, AS/NZS 3548, KCC, CE, GOST |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x |
| Cable types supported | Cat5e |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
| Number of VLANs | 1005 |
| Throughput | 65.5 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| DHCP features | DHCP server,DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| SSH/SSL support | Yes |
| Static port security | Yes |
| Multicast support | Yes |
| Management protocols | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Noise level | 43 dB |
| Mean time between failures (MTBF) | 208218 h |
| Power supply included | Yes |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -5 – 40°C |
| Storage temperature (T-T) | -40 – 70°C |
| Operating relative humidity (H-H) | 5 – 95% |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 4000 m |
| Width | 445 mm |
| Depth | 460 mm |
| Height | 44.5 mm |
| Weight | 7 kg |
