Description

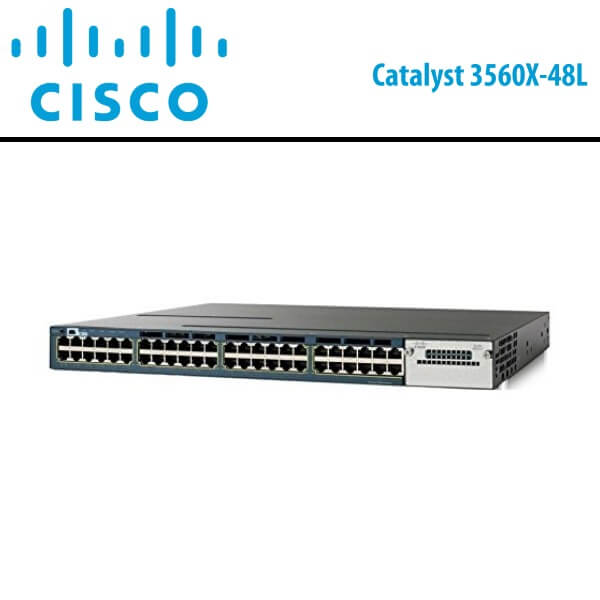

Cisco Catalyst3560X-48L Dubai

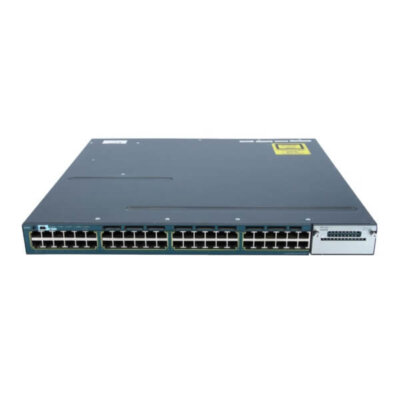

The Cisco Catalyst3560X-48L Dubai is a standalone switch featuring 48 Gigabit Ethernet ports and operates without the option for stacking in the LAN base feature set. With four optional network modules and license-based software features, it provides flexibility, scalability, and feature extensibility to reduce the cost of adapting to business needs. The LAN base feature set supports up to 255-VLANs and includes comprehensive layer 2 features with static routing and SVI interface support.

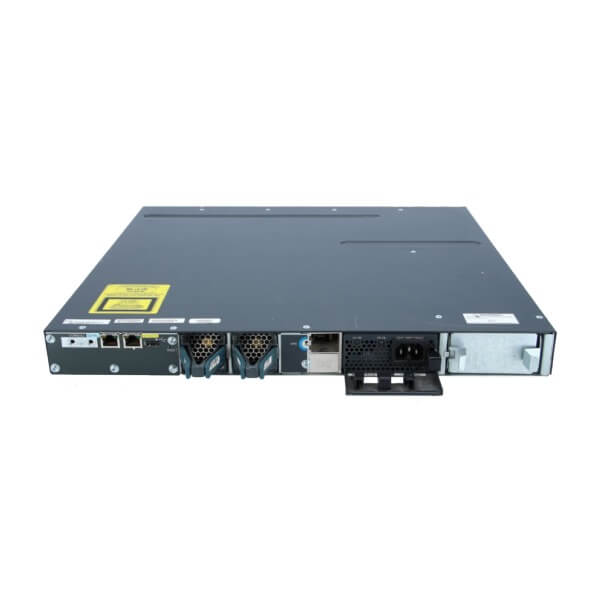

Primarily designed for enterprise access layer switching, the Cisco Catalyst3560X-48L allows customers to seamlessly upgrade software features by purchasing either an IP base license or an IP services license to activate layer 3 capabilities, supporting up to 1005 VLANs. The switch is equipped with one default power supply module, and users have the option to purchase an additional power supply for insertion into power supply bay 2 to ensure power redundancy.
Features
- 48 * 10/100/1000 Gigabit Ethernet ports with optional uplink network modules
- Dual redundant, modular power supplies and fans
- LAN base feature set with upgrade option to IP base or IP service
- Layer 2 switching with static routing and SVI supporting64MB flash and 256 memory (DRAM)USB Type-A
- Type-B ports for storage and console respectively and an out-of-band Ethernet management port
Technical Specs
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | WS-C3560X-48T-L |
| Product Type | Switch – 48 ports – Managed |
| Form Factor | Rack mountable – 1U |
| Switch Ports | 48 x 10/100/1000 Ethernet Ports Ethernet Ports |
| Performance | Switching capacity : 160 Gbps |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, FTP, TFTP, SSH |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features |
Hot swap module replacement, Layer 2 switching, dynamic IP address assignment , DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| DRAM Memory | 256 MB |
| Flash Memory | 64 MB Flash |
| Status Indicators | Port status, link activity, port transmission speed, port duplex mode, power, system |
| Connectivity Slots | |
| Interfaces | 48 x 10Base-T/100Base-TX/1000Base-T – RJ-45
USB : 1 x 4 PIN USB Type A USB : 1 x console – mini-USB Type B – management 1 x RS-232 – RJ-45 – management 1 x 10Base-T/100Base-TX – RJ-45 – management |
| Expansion Slot(s) | 1 (total) / 1 (free) x Expansion Slot |
| Power Supply | |
| Power Device | Power supply – redundant – plug-in module |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Features | Redundant Power System (RPS) connector |
| Dimensions / Weight / Miscellaneous | |
| Width | 44.5 cm |
| Depth | 46 cm |
| Height | 4.5 cm |
| Weight | 7.3 kg |
| Rack Mounting Kit | Optional |
| MTBF | 186,778 hour(s) |
| Compliant Standards |
CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1 |
