Description

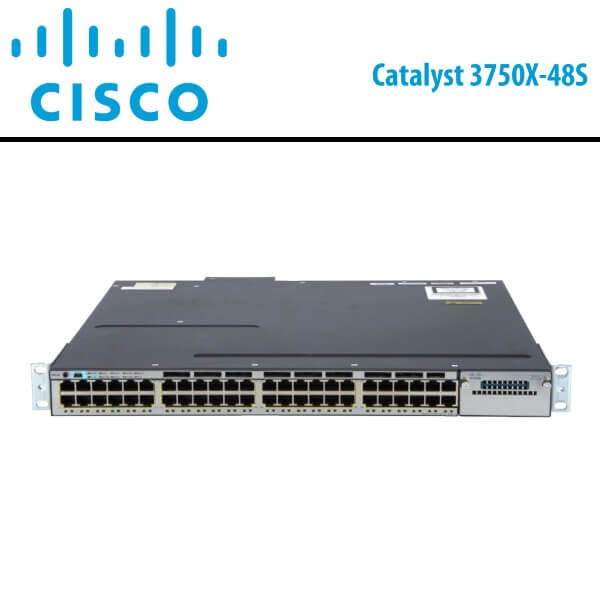

Cisco Catalyst3750X-48S Dubai
The Cisco Catalyst3750X-48S Dubai switches are designed to offer high availability, scalability, security, energy efficiency, and user-friendly operation, incorporating advanced features like Cisco StackPower, IEEE 802.3at Power over Ethernet Plus (PoE+) configurations, optional network modules, redundant power supplies, and Media Access Control Security (MACsec) capabilities. The Cisco Catalyst 3750-X Series, equipped with StackWise Plus technology, ensures scalability, simplified management, and investment protection to meet evolving business needs. These switches enhance productivity by facilitating applications such as IP telephony, wireless, and video, contributing to a borderless network experience.
The Cisco Catalyst3750X-48S Dubai switches maximize productivity for IT managers by providing the necessary tools to support enterprise applications and advanced traffic management. Offering a range of network modules and redundant power supply options, these switches can be customized and scaled to support a variety of applications. Additional options for the Cisco Catalyst3750X-48S Dubai include Gigabit and 10GE uplink ports, PoE+ and non-PoE support, redundant fans, and various port densities, allowing for tailoring and customization. Standard features include StackPower power sharing and StackWise Plus logical port aggregation (64Gbps throughput). Software upgrades encompass multicast routing, IPv4 and IPv6 support, and advanced QoS (Quality of Service). Hardware security, Cisco Energywise power management, and type A and B USB interfaces are also standard. These feature-rich, fixed-configuration devices are the preferred choice for medium to enterprise businesses seeking to optimize IT budgets while maintaining rich functionality and a borderless experience.
Features
- Dynamic Host Configuration Protocol (DHCP)
- Autonegotiation
- Dynamic Trunking Protocol (DTP)
- Port Aggeration Protocol (PAgP)
- Link Aggeration Protocol (LACP)
- Automatic Media-Department Interface Crossover (MDIX)
- Switching Database Manager
- Local Proxy Address Resolution Protocol (ARP)
- Multicast VLAN Registration (MVR)
- Unidirectional Link Detection Protocol (UDLD)
- VLAN1 Minimization
- Smart Multicast
- Internet Group Management Protocol (IGMP)
- Voice VLAN
- Cisco VLAN Trunking Protocol (VTP)
- Layer 2 Trace Route
- Trivial File Transfer Protocol (TFTP)
- Network Timing PRotocol (NTP)
- Private VLANs
- Access Control Lists (ACL’s)
- Secure Shell (SSH) Protocol
- MAC Address Notification
- Bridge Protocol Data Unit (BPDU)
- IGMP Filtering
- Cross-Stack EtherChannel
- IEEE 801.1s/w Rapid Spanning Tree Protocol (RSTP)
- Cisco Hot Standby Router Protocol (HSRP)
- Cross-stack QoS
- 1p Class of Service
Technical Specs
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | WS-C3750X-48P-S |
| Product Type | Managed, Stackable 48 ports L3 Switch |
| Form Factor | Fixed, Rack Mountable 1U, Stackable/Clustering |
| Switch Port density – Uplinks | 48 x 10/100/1000 Ethernet Ports |
| Power Over Ethernet (PoE) | Yes |
| Max Number of Stacks | 9 |
| Routing Protocol | RIP-1, RIP-2, HSRP, static IP routing, RIPng |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features |
Hot swap module replacement, Layer 3 switching, Layer 2 switching, dynamic IP address assignment , DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Per-VLAN Spanning Tree Plus (PVST+), EIGRP Stub Routing |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at |
| DRAM Memory | 256 MB |
| Flash Memory | 128 MB Flash |
| LED Status Lights Indicators | Port status, link activity, port transmission speed, port duplex mode, power, system |
| Connectivity / Expansion Slots | |
| Interfaces | 48 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – PoE
USB : 1 x 4 PIN USB Type A 1 x console – mini-USB Type B – management 1 x RS-232 – RJ-45 – management 1 x 10Base-T/100Base-TX – RJ-45 – management Network stack device : 2 x |
| Expansion Slot(s) | 1 (total) / 1 (free) x Expansion Slot |
| Power Supply Specifications | |
| Power Device | Power supply – redundant – plug-in module |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Features | Redundant Power System (RPS) connector |
| Dimensions / Weight / Miscellaneous | |
| Width | 44.5 cm |
| Depth | 46 cm |
| Height | 4.5 cm |
| Weight | 7.5 kg |
| Rack Mounting Kit | Optional |
| MTBF | 139,913 hour(s) |
| Compliant Standards | CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1 |
| System Software | |
| Software Included | Cisco IOS IP Base |
