Description

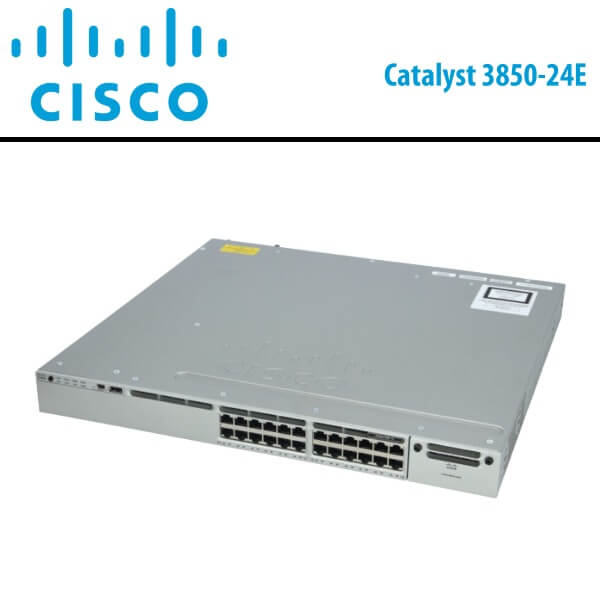

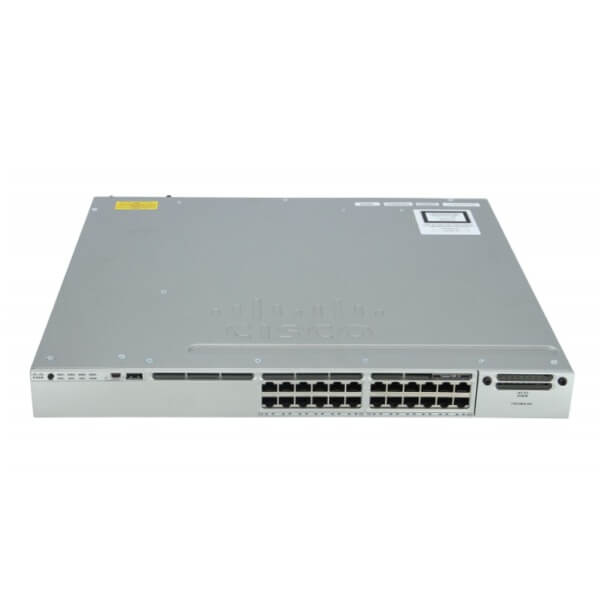

Cisco Catalyst3850-24E Dubai

The Cisco Catalyst3850-24E Dubai is a stackable switch designed for enterprise-level use, featuring 24 SFP ports within the IP service feature set. With the WS-C3850-24S-E model, it delivers advanced layer 2-4 switching capabilities, making it an optimal solution for both access and aggregation layers.

This switch, tailored for the convergence of wired and wireless access, is equipped with the Cisco Unified Access Data™ Plane (UADP) Application-Specific Integrated Circuit (ASIC). This ASIC empowers the switch, ensuring uniform enforcement of wired-wireless policies, application visibility, flexibility, and application optimization. The robust Cisco StackWise-480 technology forms the foundation of this convergence, providing resilience and improved performance.

In addition, the Cisco Catalyst3850-24E supports IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power Over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ-45 and fiber-based downlink interfaces, as well as redundant fans and power supplies.

Features

• Cisco Catalyst3850-24E Dubai has Integrated wireless controller capability with support for up to 100 access points and 2000 wireless clients on each switching entity (switch or stack)
• 24 10/100/1000 Ethernet PoE+ [435W] ports with Energy-Efficient Ethernet (EEE)
• Cisco Catalyst3850-24E Dubai is integrated with Cisco StackWise-480 technology which provides scalability and resiliency with 480 Gbps of stack throughput
• Cisco StackPower technology provides power stacking among stack members for power redundancy
• Full IEEE 802.3at (PoE+) with 30W power on all copper ports in 1 Rack Unit (RU) form factor
• 715WAC power supply 1 RU
• IEEE 802.3bz (2.5/5 G/s BASE-T) to go beyond 1 Gb/s with existing Cat5e and Cat6
• Cisco Catalyst3850-24E Dubai supports IEEE 802.1ba AV Bridging (AVB) built-in to provide better AV experience for including improved time synchronization and QoS
• Software support for IPv4 and IPv6 routing, multicast routing, modular Quality of Service (QoS), Flexible NetFlow (FNF), and enhanced security features
• Single universal Cisco IOS Software image across all license levels, providing an easy upgrade path for software features
• Cisco Catalyst3850-24E Dubai offers Cisco DNA services delivered through Cisco ONE^™Software, providing simplified, high-value solutions with license portability and flexibility
• Support for AES-256 with the powerful MACSEC 256-bit for SFP+ and Multigigabit models and 128-bit encryption algorithm available on all models
• Enhanced Limited Lifetime Warranty (E-LLW) with Next Business Day (NBD) advance hardware replacement and 90-day access to Cisco Technical Assistance Center (TAC) support

Technical Specs
