Description

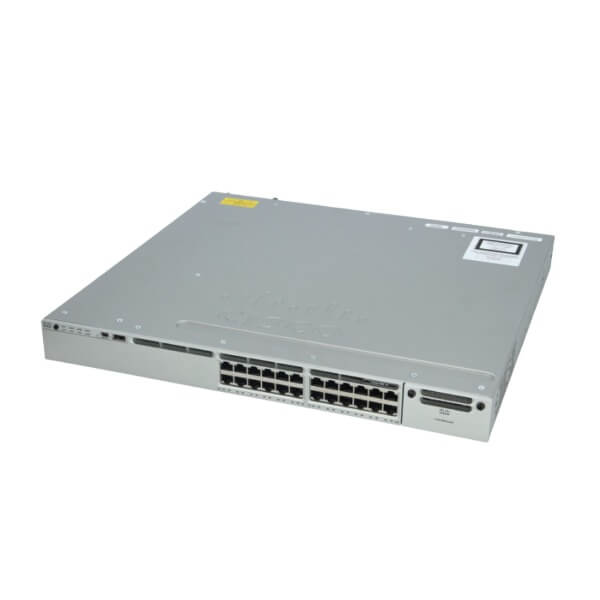

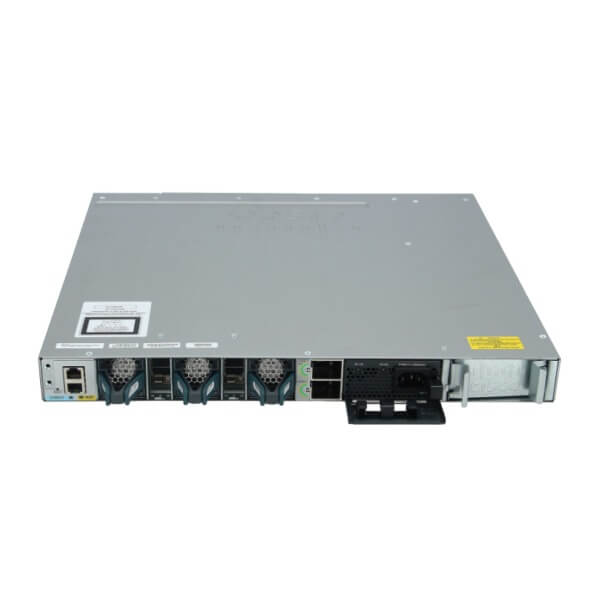

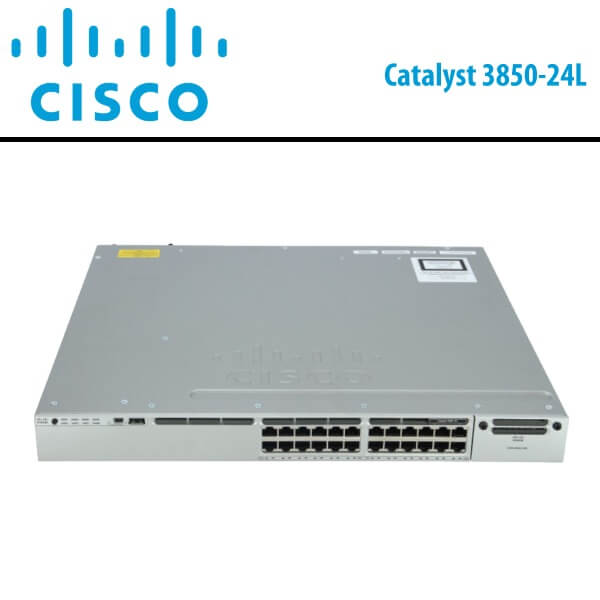

Cisco Catalyst3850-24L Dubai
The Cisco Catalyst3850-24L Dubai is a stackable switch designed for enterprise-level functionality, featuring 24 Ethernet UPOE ports within the LAN Base feature set. It can support up to 800W UPOE per switch, delivering 60W per port. Notably, the default switch configuration does not include the optional network module, although the Cisco Catalyst 3850-24L Dubai Series Switches offer compatibility with five different modules for uplink ports.
One standout feature of the Cisco Catalyst3850-24L Dubai is its integration of Cisco’s renowned StackPower technology. This innovative power sharing and redundancy solution, exclusive to the Cisco 3850 series, enables members of the stack to participate in one of two power pooling configurations. In the power sharing mode, the system aggregates and dynamically distributes power throughout the stack based on demand. Alternatively, in redundant mode, the stack polls and identifies the supply with the highest wattage, reserving it for potential failures and allocating power from the remaining supplies. Upon activation of the reserved power supply, the stack seamlessly transitions to power sharing mode. Importantly, this technology eliminates the necessity for an external Redundant Power Supply (RPS) unit, allowing users to effortlessly add another power supply for either redundancy or additional power to the pool.
Cisco Catalyst3850-24L Features :
- AutoQoS (Automatic QoS)
- DHCP (Dynamic Host Configuration Protocol)
- DTP (Dynamic Trunking Protocol)
- PAgP (Port Aggregation Protocol)
- LACP (Link Aggregation Control Protocol)
- MDIX (Automatic media-dependent interface crossover)
- UDLD (Unidirectional Link Detection Protocol)
- SDM (Switching Database Manager)
- ARP (Local Proxy Address Resolution Protocol
- IGMP (Internet Group Management Control Protocol)
- IGMP Filtering
- VLAN Registration
- VTP (VLAN Trunking Protocol)
- Dynamic VLAN assignment
- RSPAN Remote Switch Port Analyzer
- Layer 2 Traceroute
- TFTP (Trivial File Transfer Protocol)
- NTP (Network Timing Protocol)
- Equal-cost routing and load balancing (Layer 3)
- EEM (Embedded Event Manager)
- SLAs (IP Service-level Agreements)
- Private VLAN’s
- Private VLAN Edge
- Multidomain Authentication
- Port Based ACL’s
- SSH (Secure Shell Protocol)
- Kerberos
- SNMPv3
- SPAN
- TACACS+ and Radius Authentication
- MAC Address Notification
- Multilevel security on console access
- BPDU (Bridge Protocol Data Unit)
- WTD (Weighted Tail Drop)
Technical Specs
Ports | 48 x 10/100/1000 PoE+ |
Form Factor | Desktop, Rack Mountable |
Rack Units | 1RU |
Software | IP Services |
Subtype | Gigabit Ethernet |
Flash Memory | 2 GB |
PoE Budget | 435W |
Network Module Slots | 1 |
VLAN IDs | 4,000 |
Fans | 3 Dual Redundant Fans |
StackWise-480 | Yes |
Stacking Bandwidth | 480 Gbps |
Model # : | WS-C3850-48P-E |
Warranty : | Lifetime Warranty |
Condition : | Refurbished |
Weight : | 17.40 lbs |
Port Quantity | 48 |
Series | Catalyst 3850 |
Rack Units | 1RU |
OSI Layer | L3 |
Stacking | StackWise-480 & StackPower (IP Services to IP Services) |
Deployment Pack | No |
Energy Efficient | Yes |
PoE Compatibility | 802.3at PoE+ |
Ram | 4GB |
Flash | 2GB |
Ports | 48 x Ethernet 10/100/1000 |
Switching Bandwidth | 176 Gbps |
Mac Addresses | 32K |
Operating Humidity | 5 to 90% non-condensing |
Storage Humidity | 5 to 90% non-condensing |
Stacking Bandwidth | 480 Gbps |
Unicast Routes | 24K |
Acoustic Noise | – |
Available PoE Power | 435W |
Forwarding Rate Based On 64-Byte Packets | 130.95 Mpps |
Max Routed Ports Per 3850 Stack | 208 |
Power Specifications | 100-240VAC , 50-60Hz , 10-5A |
Operating Temp | 23 to 113°F (-5 to 45°C) |
Storage Temp | -40 to 158°F (-40 to 70°C) |
Uplink Interfaces | C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G |
Max Active VLANS | Depends on SDM template |
Switched Virtual Interfaces (SVI’s) | 1K |
