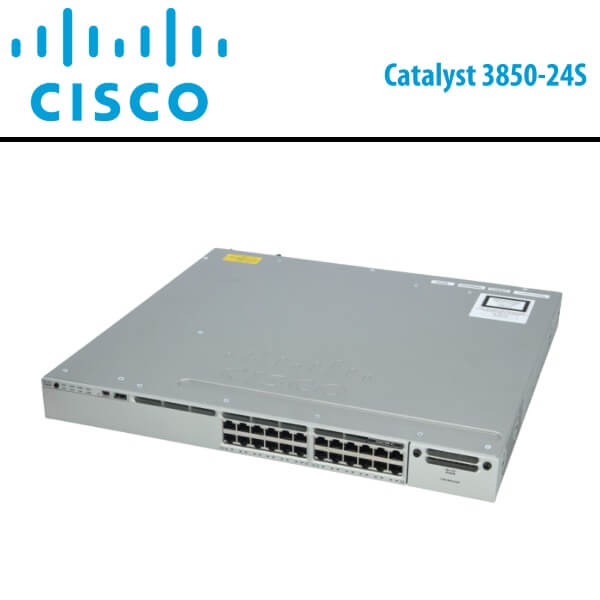

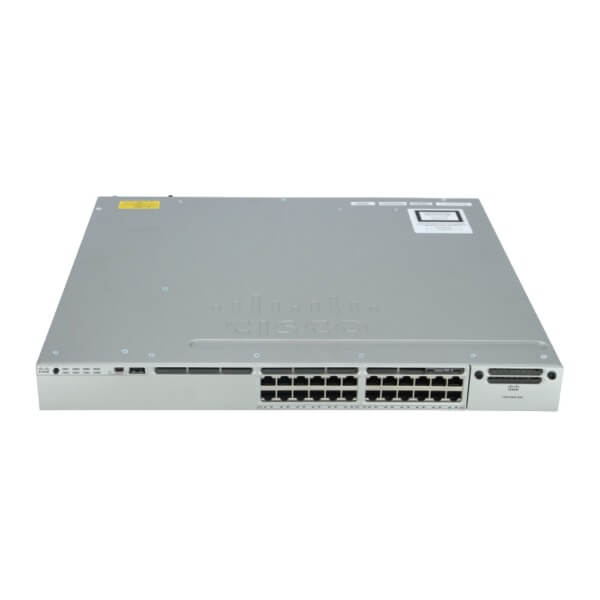

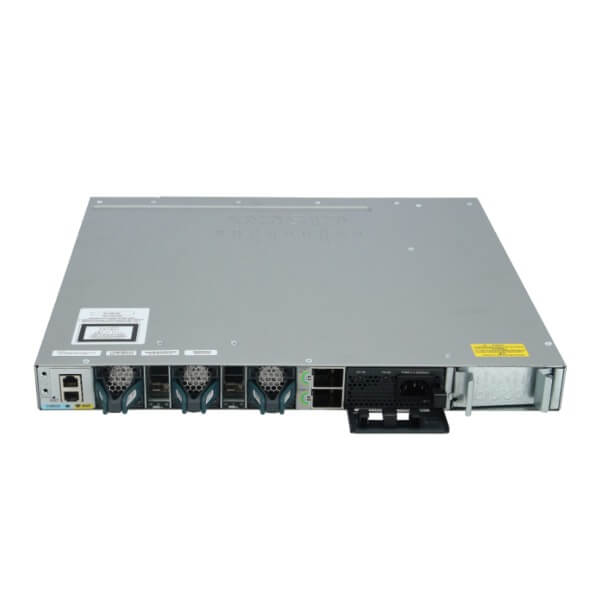

Cisco Catalyst3850-24S Dubai
The Cisco Catalyst3850-24S Dubai represents the latest evolution in enterprise-class stackable Ethernet access and aggregation layer switches, offering seamless integration of wired and wireless capabilities on a unified platform. The switch is powered by Cisco’s cutting-edge Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC), facilitating consistent enforcement of wired-wireless policies, application visibility, flexibility, and application optimization. This integration is fortified by the robust Cisco StackWise-480 technology.
Within the Cisco Catalyst3850-24S Dubai Switches, support extends to full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and easily replaceable network modules, RJ45 and fiber-based downlink interfaces, as well as redundant fans and power supplies.
Features
- Cisco StackWise-480 technology integrated in the Cisco Catalyst3850-24S Dubai provides scalability and resiliency with 480 Gbps of stack throughput
- Cisco Catalyst3850-24S Dubai is integrated with Cisco StackPower technology which provides power stacking among stack members for power redundancy
- Dual redundant, modular power supplies and three modular fans providing redundancy
- Full IEEE 802.3at (PoE+) with 30 W power on all copper ports in 1 rack unit (RU) form factor
- Cisco Catalyst3850-24S Dubai comes with Cisco UPOE with 60 W power per port in 1 rack unit (RU) form factor
Technical Specs
| General | |
| Device Type | Switch – 24 ports – L3 – managed – stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x Gigabit SFP |
| Performance | Switching capacity : 92 Gbps
Stacking bandwidth : 480 Gbps Forwarding performance : 68.4 Mpps |
| Capacity | IPv4 routes : 24000
NetFlow entries : 24000 Switched virtual interfaces (SVIs) : 1000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | RIP-1, RIP-2, EIGRP, RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features | DHCP support, auto-negotiation, ARP support, Syslog support, Intrusion Detection System (IDS), full duplex mode, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Cisco StackWise Technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Port Security, Remote Switch Port Analyzer (RSPAN), CAPWAP support, Hot Standby Router Protocol (HSRP) support, Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Wireless Intrusion Prevention System (WIPS), Class of Service (CoS), Cisco StackPower technology, Flexible NetFlow (FNF), FTP client, DiffServ Code Point (DSCP) support, Storm Control, IP source guard, Weighted Tail Drop (WTD) |
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| RAM | 4 GB |
| Flash Memory | 2 GB |
| Status Indicators | Power |
| Expansion / Connectivity | |
| Interfaces | 24 x 1000Base-X SFP
1 x USB Type A 1 x management (mini-USB) Type B 1 x serial (RS-232) RJ-45 management 1 x management (Gigabit LAN) RJ-45 2 x network stack device |
| Expansion Slots | 1 (total) / 1 (free) x Stacking Module slot |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Power Provided | 350 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| MTBF | 300,760 hours |
| Compliant Standards |
CISPR 22 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, KCC, RoHS, FCC Part 15 A, AS/NZS 3548 Class A, BSMI Class A, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, CNS 13438(95) Class A, KN22 Class A, AS/NZS CISPR22 : 2004 Class A, EN 55022 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1 |
| Software / System Requirements | |
| Software Included | Cisco IOS IP Base |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 17.7 in |
| Height | 1.8 in |
| Weight | 15.5 lbs |
