Description

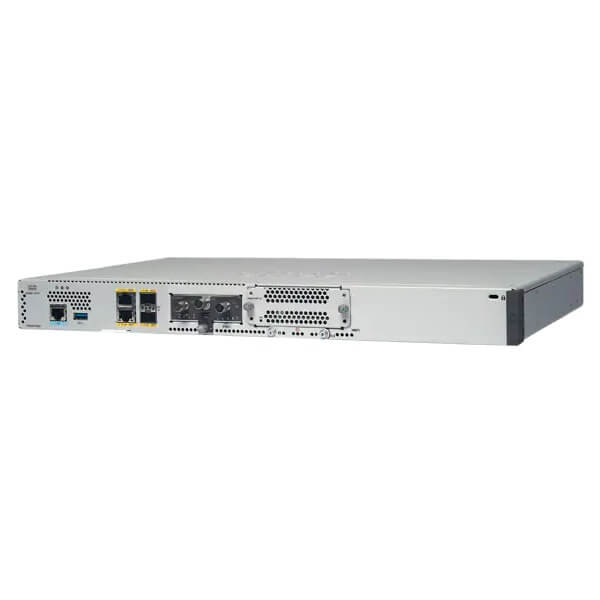

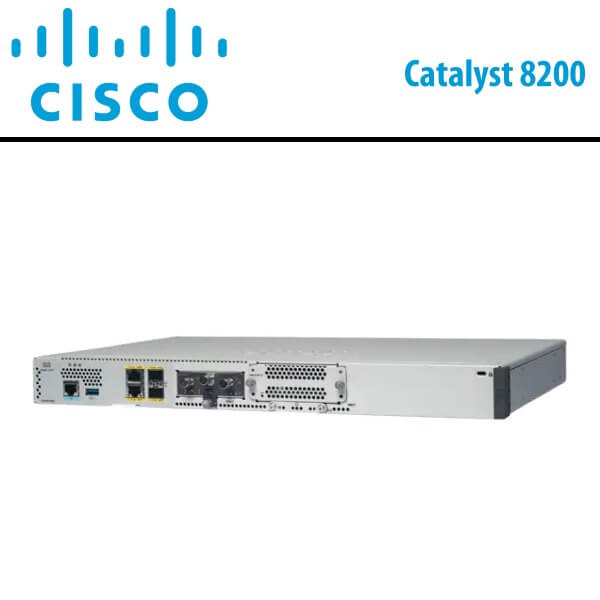

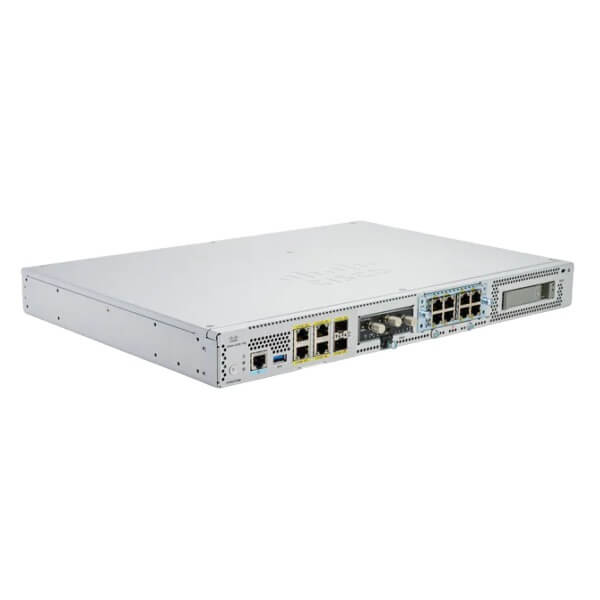

Cisco Catalyst8200 Dubai
The Cisco Catalyst8200 Dubai is an ideal choice for small and medium-sized enterprise branch offices, offering an optimal balance of price and performance with integrated SD-WAN services. Specifically, the C8200-1N-4T model caters to the needs of small to medium-sized branches that require higher throughput, scalability, and service flexibility. Apart from supporting SASE-compliant cloud-based security services, the C8200-1N-4T also provides a versatile system of top-tier, on-premises security services through container-based apps, leveraging Cisco’s third-party ecosystem.
Designed as 5G-ready cloud edge platforms, the Cisco Catalyst8200 Edge Platforms are geared towards Secure Access Service Edge (SASE), offering multilayer security and cloud-native agility to expedite the transition to the cloud.
Features:
Multicore processors-
- C8200-1N-4T uses an Intel x86 CPU with 8 GB DRAM memory default
- High-performance multicore processors support high-speed WAN connections
- Dynamic core allocation architecture will repurpose unused cores into forwarding entities as per the user’s configuration
Embedded IPsec VPN hardware acceleration-
- Cisco Catalyst8200 Dubai enables up to 1 Gbps IPsec traffic
- Increases scalability for IPsec throughput requirements
- SSL and crypto hardware acceleration
Integrated Gigabit Ethernet ports-
- Cisco Catalyst8200 Dubai provides four built-in Ethernet WAN ports
- Two Ethernet ports are Small Form-Factor Pluggable (SFP) and two are RJ45 ports, enabling fiber as well as copper connectivity
M.2 storage-
- The Cisco Catalyst8200 Dubai is shipped with default 16G M.2 storage and can be upgraded to 32G M.2 USB and 600G M.2 Non-Volatile Memory Express (NVMe) Storage
Technical Details
Part number | C8200-1N-4T |
Description | C8200 1RU w/ 1 NIM slot and 4x 1 Gigabit Ethernet WAN ports |
Multicore processors | Intel x86 CPU with 8 GB memory default |
Embedded IPsec VPN hardware acceleration | up to 1 Gbps IPsec traffic |
DRAM | 8 GB |
SD-WAN overlay tunnels scale | 2500 |
Integrated Gigabit Ethernet ports | 4 built-in Ethernet WAN ports
2 SFP Ethernet ports, 2 RJ45 ports |
Flash memory support | 8-GB flash |
M.2 storage | Default 16G M.2 storage can be upgraded to 32G M.2 USB and 600G M.2 NVMe Storage |
