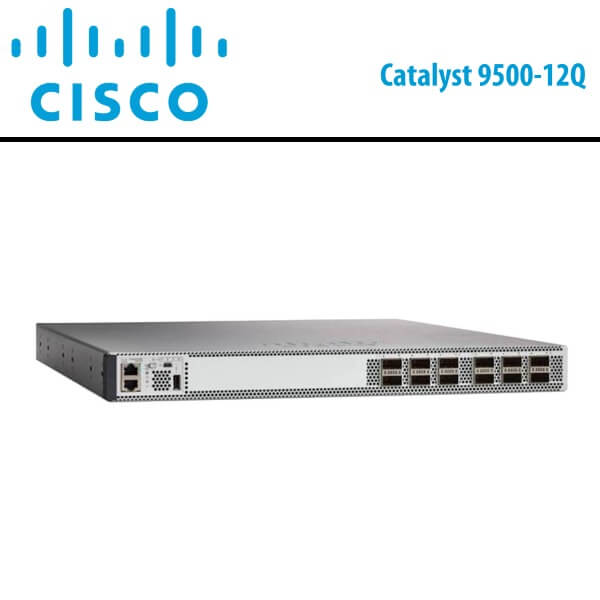

Cisco Catalyst9500-12Q Dubai

The Cisco Catalyst9500-12Q Dubai is a cutting-edge Ethernet switch designed for full serviceability and programmability. Powered by an x86 CPU, it stands as Cisco’s premier purpose-built fixed core and aggregation enterprise switching platform, specifically crafted for security, IoT, and cloud applications. Featuring a 4-core x86, 2.4-GHz CPU, 16-GB DDR4 memory, and 16-GB internal storage, the C9500-12Q ensures robust performance.

Positioned as the industry’s pioneering purpose-built 40 Gigabit Ethernet line of switches tailored for the enterprise campus, the Cisco Catalyst9500-12Q Dubai offers unparalleled table scale (MAC/route/ACL) and buffering capabilities for diverse enterprise applications. This series encompasses nonblocking 40G Quad Small Form-factor Pluggable (QSFP) and 10G Small Form-factor Pluggable Plus (SFP+) switches, providing granular port densities to meet various campus requirements. Supporting advanced routing and infrastructure services, software-defined access border capabilities, and network system virtualization with Cisco StackWise virtual technology, the switches play a crucial role in the campus core. The platform also ensures foundational high-availability features such as patching, Graceful Insertion and Removal (GIR), Cisco Nonstop Forwarding with Stateful Switchover (NSF/SSO), redundant platinum-rated power supplies, and fans.

Features :

• Up to 12.0 Tbps switching capacity with 8 Bpps forwarding rate
• 80MB of dedicated low-latency buffer, with up to 8GB of HBM buffer
• Up to 28 nonblocking 40/100 Gigabit Ethernet QSFP28 ports
• Up to 8 nonblocking 40/100/200/400 Gigabit Ethernet QSFPDD ports
• Intel 2.43-GHz x86 CPU with 8 cores and 32-GB of DDR4 memory
• Up to 960 GB of SSD local storage for container-based application hosting (2x 10G KR ports)
• Flexible routing (IPv4, IPv6, and multicast) tables, Layer 2 tables, ACL tables, and QoS tables.
• ASIC tables for switching scale up to 256K MAC addresses and routing scale up to 2M routes.
• Dual-stack IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration
• Hardware support for Application Hosting (e.g. with Cisco ThousandEyes Enterprise Agent).
• Hardware support for Precision Time Protocol (PTP, IEEE 1588v2) with accurate clock synchronization and sub- microsecond accuracy, suitable for distribution and synchronization of time and frequency.
• Hardware support for line-rate 256-bit 802.1ae MACsec and WAN-MACsec data encryption.
• Platinum-rated (90% efficient) 1500 Watt AC and/or DC power supplies.
• Field-replaceable fan-tray units, with an added flexibility to choose the direction of airflow.
