Description

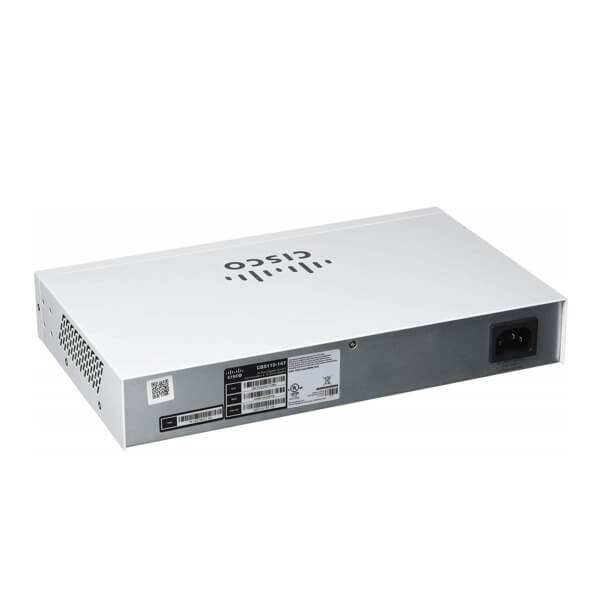

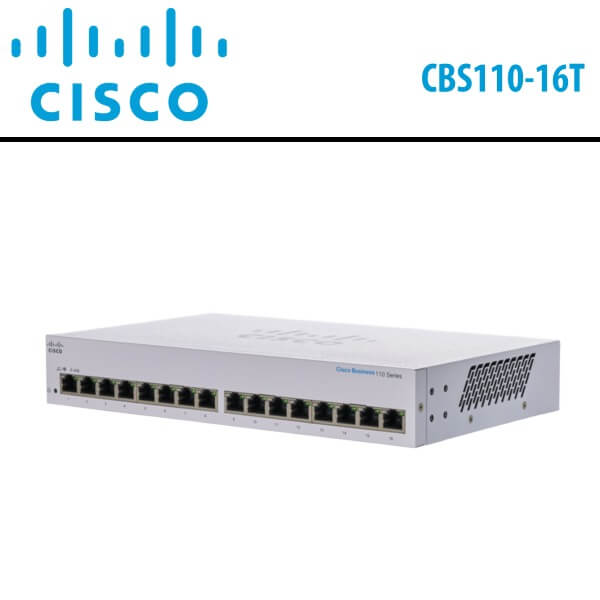

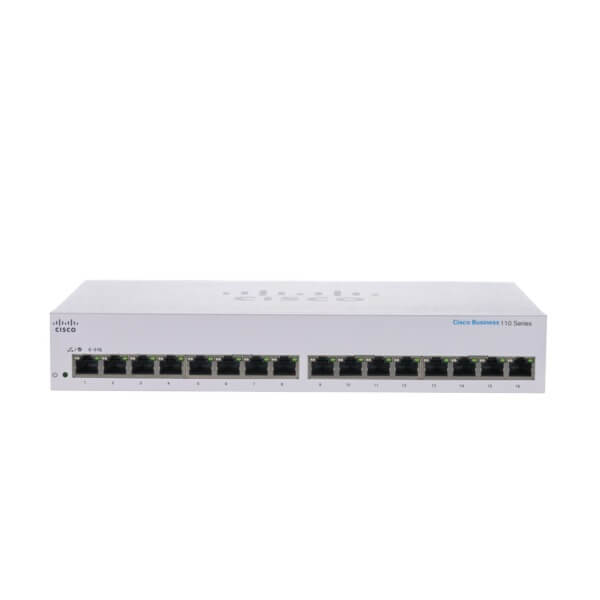

Cisco CBS110-16T Dubai

The Cisco CBS110-16T Dubai Unmanaged Switch is an affordable, plug-and-play network solution that offers swift and dependable access to crucial cloud-based business applications for both remote and in-office workforces. Tailored for small offices, workgroups, departments, and expanding offices with limited IT expertise and support, the Cisco CBS110-16T Dubai provides Gigabit Ethernet connectivity for your small business network. Available in both desktop and rack-mount models, the Cisco Business 110 Series switches are designed to meet the basic network needs of small businesses while emphasizing power efficiency.

The Cisco CBS110-16T Dubai ensures robust network connectivity, addressing your business demands with additional reliability through advanced features like Quality of Service (QoS), loop detection, and cable diagnostics. Setting up the switch is a straightforward process that you can handle within minutes. Importantly, the Cisco CBS110-16T Dubai brings the proven reliability and investment protection of Cisco networking solutions to your small business. The solution undergoes rigorous testing to ensure optimal uptime and performance. Additionally, the limited lifetime hardware warranty provides peace of mind, assuring the durability and longevity of the Cisco CBS110-16T Dubai Unmanaged Switch.

Features

Simple Design

Cisco CBS110-16T Dubai works right out of the box, with plug-and-play capability without software installation and configuration. Each switch port independently sets itself for the optimal speed and determines whether to run in half- or full-duplex mode automatically. As a standards-based Cisco solution, Cisco CBS110-16T Dubai is designed to immediately accommodate all of the devices in your network.

Flexible deployment

Designed for small office spaces, Cisco CBS110-16T Dubai comes with 16-ports configurations, providing ultimate flexibility for diverse use cases and deployment scenarios. The Cisco Business 110 Series switches are also available in both compact desktop and rack-mount models. The desktop models offer a wall-mount option for discreet mounting under a desk or on the wall of an office or conference room. All switches have no fans, so they run silently and unobtrusively in any workspace.

Reliable performance

Cisco CBS110-16T Dubai delivers the performance you need to run your business applications, including bandwidth-intensive cloud applications and video services, and to avoid slow and sluggish networks. The switch supports Gigabit Ethernet speeds, unlocking a new level of capacity and performance in your business network and letting you transfer large files in seconds.

Saves on Energy

Cisco CBS110-16T Dubai is designed to help conserve energy by optimizing power use without compromising performance, which protects our environment and reduces your energy costs. In addition, they support the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods.

Power over Ethernet (PoE)

Cisco CBS110-16T Dubai comes equipped with PoE ports. This capability simplifies the deployment of IP telephony, wireless, video surveillance, and other IoT solutions by allowing you to connect and power network endpoints over a single Ethernet cable. With no need to install separate power supplies for IP phones or wireless access points, you can take advantage of advanced communications technologies more quickly and at a lower cost.

Advanced technologies

All switches include advanced Cisco traffic-handling features to keep your applications running at peak performance. Integrated QoS intelligence on all models automatically prioritizes delay-sensitive services such as voice or video to improve your network’s performance. Loop detection helps discover loops in the network that you might have accidentally created, thus avoiding storms that will bring your network to a stall. Cable diagnostics help to quickly identify and troubleshoot network cabling faults and issues. Fast store-and-forward switching identifies damaged packets and prevents them from being passed on through the network. All of these features run automatically, with no management or configuration required.

Peace of mind

Cisco CBS110-16T Dubai switch delivers the rock-solid reliability you expect from a Cisco switch. The solution has been rigorously tested to make sure of optimal uptime and performance. In addition, the limited lifetime hardware warranty provides peace of mind.

Specifications

Specifications	Description
Performance
Switching capacity and forwarding rate All switches are wire- speed and non-blocking	Model	Capacity in millions of packets per second (mpps) (64-byte packets)		Switching capacity in gigabits per second (Gbps)
	CBS110-5T-D	7.4 mpps		10 Gbps
	CBS110-8T-D	11.9 mpps		16 Gbps
	CBS110-8PP-D	11.9 mpps		16 Gbps
	CBS110-16T	23.8 mpps		32 Gbps
	CBS110-16PP	23.8 mpps		32 Gbps
	CBS110-24T	35.7 mpps		48 Gbps
	CBS110-24PP	35.7 mpps		48 Gbps
General
Head-of-Line (HOL) blocking	HOL blocking prevention
MAC table	2K addresses for CBS110-5T-D 8K addresses for all other models
Jumbo frame	9216 bytes
Quality of Service (QoS)	802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)
Loop detection	Helps discover loops in the network to avoid broadcast storms
Cable diagnostics	Quickly identify and troubleshoot network cable faults and/or shorts
Media-dependent interface	Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)
Standards	IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet
Hardware
Ports	Model name	Total system ports	RJ-45 ports	Combo ports (RJ-45 + Small Form-factor Pluggable [SFP])
	CBS110-5T-D	5 Gigabit Ethernet	5 Gigabit Ethernet	–
	CBS110-8T-D	8 Gigabit Ethernet	8 Gigabit Ethernet	–
	CBS110-8PP-D	8 Gigabit Ethernet	8 Gigabit Ethernet	–
	CBS110-16T	16 Gigabit Ethernet	16 Gigabit Ethernet	–
	CBS110-16PP	16 Gigabit Ethernet	16 Gigabit Ethernet	–
	CBS110-24T	24 Gigabit Ethernet	24 Gigabit Ethernet	2 SFP (combo with 2 Gigabit Ethernet)
	CBS110-24PP	24 Gigabit Ethernet	24 Gigabit Ethernet	2 SFP (combo with 2 Gigabit Ethernet)
Power over Ethernet (PoE) 802.3af	Model	Power dedicated to PoE		Number of ports that support PoE
	CBS110-8PP-D	32W		4
	CBS110-16PP	64W		8
	CBS110-24PP	100W		12
LEDs	Power, link/activity (cable diagnostics, loop detection), Gigabit, PoE*, Max PoE* *if present
Cabling type	Category 5e or better
Mounting options	Desktop, wall-mount or rack mount
Physical security lock	Kensington lock slot
Flash	16 MB for CBS110-16T, CBS110-16PP 8 MB for CBS110-24T, CBS110-24PP
CPU	400 MHz ARM for CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP
CPU memory	128 MB for CBS110-16T, CBS110-16PP 64 MB for CBS110-24T, CBS110-24PP
Packet buffer	All numbers are aggregate across all ports as the buffers are dynamically shared:
	Model Name		Packet Buffer
	CBS110-5T-D		1 Mbit
	CBS110-8T-D		2 Mbit
	CBS110-8PP-D		2 Mbit
	CBS110-16T		2 Mbit
	CBS110-16PP		2 Mbit
	CBS110-24T		2 Mbit
	CBS110-24PP		2 Mbit
Supported SFP modules	SKU	Media	Speed	Maximum distance
	MGBSX1	Multimode fiber	1000 Mbps	500 m
	MGBLX1	Single-mode fiber	1000 Mbps	10 km
	MGBLH1	Single-mode fiber	1000 Mbps	40 km
	MGBT1	UTP cat 5e	1000 Mbps	100 m
Environmental
Unit dimensions (W x D x H)	Model name		Unit dimensions
	CBS110-5T-D		110 x 75 x 30 mm (4.33 x 2.95 x 1.18 in)
	CBS110-8T-D		160 x 104 x 30 mm (6.30 x 4.07 x 1.18 in)
	CBS110-8PP-D		160 x 129 x 30 mm (6.30 x 5.06 x 1.18 in)
	CBS110-16T		279 x 170 x 44 mm (11 x 6.7 x 1.73 in)
	CBS110-16PP		279 x 170 x 44 mm (11 x 6.7 x 1.73 in)
	CBS110-24T		279 x 170 x 44 mm (11 x 6.7 x 1.73 in)
	CBS110-24PP		440 x 203 x 44 mm (17.32 x 7.97 x 1.73 in)
Unit weight	Model name		Unit weight
	CBS110-5T-D		0.23 kg (0.52 lb)
	CBS110-8T-D		0.43 kg (0.94 lb)
	CBS110-8PP-D		0.55 kg (1.2 lb)
	CBS110-16T		0.97 kg (2.14 lb)
	CBS110-16PP		1.30 kg (2.87 lb)
	CBS110-24T		1.56 kg (3.43 lb)
	CBS110-24PP		2.98 kg (6.57 lb)
Power	100 to 240V, 50 to 60 Hz, external, universal: CBS110-5T-D, CBS110-8T-D, CBS110-8PP-D 100 to 240V, 50 to 60 Hz, internal, universal: CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP
Power consumption (worst case)	Model	System power consumption	Power consumption (with PoE)	Heat dissipation (BTU/hr)
	CBS110-5T-D	110V=2.74W 220V=2.69W	N/A	9.34
	CBS110-8T-D	110V=4.09W 220V=4.13W	N/A	14.09
	CBS110-8PP-D	110V=5.1W 220V=5.29W	110V=38.02W 220V=38.2W	130.34
	CBS110-16T	110V=11.33W 220V=11.53W	N/A	39.34
	CBS110-16PP	110V=11.16W 220V=11.41W	110V=80.28W 220V=80.38W	274.27
	CBS110-24T	110V=16.3W 220V=16.34W	N/A	55.75
	CBS110-24PP	110V=17.21W 220V=17.29W	110V=135.67W 220V=133.82W	462.93
Green (power efficiency)	Supports IEEE 802.3az on all copper Gigabit Ethernet ports
Compliance/certifications	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B* *select models
Operating temperature	32° to 104°F (0° to 40°C)
Storage temperature	–4° to 158°F (–20° to 70°C)
Operating humidity	10% to 90%, relative, non-condensing
Storage humidity	5% to 90%, relative, non-condensing
Acoustic noise and Mean Time Between Failures (MTBF)	Model name	Fan (number)	Acoustic noise	MTBF at 25°C (hours)
	CBS110-5T-D	Fanless	N/A	4,243,002
	CBS110-8T-D	Fanless	N/A	2,066,844
	CBS110-8PP-D	Fanless	N/A	465,437
	CBS110-16T	Fanless	N/A	2,685,092
	CBS110-16PP	Fanless	N/A	1,971,811
	CBS110-24T	Fanless	N/A	524,296
	CBS110-24PP	Fanless	N/A	340,703
Warranty	Limited lifetime
Package contents
Cisco Business 110 Series switch Power cord or adapter Quick start guide Mounting kit
Minimum requirements
Devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab Gigabit Ethernet Cat5e or better Ethernet cable Network interface card for each computer
