Description

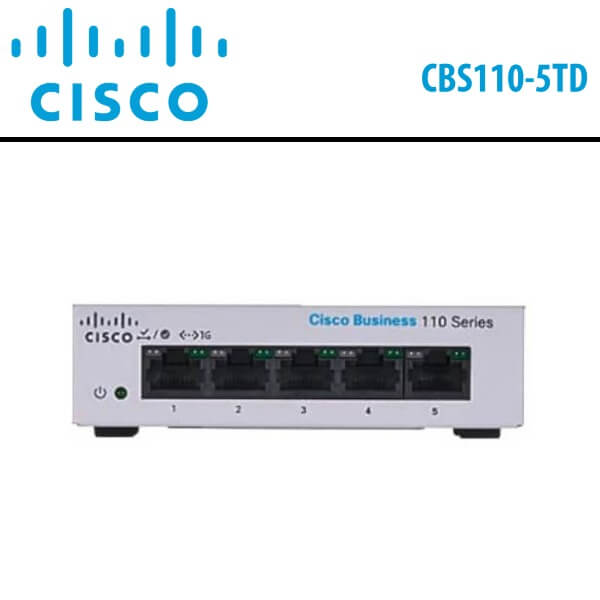

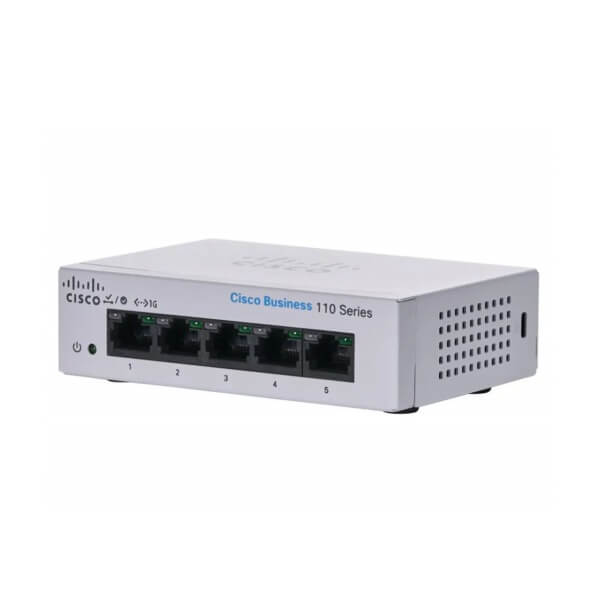

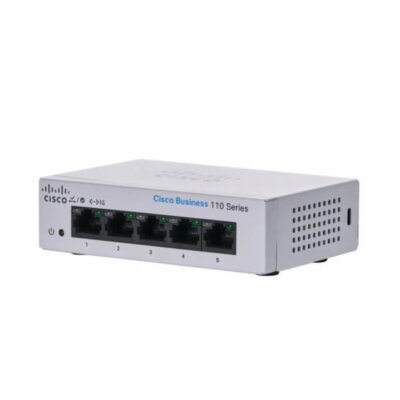

Cisco CBS110-5TD Dubai
The Cisco CBS110-5TD Dubai Unmanaged Switch is part of the Cisco Business networking portfolio, offering cost-effective switches with Gigabit Ethernet connectivity for small business networks. Available in both desktop and rack-mount models, this Cisco Dubai variant is well-suited for small businesses with basic network requirements, emphasizing power efficiency. Simple to set up, it caters to your business’s essential networking needs and ensures reliability through advanced features like Quality of Service (QoS), loop detection, and cable diagnostics. The Cisco CBS110-5TD Dubai model brings the proven reliability and investment protection of Cisco networking solutions to small businesses.
Designed for businesses seeking basic network connectivity without the need for extensive IT knowledge or services, the Cisco CBS110-5TD Dubai is an Unmanaged Ethernet Switch. Equipped with 5 standard Gigabit Ethernet ports, each supporting Gigabit Ethernet and 10/100/1000Base-T technologies with layer 2 support, it facilitates rapid and accurate data transmission for connected devices. With a plug-and-play design, the switch is easy to set up without additional hardware or software requirements. Mounting brackets are included for securing the switch in networking racks and cabinets. These affordable plug-and-play switches are ideal for small offices, workgroups, departments, and growing offices with limited IT expertise and support.
Features
- Affordable 10/100/1000-Mbps speeds for bandwidth-hungry applications
- Plug-and-play
- 5- to 24-port models that are desktop or rack mountable
- Power over Ethernet models to provide power to access points, IP phones and, other devices
Simple
Cisco CBS110-5TD Dubai works right out of the box, with plug-and-play capability without software installation and configuration. Each switch port independently sets itself for the optimal speed and determines whether to run in half- or full-duplex mode automatically. As a standards-based Cisco solution, Cisco CBS110-5TD Dubai is also designed to immediately accommodate all of the devices in your network.
Flexible deployment
Designed for small office spaces, Cisco Business 110 Series switches are available in 5-, 8-, 16-, and 24-ports configurations, providing ultimate flexibility for diverse use cases and deployment scenarios. The Cisco Business 110 Series switches are also available in both compact desktop and rack-mount models. The desktop models offer a wall-mount option for discreet mounting under a desk or on the wall of an office or conference room. All switches have no fans, so they run silently and unobtrusively in any workspace.
High performance
Cisco CBS110-5TD Dubai delivers the performance you need to run your business applications, including bandwidth-intensive cloud applications and video services, and to avoid slow and sluggish networks. Supporting Gigabit Ethernet speeds, Cisco CBS110-5TD Dubai unlocks a new level of capacity and performance in your business network and letting you transfer large files in seconds.
Reduced energy costs
Cisco CBS110-5TD Dubai is designed to help conserve energy by optimizing power use without compromising performance, which protects our environment and reduces your energy costs. In addition, it supports the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods.
Power over Ethernet (PoE)
Cisco CBS110-5TD Dubai is available with PoE ports. This capability simplifies the deployment of IP telephony, wireless, video surveillance, and other IoT solutions by allowing you to connect and power network endpoints over a single Ethernet cable. With no need to install separate power supplies for IP phones or wireless access points, you can take advantage of advanced communications technologies more quickly and at a lower cost.
Advanced technologies
Cisco CBS110-5TD Dubai has advanced Cisco traffic-handling features included to keep your applications running at peak performance. Integrated QoS intelligence on all models automatically prioritizes delay-sensitive services such as voice or video to improve your network’s performance. Loop detection helps discover loops in the network that you might have accidentally created, thus avoiding storms that will bring your network to a stall. Cable diagnostics help to quickly identify and troubleshoot network cabling faults and issues. Fast store-and-forward switching identifies damaged packets and prevents them from being passed on through the network. All of these features run automatically, with no management or configuration required.
Peace of mind
Cisco CBS110-5TD Dubai delivers the rock-solid reliability you expect from a Cisco switch. The solution has been rigorously tested to make sure of optimal uptime and performance. In addition, the limited lifetime hardware warranty provides peace of mind.
Specifications
| Specifications | Description | |||
| Performance | ||||
| Switching capacity and forwarding rate
All switches are wire- speed and non-blocking |
Model | Capacity in millions of packets per second (mpps) (64-byte packets) | Switching capacity in gigabits per second (Gbps) | |
| CBS110-5T-D | 7.4 mpps | 10 Gbps | ||
| CBS110-8T-D | 11.9 mpps | 16 Gbps | ||
| CBS110-8PP-D | 11.9 mpps | 16 Gbps | ||
| CBS110-16T | 23.8 mpps | 32 Gbps | ||
| CBS110-16PP | 23.8 mpps | 32 Gbps | ||
| CBS110-24T | 35.7 mpps | 48 Gbps | ||
| CBS110-24PP | 35.7 mpps | 48 Gbps | ||
| General | ||||
| Head-of-Line (HOL) blocking | HOL blocking prevention | |||
| MAC table | 2K addresses for CBS110-5T-D
8K addresses for all other models |
|||
| Jumbo frame | 9216 bytes | |||
| Quality of Service (QoS) | 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR) | |||
| Loop detection | Helps discover loops in the network to avoid broadcast storms | |||
| Cable diagnostics | Quickly identify and troubleshoot network cable faults and/or shorts | |||
| Media-dependent interface | Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X) | |||
| Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet | |||
| Hardware | ||||
| Ports | Model name | Total system ports | RJ-45 ports | Combo ports (RJ-45 + Small Form-factor Pluggable [SFP]) |
| CBS110-5T-D | 5 Gigabit Ethernet | 5 Gigabit Ethernet | – | |
| CBS110-8T-D | 8 Gigabit Ethernet | 8 Gigabit Ethernet | – | |
| CBS110-8PP-D | 8 Gigabit Ethernet | 8 Gigabit Ethernet | – | |
| CBS110-16T | 16 Gigabit Ethernet | 16 Gigabit Ethernet | – | |
| CBS110-16PP | 16 Gigabit Ethernet | 16 Gigabit Ethernet | – | |
| CBS110-24T | 24 Gigabit Ethernet | 24 Gigabit Ethernet | 2 SFP (combo with 2 Gigabit Ethernet) | |
| CBS110-24PP | 24 Gigabit Ethernet | 24 Gigabit Ethernet | 2 SFP (combo with 2 Gigabit Ethernet) | |
| Power over Ethernet (PoE) 802.3af | Model | Power dedicated to PoE | Number of ports that support PoE | |
| CBS110-8PP-D | 32W | 4 | ||
| CBS110-16PP | 64W | 8 | ||
| CBS110-24PP | 100W | 12 | ||
| LEDs | Power, link/activity (cable diagnostics, loop detection), Gigabit, PoE*, Max PoE*
*if present |
|||
| Cabling type | Category 5e or better | |||
| Mounting options | Desktop, wall-mount or rack mount | |||
| Physical security lock | Kensington lock slot | |||
| Flash | 16 MB for CBS110-16T, CBS110-16PP
8 MB for CBS110-24T, CBS110-24PP |
|||
| CPU | 400 MHz ARM for CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP | |||
| CPU memory | 128 MB for CBS110-16T, CBS110-16PP
64 MB for CBS110-24T, CBS110-24PP |
|||
| Packet buffer | All numbers are aggregate across all ports as the buffers are dynamically shared: | |||
| Model Name | Packet Buffer | |||
| CBS110-5T-D | 1 Mbit | |||
| CBS110-8T-D | 2 Mbit | |||
| CBS110-8PP-D | 2 Mbit | |||
| CBS110-16T | 2 Mbit | |||
| CBS110-16PP | 2 Mbit | |||
| CBS110-24T | 2 Mbit | |||
| CBS110-24PP | 2 Mbit | |||
| Supported SFP modules | SKU | Media | Speed | Maximum distance |
| MGBSX1 | Multimode fiber | 1000 Mbps | 500 m | |
| MGBLX1 | Single-mode fiber | 1000 Mbps | 10 km | |
| MGBLH1 | Single-mode fiber | 1000 Mbps | 40 km | |
| MGBT1 | UTP cat 5e | 1000 Mbps | 100 m | |
| Environmental | ||||
| Unit dimensions (W x D x H) |
Model name | Unit dimensions | ||
| CBS110-5T-D | 110 x 75 x 30 mm (4.33 x 2.95 x 1.18 in) | |||
| CBS110-8T-D | 160 x 104 x 30 mm (6.30 x 4.07 x 1.18 in) | |||
| CBS110-8PP-D | 160 x 129 x 30 mm (6.30 x 5.06 x 1.18 in) | |||
| CBS110-16T | 279 x 170 x 44 mm (11 x 6.7 x 1.73 in) | |||
| CBS110-16PP | 279 x 170 x 44 mm (11 x 6.7 x 1.73 in) | |||
| CBS110-24T | 279 x 170 x 44 mm (11 x 6.7 x 1.73 in) | |||
| CBS110-24PP | 440 x 203 x 44 mm (17.32 x 7.97 x 1.73 in) | |||
| Unit weight | Model name | Unit weight | ||
| CBS110-5T-D | 0.23 kg (0.52 lb) | |||
| CBS110-8T-D | 0.43 kg (0.94 lb) | |||
| CBS110-8PP-D | 0.55 kg (1.2 lb) | |||
| CBS110-16T | 0.97 kg (2.14 lb) | |||
| CBS110-16PP | 1.30 kg (2.87 lb) | |||
| CBS110-24T | 1.56 kg (3.43 lb) | |||
| CBS110-24PP | 2.98 kg (6.57 lb) | |||
| Power | 100 to 240V, 50 to 60 Hz, external, universal: CBS110-5T-D, CBS110-8T-D, CBS110-8PP-D
100 to 240V, 50 to 60 Hz, internal, universal: CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP |
|||
| Power consumption (worst case) | Model | System power consumption | Power consumption (with PoE) | Heat dissipation (BTU/hr) |
| CBS110-5T-D | 110V=2.74W
220V=2.69W |
N/A | 9.34 | |
| CBS110-8T-D | 110V=4.09W
220V=4.13W |
N/A | 14.09 | |
| CBS110-8PP-D | 110V=5.1W
220V=5.29W |
110V=38.02W
220V=38.2W |
130.34 | |
| CBS110-16T | 110V=11.33W
220V=11.53W |
N/A | 39.34 | |
| CBS110-16PP | 110V=11.16W
220V=11.41W |
110V=80.28W
220V=80.38W |
274.27 | |
| CBS110-24T | 110V=16.3W
220V=16.34W |
N/A | 55.75 | |
| CBS110-24PP | 110V=17.21W
220V=17.29W |
110V=135.67W
220V=133.82W |
462.93 | |
| Green (power efficiency) | Supports IEEE 802.3az on all copper Gigabit Ethernet ports | |||
| Compliance/certifications | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B*
*select models |
|||
| Operating temperature | 32° to 104°F (0° to 40°C) | |||
| Storage temperature | –4° to 158°F (–20° to 70°C) | |||
| Operating humidity | 10% to 90%, relative, non-condensing | |||
| Storage humidity | 5% to 90%, relative, non-condensing | |||
| Acoustic noise and Mean Time Between Failures (MTBF) | Model name | Fan (number) | Acoustic noise | MTBF at 25°C (hours) |
| CBS110-5T-D | Fanless | N/A | 4,243,002 | |
| CBS110-8T-D | Fanless | N/A | 2,066,844 | |
| CBS110-8PP-D | Fanless | N/A | 465,437 | |
| CBS110-16T | Fanless | N/A | 2,685,092 | |
| CBS110-16PP | Fanless | N/A | 1,971,811 | |
| CBS110-24T | Fanless | N/A | 524,296 | |
| CBS110-24PP | Fanless | N/A | 340,703 | |
| Warranty | Limited lifetime | |||
| Package contents | ||||
| Cisco Business 110 Series switch
Power cord or adapter Quick start guide Mounting kit |
||||
| Minimum requirements | ||||
| Devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab Gigabit Ethernet
Cat5e or better Ethernet cable Network interface card for each computer |
||||
