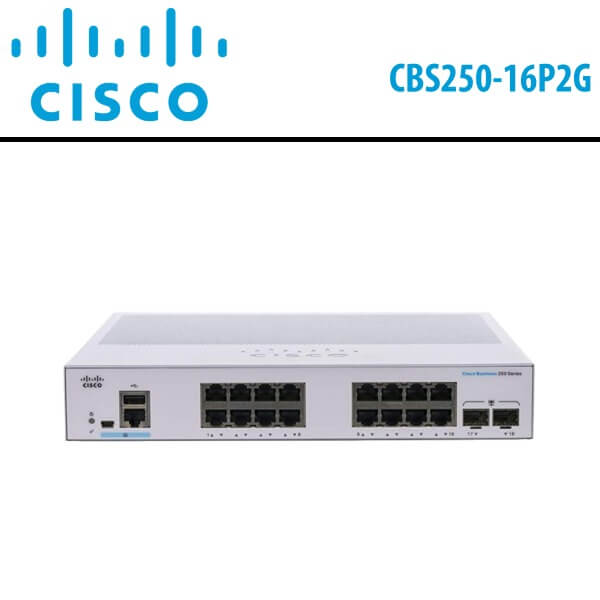

Cisco CBS250-16P2G Dubai

Rating

Cisco CBS250-16P2G Dubai

The Cisco CBS250-16P2G Dubai offers a swift solution for expanding your business’s network capacity to accommodate powered devices like IP security cameras, wireless access points, VoIP phones, and more.

Category:

Description

Cisco CBS250-16P2G Dubai

The Cisco CBS250-16P2G Dubai offers a swift solution for expanding your business’s network capacity to accommodate powered devices like IP security cameras, wireless access points, VoIP phones, and more. This features a 16-Port Gigabit Ethernet PoE+ Compliant Smart Switch with SFP from Cisco. The 16 Gigabit Ethernet ports of the Cisco CBS250-16P2G Dubai support up to 30W of power each, providing a total budget of 120W to operate advanced surveillance cameras, videophones, thin client devices, and similar equipment. Additionally, it includes two 1GbE SFP ports for fiber connections.

With extensive Layer 2 and Layer 3 features, this switch supports link aggregation to create up to four groups of eight ports for multi-Gig connections to compatible devices. Its 36 Gb/s switching capacity and 26.78 Mpps forwarding rate ensure smooth and reliable data transfers. Configuration and monitoring can be easily managed through the Cisco Business Dashboard portal and mobile app. The fanless design minimizes noise, preventing disruptions in your work environment.

Key features

Reliability

The Cisco CBS250-16P2G Dubai is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 36 Gb/s switching capacity and 26.78 Mpps forwarding rate.

High-speed desktop connectivity

Cisco CBS250-16P2G Dubai switch quickly and securely connect employees working in small offices with one another and with all of the printers, servers, and other networking devices. High performance and reliable connectivity help speed up file transfers and data processing, improve network uptime, and keep your employees productive.

Flexible wireless connectivity

Cisco CBS250-16P2G Dubai works with Cisco and third-party wireless solutions to extend the reach of your network. With security features, Power over Ethernet Plus (PoE+), Virtual Local Area Network (VLAN), and QoS, these switches are the perfect foundation to add enterprise-grade wireless solutions to a network. The capability of up to 30W of power per port provided through the Ethernet cable means you can easily deploy Cisco Business Wireless access points to maximize workforce productivity.

Unified communications

 The Cisco CBS250-16P2G Dubai provides QoS features to enable you to prioritize delay-sensitive traffic in your network and let you converge all of your communications solutions such as IP telephony and video surveillance onto a single Ethernet network. Cisco offers a complete portfolio of IP telephony and other unified communications products designed for small businesses, and Cisco 250 Series switches have been rigorously tested to help ensure easy integration and full compatibility with these and other vendor products.

Power over Ethernet

This managed rackmount switch features 16 PoE+ compliant Gigabit Ethernet ports with a 120W budget to operate compatible devices.

Energy Efficient

Support for the Energy Efficient Ethernet (IEEE 802.3az) standard helps to significantly reduce energy consumption by monitoring the amount of traffic an active link receives and putting it to sleep during down times.

Layer 3 static routing

This capability allows you to segment your network into separate workgroups and communicate across VLANs without degrading application performance. As a result, you can manage internal routing with your switches and dedicate your router to external traffic and security, helping your network run more efficiently.

Flexible and compact design

The sleek and compact design provide additional deployment flexibility, including outside wiring closet installation such as retail stores, open plan offices, and classrooms without disturbing the environment.

Peace of mind and investment protection

Cisco CBS250-16P2G Dubai offers the reliable performance, investment protection, and peace of mind you expect from a Cisco switch. Complementary one-year access to our Small Business Support Center for ongoing support. Limited lifetime warranty with return to factory replacement keeps your business running smoothly.

Specifications

Feature Description
Capacity in millions of packets per second (mpps) (64-byte packets) 26.78
Switching capacity in gigabits per second (Gbps) 36.0
Power dedicated to PoE 120W
Number of ports that support PoE 16
Total system ports 18 Gigabit Ethernet
RJ-45 ports 16 Gigabit Ethernet
Packet buffer 1.5 MB
Unit dimensions (W x D x H) 268 x 297 x 44 mm (10.56 x 11.69 x 1.73 in)
Layer 2 switching
VLAN Support for up to 255 active VLANs simultaneously

Port-based and 802.1Q tag-based VLANs

Management VLAN

Guest VLAN

Voice VLAN Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers networkwide zero-touch deployment of voice endpoints and call control devices
Layer 3 routing
IPv4 routing Wire-speed routing of IPv4 packets

Up to 32 static routes and up to 16 IP interfaces

IPv6 routing Wire-speed routing of IPv6 packets
Layer 3 interface Configuration of Layer 3 interface on physical port, LAG, VLAN interface, or loopback interface
Security
Secure Sockets Layer (SSL) SSL encrypts all HTTPS traffic, allowing secure access to the browser-based management GUI in the switch
Secure Shell (SSH) Protocol SSH is a secure replacement for Telnet traffic. Secure Copy (SCP) also uses SSH. SSH v1 and v2 are supported.
IEEE 802.1X (authenticator role) Remote Authentication Dial-In User Service (RADIUS) authentication, guest VLAN, single/multiple host mode, and single/multiple sessions
STP loopback guard Provides additional protection against Layer 2 forwarding loops (STP loops)
Secure Core Technology (SCT) Ensures that the switch will receive and process management and protocol traffic no matter how much traffic is received
Secure Sensitive Data (SSD) A mechanism to manage sensitive data (such as passwords, keys, and so on) securely on the switch, populating this data to other devices, and secure autoconfig. Access to view the sensitive data as plain text or encrypted is provided according to the user-configured access level and the access method of the user
Trustworthy systems Trustworthy systems provide a highly secure foundation for Cisco productsRun-time defenses (Executable Space Protection [X-Space], Address Space Layout Randomization [ASLR], Built-In Object Size Checking [BOSC])
Port security Ability to lock source MAC addresses to ports and limit the number of learned MAC addresses
RADIUS Supports RADIUS authentication for management access. Switch functions as a client.
Storm control Broadcast, multicast, and unknown unicast
DoS prevention Denial-of-Service (DoS) attack prevention
Multiple user privilege levels in CLI Level 1, 7, and 15 privilege levels
Access Control Lists (ACLs) Support for up to 512 rules

Drop or rate limit based on source and destination MAC, VLAN ID or IPv4 or IPv6 address, IPv6 flow label, protocol, port, Differentiated Services Code Point (DSCP)/IP precedence, TCP/UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag; ACL can be applied on both ingress and egress sides

Time-based ACLs supported

Flash 256 MB
CPU 800 MHz ARM
DRAM 512 MB
Environmental
Power 100 to 240V 50 to 60 Hz, internal, universal: CBS250-16T-2G, CBS250-16P2G, CBS250-24T-4G, CBS250-24PP-4G, CBS250-24P-4G, CBS250-24FP-4G, CBS250-48T-4G, CBS250-48PP-4G, CBS250-48P-4G, CBS250-24T-4X, CBS250-24P-4X, CBS250-24FP-4X, CBS250-48T-4X, CBS250-48P-4X

100 to 240V 50 to 60 Hz, external: CBS250-8T-D, CBS250-8PP-D, CBS250-8T-E-2G, CBS250-8PP-E-2G, CBS250-8P-E-2G, CBS250-8FP-E-2G

Certification UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature 32° to 122°F (0° to 50°C) for CBS250-8T-D and CBS250-8PP-D

23° to 122°F (-5° to 50°C) for other models

Storage temperature -13° to 158°F (-25° to 70°C)
Operating humidity 10% to 90%, relative, non-condensing
Storage humidity 10% to 90%, relative, non-condensing
