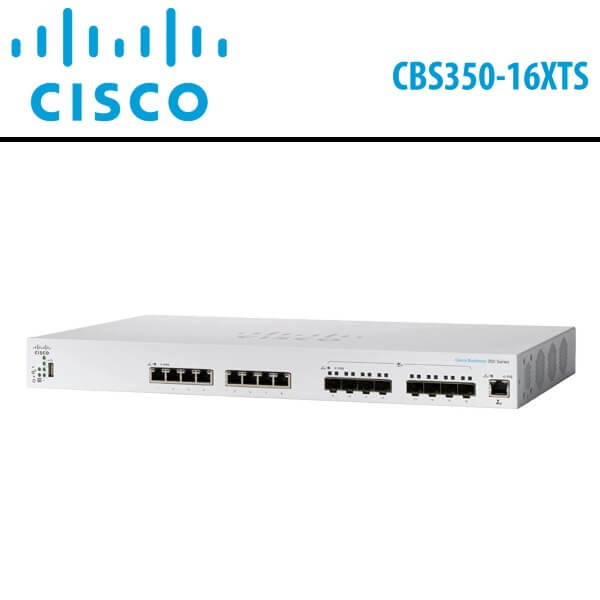

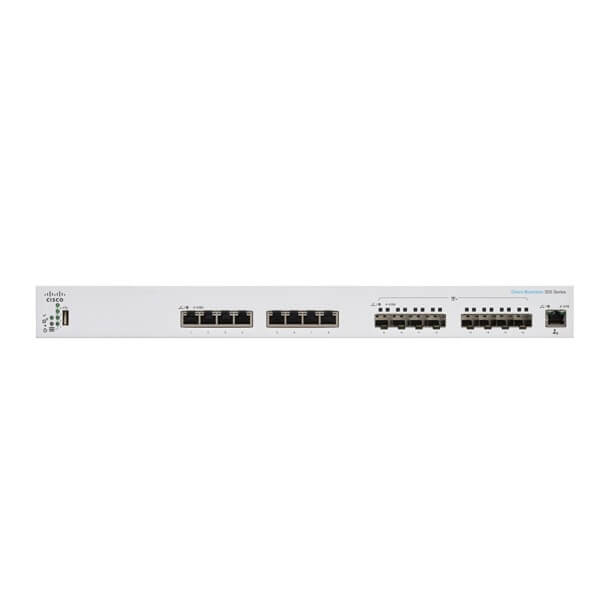

Cisco CBS350-16XTS Dubai

The Cisco CBS350-16XTS Dubai presents a budget-friendly collection of wireless access points, switches, and routers tailored for Small Business applications. Managed through the Cisco Business Dashboard and mobile app, this assortment ensures a straightforward and dependable user experience. The Cisco Business Dashboard streamlines traditional challenges associated with deploying and managing business networks by automating deployment, monitoring, and lifecycle management.

As a component of the Cisco Business line of network solutions, the Cisco CBS350-16XTS Dubai switch is an economical managed switch, serving as a vital building block for any small office network. Featuring an intuitive dashboard for simplified network setup and advanced features to propel digital transformation, this switch offers an optimal blend of affordability and capabilities, fostering the development of a more efficient and interconnected workforce.

The Cisco CBS350-16XTS Dubai switch is engineered to expand the network capacity of businesses or data centers, accommodating high-bandwidth devices like computers, network attached storage enclosures, and servers. It is a 16-Port 10G RJ45/SFP+ Managed Switch, equipped with eight 10G copper RJ45 Ethernet ports and eight dedicated 10G SFP+ ports for high-speed fiber connections. Additionally, it includes an RJ45 Ethernet management port. Its extensive Layer 2 and Layer 3 features, covering secure connections, clear communications, and link aggregation, enable the creation of up to eight groups of 16 ports for multi-Gig connections to compatible devices. With a substantial 320 Gb/s switching capacity and 238.08 Mpps forwarding rate, the Cisco CBS350-16XTS Dubai ensures seamless and reliable data transfers.

Configuring and monitoring the Cisco CBS350-16XTS Dubai and its connected devices is simplified through the Cisco Business Dashboard portal and mobile app. The triple-fan design contributes to maintaining optimal temperatures while operating quietly in the background, ensuring a conducive work environment.

Features

Reliable Performance

Cisco CBS350-16XTS Dubai switch is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 320 Gb/s switching capacity and 238.08 Mpps forwarding rate.

10 Gigabit Speeds

The Cisco CBS350-16XTS Dubai switch features eight copper 10G RJ45 ports and eight 10G SFP+ fiber ports, supporting high-bandwidth backups, file transfers, and other applications.

Extensive Security

• Cisco CBS350-16XTS Dubai has support for features such as IEEE 802.1x and port security limit access to specific segments of your network while web-based authentication provides a consistent interface to all types of host devices and operating systems.
• Advanced defense mechanisms, such as dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping, help to detect and block network attacks. When combined, these protocols may be referred to as IP-MAC port binding (IPMB).
• The IPv6 First Hop Security suite includes ND inspection, RA guard, DHCPv6 guard, and neighbor binding integrity check to protect your IPv6 network against a range of address spoofing and man-in-the-middle attacks.

IPv6 Support

The Cisco CBS350-16XTS Dubai switch supports allows you to evolve your network using the IPv6 standard while remaining compatible the previous-generation IPv4 networks.

Layer 3 Static Routing

Dynamic Layer 3 routing features include the ability to segment your network into separate workgroups and communicate across VLANs without degrading application performance, which allows you to manage your switch’s internal routing and dedicate your router to external traffic and security to help your network run efficiently.

True Stacking

Reduce the complexity of your network while enhancing your control over a growing network by configuring, managing, and troubleshooting all your switches in a stack as a single unit using a single IP address. True stacking also provides other benefits through features such as cross-stack QoS, VLANs, LAGs, and port mirroring.

Compact Design

With a sleek and compact 1 RU design, the Cisco CBS350-16XTS Dubai can fit into wiring closets and other installations within retail stores, offices, and other businesses.

Energy Efficient

Cisco CBS350-16XTS Dubai has support for the Energy Efficient Ethernet (IEEE 802.3az) standard helps to significantly reduce energy consumption by monitoring the amount of traffic an active link receives and putting it to sleep during down times.

Specifications

Interfaces
Ports	8 x 10Gb Ethernet (RJ45) 8 x 10Gb SFP+ 1 x Ethernet (RJ45) (Console) 1 x USB Type-A
Protocols
Layer Services Supported	Layer 2 Support, Layer 3 Support
Supported Protocols	Head-of-Line (HOL) Blocking’ IGMP Snooping IPv4 IPv6 Link Aggregation MAC Filtering Port Mirroring RADIUS SNMPv1 SNMPv2c SNMPv3
Queuing	Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support	9000 Bytes
MAC Address Table Size	16K
Multicast Groups	2000
VLAN IDs	4094
Security
Security Features	DoS Attack Prevention RADIUS Authentication Storm Control
Access Control List	1024
IP Interfaces	128
Static Routes	990
SNMP Support	1, 2c, 3
Standards
RFC	RFC 4330
Supported IEEE Standards	802.1ab, 802.1d, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3an, 802.3az, 802.3u, 802.3x, 802.3z
Performance
Forwarding Rate	238.08 Mpps
Switching Bandwidth	320 Gb/s
Priority Queues	8
Packet Buffer	3 MB
Computer
Flash Memory	256 MB
Processor	800 MHz ARM
Memory	512 MB
OS Compatibility	Windows macOS Linux
Electrical
Power Draw	57.7 W (Max)
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Power Supply Type	Internal
Environmental
Operating Temperature	32 to 122°F / 0 to 50°C
Operating Humidity	10 to 90%
Storage Temperature	-13 to 158°F / -25 to 70°C
Storage Humidity	10 to 90%
Noise Level	39.1 dB
General
Cooling System	Fan
Mean Time Between Failures (MTBF)	798,504 Hours
Indicator Lights	Link/Activity, Speed, System
Rack Form Factor	1 RU
Dimensions	17.3 x 10.1 x 1.7″ / 440 x 257 x 44 mm
Weight	8.36 lb / 3.79 kg
