Description
Cisco CBS350-24NGP4X Dubai

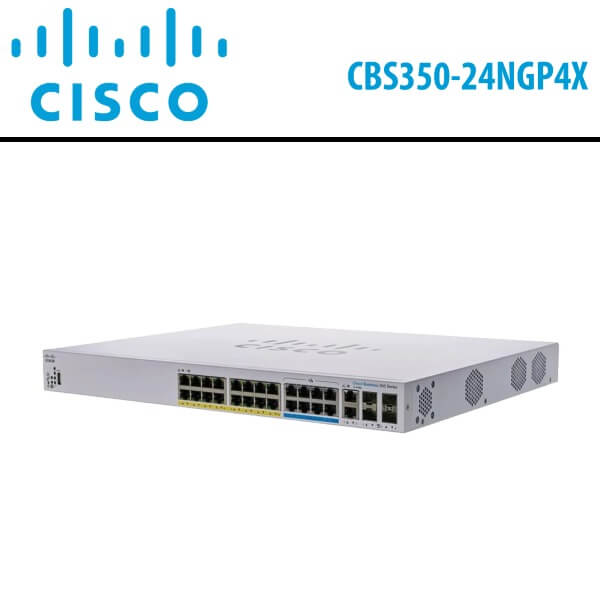

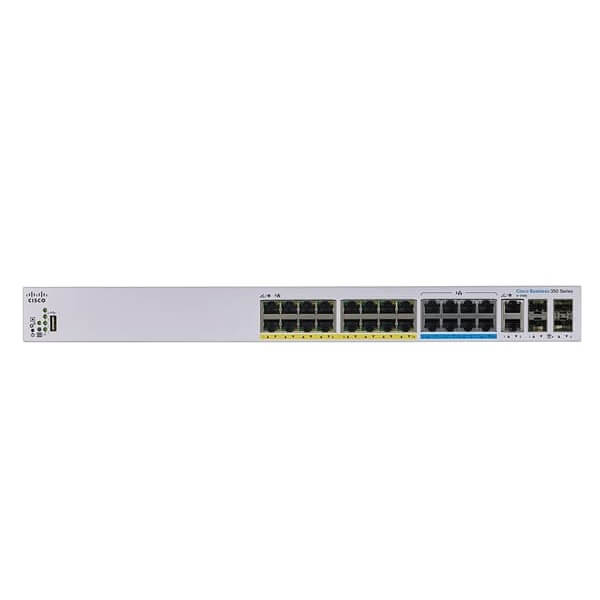

The Cisco CBS350-24NGP4X Dubai is a 24-Port Multi-Gig PoE++ Compliant Managed Network Switch designed to support high-bandwidth power over Ethernet devices. This versatile managed rackmount switch is equipped with sixteen 30W PoE+ Gigabit Ethernet ports and eight 60W 5G ports, catering to compatible wired devices such as advanced security cameras and network attached storage. Additionally, it offers two 10G SFP+ ports and two fiber SFP+ / copper RJ45 combo ports for high-speed uplinks.
Featuring extensive Layer 2 and Layer 3 capabilities, including secure connections, clear communications, and link aggregation for creating up to eight port groups for multi-Gig connections, the Cisco CBS350-24NGP4X Dubai is a robust solution. With a remarkable switching capacity of 192 Gb/s and a forwarding rate of 142.85 Mpps, it ensures smooth and reliable data transfers.
Effortlessly configure and monitor the Cisco CBS350-24NGP4X Dubai and its connected devices through the user-friendly Cisco Business Dashboard portal and mobile app. The switch’s three-fan design contributes to maintaining optimal temperatures, and its quiet operation in the background minimizes disruptions to your environment.
Features
Reliable Performance
The Cisco CBS350-24NGP4X Dubai switch is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 140 Gb/s switching capacity and 104.16 Mpps forwarding rate.
Power over Ethernet
The Cisco CBS350-24NGP4X Dubai switch has a 370W power budget to operate advanced surveillance cameras, videophones, thin client devices, and more. The twenty PoE+ ports support up to 30W of power each while the four PoE++ ports support up to 60W
Extensive Security
- The Cisco CBS350-24NGP4X Dubai has support for features such as IEEE 802.1x and port security limit access to specific segments of your network while web-based authentication provides a consistent interface to all types of host devices and operating systems.
- Advanced defense mechanisms such as dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping help to detect and block network attacks. When combined, these protocols may be referred to as IP-MAC port binding (IPMB).
- The IPv6 First Hop Security suite includes ND inspection, RA guard, DHCPv6 guard, and neighbor binding integrity check to protect your IPv6 network against a range of address spoofing and man-in-the-middle attacks.
IPv6 Support
The Cisco CBS350-24NGP4X Dubai switch allows you to evolve your network using the IPv6 standard while remaining compatible with previous-generation IPv4 networks.
Layer 3 Static Routing
Dynamic Layer 3 routing features include the ability to segment your network into separate workgroups and communicate across VLANs without degrading application performance, which allows you to manage your switch’s internal routing and dedicate your router to external traffic and security to help your network run efficiently.
True Stacking
Reduce the complexity of your network while enhancing your control over a growing network by configuring, managing, and troubleshooting all your switches in a stack as a single unit using a single IP address. True stacking also provides other benefits through features such as cross-stack QoS, VLANs, LAGs, and port mirroring.
Compact Design
With a sleek and compact 1 RU design, the Cisco CBS350-24NGP4X Dubai can fit into most wiring closets and other installations within retail stores, offices, and other businesses.
Energy Efficient
Support for the Energy Efficient Ethernet (IEEE 802.3az) standard helps to significantly reduce energy consumption by monitoring the amount of traffic an active link receives and putting it to sleep during down times.
Specifications
| Interfaces | |
| Ports | 16 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
8 x 5 Gb/s Ethernet (RJ45) PoE (Type 3) 2 x 10Gb SFP+ 2 x 10Gb Combo (Ethernet/SFP) 1 x Ethernet (RJ45) (Console) 1 x USB Type-A (Console) |
| Protocols | |
| Layer Services Supported | Layer 2 Support, Layer 3 Support |
| Supported Protocols | Head-of-Line (HOL) Blocking
IGMP Snooping IPv4 IPv6 Link Aggregation MAC Filtering Port Mirroring RADIUS SNMPv1 SNMPv2c SNMPv3 |
| Queuing | Strict Priority, Weighted Round Robin (WRR) |
| Jumbo Frames Support | 9000 Bytes |
| MAC Address Table Size | 16K |
| Multicast Groups | 2000 |
| VLAN IDs | 4094 |
| Security | |
| Security Features | DoS Attack Prevention
RADIUS Authentication Storm Control |
| Access Control List | 1024 |
| IP Interfaces | 128 |
| Static Routes | 990 |
| SNMP Support | 1, 2c, 3 |
| Standards | |
| RFC | RFC 4330 |
| Supported IEEE Standards | 802.1ab, 802.1d, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3an, 802.3at, 802.3az, 802.3bt, 802.3u, 802.3x, 802.3z |
| Performance | |
| Forwarding Rate | 142.85 Mpps |
| Switching Bandwidth | 192 Gb/s |
| Priority Queues | 8 |
| Packet Buffer | 3 MB |
| Computer | |
| Flash Memory | 256 MB |
| Processor | 800 MHz ARM |
| Memory | 512 MB |
| Electrical | |
| Power Draw | 488.9 W (Max) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| PoE Power Budget | 375 W |
| PoE per Port | 30 to 60 W |
| Power Supply Type | Internal |
| Environmental | |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -13 to 158°F / -25 to 70°C |
| Storage Humidity | 10 to 90% |
| Noise Level | 40.4 dB |
| General | |
| Cooling System | Fan |
| Mean Time Between Failures (MTBF) | 562,415 Hours |
| Indicator Lights | Link/Activity, Speed, System |
| Rack Form Factor | 1 RU |
| Dimensions | 17.3 x 13.8 x 1.7″ / 440 x 350 x 44 mm |
| Weight | 11.7 lb / 5.3 kg |
