Description

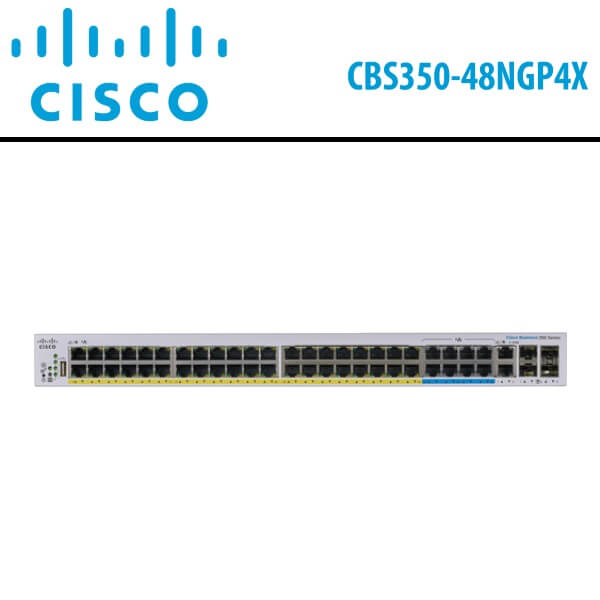

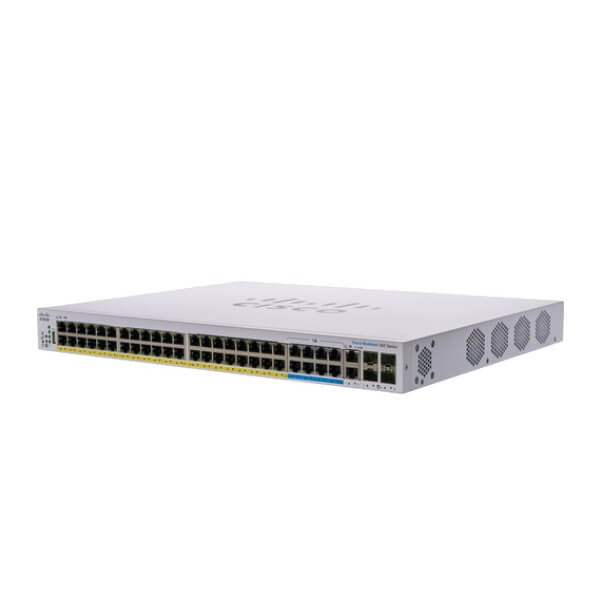

Cisco CBS350-48NGP4X Dubai
The Cisco CBS350-48NGP4X Dubai presents a managed rackmount switch with a 48-Port 5G PoE++ configuration, extending secure network connectivity to guests in diverse settings like hotels, office waiting rooms, or other areas accessible to non-employees. It boasts 40 Gigabit PoE+ Ethernet ports, each supporting 30W of power, complemented by eight 5G 60W PoE++ ports capable of powering various compatible devices such as advanced IP security cameras, printers, and access points. Additionally, the switch features two 10G RJ45 copper / SFP+ fiber ports and two 10G SFP+ ports for high-speed uplink connections. The Cisco CBS350-48NGP4X Dubai incorporates extensive Layer 2 and Layer 3 features, including secure connections, clear communications, and link aggregation, enabling the creation of up to eight groups of 16 ports for multi-Gig connections to compatible devices. With a switching capacity of 240 Gb/s and a forwarding rate of 178.56 Mpps, it ensures smooth and reliable data transfers. Configuration and monitoring are streamlined through the Cisco Business Dashboard portal and mobile app, while the four-fan design aids in maintaining optimal temperatures and quiet operation in the background.
The Cisco CBS350-48NGP4X Dubai offers a straightforward and secure connection for employees in small offices, facilitating connectivity with servers, printers, and other networking devices. Its high performance and reliable connectivity expedite file transfers and data processing, enhancing network uptime and supporting employee productivity. Operating as a managed network solution, the Cisco Business 350 Series Switches provide the necessary performance and advanced traffic-handling intelligence for seamless communication and data transmission over a unified network. Cisco provides a comprehensive portfolio of IP telephony and unified communications products tailored for businesses. The Cisco CBS350-48NGP4X Dubai has undergone rigorous testing to ensure easy integration and full compatibility with other products, offering a comprehensive business solution. Leveraging powerful yet easy-to-configure security and traffic segmentation capabilities, it enables the isolation of crucial business traffic from guest services, ensuring the privacy of guests’ network sessions.
Features
High Performance
The Cisco CBS350-48NGP4X Dubai is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 240 Gb/s switching capacity and 178.56 Mpps forwarding rate.
Power over Ethernet
The 40 PoE+ compliant Gigabit Ethernet ports support up to 30W of power each while the eight 5G PoE++ ports provide up to 60W each. This switch has a total budget of 740W to operate advanced surveillance cameras, videophones, thin client devices, and more.
Extensive Security
- Cisco CBS350-48NGP4X Dubai has support for features such as IEEE 802.1x and port security limit access to specific segments of your network while web-based authentication provides a consistent interface to all types of host devices and operating systems.
- Advanced defense mechanisms such as dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping help to detect and block network attacks. When combined, these protocols may be referred to as IP-MAC port binding (IPMB).
- The IPv6 First Hop Security suite includes ND inspection, RA guard, DHCPv6 guard, and neighbor binding integrity check to protect your IPv6 network against a range of address spoofing and man-in-the-middle attacks.
IPv6 Support
The Cisco CBS350-48NGP4X Dubai switch allows you to evolve your network using the IPv6 standard while remaining compatible the previous-generation IPv4 networks.
Layer 3 Static Routing
Dynamic Layer 3 routing features include the ability to segment your network into separate workgroups and communicate across VLANs without degrading application performance, which allows you to manage your switch’s internal routing and dedicate your router to external traffic and security to help your network run efficiently.
True Stacking
Reduce the complexity of your network while enhancing your control over a growing network by configuring, managing, and troubleshooting all your switches in a stack as a single unit using a single IP address. True stacking also provides other benefits through features such as cross-stack QoS, VLANs, LAGs, and port mirroring.
Compact Design
With a sleek and compact 1 RU design, the Cisco CBS350-48NGP4X Dubai can fit into most wiring closets and other installations within retail stores, offices, and other businesses.
Energy Efficient
Support for the Energy Efficient Ethernet (IEEE 802.3az) standard helps to significantly reduce energy consumption by monitoring the amount of traffic an active link receives and putting it to sleep during down times.
Specifications
| Interfaces | |
| Ports | 40 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
8 x 5 Gb/s Ethernet (RJ45) PoE (Type 3) 2 x 10Gb Combo (Ethernet/SFP) 2 x 10Gb SFP+ 1 x Ethernet (RJ45) (Console) 1 x USB Type-A |
| Protocols | |
| Layer Services Supported | Layer 2 Support, Layer 3 Support |
| Supported Protocols | Head-of-Line (HOL) Blocking
IGMP Snooping IPv4 IPv6 Link Aggregation MAC Filtering Port Mirroring RADIUS SNMPv1 SNMPv2c SNMPv3 |
| Queuing | Strict Priority, Weighted Round Robin (WRR) |
| Jumbo Frames Support | 9000 Bytes |
| MAC Address Table Size | 16K |
| Multicast Groups | 2000 |
| VLAN IDs | 4094 |
| Security | |
| Security Features | DoS Attack Prevention
RADIUS Authentication Storm Control |
| Access Control List | 1024 |
| IP Interfaces | 128 |
| Static Routes | 990 |
| SNMP Support | 1, 2c, 3 |
| Standards | |
| RFC | RFC 4330 |
| Supported IEEE Standards | 802.1ab, 802.1d, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3an, 802.3at, 802.3az, 802.3bt, 802.3u, 802.3x, 802.3z |
| Performance | |
| Forwarding Rate | 178.56 Mpps |
| Switching Bandwidth | 240 Gb/s |
| Priority Queues | 8 |
| Packet Buffer | 6 MB |
| Computer | |
| Flash Memory | 256 MB |
| Processor | 800 MHz ARM |
| Memory | 512 MB |
| Electrical | |
| Power Draw | 916.00 W (Max) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| PoE Power Budget | 740 W |
| PoE per Port | 30 to 60 W |
| Power Supply Type | Internal |
| Environmental | |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -13 to 158°F / -25 to 70°C |
| Storage Humidity | 10 to 90% |
| Noise Level | 39.6 dB |
| General | |
| Cooling System | Fan |
| Mean Time Between Failures (MTBF) | 316,088 Hours |
| Indicator Lights | Link/Activity, PoE, Speed, System |
| Rack Form Factor | 1 RU |
| Dimensions | 17.3 x 13.8 x 1.7″ / 440 x 350 x 44 mm |
| Weight | 13.12 lb / 5.95 kg |
