Description

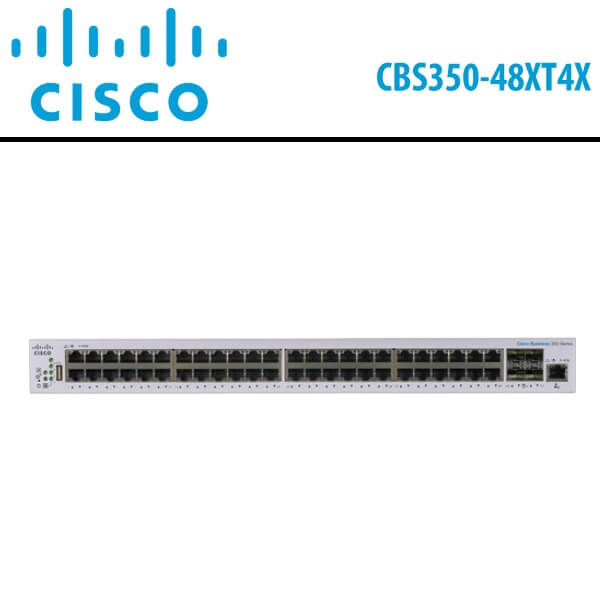

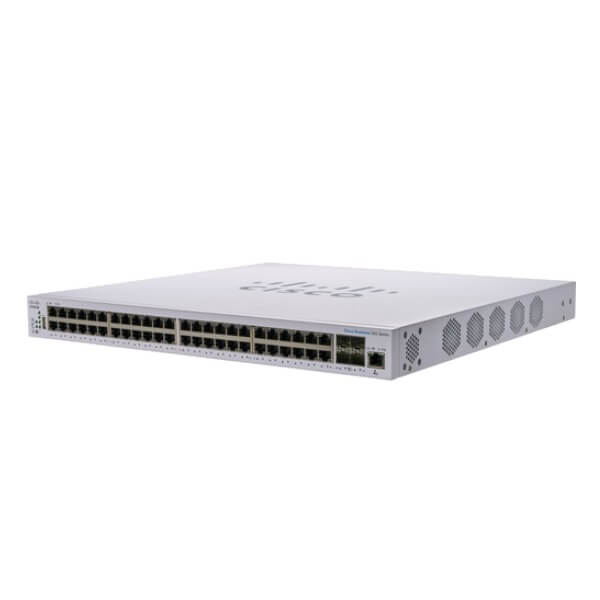

Cisco CBS350-48XT4X Dubai
The Cisco CBS350-48XT4X Dubai, a key component of Cisco’s Business line of network solutions, is a collection of budget-friendly managed switches that play a pivotal role in establishing the foundation for small office networks. Its user-friendly dashboard streamlines network setup, and advanced features expedite digital transformation, all while robust security measures safeguard critical business transactions. The Cisco CBS350-48XT4X Dubai Switch offers an optimal balance of affordability and capabilities, making it an ideal choice for small offices aiming to cultivate a more efficient and well-connected workforce.
As part of the Cisco Business line of network solutions, the Cisco CBS350-48XT4X Dubai switch comprises cost-effective wireless access points, switches, and routers tailored for Small Business needs. Managed through the Cisco Business Dashboard and mobile app, this portfolio ensures a straightforward and dependable user experience. Overcoming traditional challenges in deploying and managing business networks, the Cisco Business Dashboard automates the deployment, monitoring, and lifecycle management of the network.
Features
Reliable Performance
The Cisco CBS350-48XT4X Dubai switch is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 1040 Gb/s switching capacity and 755.81 Mpps forwarding rate.
Extensive Security
- Cisco CBS350-48XT4X Dubai has support for features such as IEEE 802.1x and port security limit access to specific segments of your network while web-based authentication provides a consistent interface to all types of host devices and operating systems.
- Advanced defense mechanisms such as dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping help to detect and block network attacks. When combined, these protocols may be referred to as IP-MAC port binding (IPMB).
- The IPv6 First Hop Security suite includes ND inspection, RA guard, DHCPv6 guard, and neighbor binding integrity check to protect your IPv6 network against a range of address spoofing and man-in-the-middle attacks.
IPv6 Support
The Cisco CBS350-48XT4X Dubai switch allows you to evolve your network using the IPv6 standard while remaining compatible the previous-generation IPv4 networks.
Layer 3 Static Routing
Dynamic Layer 3 routing features include the ability to segment your network into separate workgroups and communicate across VLANs without degrading application performance, which allows you to manage your switch’s internal routing and dedicate your router to external traffic and security to help your network run efficiently.
True Stacking
Cisco CBS350-48XT4X Dubai reduce the complexity of your network while enhancing your control over a growing network by configuring, managing, and troubleshooting all your switches in a stack as a single unit using a single IP address. True stacking also provides other benefits through features such as cross-stack QoS, VLANs, LAGs, and port mirroring.
Perfect Design
With a sleek and compact 1 RU design, Cisco CBS350-48XT4X Dubai can fit into most wiring closets and other installations within retail stores, offices, and other businesses.
Energy Efficient
Support for the Energy Efficient Ethernet (IEEE 802.3az) standard helps to significantly reduce energy consumption by monitoring the amount of traffic an active link receives and putting it to sleep during down times.
Specifications
| Interfaces | |
| Ports | 48 x 10Gb Ethernet (RJ45)
4 x 10Gb SFP+ 1 x Ethernet (RJ45) (Console) 1 x USB Type-A |
| Protocols | |
| Layer Services Supported | Layer 2 Support, Layer 3 Support |
| Supported Protocols | Head-of-Line (HOL) Blocking
IGMP Snooping IPv4 IPv6 Link Aggregation MAC Filtering Port Mirroring RADIUS SNMPv1 SNMPv2c SNMPv3 |
| Queuing | Strict Priority, Weighted Round Robin (WRR) |
| Jumbo Frames Support | 9000 Bytes |
| MAC Address Table Size | 16K |
| Multicast Groups | 2000 |
| VLAN IDs | 4094 |
| Security | |
| Security Features | DoS Attack Prevention
RADIUS Authentication Storm Control |
| Access Control List | 1024 |
| IP Interfaces | 128 |
| Static Routes | 990 |
| SNMP Support | 1, 2c, 3 |
| Standards | |
| RFC | RFC 4330 |
| Supported IEEE Standards | 802.1ab, 802.1d, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3an, 802.3az, 802.3u, 802.3x, 802.3z |
| Performance | |
| Forwarding Rate | 755.81 Mpps |
| Switching Bandwidth | 1040 Gb/s |
| Priority Queues | 8 |
| Packet Buffer | 10 MB |
| Computer | |
| Flash Memory | 256 MB |
| Processor | 800 MHz ARM |
| Memory | 512 MB |
| Electrical | |
| Power Draw | 234.4 W (Max) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Supply Type | Internal |
| Environmental | |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -13 to 158°F / -25 to 70°C |
| Storage Humidity | 10 to 90% |
| Noise Level | 47.9 dB |
| General | |
| Cooling System | Fan |
| Mean Time Between Failures (MTBF) | 287,135 Hours |
| Indicator Lights | Link/Activity, Speed, System |
| Rack Form Factor | 1 RU |
| Dimensions | 17.7 x 17.3 x 1.7″ / 450 x 440 x 44 mm |
| Weight | 16.07 lb / 7.29 kg |
