Description

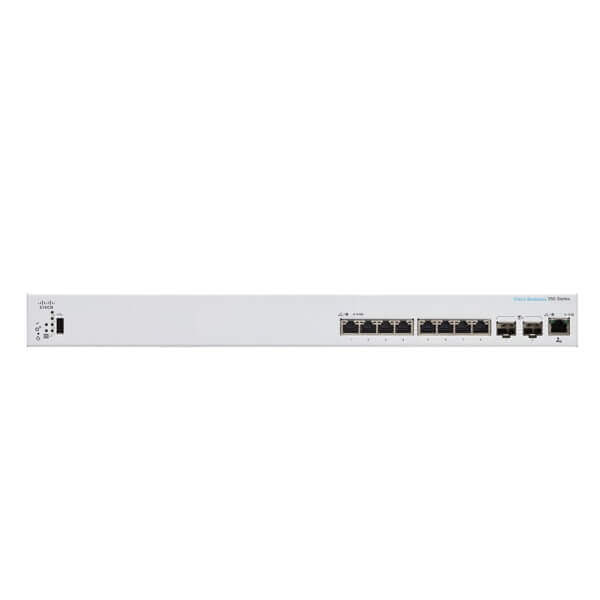

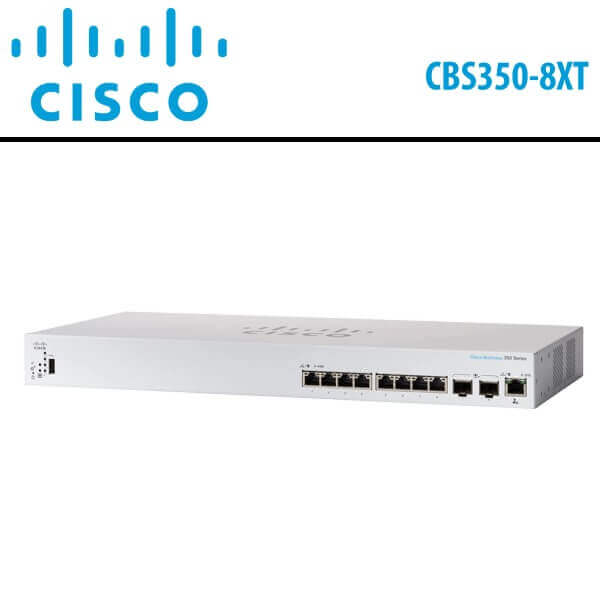

Cisco CBS350-8XT Dubai
The Cisco CBS350-8XT Dubai is a component of the Cisco Business network solutions, comprising an affordable managed switch that forms a crucial building block for small office networks. Its intuitive dashboard simplifies network setup, and advanced features expedite digital transformation, with pervasive security ensuring the safeguarding of critical business transactions. The Cisco Business 350 Series Switches offer an ideal blend of affordability and capabilities for small offices, contributing to the creation of a more efficient and well-connected workforce.
Functioning as a business switch within the fully managed switch line, the Cisco CBS350-8XT Dubai provides reliable and secure connectivity for small business networks. These switches facilitate the acceleration of digital transformation through their provision of full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features, and PoE+ support. The managed rackmount switch features eight 10G Ethernet ports compatible with wired devices like computers and network-attached storage. Additionally, two 10G fiber SFP+/copper RJ45 combo ports are available for high-speed uplinks. Its extensive Layer 2 and Layer 3 features include secure connections, clear communications, and link aggregation for creating up to eight port groups, facilitating multi-Gig connections to compatible devices. The switch’s 160 Gb/s switching capacity and 119.05 Mpps forwarding rate ensure smooth and reliable data transfers. Configure and monitor the Cisco CBS350-8XT Dubai and its connected devices using the Cisco Business Dashboard portal and mobile app. The dual-fan design helps maintain optimal temperatures while the switch operates quietly in the background.
Features
Reliable Performance
The Cisco CBS350-8XT Dubai is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 160 Gb/s switching capacity and 119.05 Mpps forwarding rate.
Extensive Security
- Cisco CBS350-8XT Dubai packs support for features such as IEEE 802.1x and port security limits access to specific segments of your network while web-based authentication provides a consistent interface to all types of host devices and operating systems.
- Cisco CBS350-8XT Dubai has advanced defense mechanisms such as dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping, help to detect and block network attacks. When combined, these protocols may be referred to as IP-MAC port binding (IPMB).
- The IPv6 First Hop Security suite includes ND inspection, RA guard, DHCPv6 guard, and neighbor binding integrity check to protect your IPv6 network against a range of address spoofing and man-in-the-middle attacks.
IPv6 Support
The Cisco CBS350-8XT Dubai switch allows you to evolve your network using the IPv6 standard while remaining compatible with previous-generation IPv4 networks.
Layer 3 Static Routing
Dynamic Layer 3 routing features include the ability to segment your network into separate workgroups and communicate across VLANs without degrading application performance, which allows you to manage your switch’s internal routing and dedicate your router to external traffic and security to help your network run efficiently.
True Stacking
Reduce the complexity of your network while enhancing your control over a growing network by configuring, managing, and troubleshooting all your switches in a stack as a single unit using a single IP address. True stacking also provides other benefits through features such as cross-stack QoS, VLANs, LAGs, and port mirroring.
Compact Design
With a sleek and compact 1 RU design, the Cisco CBS350-8XT Dubai can fit into wiring closets and other areas within retail stores, offices, and other businesses.
Energy Efficient
Cisco CBS350-8XT Dubai has support for the Energy Efficient Ethernet (IEEE 802.3az) standard helps to significantly reduce energy consumption by monitoring the amount of traffic an active link receives and putting it to sleep during down times.
Specifications
| Interfaces | |
| Ports | 8 x 10Gb Ethernet (RJ45)
2 x 10Gb Combo (Ethernet/SFP) 1 x Ethernet (RJ45) (Console) |
| Protocols | |
| Layer Services Supported | Layer 2 Support, Layer 3 Support |
| Supported Protocols | Head-of-Line (HOL) Blocking
IGMP Snooping IPv4 IPv6 Link Aggregation MAC Filtering Port Mirroring RADIUS SNMPv1 SNMPv2c SNMPv3 |
| Queuing | Strict Priority, Weighted Round Robin (WRR) |
| Jumbo Frames Support | 9000 Bytes |
| MAC Address Table Size | 16K |
| Multicast Groups | 2000 |
| VLAN IDs | 4094 |
| Security | |
| Security Features | DoS Attack Prevention
RADIUS Authentication Storm Control |
| Access Control List | 1024 |
| IP Interfaces | 128 |
| Static Routes | 990 |
| SNMP Support | 1, 2c, 3 |
| Standards | |
| RFC | RFC 4330 |
| Supported IEEE Standards | 802.1ab, 802.1d, 802.1q/p, 802.1qat, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3an, 802.3az, 802.3u, 802.3x, 802.3z |
| Performance | |
| Forwarding Rate | 119.05 Mpps |
| Switching Bandwidth | 160 Gb/s |
| Priority Queues | 8 |
| Packet Buffer | 6 MB |
| Computer | |
| Flash Memory | 256 MB |
| Processor | 800 MHz ARM |
| Memory | 512 MB |
| Electrical | |
| Power Draw | 50.3 W (Max) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Supply Type | Internal |
| Environmental | |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -13 to 158°F / -25 to 70°C |
| Storage Humidity | 10 to 90% |
| Noise Level | 40.8 dB |
| General | |
| Cooling System | Fan |
| Mean Time Between Failures (MTBF) | 1,418,411 Hours |
| Indicator Lights | Link/Activity, Speed, System |
| Rack Form Factor | 1 RU |
| Dimensions | 17.3 x 8 x 1.7″ / 440 x 203 x 44 mm |
| Weight | 6.57 lb / 2.98 kg |
