Description

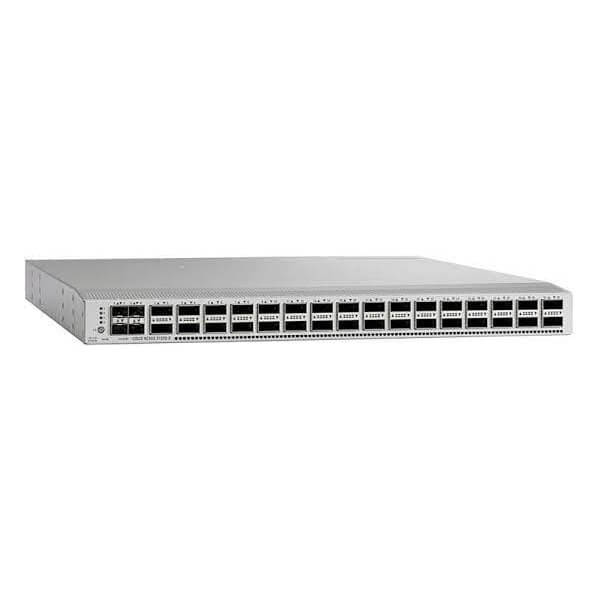

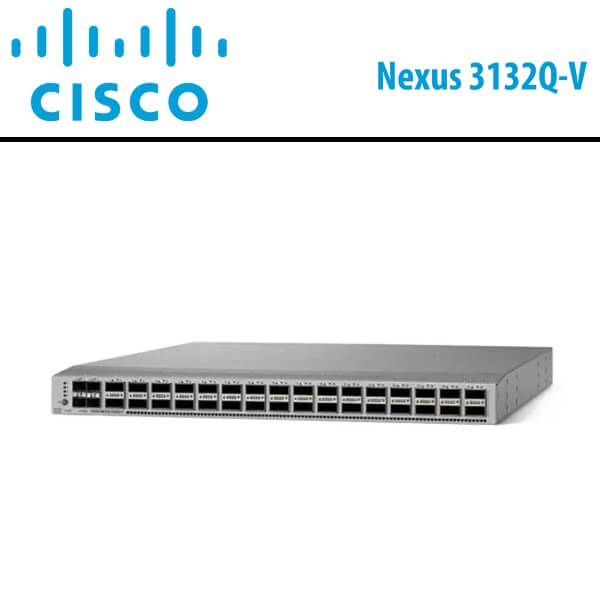

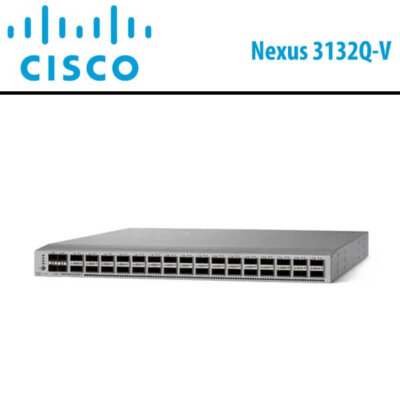

Cisco Nexus3132QV Dubai

The Cisco Nexus3132QV Dubai switch platform is the newest addition to the widely deployed lineup in the industry. It features 32 x 40-Gbps QSFP+ ports, with each port capable of operating at 10 or 40 Gbps. This platform comprises high-density, low-power-consumption, and low-latency fixed-configuration data center switches. These switches offer line-rate Layer 2 and 3 features, making them suitable for various applications such as enterprise use, service provider hosting, High-Performance Computing (HPC), and cloud computing environments. The Cisco Nexus3132QV Dubai supports a flexible range of port speeds, including 1/10/40/100-Gbps connectivity, providing improved port density and scalability in compact 1-Rack-Unit (1RU) form factors.

Running on the industry-leading Cisco NX-OS Software operating system, the platform ensures continuous availability and sets the standard for mission-critical data center environments. Designed for programmable fabric, the platform offers flexibility, mobility, and scalability for service providers, Infrastructure-as-a-Service (IaaS) providers, and cloud providers. It also caters to programmable networks, automating configuration and management for customers adopting the DevOps operating model and tool sets. The Cisco Nexus3132QV Dubai is particularly well-suited for data centers seeking cost-effective, power-efficient, line-rate Layer 2 and 3 Top-of-Rack (ToR) switches. These switches support both forward and reverse airflow (port-side exhaust and port-side intake) schemes, accommodating AC and DC power inputs.

Features

 High performance and scalability

• The Cisco Nexus3132QV Dubai platform provides wire-rate Layer 2 and 3 switching of up to 2.56 Terabits per second (Tbps) and up to 1.4 billion packets per second (bpps) on all ports.
• The Cisco Nexus3132QV Dubai platform delivers ultra-low nominal latency (approximately 650 nanoseconds [ns]), which allows customers to implement high performance infrastructure for High-Frequency-Trading (HFT) workloads.

Line-rate Virtual Extensible LAN (VXLAN) routing

• VXLAN is designed to provide the same Ethernet Layer 2 network services as VLAN does today, but with greater extensibility and flexibility.
• The Cisco Nexus3132QV Dubai platform offers native line-rate VXLAN routing.
• The Border Gateway Protocol (BGP) Ethernet Virtual Private Network (EVPN) control plane provides scalable multitenancy and host mobility (for more information, refer to the document “VXLAN Network with MP-BGP EVPN Control Plane.

Enhanced buffer for applications

• The Cisco Nexus3132QV Dubai platform offers 16 MB of shared buffer space. In today’s data center, application teams require the network to be flexible and capable of handling the rapid growth of applications. The Cisco Nexus 3100-V platform provides deep shared buffers (16 MB) to absorb bursts of traffic and a wide variety of applications, such as multicast feeds, voice traffic, video traffic, and healthcare applications.
• These deep buffers also provide flexibility to expand your network as your needs change. The shared buffers are also instrumental in situations in which one or more servers are consuming most of the bandwidth in highly oversubscribed environments.

Higher ingress Access Control List (ACL) entries

• The Cisco Nexus3132QV Dubai platform offer 16,000 ACL entries and 1000 egress ACL entries.
• The increased number of ingress ACL entries can be especially useful in today’s data centers, particularly in virtualized environments.

High availability

• Virtual-Port-Channel (vPC) technology provides Layer 2 multipathing through the elimination of Spanning Tree Protocol. It also enables fully utilized bisectional bandwidth and simplified Layer 2 logical topologies without the need to change the existing management and deployment models.
• The 64-way Equal-Cost Multipath (ECMP) routing enables the use of Layer 3 fat-tree designs and allows organizations to prevent network bottlenecks, increase resiliency, and add capacity with little network disruption.
• Advanced reboot capabilities are included through In Service Software Upgrade (ISSU) and Fast Reboot capabilities.
• Power-Supply Units (PSUs) and fans are hot swappable.

Purpose-built on the NX-OS operating system with comprehensive, proven innovations

• Power-on Auto Provisioning (POAP) enables touchless bootup and configuration of the switch, drastically reducing provisioning time.
• Cisco Embedded Event Manager (EEM) and Python scripting enable automation and remote operations in the data center.
• Advanced buffer monitoring reports real-time buffer use per port and per queue, which allows organizations to monitor traffic bursts and application traffic patterns.
• Ethanalyzer is a built-in packet analyzer for monitoring and troubleshooting control-plane traffic and is based on the popular Wireshark open-source network protocol analyzer.
• Precision Time Protocol (PTP; IEEE 1588) provides accurate clock synchronization and improved data correlation with network captures and system events.
• Complete Layer 3 unicast and multicast routing protocol suites are supported, including Border Gateway Protocol (BGP), Open Shortest Path First (OSPF), Enhanced Interior Gateway Routing Protocol (EIGRP), Routing Information Protocol Version 2 (RIPv2), Protocol-Independent Multicast sparse mode (PIM-SM), Source-Specific Multicast (SSM), and Multicast Source Discovery Protocol (MSDP).

Network traffic monitoring with Cisco Nexus Data Broker

Build simple, scalable and cost-effective network test access point (TAP) or Cisco Switched Port Analyzer (SPAN) aggregation for network traffic monitoring and analysis.

Specifications

Description	Specification
Physical	1RU fixed form factor Cisco Nexus 31108PC-V 48 SFP ports support 1 and 10 Gigabit Ethernet 6 QSFP28 ports support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet each or 100 Gigabit Ethernet Cisco Nexus 31108TC-V 48 RJ-45 ports support 100 Mbps, 1 Gbps, and 10 Gbps 6 QSFP ports support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet each or 100 Gigabit Ethernet Cisco Nexus 31108TCV-32T 32 (and up to 48) RJ-45 ports support 100 Mbps, 1 Gbps, and 10 Gbps 6 QSFP ports support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet each or 100 Gigabit Ethernet Cisco Nexus 3132Q-V 32 QSFP 40 Gbps Ports. Each QSFP port supports 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet Redundant fans (3+1) 2 redundant power supplies Management, console, and USB flash-memory ports
Performance	2.56-Tbps switching capacity and forwarding rate of up to 1.4 bpps for 3132Q-V 2.16-Tbps switching capacity and forwarding rate of up to 1.2 bpps for 31108PC-V and 31108TC-V Line-rate traffic throughput (both Layer 2 and 3) on all ports Configurable Maximum Transmission Units (MTUs) of up to 9216 bytes (jumbo frames)
Hardware tables and scalability	Number of MAC addresses	288,000
	Number of VLANS	4096
	Number of spanning-tree instances	RSTP : 512 MSTP : 64
	Number of ACL entries	16,000 ingress 1000 egress
	Routing table	16,000 prefixes and 16,000 host entries 8000 –multicast routes
	Number of EtherChannels	64 (with vPC)
	Number of ports per EtherChannel	32
	System memory	16 GB
	Buffer size	16 MB shared
	Boot flash	16 GB eUSB (3132Q-V) 64 GB SSD (31108PC-V, 31108TC-V, and 31108TCV-32T)
	CPU	2.5 GHz dual-core X86
Power	Number of power supplies	2
	Power supply types	AC (forward and reverse airflow) N2200-PAC-400W and N2200-PAC-400W-B (3132 model) NXA-PAC-650W-PE and NX-PAC-650W-PI (31108 models) DC (forward and reverse airflow) N2200-PDC-400W and N3K-PDC-350W-B (3132 model) NXA-PDC-930W-PE and NX-PDC-930W-PI (31108 models)
	Typical operating power	Cisco Nexus 31108PC-V : 150W Cisco Nexus 31108TC-V and 31108TCV-32T : 260W Cisco Nexus 3132Q-V : 170W
	Maximum power	Cisco Nexus 31108PC-V : 360W Cisco Nexus 31108TC-V and 31108TCV-32T : 470W Cisco Nexus 3132Q-V : 290W
	AC PSUs Input voltage Frequency Efficiency	100 to 240 VAC 50 to 60 Hz 89 to 91% at 220V
	DC PSUs Input voltage Maximum current (PSU output – System input) Efficiency	–40 to –72 VDC 33A (400W unit), 78A (930W unit) 85 to 88%
	Typical heat dissipation	Cisco Nexus 3132Q-V : 580 BTU/hr Cisco Nexus 31108PC-V : 512 BTU/hr Cisco Nexus 31108TC-V and 31108TCV-32T : 887 BTU/hr
	Maximum heat dissipation	Cisco Nexus 3132Q-V : 989 BTU/hr Cisco Nexus 31108PC-V : 1228 BTU/hr Cisco Nexus 31108TC-V and 31108TCV-32T : 1603 BTU/hr
Cooling	Forward and reverse airflow schemes : Forward airflow : Port-side exhaust (air enters through fan tray and power supplies and exits through ports) Reverse airflow : Port-side intake (air enters through ports and exits through fan tray and power supplies) Redundant fans Hot swappable (must swap within 1 minute)
Sound	Measured sound power (maximum) Fan speed : 40% duty cycle Fan speed : 70% duty cycle Fan speed : 100% duty cycle	64.9 dBA 69.3 dBA 76.7 dBA
Environment	Dimensions (height x width x depth)	Cisco Nexus 3132Q-V : 1.72 x 17.3 x 19.7 in. (4.4 x 43.9 x 50.5 cm) Cisco Nexus 31108PC-V, 31108TC-V, and 31108TCV-32T : 1.72 x 17.3 x 22.3 in. (4.4 x 43.9 x 56.6 cm)
	Weight	Cisco Nexus 3132Q-V : 18.8 lb (8.5 kg) Cisco Nexus 31108PC-V : 21.4 lb (9.7 kg) Cisco Nexus 31108TC-V and 31108TCV-32T : 22.0 lb (10 kg)
	Operating temperature	32 to 104°F (0 to 40°C)
	Storage temperature	–40 to 158°F (–40 to 70°C)
	Operating relative humidity	10 to 85% non-condensing Up to 5 days at maximum (85%) humidity Recommend ASHRAE data center environment
	Storage relative humidity	5 to 95% non-condensing
	Altitude (Operating)	Up to 13,123 ft.
	Altitude (Non-Operating)	Up to 16,000 ft.
