Description

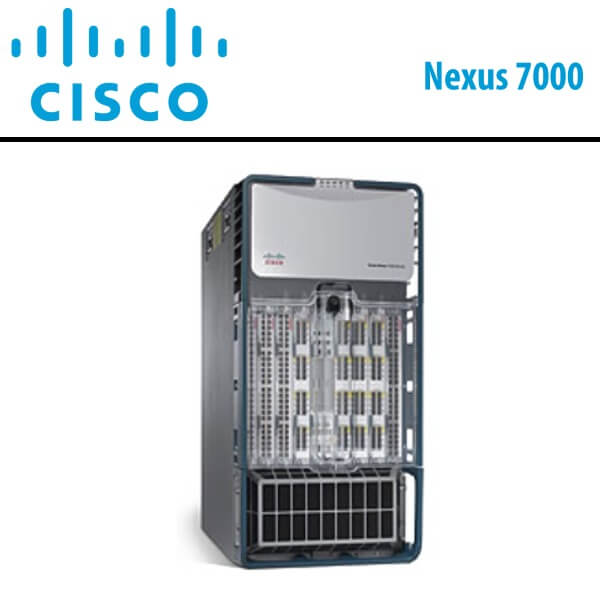

Cisco Nexus7000-10Slot Dubai

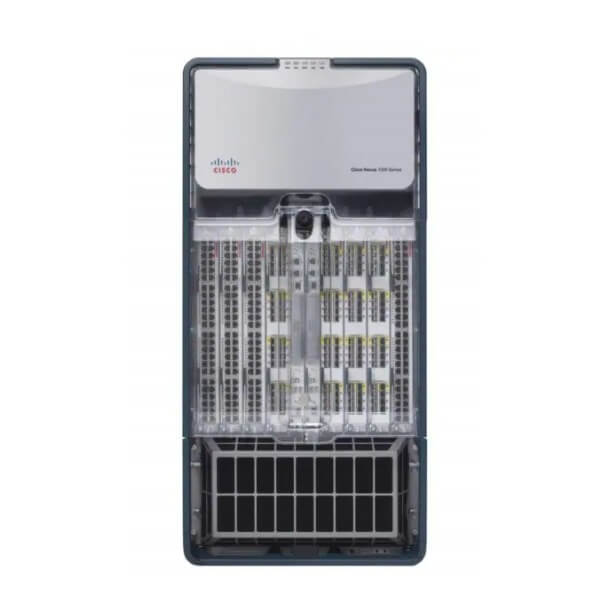

The Cisco Nexus7000-10Slot Dubai serves as a switching platform designed to provide superior performance, flexibility, and zero service loss in the next-generation unified fabric data center. This platform features two supervisor slots, eight I/O module slots, a front-facing cable management door, and an optional air filter. Positioned at the back are five fabric slots, three power supply bays, two system fan trays, and two fabric fan trays, contributing to a highly adaptable design.
The Cisco Nexus7000-10Slot Dubai chassis, part of a modular data center-class product line, is specifically crafted for highly scalable 10 Gigabit Ethernet networks. With a fabric architecture scaling beyond 17 terabits per second (Tbps) and support for high-density 40 and 100 Gigabit Ethernet deployments, it caters to the demands of mission-critical data centers. The series, based on a proven operating system, ensures continuous system operation and the delivery of virtualized, pervasive services with enhanced features for real-time system upgrades, outstanding manageability, and serviceability.
Noteworthy improvements in design, power, airflow, cooling, and cabling characterize the Cisco Nexus7000-10Slot Dubai. Featuring front-to-back airflow, it is suitable for hot-aisle and cold-aisle deployments. In contrast, the 9- and 18-slot chassis utilize side-to-side airflow for high-density, compact form factor configurations. Operational efficiency is enhanced as power supplies, fan trays, and fabrics can be replaced from the back without obstructing I/O cables. Furthermore, the Cisco Nexus 7000 Series incorporates power-saving enhancements like temperature sensors, variable-speed fans, and high-efficiency power supplies, contributing to a reduced total cost of ownership (TCO) for customers.
Features
Infrastructure scalability for investment protection
- The Cisco Nexus7000-10Slot Dubai is designed for future scalability to switching capacity of more than 15 terabits per second
- Modular, flexible, scalable OS based on Linux
- Efficient power and cooling design
- Virtualization for efficient resource utilization
Operational continuity
- Lossless, nondisruptive upgrades for zero service downtime
- Graceful system operations to minimize the effect of upgrades and other maintenance
- Comprehensive, open Extensible Markup Language (XML) API for flexible management options
Transport flexibility
- Support for new technologies without total upgrades
- Virtualized control plane and data plane forwarding for optimized performance
- Support for emerging 40 Gbps and 100 Gbps Ethernet standards
Air flow
- Air flows front to back.
- Air enters through the inlet located at the bottom front of the chassis and exits at the rear of the chassis, making the Cisco Nexus7000-10Slot Dubai chassis excellent for hot-aisle and cold-aisle designs.
Fan trays
- 2 system fan trays.
- 2 fabric fan trays.
Fan trays removable from the rear
With Cisco Nexus7000-10Slot Dubai all fan trays are removable from the rear, and hence there is no obstruction from the I/O cabling on the front. This arrangement enables continuous system operation during maintenance.
Variable fan speeds
- Current fans have 256 speed levels.
- The fan speed changes based on the type of I/O module (and supervisor), the inlet temperature reading on the supervisor, and the presence or absence of an air filter.
- Power consumption and noise emission by fans is optimized.
Self-healing mechanism
The software tracks the temperature of the most critical components on the I/O modules and the supervisors. If the recorded temperature is higher than a certain system-defined threshold, the fan speed automatically increases and stays at that speed until the temperature falls below the threshold.
Fan redundancy
- Both system and fabric fan trays are redundant and hot swappable.
- If either a system or fabric fan tray is removed, the speed of the other fan increases to provide the required cooling.
Air filter
- The Cisco Nexus7000-10Slot Dubai has air filter that filters dust and keeps the chassis interior clean.
- Use of an air filter increases the fan speed; higher fan speeds result in higher levels of noise.
Cable Management
The cable management system for the Cisco Nexus7000-10Slot Dubai chassis is located on the front of the chassis above the modules. In the largest configuration, the chassis can support 384 Cat6A copper cables plus 8 management port cables. All cables can be groomed either to one side of the chassis or to the left and right. A top-hinged door covers the cable management system. The cable management system can be removed to support alternative ways of managing the cables.
Multiple Mounting Capabilities
The Cisco Nexus 7000 10-Slot chassis should be installed in either a standard four-post rack or a four-post cabinet that meets the depth, total equipment weight, and network cabling requirements. Multiple third-party vendor cabinet solutions that meet the specifications for the 10-slot chassis are currently available.
Specifications
| Item | Description |
| Cisco Nexus 7000 10-Slot Chassis | |
| Dimensions
(H x W x D) |
36.5 x 17.3 x 33.1 in. (92.7 x 43.9 x 84.1 cm) |
| Chassis depth with cable management and doors | 38 in. (96.5 cm) |
| Rack units (RUs) | 21RU; can fit two 10-slot chassis in a 42RU rack |
| Weight (Chassis only) | 200 lb (90 kg) |
| Module orientation | Supervisor and I/O modules : Vertical
Fabric cards (at the back) : Horizontal |
| Airflow | Front to back
Designed for hot-aisle and cold-aisle deployments |
| Cable management | On the front of the chassis above the I/O modules |
| Air filter | (Optional) On the front of the chassis below the I/O modules |
| Doors | Door, hinged on the top for the cable management system
(Optional) 2 doors, each hinged on the side, covering the I/O modules |
| System LEDs | 5 system LEDs that summarize the device status :
LED 1 : Power supplies LED 2 : Fans LED 3 : Supervisors LED 4 : Fabric modules LED 5 : I/O modules Each LED is green if the status is normal, and amber otherwise |
