Cisco Nexus7700-10Slot Dubai

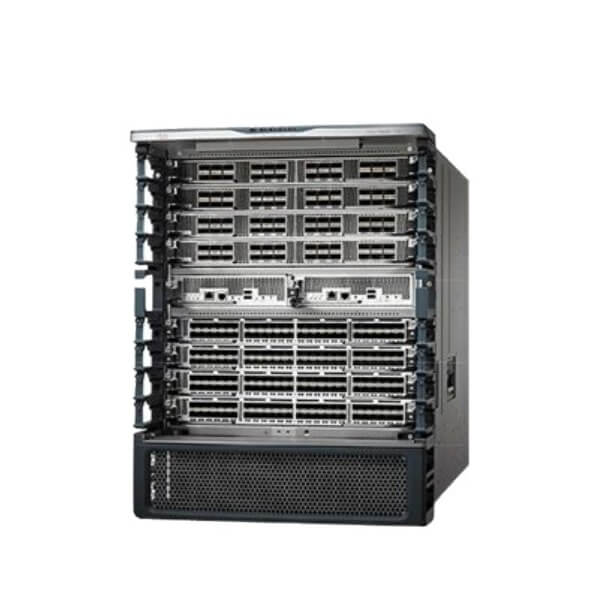

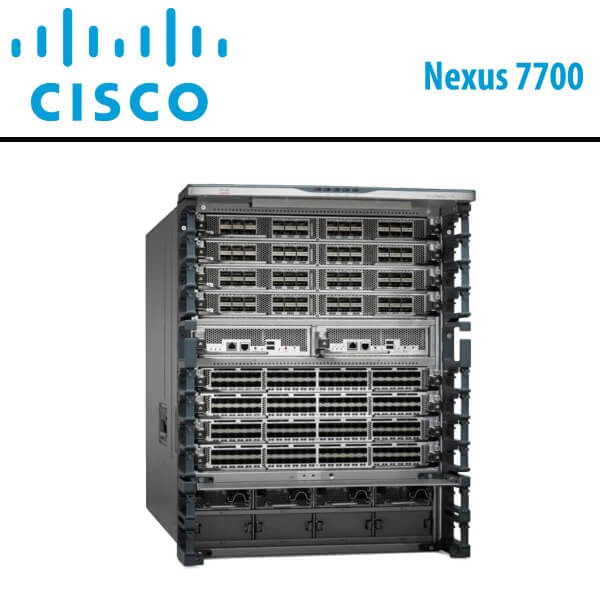

The Cisco Nexus7700-10Slot Dubai represents a 10-slot switch featuring front-to-back airflow and an integrated cable management system across its 10 front-accessible module slots. Tailored to meet the scalability demands of expansive cloud environments, this switch is the latest addition to the Cisco Nexus 7000 Series modular switches. Boasting an impressive overall switching capacity of over 83 Terabits per second (Tbps), it offers the industry’s highest-capacity 10, 40, and 100 Gigabit Ethernet ports, supporting up to 768 native 10-Gbps ports, 384 40-Gbps ports, or 192 100-Gbps ports.

The Cisco Nexus7700-10Slot Dubai chassis adopts a passive mid-plane architecture, incorporating physical connectors and copper traces for direct data transfer between fabric modules and I/O modules. Inter-module switching is efficiently handled by crossbar fabric ASICs located on individual I/O modules and fabric modules.

Featuring a scalable and fully distributed fabric architecture, the switch utilizes up to six fabric modules, delivering an impressive 1.32 Tbps per slot of bandwidth on day one. The midplane design supports flexible technology upgrades, ensuring ongoing investment protection as needs evolve. Future fabric modules are expected to enhance bandwidth capabilities on the platform.

Standard fan trays are included with the Cisco Nexus7700-10Slot Dubai chassis and support optional generation 2 fan trays. All fan trays ensure NEBS compliance in combination with other chassis components for specific system configurations. Moreover, generation 2 fan trays provide NEBS Level-3 acoustic compliance and short-term operation at 55°C when configured with the Nexus 7700 M3 100G I/O modules or future I/O modules.

Features

  • The Cisco Nexus7700-10Slot Dubai, with up to eight I/O module slots, supports up to 384 x 1 and 10 Gigabit Ethernet ports, 192 x 40 Gigabit Ethernet ports, and 96 x 100 Gigabit Ethernet ports, to meet the demands of large data center deployments.
  • The Cisco Nexus7700-10Slot Dubai Switch has two dedicated half-slot supervisors to provide full redundancy, stateful supervisor switchover, and hitless In-Service Software Upgrade (ISSU) capabilities.
  • The Cisco Nexus7700-10Slot Dubai has six fabric module slots to provide simultaneously active fabric channels to each of the I/O and supervisor modules. Through the parallel forwarding fabric architecture, the Cisco Nexus 7710 can achieve 21 Tbps of forwarding capacity or more.
  • Front-to-back airflow helps ensure that the Cisco Nexus7700-10Slot Dubai addresses the requirement for hot-aisle and cold-aisle deployments to help provide efficient cooling.
  • The system uses three redundant fan trays for cooling. Each fan tray is composed of independent variable-speed fans that automatically adjust to the ambient temperature, to help reduce power consumption in well-managed facilities while helping to enable optimum operation of the switch. The system also allows hot swapping of fan trays without negatively affecting the system.
  • The system supports an optional door and air filter to promote clean airflow through the system. The addition of the air filter satisfies Network Equipment Building Standards (NEBS) requirements.
  • The Cisco Nexus7700-10Slot Dubai Switch can have up to eight 3- or 3.5-(kW) power supplies. The smaller power supply configuration provides more flexibility and greater control in power provisioning. The eight power supply bays are designed for future growth, and most common configurations do not require the use of all power supply units for redundant power configurations.
  • I/O modules, supervisor modules, and power supplies are accessible from the front, and fabric modules and fan trays are accessible from the back of the chassis.
  • An integrated cable management system, custom designed for Cisco Nexus7700-10Slot Dubai, supports the cabling requirements of a fully configured system at either or both sides of the switch, providing outstanding flexibility. All system components can easily be removed with the cabling in place, providing ease of maintenance with no disruption.
  • Cisco Nexus7700-10Slot Dubai has series of LEDs at the top of the chassis providing a clear summary of the status of the major system components, alerting operators to the need to conduct further investigation. These LEDs report the power supply, fan, fabric, supervisor, and I/O module status.
  • Cisco Nexus7700-10Slot Dubai is energy-efficient designedThe Switch Dubai use 3.5-kW and 3-kW power supplies that are 96 and 90 percent efficient or greater, so less power is dissipated as heat, and more power is available for the system to use than with typical power supplies. These high-efficiency power supplies allow smaller power configuration and provide flexible power provisioning.

Specifications

Item Cisco Nexus 7700 10-Slot Switch
Port count 384 x 10 Gbps, 192 x 40 Gbps, and 96 x 100 Gbps
Product compatibility Supports all Cisco Nexus 7700 Series Supervisor and I/O modules

Supports Cisco Nexus 7700 Series Fabric-2 modules

Supports Cisco Nexus 7700 Series Fabric 3 modules

Software compatibility Cisco NX-OS Software Release 6.2.2 or later
Options Door air filter

Lockable front module doors

System forwarding capacity 42 Tbps
Max local switching capacity* 2.4 Tbps
Max inter-slot switching capacity* 2.4 Tbps
Reliability and availability OIR of all redundant components : supervisor and fabric modules, power supplies, and fan trays
MIBs Supports SNMPv3, v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support)
Network management Cisco Data Center Network Manager (DCNM)
Programming interfaces XML

Scriptable CLI

Cisco DCNM web services

Python

TCL

Cisco IOS EEM

Cisco OnePK

OpenFlow

Physical specifications Required rack space : 14RU

10-slot switch : 2 dedicated supervisor modules and 8 I/O modules

6 fabric module slots

8 power supply slots

Dimensions (H x W x D) : 24.35 x 17.3 x 34 in. (61.85 x 43.9 x 86.4 cm)

Chassis depth, including cable management and chassis doors, is 40 in. (101.6 cm)

Additional depth with Generation 2 fan tray is 1.75 in. (4.5 cm)

Unit is rack-mountable in a standard 19-inch (482.6-mm) EIA rack

Weight

Chassis only : 160 lb (72.6 kg)

Fabric Module : 11 lb (5.0 kg)

Fan Tray : 8.5 (3.9 kg)

Fan Tray (Generation 2) : 12 lb (5.4 kg)

Supports 3-kW AC and DC and 3.5-kW HV AC/DC power supplies

Environmental specifications Airflow direction : Front to back

Operating temperature : 32 to 104°F (0 to 40°C)

Operational relative humidity : 5 to 90%, noncondensing

Operating altitude : -500 to 13,123 ft. (agency certified 0 to 6500 ft.)

Seismic : Zone 4 per GR63

Floor loading : 122 lbs per sq. ft.

Operational vibration

GR63, Section 5.4.2

ETS 300 019-1-3, Class 3.1, Section 5.5

Storage altitude : -1000 to 30,000 ft.

Storage temperature : – 40 to 158°F (-40 to 70°C)

Storage relative humidity : 5 to 95%, noncondensing

Heat dissipation : Maximum 52,500 BTUs per hour (actual dissipation will be lower, depending on the chassis configuration)

Regulatory compliance EMC compliance

FCC Part 15 (CFR 47) (USA) Class A

ICES-003 (Canada) Class A

EN55022 (Europe) Class A

CISPR22 (International) Class A

AS/NZS CISPR22 (Australia and New Zealand) Class A

VCCI (Japan) Class A

KN22 (Korea) Class A

CNS13438 (Taiwan) Class A

CISPR24

EN55024

EN50082-1

EN61000-3-2

EN61000-3-3

EN61000-6-1

EN300 386

Environmental standards NEBS criteria levels

SR-3580 NEBS Level 3 (GR-63-CORE and GR-1089-CORE)

Verizon NEBS compliance

Telecommunications Carrier Group (TCG) checklist

Century Link NEBS requirements

Telecommunications Carrier Group (TCG) checklist

ATT NEBS requirements

ATT TP76200 level 3

ETSI

ETSI 300 019-2-1, Class 1.2 storage

ETSI 300 019-2-2, Class 2.3 transportation

ETSI 300 019-2-3, Class 3.2 stationary use

Safety UL/CSA/IEC/EN 60950-1

AS/NZS 60950
