Description

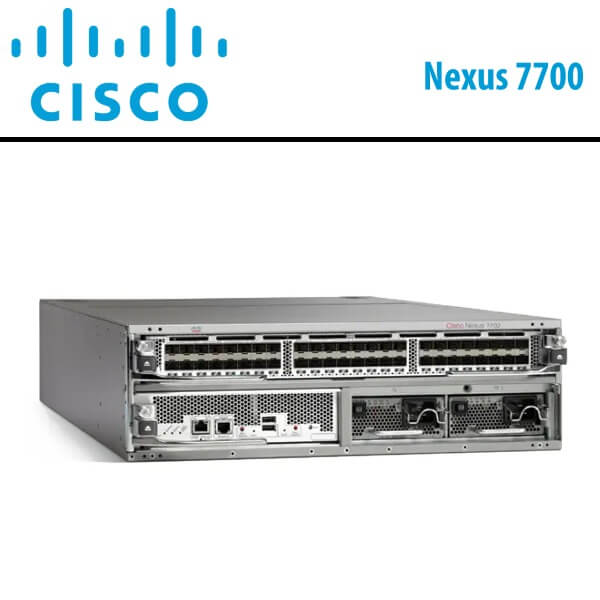

Cisco Nexus7700-2Slot Dubai

The Cisco Nexus7700-2Slot Dubai switch is equipped with two module slots accessible from the front, featuring front-to-back airflow and an integrated cable management system. Serving as the cornerstone of the Cisco Unified Fabric solution, the Cisco Nexus7700-2Slot Dubai is tailored to meet the stringent requirements of mission-critical data centers. These switches offer exceptional availability, impressive scalability, and leverage the proven and comprehensive feature set of the Cisco NX-OS Software for data center switching.

The chassis of the Cisco Nexus7700-2Slot Dubai adopts a passive mid-plane architecture, incorporating physical connectors and copper traces to facilitate the interconnection of fabric modules and I/O modules, enabling direct data transfer. In this design, inter-module switching is executed through crossbar fabric ASICs located on the individual I/O modules and fabric modules.

Features

Compact Form Factor

The Cisco Nexus7700-2Slot Dubai is space optimized to deliver lower TCO :

Its 3RU chassis has one module slot.
It supports 48 ports of 1/10 GE, 24 ports of 40 GE, or 12 ports of 100 GE; all ports are nonblocking.
Power consumption is low.
It delivers true front-to-back air flow for hot-cold aisle deployments.

Deployment Flexibility

The Cisco Nexus7700-2Slot Dubai switch is designed to extend the feature richness of the Nexus 7700 family to small and medium-sized deployments. The comprehensive DCI feature set includes Cisco Overlay Transport Virtualization (OTV), Cisco Locator/ID Separation Protocol (LISP), Cisco IOS Multiprotocol Label Switching (MPLS), and Virtual Private LAN Service (VPLS). The switch is hardware ready for Virtual Extensible LAN (VXLAN) and Ethernet VPN (EVPN) technologies.

In addition, the compact sever chassis offers :

High-performance Remote Integrated Service Engine (RISE) and Intelligent Traffic Director (ITD) services from Cisco
Comprehensive Layer 2 and Layer 3 feature sets for small data center aggregation and campus cores

Operation and Feature Consistency

Cisco Nexus7700-2Slot Dubai maintain consistency with the Cisco Nexus 7000 Series, offering :

The same proven common architecture, application-specific integrated circuits (ASICs), and Cisco NX-OS software
One of the industry’s most comprehensive data center feature sets
The same software train across the entire Cisco Nexus 7000 Series to help ensure consistency

Other Features and Benefits

The Cisco Nexus7700-2Slot Dubai Switch, with one I/O module slots, supports up to 48 x 1 and 10 Gigabit Ethernet ports, 24 x 40 Gigabit Ethernet ports, or 12 x 100 Gigabit Ethernet ports, to meet the demands of small campus and data center deployments in a compact 3 Rack Units (RU) footprint.
The Cisco Nexus7700-2Slot Dubai Switch has one dedicated half-slot supervisor.
The Cisco Nexus 7700 2-slot chassis does not include any fabric modules as it has a single module only. The system is capable of supporting all current and future Cisco Nexus 7700 modules at full line-rate switching capacity.
Front-to-back airflow helps ensure that the Cisco Nexus 7702 addresses the requirement for hot-aisle and cold-aisle deployments, to help provide efficient cooling.
The system uses one fan tray for cooling. The fan tray is composed of three independent variable-speed fans that automatically adjust to the ambient temperature, helping to reduce power consumption in well-managed facilities while supporting optimum operation of the switch.
The system supports an optional door and air filter to help ensure clean airflow through the system. The addition of the air filter satisfies Network Equipment Building Standards (NEBS) requirements.
The Cisco Nexus 7700 2-Slot Switch can have up to two 3- or 3.5-kilowatt (KW) power supplies. The redundant power supply configuration provides more flexibility in power redundancy configuration.
The I/O module, supervisor module, and power supplies are accessible from the front, and the fan tray is accessible from the back of the chassis.
The I/O module, supervisor module, and power supplies are inter-changeable across all Cisco Nexus 7700 chassis.

Cable Management System

An integrated cable management system, custom designed for the Cisco Nexus7700-2Slot Dubai, supports the cabling requirements of a fully configured system at either or both sides of the switch, providing outstanding flexibility. All system components can easily be removed with the cabling in place, providing ease of maintenance with no disruption

Energy-Efficient Design

The Cisco Nexus7700-2Slot Dubai power supplies 90 percent efficient or greater, so less power is dissipated as heat, and more power is available for the system to use than with typical power supplies. These high-efficiency power supplies allow smaller power configuration and provide flexible power provisioning. The fan trays in the switches have variable speed fans that adjust to compensate for changing thermal characteristics and use less power at typical operating conditions. Standard fan trays are included as part of the Cisco Nexus7700-2Slot Dubai chassis.

Specifications

Item	Cisco Nexus 7700 2-Slot Chassis
Port count	48 x 10 Gbps, 24 x 40 Gbps, and 12 x 100 Gbps
Product compatibility	Supports all Cisco Nexus 7700 switch modules except the following : N77-F248XP-23E Does not use fabric modules
Software compatibility	Cisco NX-OS Software Release 7.2 or later
Options	Door air filter Lockable front module doors
System forwarding capacity	No fabric modules All I/O modules are line rate
Max local switching capacity^*	2.4 Tbps
Max inter-slot switching capacity^*	n/a
Reliability and availability	Online insertion and removal (OIR) of redundant power supplies
MIBs	Supports Simple Network Management Protocol Version 3 (SNMPv3), v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support)
Network management	Cisco Data Center Network Manager (DCNM)
Programming interfaces	XML Scriptable command-line interface (CLI) Cisco DCNM web services Python Tool Command Language (TCL) Cisco IOS Embedded Event Manager (EEM) Cisco One Platform Kit (OnePK ) OpenFlow
Physical specifications	Required rack space : 3RU 2-slot switch : 1 dedicated supervisor module and 1 I/O module No fabric modules 2 power supply slots Dimensions (H x W x D) : 5.15 x 17.3 x 29.1 in. (13.08 x 43.9 x 73.9 cm) Chassis depth, including cable management and chassis doors, is 35.1 in. (89.15 cm) Unit is rack-mountable in a standard 19-inch (482.6-mm) EIA rack; unit is also 2-post rack-mountable Weight Chassis only : 37.5 lb (17 kg) Fan Tray : 13.5 lb (6.1 kg) Supports 3-kW AC and DC and 3.5-kW HV AC/DC power supplies
Environmental specifications	Airflow direction : Front to back Operating temperature : 32 to 104°F (0 to 40°C) Operational relative humidity : 5 to 90%, noncondensing Operating altitude : -500 to 13,123 ft. (agency certified 0 to 6500 ft.) Seismic : Zone 4 per GR63 Floor loading : 24 lbs per sq. ft. Operational vibration GR63, Section 5.4.2 ETS 300 019-1-3, Class 3.1, Section 5.5 Storage altitude : -1000 to 30,000 ft. Storage temperature : -40 to 158°F (-40 to 70°C) Storage relative humidity : 5 to 95%, noncondensing Heat dissipation : Maximum 6650 BTUs per hour (actual dissipation will be lower, depending on the chassis configuration)
Regulatory compliance	EMC compliance FCC Part 15 (CFR 47) (USA) Class A ICES-003 (Canada) Class A EN55022 (Europe) Class A CISPR22 (International) Class A AS/NZS CISPR22 (Australia and New Zealand) Class A VCCI (Japan) Class A KN22 (Korea) Class A CNS13438 (Taiwan) Class A CISPR24 EN55024 EN50082-1 EN61000-3-2 EN61000-3-3 EN61000-6-1 EN300 386
Environmental standards	NEBS criteria levels SR-3580 NEBS Level 3 (GR-63-CORE and GR-1089-CORE) Verizon NEBS compliance Telecommunications Carrier Group (TCG) checklist Century Link NEBS requirements Telecommunications Carrier Group (TCG) checklist ATT NEBS requirements ATT TP76200 level 3 ETSI ETSI 300 019-2-1, Class 1.2 storage ETSI 300 019-2-2, Class 2.3 transportation ETSI 300 019-2-3, Class 3.2 stationary use
Safety	UL/CSA/IEC/EN 60950-1 AS/NZS 60950
