Description

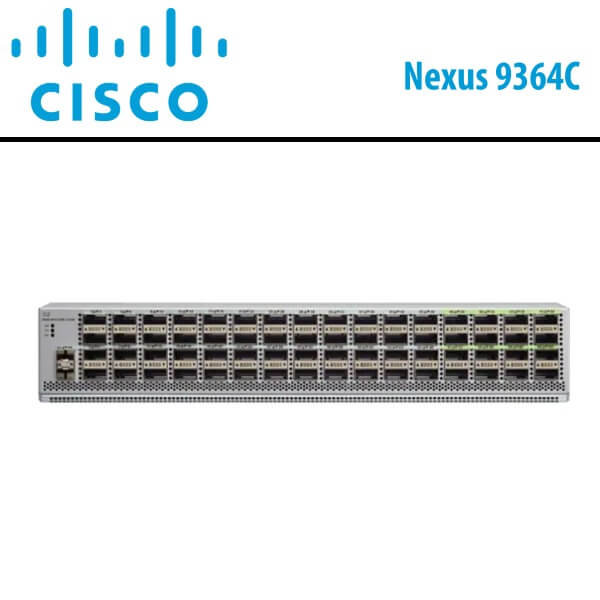

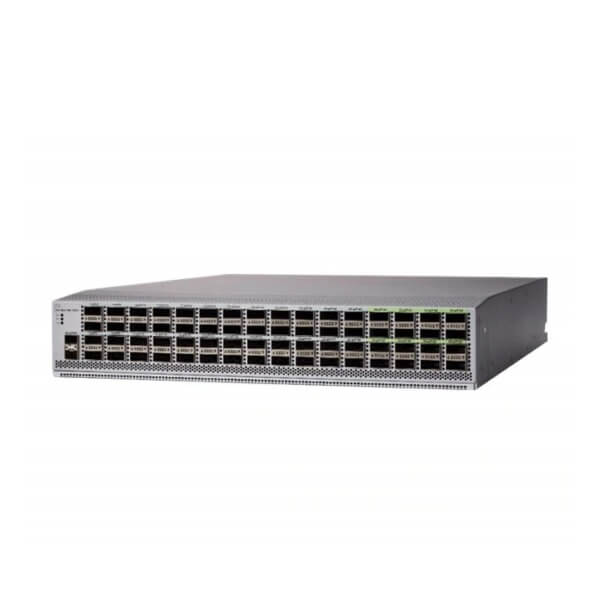

Cisco Nexus9364C Dubai
The Cisco Nexus9364C Dubai Spine Switch is a 2-Rack-Unit (2RU) backbone switch designed to deliver 12.84 Tbps of bandwidth and 4.3 bpps across its 64 fixed 40/100G QSFP28 ports and 2 fixed 1/10G SFP+ ports. Powered by Cisco® Cloud Scale technology, this platform supports cost-effective, ultra-high-density cloud-scale deployments, accommodating an increased number of endpoints and cloud services while ensuring wire-rate security and telemetry. Constructed with a modern system architecture, the Cisco Nexus9364C Dubai is engineered to provide high performance, meeting the dynamic requirements of highly scalable data centers and expanding enterprises.
This switch is tailored to support cutting-edge technologies, including Media Access Control Security (MACsec), Virtual Extensible LAN (VXLAN), tunnel endpoint VTEP-to-VTEP overlay encryption, CloudSec, and Streaming Statistics Export (SSX). MACsec, a security technology, enables traffic encryption at the physical layer, ensuring secure server, border leaf, and leaf-to-spine connectivity. SSX, a hardware-based feature, involves a module that extracts statistics from the ASIC and transmits them to a remote server for analysis, allowing users to gain insights into network performance without impacting the switch control plane or CPU.
Features
Architectural flexibility
- Cisco Nexus9364C Dubai supports for architecture Cisco ACI and NX-OS
- Equipped with 36 ports support 10/25/40/100 Gbps QSFP28 and wire-rate MACsec encryption
- Supports 7.2 Tbps of bandwidth and over 2.8 bpps
Cisco Nexus9364C Dubai rich features
- Automated, policy-based systems management with Cisco ACI
- Build programmable SDN fabrics leveraging open APIs
- Enhanced Cisco NX-OS Software designed for performance, resiliency, scalability, manageability, and programmability
- Real-time buffer utilization per port and per queue, for monitoring traffic micro-bursts and application traffic patterns
Security and analytics
Cisco Nexus9364C Dubai secure applications through allow list model, policy enforcement, and micro-segmentation
Highly available and efficient design
- High-performance, Layer 2 and 3 non-blocking architecture
- Easily deployed into either a hot-aisle or cold-aisle configuration
- Redundant, hot-swappable power supplies and fan trays
Simplified operations
- Automate IT work flows and shorten app deployment from weeks to minutes with Cisco ACI
- Deploy, scale, and migrate applications seamlessly across multiple hybrid data centers
- Open REST APIs with NX-OS help DevOps speed and simplify deployment
Real-time visibility and telemetry
- Cisco Nexus9364C Dubai supports with built-in hardware sensors for rich traffic flow telemetry and line-rate data collection
- support for network traffic monitoring and analysis
- Real-time buffer utilization per port and per queue, for monitoring traffic micro-bursts and application traffic patterns
- Rich traffic flow telemetry with line-rate data collection
Specifications
| Model | Cisco Nexus 9364C |
| Physical | 64-port 40/100G QSFP28 ports and 2-port 1/10G SFP+ ports
Buffer : 40MB System memory : 32GB SSD : 128GB USB : 1 port RS-232 serial console ports : 1 Management ports : 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP) Broadwell-DE CPU : 4 cores |
| Power and cooling | Power : 1200W AC, 930W DC or 1200W HVAC/HVDC
Input voltage : 100 to 240V * AC or -40V to -72V DC (min‑max), -48V to -60V DC (nominal) *Supports input voltage of 100–120V for a max output of 800W, 200–240V for a max output of 1200W. PSU redundancy is not supported when used in 100–120V Hot-swappable, dual fan trays with redundant fans Frequency : 50 to 60 Hz (AC) Efficiency : 90% or greater (20 to 100% load) Port-side intake or port-side exhaust options Typical power : 429W (AC) Maximum power : 1245W (AC) |
| Environmental | Physical (H x W x D) : 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm)
Weight : 36.9 lb (16.74kg) with power supplies and fans, 27.4 lb (12.43kg) without power supplies and fans Operating temperature : 32 to 104°F (0 to 40°C) Nonoperating (storage) temperature : –40 to 158°F (–40 to 70°C) Humidity : 5 to 90% (non-condensing) Altitude : 0 to 13,123 ft (0 to 4000m) RoHS compliance : Yes |
| Acoustics | Fan speed at 40% : 76.7 dBA
Fan speed at 70% : 88.7 dBA Fan speed at 100% : 97.4 dBA |
| MTBF | 257,860 hours |
