Cisco Nexus9504 Dubai

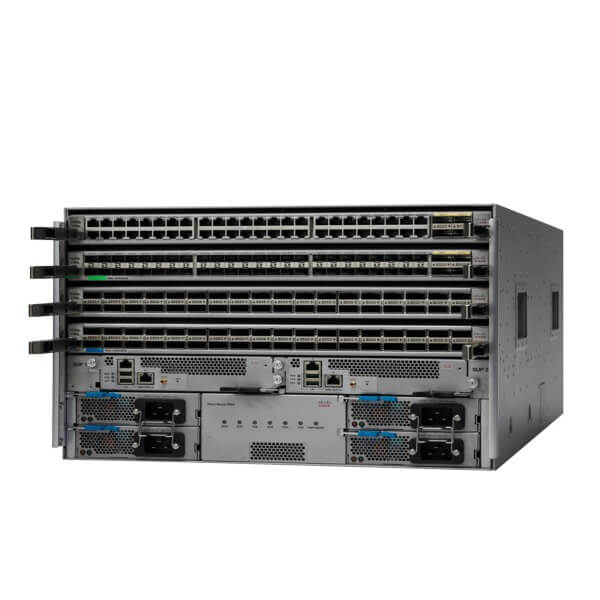

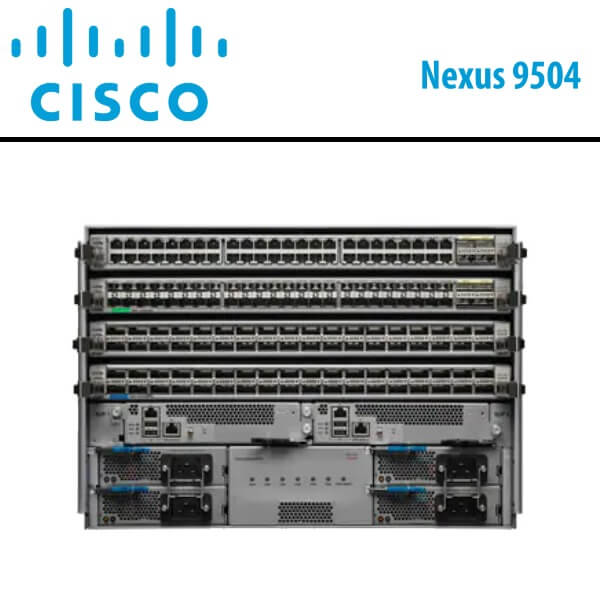

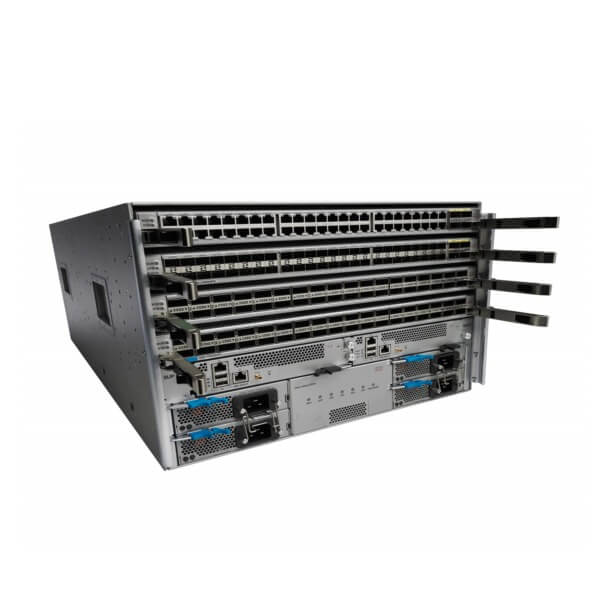

The Cisco Nexus9504 Dubai Switch delivers a high-density solution supporting 1, 10, 25, 40, 50, 100, and 400 GE within a compact 7-rack-unit modular chassis, enhancing both performance and efficiency. This adaptable modular switch is specifically engineered for high-density, end-of-row, and high-performance aggregation-layer deployments, catering to both traditional setups and Cisco Application Centric Infrastructure (ACI)–enabled data centers. Equipped with a comprehensive feature set, robust resiliency, and a diverse range of high-performance Gigabit Ethernet line cards, the Cisco Nexus9504 Dubai Switch can effectively address the demanding requirements of enterprise, service provider, and cloud data centers.

Operating in either Cisco Application Centric Infrastructure (Cisco ACI™) mode or Cisco NX-OS mode, this switch offers versatility. In Cisco ACI mode, it provides a turnkey, fully automated, policy-based architecture for designing and managing data center fabrics. In Cisco NX-OS mode, the switch supports foundational layer 2/3 technologies along with modern features such as VXLAN, a Border Gateway Protocol‒Ethernet VPN (BGP-EVPN) control plane, Segment routing, Multiprotocol Label Switching (MPLS), and automation via NX-APIs.

Features

Cisco Nexus9504 Dubai is deployment Flexibility

Support for the next-generation data center based on Cisco ACI
Nexus Fabric Manager support to automate fabric configuration and management
Traditional data centers in standalone NX-OS mode

Programmability

Open API to manage the switch through remote-procedure calls (JavaScript Object Notation or XML) over HTTP or HTTPS
Automated configuration through Linux shell scripts
Support for customer applications through a Linux container environment
Programmable APIs for integration with DevOps automation tools

High Availability

In-Service Software Upgrade (ISSU) and patching without operation interruption Redundant and hot-swappable supervisors, system controllers, power supplies, and fan trays
Mix of third-party and Cisco application-specific integrated circuits (ASICs) for improved reliability

Energy Efficiency

Designed without a midplane to optimize front-to-back airflow and reduce power consumption
Optimized design with fewer ASICs, resulting in lower energy use
Efficient power supplies that are rated at 80 Plus Platinum

High performance

The Cisco Nexus 9500 Series switch delivers nonblocking performance at a latency of 5 microseconds or less at 400-, 100-, 50-, 40-, 25-, 10-, and 1-Gigabit Ethernet speeds. This enables customers to build robust and scalable high-speed fabrics that can support several thousands of high-speed access ports

Telemetry

The Cisco Nexus9504 Dubai supports extensive switch and flow telemetry capabilities that provide extensive real-time visibility into switch and fabric states

High-density 1-, 10-, 25-, 40- and 50-Gigabit Ethernet access configuration

Organizations can transition from low-speed (100-Megabit Ethernet and 1-Gigabit Ethernet) server access designs to high-speed (1-, 10-, 25-, 40-, and 50-Gigabit Ethernet) server access designs with the same port density.

High-density 10-, 40-, 100- and 400-Gigabit Ethernet aggregation and spine configuration

The Cisco Nexus9504 Dubai helps organizations transition from 1- and 10-Gigabit Ethernet infrastructure to 10-, 40-, 100-, and 400-Gigabit Ethernet infrastructures to support the increased bandwidth demands of scale-out, multinode application environments. The compatibility of 400-Gigabit Ethernet QSFP-DD modules, 100-Gigabit Ethernet QSFP28 modules, and 40-Gigabit Ethernet QSFP+ modules enables the migration and coexistence of 40-, 100- and 400-Gigabit Ethernet ports in the fabric.

High availability, reliability, and scalability

The Cisco Nexus9504 Dubai is designed with redundant supervisors, system controllers, power supplies, and fan trays, which eliminate any single point of failure in the chassis. This Switch also support up to 6 fabric modules, which provide redundancy and graceful degradation of switching capacity in the event of fabric module failures. All transceivers are pluggable to support the highest possible Mean Time Between Failure (MTBF) for the switch.

Designed for the future

The Cisco Nexus 9500 Series Switches are designed for future expansion with the capability to support higher speed ports and more bandwidth.

Power efficiency

The Cisco Nexus9504 Dubai is the first switch chassis designed without a midplane. The line cards and fabric modules connect directly. This revolutionary design provides optimal front-to-back airflow and helps the switch operate with less power. In addition, all Cisco Nexus 9500 Series switch power supplies are rated at or higher than 80PLUS Platinum for AC inputs and equivalent efficiency for DC inputs. The typical power consumption per 10-Gigabit Ethernet port is less than 3.5 watts (W). The typical power consumption per 40- and 100-Gigabit Ethernet port is less than 14W and 22W respectively.

Specifications

Model	Cisco Nexus 9504 Chassis
Number of line card slots	4
Dimensions (H x W x D)	12.25 x 17.50 x 33.15 in. (31.1 x 44.50 x 84.20 cm)
Weight	84 lb (38.2 kg)
Rack Units	7
Mean Time Between Failure (MTBF) Hours	1,038,080
Operating temperature	32 to 104°F (0 to 40°C)
Non-operating temperature	-40 to 158°F (-40 to 70°C)
Humidity	5 to 95% (noncondensing)
Altitude	0 to 13,123 ft (0 to 4,000m)
Regulatory compliance	Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC
Safety	UL 60950-1 Second Edition CAN/CSA-C22.2 No. 60950-1 Second Edition EN 60950-1 Second Edition IEC 60950-1 Second Edition AS/NZS 60950-1 GB4943
EMC: Emissions	47CFR Part 15 (CFR 47) Class A AS/NZS CISPR22 Class A CISPR22 Class A EN55022 Class A ICES003 Class A VCCI Class A EN61000-3-2 EN61000-3-3 KN22 Class A CNS13438 Class A
EMC: Immunity	EN55024 CISPR24 EN300386 KN 61000-4 series
RoHS	The product is RoHS-6 compliant with exceptions for leaded-ball grid-array (BGA) balls and lead press-fit connectors.
