Description

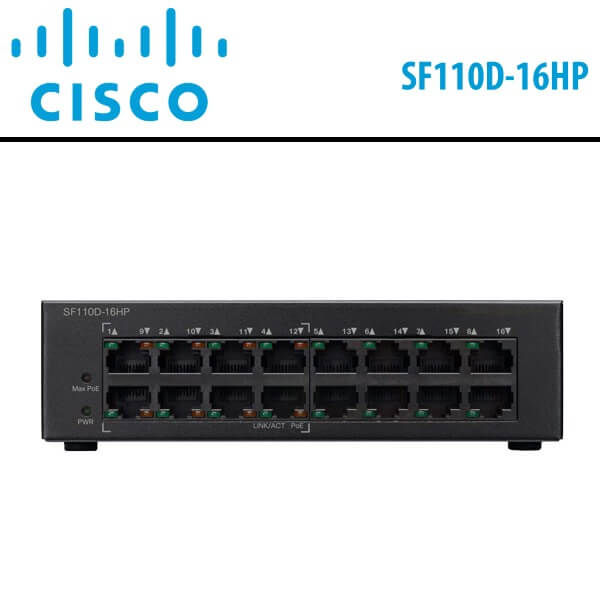

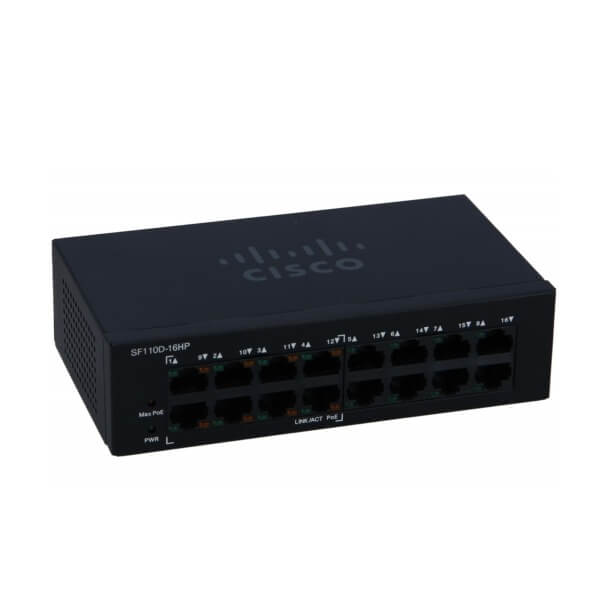

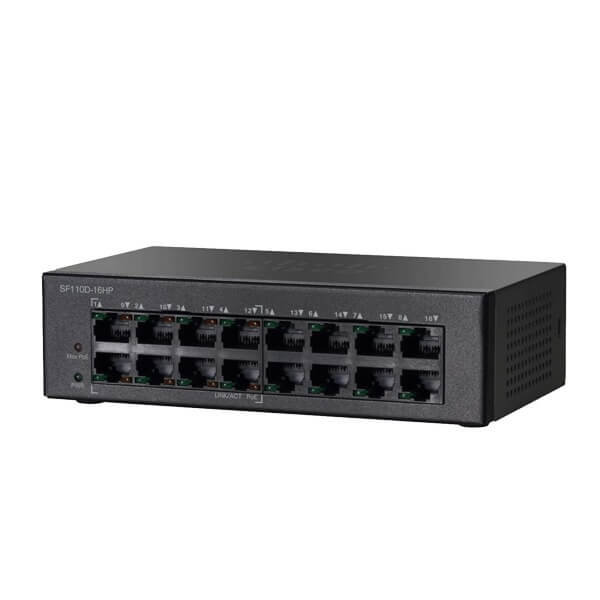

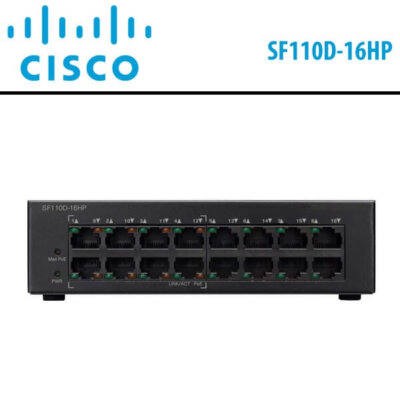

Cisco SF110D-16HP Dubai
The Cisco SF110D-16HP Dubai offers an affordable, business-class network solution, providing a quick and cost-effective boost to your office network’s speed and performance. Setting up a highly reliable network for connecting computers, printers, copiers, and other office equipment is effortless. Recognizing that most small businesses lack an in-house IT staff, the Cisco SF110D-16HP Dubai Unmanaged Switch ensures a high-performance, business-class office network right out of the box. Users, workgroups, labs, departments, or expanding offices can efficiently transmit large amounts of multimedia, images, and video information across the network with ease. This switch incorporates all the expected features, expandability, and investment protection of Cisco, requiring no installation software or configuration—simply plug it in, connect your computers and business equipment, and start working.
As part of Cisco’s Small Business networking solutions, the Cisco SF110D-16HP Dubai is a line of unmanaged switches offering wire-speed Fast Ethernet and Gigabit Ethernet connectivity for your small business office. Available in desktop and rack-mount models, these switches are designed to adapt to any office space with basic network needs while optimizing power efficiency. The Cisco SF110D-16HP Dubai consumes less power, providing the robust and reliable connectivity demanded by your business. Additionally, it supports advanced features such as Quality of Service (QoS), loop detection, and cable diagnostics—all within a switch that you can set up yourself in minutes. This unmanaged switch delivers basic network connectivity and reliability for small businesses, prioritizing simplicity and affordability. With the Cisco SF110D-16HP Dubai, Cisco brings the proven reliability and investment protection of its networking solutions to your small business.
Features
Simple
Cisco SF110D-16HP Dubai switch works right out of the box, with no software to install and nothing to configure. Each switch port independently sets itself for the optimal speed and determines whether to run in half- or full-duplex mode automatically. As a standards-based Cisco solution, Cisco SF110D-16HP Dubai is designed to immediately accommodate all of the devices in your network, including:
- Support for 10 Megabits per second (Mbps), 100 Mbps, and up to 1 gigabit per second (1000 Mbps) devices in the same network
- Automatic cable detection, so you do not have to worry about using the wrong cable type
- Compatibility with network devices from other vendors
Easy to Setup
Designed for small office spaces, Cisco SF110 series Dubai is available in both compact desktop and rack-mount models. The desktop models offer a wall-mount option for discreet mounting under a desk or on the wall of an office or conference room.
Reliability
Cisco SF110D-16HP Dubai Switch delivers the performance you need to run your business applications, including bandwidth-intensive video services, and avoid slow and sluggish networks. Cisco SF110D-16HP Dubai supports Gigabit Ethernet speeds, unlocking a new level of capacity and performance in your business network and letting you transfer large files in seconds.
Reduced energy costs
Cisco SF110D-16HP Dubai is designed to help conserve energy by optimizing power use without compromising performance, which protects our environment and reduces your energy costs. In addition, they support the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods. Most of the switches have no fans, so they run silently and unobtrusively while lowering energy costs.
Power over Ethernet (PoE)
Cisco SF110D-16HP Dubai comes with PoE ports on both Fast Ethernet and Gigabit Ethernet models. This capability simplifies the deployment of IP telephony, wireless, video surveillance, and other solutions by allowing you to connect and power network endpoints over a single Ethernet cable. With no need to install separate power supplies for IP phones or wireless access points, you can take advantage of advanced communications technologies more quickly and at a lower cost.
Support for advanced technologies
All switches include advanced Cisco traffic-handling features to keep your applications running at peak performance. Integrated QoS intelligence on all models automatically prioritizes delay-sensitive services such as voice or video to improve your network’s performance. Loop detection helps discover loops in the network that you might have accidentally created, thus avoiding broadcast storms that will bring your network to a stall. Cable diagnostics help to quickly identify and troubleshoot network cabling faults and issues. Fast store-and-forward switching identifies damaged packets and prevents them from being passed on through the network. All of these features run automatically, with no management or configuration required.
Peace of mind
Cisco 110 Series switches deliver the rock-solid reliability you expect from a Cisco switch. The solution has been rigorously tested to make sure of optimal uptime and performance. In addition, the limited lifetime hardware warranty provides peace of mind.
Specifications
| Specifications | Description | ||
| Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet | ||
| Cabling type | Category 5e or better | ||
| LED indicators | System/PWR, link/activity, 100M,*PoE, *Max PoE, cable diagnostics, loop detection, gigabit,* mini-GBIC*
*if present |
||
| Physical Interfaces | |||
| Ports | 10/100/1000 Ethernet, with support for 802.3af PoE, power port for AC adapter or power cord | ||
| Power supply | SF110D-05, SF110D-08 : DC 12V, 500mA
SF110D-16, SG110D-08, SG110D-05 : DC 12V, 1.0A SF110D-08HP, SG110D-8HP : DC 48V. 1.25A SF110-16, SF110D-16HP, SF110-24, SF112-24, SG110-16, SG110-16HP, SG110-24, SG110-24HP, SG112-24 : 110-240VAC, 50-60 Hz, internal, universal |
||
| Lock slot | Slot for Kensington lock | ||
| Physical Specifications | |||
| Physical dimensions (W x D x H) | SF110D-05 : 4.33 x 2.95 x 1.18 inches (110 x 75 x 30 mm)
SF110D-08 : 6.30 x 3.54 x 1.18 inches (160 x 90 x 30 mm) SF110D-08HP : 6.30 x 5.06 x 1.18 inches (160 x 129 x 30 mm) SF110D-16 : 6.30 x 3.54 x 1.73 inches (160 x 90 x 44 mm) SF110-16 : 11 x 6.69 x 1.73 inches (279 x 170 x 44 mm) SF110D-16HP : 6.30 x 3.54 x 1.73 inches (160 x 90 x 44 mm) SF110-24 : 11 x 6.69 x 1.73 inches (279 x 170 x 44 mm) SF112-24 : 17.32 x 7.97 x 1.73 inches (440 x 203 x 44 mm) SG110D-05 : 4.33 x 2.95 x 1.18 inches (110 x 75 x 30 mm) SG110D-08 : 6.30 x 4.07 x 1.18 inches (160 x 104 x 30 mm) SG110D-08HP : 6.30 x 5.06 x 1.18 inches (160 x 129 x 30 mm) SG110-16 : 11 x 6.7 x 1.73 inches (279 x 170 x 44 mm) SG110-16HP : 11 x 6.7 x 1.73 inches (279 x 170 x 44 mm) SG110-24 : 17.32 x 7.97 x 1.73 inches (440 x 203 x 44 mm) SG110-24HP : 17.32 x 7.97 x 1.73 inches (440 x 203 x 44 mm) SG112-24 : 11 x 6.7 x 1.73 inches (279.4 x 170 x 44 mm) |
||
| Weight | SF110D-05 : 1.01 lb. (0.46 kg)
SF110D-08 : 1.39 lb. (0.63 kg) SF110D-08HP : 1.08 lb. (0.49 kg) SF110D-16 : 0.99 lb. (0.45 kg) SF110-16 : 2.54 lb. (1.15 kg) SF110D-16HP : 3.00 lb. (1.36 kg) SF110-24 : 2.14 lb. (0.97 kg) SF112-24 : 4.25 lb. (1.93 kg) SG110D-05 : 0.51 lb. (0.23 kg) SG110D-08 : 0.95 lb. (0.43 kg) SG110D-08HP : 1.12 lb. (0.51 kg) SG110-16 : 2.14 lb. (0.97 kg) SG110-16HP : 2.87 lb. (1.30 kg) SG110-24 : 5.80 lb. (2.63 kg) SG110-24HP : 6.57 lb. (2.98 kg) SG112-24 : 3.42 lb. (1.55 kg) |
||
| Ports | SF110D-05 : 5 RJ-45 connectors for 10BASE-T/100BASE-TX
SF110D-08 : 8 RJ-45 connectors for 10BASE-T/100BASE-TX SF110D-08HP : 8 RJ-45 connectors for 10BASE-T/100BASE-TX; SF110D-16 : 16 RJ-45 connectors for 10BASE-T/100BASE-TX SF110D-16HP : 16 RJ-45 connectors for 10BASE-T/100BASE-TX SF110-16 : 16 RJ-45 connectors for 10BASE-T/100BASE-TX SF110-24 : 24 RJ-45 connectors for 10BASE-T/100BASE-TX SF112-24 : 24 RJ-45 connectors for 10BASE-T/100BASE-TX; with 2 combo mini-GBIC slots SG110D-08 : 8 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports SG110D-08HP : 8 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports SG110-16 : 16 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports SG110-16HP : 16 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports SG110-24 : 24 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports with 2 combo mini-GBIC slots SG110-24HP : 24 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports with 2 combo mini-GBIC slots SG112-24 : 24 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports with 2 combo mini-GBIC slots All units : automatic Medium Dependent Interface (MDI) and MDI crossover (MDI-X); auto-negotiated port for connecting 10-, 100-, 1000-Mbps devices |
||
| Power over Ethernet (PoE) | Model Name
SF110D-08HP SF110D-16HP SG110D-08HP SG110-16HP SG110-24HP |
Power Dedicated to PoE
32 watts 64 watts 32 watts 64 watts 100 watts |
Number of PoE Ports
4 8 4 8 12 |
| Fan/fanless models | All models have no fans and are fanless, except for SG100-24HP | ||
| Performance | |||
| Switching capacity | SF110D-05 : 1 Gbps
SF110D-08 : 1.6 Gbps SF110D-08HP : 1.6 Gbps SF110D-16 : 3.2 Gbps SF110-16 : 3.2 Gbps SF110D-16HP : 3.2 Gbps SF110-24 : 4.8 Gbps SF112-24 : 8.8 Gbps SG110D-05 : 10 Gbps SG110D-08 : 16 Gbps SG110D-08HP : 16 Gbps SG110-16 : 32 Gbps SG110-16HP : 32 Gbps SG110-24 : 48 Gbps SG110-24HP : 48 Gbps SG112-24 : 48 Gbps |
||
| Forwarding capacity | Forwarding rate in million packets per second (mpps) (based on 64-byte packets) :
SF110D-05 : 0.74 mpps SF110D-08 : 1.4. mpps S110D-08HP : 1.2 mpps SF110D-16 : 1.4 mpps SF110-16 : 1.4 mpps SF110D-16HP : 1.4 mpps SF110-24 : 3.6 mpps SF112-24 : 6.5 mpps SG110D-05 : 7.4 mpps SG110D-08 : 11.9 mpps SG110D-08HP : 11.9 mpps SG110-16 : 23.8 mpps SG110-16HP : 23.8 mpps SG110-24 : 35.7 mpps SG110-24HP : 35.7 mpps SG112-24 : 35.7 mpps |
||
| Capabilities | |||
| Head-of-line (HOL) blocking | HOL blocking prevention | ||
| Jumbo frame | 9216 bytes | ||
| Quality of service (QoS) | 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR) | ||
| Loop detection | Helps discover loops in the network to avoid broadcast storms | ||
| Cable diagnostics | Quickly identify and troubleshoot network cable faults and/or shorts | ||
| Mounting and Physical Security | |||
| Mounting options | Desktop or rack mount | ||
| Physical security lock | Kensington lock slot | ||
| Environmental | |||
| Compliance/ certifications |
UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B*
*select models |
||
| Operating temperature | 32° to 104°F (0° to 40°C) | ||
| Storage temperature | -4° to 158°F (-20° to 70°C) | ||
| Operating humidity | 10% to 90%, relative, noncondensing | ||
| Storage humidity | 5% to 90%, relative, noncondensing | ||
| Package Contents | |||
| Cisco 110 Series switch
Power cord/power adapter Quick-start guide Mounting hardware |
|||
| Minimum Requirements | |||
| Devices supporting 802.3 Ethernet, 802.u Faster Ethernet, or 802.3ab Gigabit Ethernet
Cat5 or better Ethernet cable Network interface card for each computer |
|||
