Description

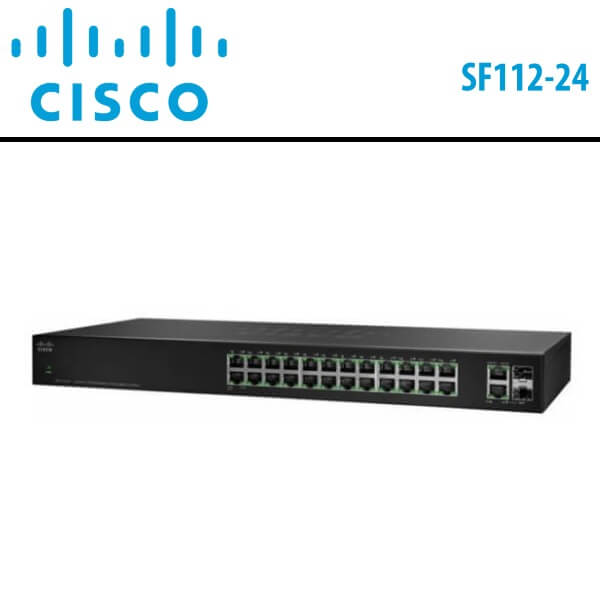

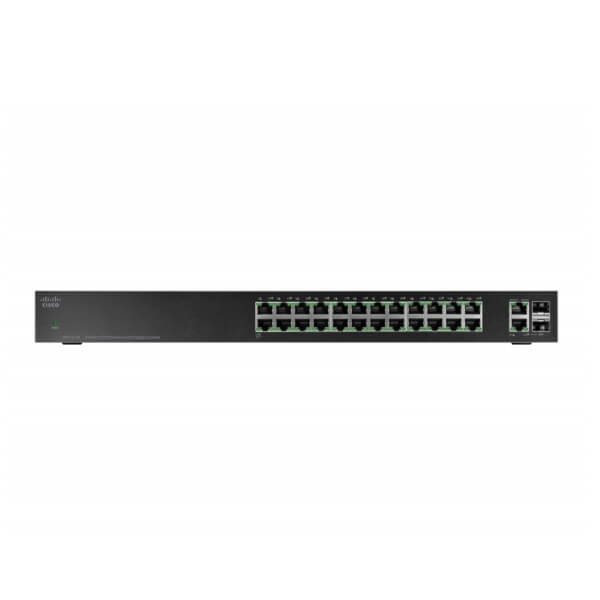

Cisco SF112-24 Dubai
The Cisco SF112-24 Dubai Unmanaged Switch offers fundamental network connectivity and reliability for small businesses, presenting an affordable and user-friendly solution without unnecessary complexity. This switch is designed for Small Business Networks, requiring zero configuration, and delivers all the expected features, expandability, and investment protection associated with Cisco. There is no need for installation software or configuration; simply plug it in, connect your computers and other business equipment, and start working. This provides a quick and cost-effective boost to your office network’s speed and performance.
Ideal for businesses without an in-house IT staff, Cisco 110 Series Unmanaged Switches ensure a high-performance, business-class office network right from the start. These switches provide wire-speed Fast Ethernet and Gigabit Ethernet connectivity for your small business office, coming in desktop and rack-mount models to suit various office spaces with basic network needs. They are designed to optimize power efficiency, using minimal power while delivering the robust and reliable connectivity demanded by your business. Additionally, these switches support advanced features such as quality of service (QoS), loop detection, and cable diagnostics—all within a switch that you can set up yourself in minutes. Cisco 110 Series switches offer a business-class, affordable network solution, bringing the proven reliability and investment protection of Cisco networking solutions to your small business.
Features
Simple to Use
Cisco SF112-24 Dubai works right out of the box, with no software to install and nothing to configure. Each switch port independently sets itself for the optimal speed and determines whether to run in half- or full-duplex mode automatically. As a standards-based Cisco solution, Cisco 110 Series switches are also designed to immediately accommodate all of the devices in your network, including:
- Support for 10 megabits per second (Mbps), 100 Mbps, and up to 1 gigabit per second (1000 Mbps) devices in the same network
- Automatic cable detection, so you do not have to worry about using the wrong cable type
- Compatibility with network devices from other vendors
Simple Installation
Designed for small office spaces, Cisco 110 Series switches are available in both compact desktop and rack-mount models. The desktop models offer a wall-mount option for discreet mounting under a desk or on the wall of an office or conference room.
Reliable Performance
Cisco SF112-24 Dubai Switch delivers the performance you need to run your business applications, including bandwidth-intensive video services, and avoid slow and sluggish networks. They support Gigabit Ethernet speeds, unlocking a new level of capacity and performance in your business network and letting you transfer large files in seconds.
Saves on Energy
Cisco SF112-24 Dubai is designed to help conserve energy by optimizing power use without compromising performance, which protects our environment and reduces your energy costs. In addition, they support the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods. Most of the switches have no fans, so they run silently and unobtrusively while lowering energy costs.
Power over Ethernet (PoE)
Cisco 110 Series switches are available with PoE ports on both Fast Ethernet and Gigabit Ethernet models. This capability simplifies the deployment of IP telephony, wireless, video surveillance, and other solutions by allowing you to connect and power network endpoints over a single Ethernet cable. With no need to install separate power supplies for IP phones or wireless access points, you can take advantage of advanced communications technologies more quickly and at a lower cost.
Support for Advanced Technologies
All switches include advanced Cisco traffic-handling features to keep your applications running at peak performance. Integrated QoS intelligence on Cisco SF112-24 Dubai automatically prioritizes delay-sensitive services such as voice or video to improve your network’s performance. Loop detection helps discover loops in the network that you might have accidentally created, thus avoiding broadcast storms that will bring your network to a stall. Cable diagnostics help to quickly identify and troubleshoot network cabling faults and issues. Fast store-and-forward switching identifies damaged packets and prevents them from being passed on through the network. All of these features run automatically, with no management or configuration required.
Peace of Mind
Cisco 110 Series switches deliver the rock-solid reliability you expect from a Cisco switch. The solution has been rigorously tested to make sure of optimal uptime and performance. In addition, the limited lifetime hardware warranty provides peace of mind.
Specifications
| Performance | |||
| Switching capacity and forwarding rate | Product Name | Switching Capacity | Forwarding Capacity |
| SF110D-05 | 1 Gbps | 0.74 mpps | |
| SF110D-08 | 1.6 Gbps | 1.4 mpps | |
| SF110D-08HP | 1.6 Gbps | 1.2 mpps | |
| SF110D-16 | 3.2 Gbps | 1.4 mpps | |
| SF110-16 | 3.2 Gbps | 1.4 mpps | |
| SF110D-16HP | 3.2 Gbps | 1.4 mpps | |
| SF110-24 | 4.8 Gbps | 3.6 mpps | |
| SF112-24 | 8.8 Gbps | 6.5 mpps | |
| SG110D-05 | 10 Gbps | 7.4 mpps | |
| SG110D-08 | 16 Gbps | 11.9 mpps | |
| SG110D-08HP | 16 Gbps | 11.9 mpps | |
| SG110-16 | 32 Gbps | 23.8 mpps | |
| SG110-16HP | 32 Gbps | 23.8 mpps | |
| SG110-24 | 48 Gbps | 35.7 mpps | |
| SG110-24HP | 48 Gbps | 35.7 mpps | |
| SG112-24 | 48 Gbps | 35.7 mpps | |
| Capabilities | |||
| Head-of-line (HOL) blocking | HOL blocking prevention | ||
| Jumbo frame | 9216 bytes | ||
| Quality of service (QoS) | 802.1p priority based, 4 hardware queues, priority queuing and weighted round-robin (WRR) | ||
| Loop detection | Helps discover loops in the network to avoid broadcast storms | ||
| Cable diagnostics | Quickly identify and troubleshoot network cable faults and/or shorts | ||
| Standards | |||
| Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet | ||
| Cabling type | Category 5e or better | ||
| LED indicators | System/PWR, link/activity, 100M,*PoE, *mMax PoE, cable diagnostics, loop detection, gigabit,* mini-GBIC*
*if present |
||
| Physical Interfaces | |||
| Ports | 10/100/1000 Ethernet, with support for 802.3af PoE, power port for AC adapter or power cord | ||
| Power supply | SNMP versions 1, 2c, and 3 with support for traps, and SNMP version 3 user-based security model (USM) | ||
| Lock slot | Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis | ||
| Physical Specifications | |||
| Physical Dimensions | Model Name | Unit Dimensions (W x H x D) | |
| SF110D-05 | 3.65 x 1.06 x 3.57 inches (92.6 x 27 x 90.6 mm) | ||
| SF110D-08 | 5.12 x 1.06 x 5.12 inches (130 x 27 x 130 mm | ||
| SF110D-08HP | 6.29 x 1.18 x 5.05 inches (160 x 30 x 128.5 mm) | ||
| SF110D-16 | 5.12 x 1.52 x 5.12 inches (130 x 38.5 x 130 mm) | ||
| SF110-16 | 11 x 1.75 x 6.7 inches (279.4 x 44.5 x 170 mm) | ||
| SF110D-16HP | 6.29 x 3.54 x 1.69 inches (160 x 90 x 43 mm) | ||
| SF110-24 | 11 x 1.75 x 6.7 inches (279.4 x 44.5 x 170 mm) | ||
| SF112-24 | 17.35 x 1.74 x 7.99 inches (440.6 x 202.82 x 44.32 mm) | ||
| SG110D-05 | 4.33 x 1.18 x 3.93 inches (110 x 30 x 110 mm) | ||
| SG110D-08 | 5.51 x 1.31 x 5.51 inches (140 x 33.35 x 140 mm) | ||
| SG110D-08HP | 6.29 x 1.18 x 5.05 inches (160 x 30 x 128.5 mm) | ||
| SG110-16 | 11 x 1.75 x 6.7 inches (279.4 x 44.5 x 170 mm) | ||
| SG110-16HP | 11 x 1.75 x 6.7 inches (279.4 x 44.5 x 170 mm) | ||
| SG110-24 | 17.35 x 1.74 x 7.99 inches (440.6 x 202.82 x 44.32 mm) | ||
| SG110-24HP | 17.35 x 1.74 x 7.99 inches (440.6 x 202.82 x 44.32 mm) | ||
| SG112-24 | 11 x 1.75 x 6.7 inches (279.4 x 44.5 x 170 mm) | ||
| Weight | Model Name | Unit weight | |
| SF110D-05 | 0.47 lb. (0.22 kg) | ||
| SF110D-08 | 0.83 lb. (0.38 kg) | ||
| SF110D-08HP | 1.2 lb. (0.545 kg) | ||
| SF110D-16 | 1.03 lb. (0.46 kg) | ||
| SF110-16 | 2.79 lb. (1.25 kg) | ||
| SF110D-16HP | 0.99 lb. (0.45 kg) | ||
| SF110-24 | 2.91 lb. (1.32 kg) | ||
| SF112-24 | 4.93 lb. (2.00 kg) | ||
| SG110D-05 | 0.70 lb. (0.32 kg) | ||
| SG110D-08 | 0.94 lb. (0.43 kg) | ||
| SG110D-08HP | 1.2 lb. (0.55 kg) | ||
| SG110-16 | 3.15 lb. (2.13 kg) | ||
| SG110-16HP | 4.15 lb. (1.43 kg) | ||
| SG110-24 | 3.59 lb. (1.63 kg) | ||
| SG110-24HP | 4.59 lb. (2.43 kg) | ||
| SG112-24 | 5.05 lb. (2.3 kg) | ||
| Ports | |||
| Ports | Model Name | ||
| SF110D-05 | 5 RJ-45 connectors for 10BASE-T/100BASE-TX | ||
| SF110D-08 | 8 RJ-45 connectors for 10BASE-T/100BASE-TX | ||
| SF110D-08HP | 8 RJ-45 connectors for 10BASE-T/100BASE-TX | ||
| SF110D-16 | 16 RJ-45 connectors for 10BASE-T/100BASE-TX | ||
| SF110-16 | 16 RJ-45 connectors for 10BASE-T/100BASE-TX | ||
| SF110D-16HP | 16 RJ-45 connectors for 10BASE-T/100BASE-TX | ||
| SF110-24 | 24 RJ-45 connectors for 10BASE-T/100BASE-TX | ||
| SF112-24 | 24 RJ-45 connectors for 10BASE-T/100BASE-TX; with 2 combo mini-GBIC slots | ||
| SG110D-05 | 5 RJ-45 connectors for 10BASE-T/100BASE-TX | ||
| SG110D-08 | 8 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports | ||
| SG110D-08HP | 8 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports | ||
| SG110-16 | 16 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports | ||
| SG110-16HP | 16 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports | ||
| SG110-24 | 24 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports with 2 combo mini-GBIC slots | ||
| SG110-24HP | 24 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports with 2 combo mini-GBIC slots | ||
| SG112-24 | 24 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports with 2 combo mini-GBIC slots | ||
| Power over Ethernet (PoE) | Model Name | Power Dedicated to PoE | Number of PoE Ports |
| SF110D-08HP | 32 Watts | 4 | |
| SF110D-16HP | 64 Watts | 8 | |
| SG110D-08HP | 32 Watts | 4 | |
| SG110-16HP | 64 Watts | 8 | |
| SG110-24HP | 100 Watts | 12 | |
| Fan/fanless models | All models have no fans and are fanless, except for SG100-24HP | ||
| Mounting options | Desktop or rack mount | ||
| Physical security lock | Kensington lock slot | ||
| System memory | 128-MB RAM
128-MB Flash |
||
| Package Contents | Cisco 110 Series switch
Power cord/power adapter Quick Start Guide Mounting hardware |
||
| Minimum Requirements | Devices supporting 802.3 Ethernet, 802.u Faster Ethernet, or 802.3ab Gigabit Ethernet
Category 5 or better Ethernet network cable Network interface card for each computer |
||
| Warranty | Limited lifetime | ||
| Environmental | |||
| Compliance/certifications | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B*
*select models |
||
| Operating temperature | 32° to 104°F (0° to 40°C) | ||
| Storage temperature | -4° to 158°F (-20° to 70°C) | ||
| Operating humidity | 10% to 90%, relative, non-condensing | ||
| Storage humidity | 5% to 90%, relative, non-condensing | ||
