Description

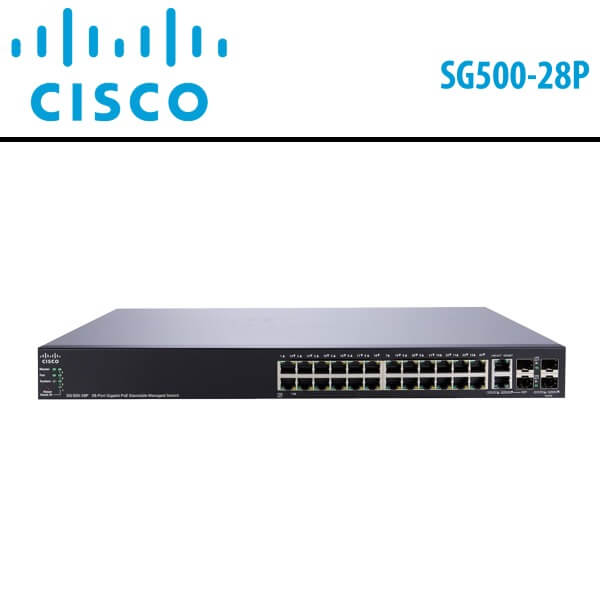

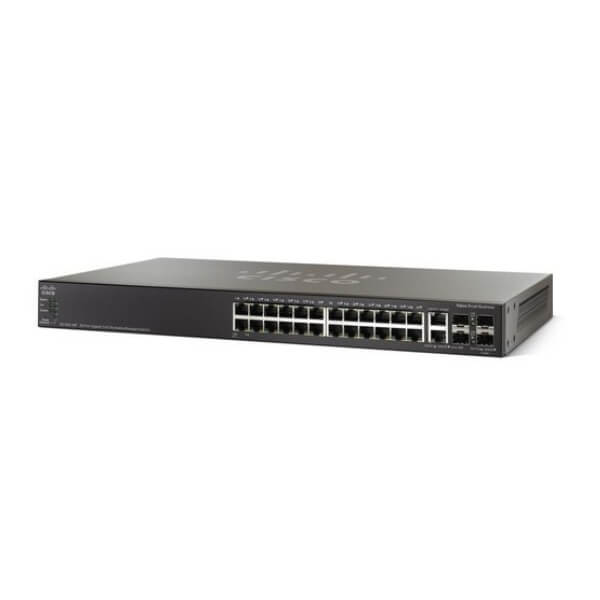

Cisco SG500-28P Dubai
The Cisco SG500-28P Dubai offer a total of 28 ports, comprising 28 ports of Fast Ethernet and 28 ports of Gigabit Ethernet connectivity, along with optional 10 Gigabit uplinks. This configuration establishes a robust foundation for both your current business applications and those anticipated in the future. Despite their advanced capabilities, these switches are designed for easy deployment and management, eliminating the need for an extensive IT staff.
The Cisco 500 Series switches are crafted to safeguard your technology investment throughout the growth of your business. Unlike switches that claim stackability but manage and troubleshoot individual elements separately, the Cisco 500 Series boasts genuine stacking capability. This allows you to configure, manage, and troubleshoot multiple physical switches as a unified device, facilitating the seamless expansion of your network. Notably, the Cisco SG500-28P Dubai Series includes fanless models, making it one of the industry’s pioneering stackable switches. This innovative design enhances reliability, power efficiency, and reduces noise levels, contributing to an optimal networking experience.
Features:
Simple-to-use graphical interfaces
Simple-to-use graphical interfaces of the Cisco SG500-28P Dubai reduce the time required to deploy.
Software upgrades
Software upgrades without network downtime.
True stacking
True stacking allows you to troubleshoot, configure, and manage multiple physical switches as a single entity using the Cisco SG500-28P Dubai
Advanced security
Advanced security features you need to protect your business data and keep unauthorized users off the network.
Limited lifetime warranty
Peace of mind: all switches come with a limited lifetime warranty and include one year of technical support and free software fixes for the term of the warranty.
Technical Specs
| Product code | SG500-28P |
| Device Type | Switch – 28 ports – managed – stackable |
| Enclosure Type | Rack-mountable |
| Ports | 24 x 10/100/1000 + 2 x combo Gigabit SFP + 2 x SFP |
| Power Over Ethernet (PoE) | Yes |
| Routing Protocol | Static IP routing |
| Features | Stacking, Flow control, layer 2 switching, VLAN support, IPv6 support, Spanning Tree Protocol (STP) support,
Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), reset button, LACP support, Energy Efficient Ethernet, Dynamic VLAN Support (GVRP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q,
IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az |
| RAM | 256 MB |
| Flash Memory | 32 MB |
| Status Indicators | Port transmission speed, system, PoE, link/activity |
| Interfaces | 24 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – PoE
2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 4 x SFP (mini-GBIC) |
| Power Device | Power supply – internal |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Width | 17.3 in |
| Depth | 10.1 in |
| Height | 1.7 in |
| Weight | 8.8 lbs |
| Cables Included | 1 x serial cable |
| Compliant Standards | UL 60950, FCC Part 15 A, CSA 22.2 |
| Service & Support | Limited lifetime warranty |
| Service & Support Details | Limited warranty – replacement – lifetime – response time: next business day,
Technical support – phone consulting – 1 year, Technical support – web support – 1 year |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 – 90% (non-condensing) |
