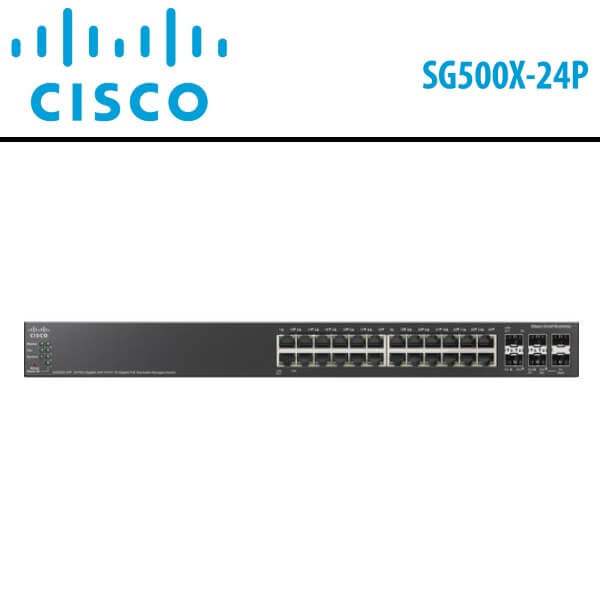

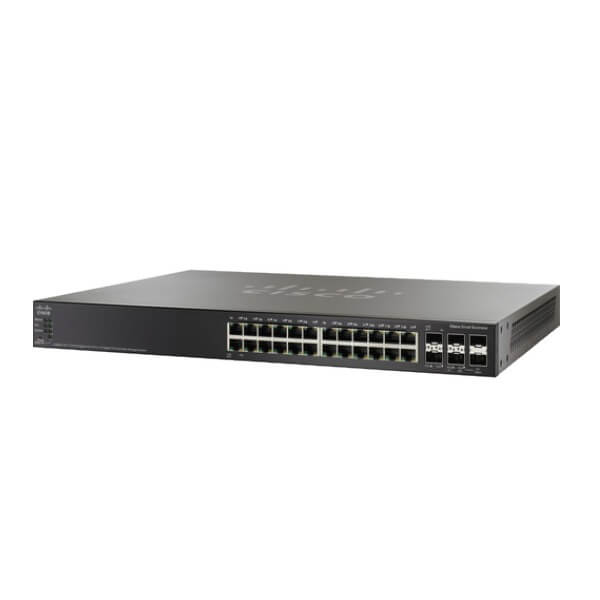

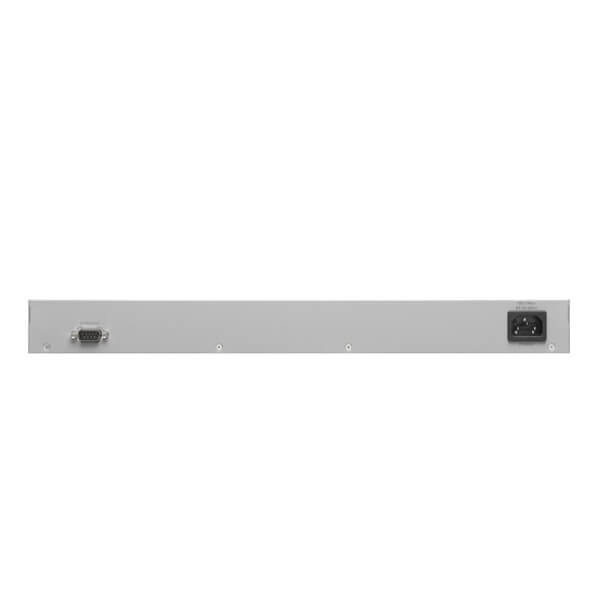

Cisco SG500X-24P Dubai

The Cisco SG500X-24P Dubai Stackable Managed Switch in Dubai introduces a new line of stackable managed Ethernet switches that offer advanced capabilities essential for supporting a more demanding network environment.

Category:

Description

Cisco SG500X-24P Dubai

The Cisco SG500X-24P Dubai Stackable Managed Switch in Dubai introduces a new line of stackable managed Ethernet switches that offer advanced capabilities essential for supporting a more demanding network environment, all at an affordable price. Equipped with 24 Fast Ethernet PoE network ports and 4 SFP+ expansion slots, it provides multiple connection options to enhance network connectivity. Beyond this, the switch supports true stacking functionality, bolstered by enhanced security and QoS capabilities, simplifying network security and bandwidth management. Administrators can seamlessly manage the network using the web-based management utility tool after configuration.

Designed to safeguard your technology investment as your business grows, the Cisco SG500X-24P Dubai switch stands out from others claiming stackability by providing genuine stacking capability. This feature allows the configuration, management, and troubleshooting of multiple physical switches as a single device, streamlining network expansion. Notably, the Cisco SG500X-24P Dubai switch includes fanless models, marking it as one of the industry’s pioneering stackable switches. This design choice enhances reliability, power efficiency, and reduces noise.

A true stack ensures a unified data and control plane, along with a management plane, fostering flexibility, scalability, and ease of use as the stack operates as a single entity, encompassing all ports of the stack members. The Cisco SG500X-24P Dubai switch further safeguards your technology investment with an enhanced warranty, dedicated technical support, and the future-proof ability to upgrade equipment.

Features

Easy Deployment

500 Series switches are designed to be easy to use and manage by small businesses or the partners that serve them. The switch features:

  • Simple-to-use graphical interfaces reduce the time required to deploy, troubleshoot, and manage the network and allow you to support sophisticated capabilities without increasing IT head count.
  • You can manage the switches as individual devices or use Cisco Configuration Assistant (CCA) to discover, configure, and manage all Cisco devices in the network.
  • The switches also support Textview, a full command-line interface (CLI) option for partners that prefer it.
  • Using Auto Smartports intelligence, the switch can detect a network device connected to any port and automatically configure the optimal security, quality of service (QoS), and availability on that port.
  • Cisco Discovery Protocol (CDP) discovers Cisco devices and allows devices to share critical configuration information, simplifying network setup and integration.
  • Support for Simple Network Management Protocol (SNMP) allows you to set up and manage your switches and other Cisco devices remotely from a network management station, improving IT workflow and mass configurations.
  • The Cisco FindIT utility, which works through a simple toolbar on the user’s web browser, discovers Cisco devices in the network and displays basic information, such as serial numbers and IP addresses, to aid in configuration and deployment.

High Reliability and Resiliency

The Cisco SG500X-24P Dubai provides an additional layer of resiliency with support for the Virtual Router Redundancy Protocol (VRRP). VRRP lets you extend the same resiliency that stacking provides for individual switches to complete network domains. By running VRRP between two stacks, you can instantly cut over from one stack to another in the event of a problem, and continue operating even after a failure. The Cisco SG500X-24P Dubai also supports dual images, allowing you to perform software upgrades without having to take the network offline or worry about the network going down during the upgrade.

Simplified IT Operation

Cisco SG500X-24P Dubai help optimize your IT operations with built-in features that simplify and streamline day-to-day network operation:

  • True stacking allows you to troubleshoot, configure, and manage multiple physical switches as a single entity.
  • Unlike other stacking switches that require uniform configurations, the Cisco 500 Series allows you to mix Fast Ethernet, Gigabit Ethernet, and 10 Gigabit Ethernet models in a single stack, providing total flexibility without sacrificing manageability.
  • Cisco switches use common chipsets/software across all switching portfolios, so all Cisco switches within a category support the same feature set – making it easier to manage and support all switches across the network.

True Stacking

Cisco SG500X-24P Dubai switch provides true stacking capability, allowing you to configure, manage, and troubleshoot all switches in a stack as a single unit, with a single IP address. A true stack delivers a unified data and control plane, in addition to management plane, providing flexibility, scalability, and ease of use since the stack of units operate as a single entity constituting all the ports of the stack members. This capability can radically reduce complexity in a growing network environment while improving the resiliency and availability of network applications. True stacking also provides other cost savings and administrative benefits through features such as cross-stack QoS, VLANs, and port mirroring, which clustered switches can’t support.

Strong Security

The Cisco SG500X-24P Dubai provides the advanced security features you need to protect your business data and keep unauthorized users off the network:

  • Embedded Secure Sockets Layer (SSL) encryption protects management data traveling to and from the switch.
  • Extensive access control lists (ACLs) restrict sensitive portions of the network to keep out unauthorized users and guard against network attacks.
  • Guest VLANs let you provide Internet connectivity to nonemployee users while isolating critical business services from guest traffic.
  • Support for advanced network security applications such as IEEE 802.1X port security tightly limits access to specific segments of your network. © 2011–2012 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 4 of 16 Data Sheet
  • Advanced defense mechanisms, including dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping, detect and block deliberate network attacks. Combinations of these protocols are also referred to as IPMB (IP-MACport binding)
  • Time based VLANs restrict access to the network during predesignated times, such as business hours.
  • Uniform MAC address-based security can be applied automatically to mobile users as they roam between wireless access points.
  • Secure Core Technology (SCT) helps ensure that the switch is able to process management traffic in the face of a denial of service attack.
  • Private VLAN Edge (PVE) provides Layer 2 isolation between devices on the same VLAN.
  • Storm control can be applied to broadcast, multicast, and unknown unicast traffic.

Specifications

Performance
Switching capacity and forwarding rate Product Name Capacity in mpps
(64-byte packets)
Switching Capacity (Gbps)
SF500-24 9.52 28.8
SF500-24P 9.52 28.8
SF500-48 13.10 33.6
SF500-48P 13.10 33.6
SG500-28 41.67 72
SG500-28P 41.67 72
SG500-52 77.38 120
SG500-52P 77.38 120
SG500X-24 95.24 128
SG500X-24P 95.24 128
SG500X-48 130.95 176
SG500X-48P 130.95 176
Layer 2 Switching
Spanning Tree Protocol Standard 802.1d Spanning Tree Support

Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default

Multiple spanning tree instances using 802.1s (MSTP). 16 instances are supported

Port grouping/link aggregation Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)

Up to 8 groups

Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad LAG

VLAN Support for up to 4096 VLANs simultaneously

Port-based and 802.1Q tag-based VLANs

MAC-based VLAN

Management VLAN

PVE (Private VLAN Edge), also known as Protected Port, with multiple uplinks

Guest VLAN

Unauthenticated VLAN

Protocol-based VLAN

CPE VLAN

Voice VLAN Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Auto voice capabilities deliver network-wide zero touch deployment of voice endpoints and call control devices.
Multicast TV VLAN Multicast VLAN used for video applications.
Q-in-Q VLANs transparently cross over a service provider network while isolating traffic among customers.
GVRP/GARP Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) enable automatic propagation and configuration of VLANs in a bridged domain.
DHCP Relay at Layer 2 Relay of DHCP traffic to DHCP server in a different VLAN. Works with DHCP Option 82.
IGMP (versions 1, 2, and 3) snooping Internet Group Management Protocol (IGMP) limits bandwidth-intensive multicast traffic to only the requesters; supports 1000 multicast groups (source-specific multicasting is also supported).
IGMP querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router.
HOL blocking Head-of-line (HOL) blocking.
Jumbo Frames Frames up to 9K (9216) bytes in length.
Layer 3
IPv4 routing Wirespeed routing of IPv4 packets Up to 128 static routes and up to 128 IP interfaces
Wirespeed IPv6 Static Routing Up to 2K (2048) static routes and up to 128 IPv6 interfaces
CIDR Support for Classless Inter-Domain Routing
RIP v2 (on 500X) Support for Routing Information Protocol version 2, for dynamic routing
VRRP (on 500X) Virtual Router Redundancy Protocol (VRRP) delivers improved availability in a Layer 3 network by providing redundancy of the default gateway servicing hosts on the network. VRRP versions 2 and 3 are supported. Up to 255 virtual routers are supported.
DHCP Relay Relay of DHCP traffic across IP domains.
User Datagram Protocol (UDP) Relay Relay of broadcast information across Layer 3 domains for application discovery or relaying of BOOTP/DHCP packets.
Stacking
Hardware stack Up to 200 ports managed as a single system with hardware failover.
High availability Fast stack failover delivers minimal traffic loss.
Plug-and-play stacking configuration/management Master/backup for resilient stack control

Auto-numbering

Hot swap of units in stack

Ring and chain stacking options

Auto stacking port speed

Flexible stacking port options

High-speed stack interconnects Cost-effective 5G copper and high-speed 10G Fiber and Copper interfaces.
Mixed stacking support A stack can consist of a mix of SF500 and SG500 models (mix of 10/100 and Gigabit in the same stack).
Hybrid stack A mix of SF500, SG500, and SG500X in the same stack (10/100, Gigabit, and 10 Gigabit).
Security
SSH Secure Shell (SSH) Protocol secures Telnet traffic to and from the switch. SSH versions 1 and 2 are supported.
SSL Secure Sockets Layer (SSL) encrypts all HTTPS traffic, allowing secure access to the browser-based management GUI in the switch.
IEEE 802.1X (Authenticator role) RADIUS authentication and accounting, MD5 hash, guest VLAN, unauthenticated VLAN, single/multiple host mode and single/multiple sessions

Supports time-based 802.1X

Dynamic VLAN assignment

STP BPDU Guard A security mechanism to protect the networks from invalid configurations. A port enabled for Bridge Protocol Data Unit (BPDU) Guard is shut down if a BPDU message is received on that port.
STP Root Guard Prevents a port from being selected as a root port, effectively preventing bridges in the LAN segment connected to the port from being a root bridge.
DHCP snooping Filters out DHCP messages with unregistered IP addresses and/or from unexpected or untrusted interfaces.
IP Source Guard (IPSG) When IP Source Guard is enabled at a port, the switch filters out IP packets received from the port if the source IP addresses of the packets have not been statically configured or dynamically learned from DHCP snooping.
Dynamic ARP Inspection (DAI) The switch discards ARP packets from a port if there is no static or dynamic IP/MAC bindings or if there is a discrepancy between the source or destination address in the ARP packet.
Secure Core Technology (SCT) Ensures that the switch will receive and process management and protocol traffic no matter how much traffic is received.
Layer 2 isolation (PVE) with community VLAN* Provides Layer 2 isolation between devices in the same VLAN; supports multiple uplinks.
Port security Ability to lock MAC addresses to ports, and limit the number of learned MAC addresses.
RADIUS/TACACS+ Supports RADIUS and TACACS authentication. Switch functions as a client.
RADIUS accounting The RADIUS accounting functions allow data to be sent at the start and end of services, indicating the amount of resources (such as time, packets, bytes, and so on) used during the session.
Storm control Broadcast, multicast, and unknown unicast.
DoS prevention DoS attack prevention.
Congestion avoidance A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization.
Multiple user privilege levels in CLI Levels 1, 7, and 15 privilege levels.
ACLs Support for up to 2000 rules on 500 Series and 3000 on 500X series.

Drop or rate limit based on source and destination MAC, VLAN IDor IP address, protocol, port, DSCP/IP precedence, TCP/ User Datagram Protocol (UDP) source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, Internet Group Management Protocol (IGMP) packets, TCP flag.

Time-based ACLs supported.

Quality of Service
Priority levels 8 hardware queues
Scheduling Strict Priority and weighted round-robin (WRR)
Class of service Port based; 802.1p VLAN priority based; IPv4/v6 IP precedence/ToS/DSCP based; DiffServ; classification and re-marking ACLs, Trusted QoS

Queue assignment based on differentiated services code point (DSCP) and class of service (802.1p/CoS)

Rate limiting Ingress policer; egress shaping and ingress rate control; per VLAN, per port, and flow based
Standards
Standards IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.3 ad LACP, IEEE 802.1D (STP, GARP and GVRP), IEEE 802.1Q/p VLAN, IEEE 802.1w Rapid STP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 922, RFC 920, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1350, RFC 1533, RFC 1541, RFC 1542, RFC 1624, RFC 1700, RFC 1867, RFC 2030, RFC 2616, RFC 2131, RFC 2132, RFC 3164, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 2576, RFC 4330, RFC 1213, RFC 1215, RFC 1286, RFC 1442, RFC 1451, RFC 1493, RFC 1573, RFC 1643, RFC 1757, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 1157, RFC 1493, RFC 1215, RFC 3416
IPv6
IPv6 IPv6 Host Mode

IPv6 over Ethernet

Dual IPv6/IPv4 stack

IPv6 Neighbor and Router Discovery (ND)

IPv6 Stateless Address Autoconfiguration

Path MTU Discovery

Duplicate Address Detection (DAD)

ICMPv6

IPv6 over IPv4 network with ISATAP tunnel support

USGv6 and IPv6 Gold Logo certified

IPv6 QoS Prioritize IPv6 packets in hardware
IPv6 ACL Drop or Rate Limit IPv6 packets in hardware
Multicast Listener Discovery (MLD v1/2) snooping Deliver IPv6 multicast packets only to the required receivers
IPv6 applications Web/SSL, Telnet Server/SSH, Ping, Traceroute, SNTP, TFTP, SNMP, RADIUS, Syslog, DNS client, DHCP Client, DHCP Autoconfig, IPv6 DHCP Relay, TACACS
IPv6 RFC supported RFC 4443 (which obsoletes RFC 2463) – ICMPv6

RFC 4291 (which obsoletes RFC 3513) – IPv6 Address Architecture

RFC 4291 – IP Version 6 Addressing Architecture

RFC 2460 – IPv6 Specification

RFC 4861 (which obsoletes RFC 2461) – Neighbor Discovery for IPv6

RFC 4862 (which obsoletes RFC 2462) – IPv6 Stateless Address Auto-configuration

RFC 1981 – Path MTU Discovery

RFC 4007 – IPv6 Scoped Address Architecture

RFC 3484 – Default address selection mechanism

RFC 5214 (which obsoletes RFC 4214) – ISATAP tunneling

RFC 4293 – MIB IPv6: Textual Conventions and General Group

RFC 3595 – Textual Conventions for IPv6 Flow Label

Management
Web user interface Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports configuration, system dashboard, system maintenance and monitoring.
SNMP SNMP versions 1, 2c, and 3 with support for traps, and SNMP v3 User-based Security Model (USM)
Standard MIBs lldp-MIB

lldpextdot1-MIB

lldpextdot3-MIB

lldpextmed-MIB

rfc2674-MIB

rfc2575-MIB

rfc2573-MIB

rfc2233-MIB

rfc2013-MIB

rfc2012-MIB

rfc2011-MIB

RFC-1212

RFC-1215

SNMPv2-CONF

SNMPv2-TC

p-bridge-MIB

q-bridge-MIB

rfc1389-MIB

rfc1493-MIB

rfc1611-MIB

rfc1612-MIB

rfc1850-MIB

rfc1907-MIB

rfc2571-MIB

rfc2572-MIB

rfc2574-MIB

rfc2576-MIB

rfc2613-MIB

rfc2665-MIB

rfc2668-MIB

rfc2737-MIB

rfc3621-MIB

rfc4668-MIB

rfc4670-MIB

trunk-MIB

tunnel-MIB

udp-MIB

draft-ietf-bridge-8021x-MIB

draft-ietf-bridge-rstpmib-04-MIB

draft-ietf-hubmib-etherif-mib-v3-00-MIB

ianaaddrfamnumbers-MIB

ianaifty-MIB

ianaprot-MIB

inet-address-MIB

ip-forward-MIB

ip-MIB

RFC1155-SMI

RFC1213-MIB

SNMPv2-MIB

SNMPv2-SMI

SNMPv2-TM

RMON-MIB

rfc1724-MIB

dcb-raj-DCBX-MIB-1108-MIB

rfc1213-MIB

rfc1757-MIB

Private MIBs CISCOSB-lldp-MIB

CISCOSB-brgmulticast-MIB

CISCOSB-bridgemibobjects-MIB

CISCOSB-bonjour-MIB

CISCOSB-dhcpcl-MIB

CISCOSB-MIB

CISCOSB-wrandomtaildrop-MIB

CISCOSB-traceroute-MIB

CISCOSB-telnet-MIB

CISCOSB-stormctrl-MIB

CISCOSBssh-MIB

CISCOSB-socket-MIB

CISCOSB-sntp-MIB

CISCOSB-smon-MIB

CISCOSB-phy-MIB

CISCOSB-multisessionterminal-MIB

CISCOSB-mri-MIB

CISCOSB-jumboframes-MIB

CISCOSB-gvrp-MIB

CISCOSB-endofmib-MIB

CISCOSB-dot1x-MIB

CISCOSB-deviceparams-MIB

CISCOSB-cli-MIB

CISCOSB-cdb-MIB

CISCOSB-brgmacswitch-MIB

CISCOSB-3sw2swtables-MIB

CISCOSB-smartPorts-MIB

CISCOSB-tbi-MIB

CISCOSB-macbaseprio-MIB

CISCOSB-env_mib-MIB

CISCOSB-policy-MIB

CISCOSB-sensor-MIB

CISCOSB-aaa-MIB

CISCOSB-application-MIB

CISCOSB-bridgesecurity-MIB

CISCOSB-copy-MIB

CISCOSB-CpuCounters-MIB

CISCOSB-Custom1BonjourService-MIB

CISCOSB-dhcp-MIB

CISCOSB-dlf-MIB

CISCOSB-dnscl-MIB

CISCOSB-embweb-MIB

CISCOSB-fft-MIB

CISCOSB-file-MIB

CISCOSB-greeneth-MIB

CISCOSB-interfaces-MIB

CISCOSB-interfaces_recovery-MIB

CISCOSB-ip-MIB

CISCOSB-iprouter-MIB

CISCOSB-ipv6-MIB

CISCOSB-mnginf-MIB

CISCOSB-lcli-MIB

CISCOSBlocalization-MIB

CISCOSB-mcmngr-MIB

CISCOSB-mng-MIB

CISCOSB-physdescription-MIB

CISCOSB-PoE-MIB

CISCOSB-protectedport-MIB

CISCOSB-rmon-MIB

CISCOSB-rs232-MIB

CISCOSB-SecuritySuite-MIB

CISCOSB-snmp-MIB

CISCOSB-specialbpdu-MIB

CISCOSB-banner-MIB

CISCOSB-syslog-MIB

CISCOSB-TcpSession-MIB

CISCOSB-traps-MIB

CISCOSB-trunk-MIB

CISCOSB-tuning-MIB

CISCOSB-tunnel-MIB

CISCOSB-udp-MIB

CISCOSB-vlan-MIB

CISCOSB-ipstdacl-MIB

CISCOSB-eee-MIB

CISCOSB-ssl-MIB

CISCOSB-digitalkeymanage-MIB

CISCOSB-qosclimib-MIB

CISCOSB-vrrp-MIB

CISCOSB-tbp-MIB

CISCOSB-stack-MIB

CISCOSMB-MIB

CISCOSB-secsd-MIB

CISCOSB-draft-ietf-entmib-sensor-MIB

CISCOSB-draft-ietf-syslog-device-MIB

CISCOSB-rfc2925-MIB

CISCOSB-vrrpv3-MIB

CISCO-SMI-MIB

CISCOSB-DebugCapabilities-MIB

CISCOSB-CDP-MIB

CISCOSB-vlanVoice-MIB

CISCOSB-EVENTS-MIB

CISCOSB-sysmng-MIB

CISCOSB-sct-MIB

CISCO-TC-MIB

CISCO-VTP-MIB

CISCO-CDP-MIB

RMON Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
IPv4 and IPv6 Dual Stack Coexistence of both protocol stacks to ease migration
Firmware upgrade Web browser upgrade (HTTP/HTTPS) and TFTP and SCP

Upgrade can be initiated through console port as well

Dual images for resilient firmware upgrades

Port mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 8 source ports can be mirrored to one destination port.
VLAN mirroring Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe. Up to 8 source VLANs can be mirrored to one destination port.
DHCP (Options 12, 66, 67, 82, 129, and 150) DHCP options facilitate tighter control from a central point (DHCP Server), to obtain IP address, auto configuration (with configuration file download), DHCP Relay, and host name.
Auto configuration with Secure Copy (SCP) file download Enables secure mass deployment with protection of sensitive data.
Text-editable configs Config files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment.
Smartports Simplified configuration of QoS and security capabilities.
Auto Smartports Automatically applies the intelligence delivered through the Smartports roles to the port based on the devices discovered over Cisco Discovery Protocol or LLDP-MED. This facilitates zero touch deployments.
Secure Copy (SCP) Securely transfer files to and from the switch.
Textview CLI Scriptable CLI. A full CLI as well as a menu CLI is supported.
Cloud Services Support for Cisco Small Business and Cisco OnPlus.
Localization Localization of GUI and documentation into multiple languages.
Login banner Configurable login banners for web as well as CLI.
Time-based port operation Link up or down based on user-defined schedule (when the port is administratively up).
Other management Traceroute; single IP management; HTTP/HTTPS; SSH; RADIUS; port mirroring; TFTP upgrade; DHCP client; BOOTP; Simple Network Time Protocol (SNTP); Xmodem upgrade; cable diagnostics; Ping; syslog; Telnet client (SSH secure support); Automatic time settings from Management Station.
Green (Power Efficiency)
Energy Detect Automatically turns power off on Gigabit Ethernet RJ-45 port when detecting link down.

Active mode is resumed without loss of any packets when the switch detects the link is up.

Cable length detection Adjusts the signal strength based on the cable length. Reduces the power consumption for cable shorter than 10m. Supported on Gigabit Ethernet models.
EEE compliant (802.3az) Supports IEEE 802.3az on all Gigabit copper ports.
Disable port LEDs LEDs can be manually turned off to save on energy.
General
Jumbo frames Frame sizes up to 9K (9216) bytes. Bare supported on 10/100 and Gigabit Ethernet interfaces.
The default MTU is 2K.
MAC table 16K (16384) MAC addresses.
Discovery
Bonjour The switch advertises itself using the Bonjour protocol.
LLDP (802.1ab) with LLDP-MED extensions Link Layer Discovery Protocol (LLDP) allows the switch to advertise its identification, configuration, and capabilities to neighboring devices that store the data in a MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones.
Cisco Discovery Protocol (CDP) The switch advertises itself using the Cisco Discovery Protocol (CDP). It also learns the connected device and its characteristics via CDP.
Power over Ethernet (PoE)
IEEE 802.3af and 802.3at PoE delivered over any of the RJ-45 ports within the listed power budgets
Switches support 802.2af, 802.3at, and Cisco pre-standard (legacy) PoE. Maximum power of 30W to any 10/100 or Gigabit base port until the PoE budget for the switch is reached. The total power available for PoE per switch is:
Model Name Power Dedicated to PoE Number of Ports That Support PoE
SF500-24 N/A 0
SF500-24P 180W 24
SF500-48 N/A 0
SF500-48P 375W 48
SG500-28 N/A 0
SF500-28P 180W 24
SF500-52 N/A 0
SF500-52P 375W 48
SG500X-24 N/A 0
SG500X-24P 375W 24
SG500X-48 N/A 0
SG500X-48P 375W 48
Power consumption (worst case)
Model Name Green Power (mode) Power Consumption (worst case) Heat Dissipation (BTU/hr)
SF500-24 Energy Detect 110V/0.226A/13.7W
220V/0.160A/14.8W
46.5
SF500-24P Energy Detect 110V/0.256A/26.1W
220V/0.206A/27W
84.9
SF500-48 Energy Detect 110V/0.445A/24.3W
220V/0.270A/24.8W
77.9
SF500-48P Energy Detect 110V/0.481A/46.8W
220V/0.319A/47.5W
149.2
SG500-28 EEE + Short Reach + Energy Detect 110V/0.0.443A/23.2W
220V/0.262A/23.6W
74.2
SF500-28P EEE + Short Reach + Energy Detect 110V/0.333A/35W
220V/0.238A/35.9W
112.8
SF500-52 EEE + Short Reach + Energy Detect 110V/0.439A/47W
220V/0.230A/47W
147.7
SF500-52P EEE + Short Reach + Energy Detect 110V/0.647A/63.7W
220V/0.405A/64.7W
203.3
SG500X-24 EEE + Short Reach + Energy Detect 110V/0.600A/36.5W
220V/0.348A/36.2W
114.7
SG500X-24P EEE + Short Reach + Energy Detect 110V/0.576A/57.2W
220V/0.365A/57.9W
181.9
SG500X-48 EEE + Short Reach + Energy Detect 110V/0.545A/60.3W
220V/0.378A/60.3W
189.5
SG500X-48P EEE + Short Reach + Energy Detect 110V/0.735A/74.4W
220V/0.444A/75W
235.7
Ports
Model Name Total System Ports RJ-45 Ports Combo Ports (RJ-45 + SFP)
SF500-24 24FE + 4 GE (5G Stacking) 24 GE 2 combo GE + 2 1G/5G SFP
SF500-24P 24FE + 4 GE (5G Stacking) 24 GE 2 combo GE + 2 1G/5G SFP
SF500-48 48FE + 4 GE (5G Stacking) 48 FE 2 combo GE + 2 1G/5G SFP
SF500-48P 48FE + 4 GE (5G Stacking) 48 FE 2 combo GE + 2 1G/5G SFP
SG500-28 24GE + 4 GE (5G Stacking) 24 GE 2 combo GE + 2 1G/5G SFP
SF500-28P 24GE + 4 GE (5G Stacking) 24 GE 2 combo GE + 2 1G/5G SFP
SF500-52 48GE + 4 GE (5G Stacking) 48 GE 2 combo GE + 2 1G/5G SFP
SF500-52P 48GE + 4 GE (5G Stacking) 48 GE 2 combo GE + 2 1G/5G SFP
SG500X-24 24GE + 4 10GE 24 GE 4 XG SFP+ (Two combo 5G SFP slots)
SG500X-24P 24GE + 4 10GE 24 GE 4 XG SFP+ (Two combo 5G SFP slots)
SG500X-48 48GE + 4 10GE 48 GE 4 XG SFP+ (Two combo 5G SFP slots)
SG500X-48P 48GE + 4 10GE 48 GE 4 XG SFP+ (Two combo 5G SFP slots)
Product Specifications
Buttons Reset button
Cabling type Unshielded twisted pair (UTP) Category 5 or better; Fiber options (SMF and MMF); Coaxial SFP+ for stacking purposes
LEDs LED power savings, System, Link/Act, PoE, Speed
Flash 32 MB
800 MHz ARM CPU memory 256 MB
Package Contents Cisco Small Business 500/500X Series Stackable Managed Switch

Power cord

Mounting kit included with all models

Serial cable

CD-ROM with user documentation (PDF) included

Quick Start Guide

Minimum Requirements Web browser: Mozilla Firefox version 8 or later; Microsoft Internet Explorer version 7 or later, Safari, Chrome

Category 5 Ethernet network cable

TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed

Packet buffer
All numbers are aggregate across all ports, as the buffers are dynamically shared:
Model Name Packet Buffer
SF500-24 8Mb
SF500-24P 8Mb
SF500-48 2*8Mb
SF500-48P 2*8Mb
SG500-28 8Mb
SF500-28P 8Mb
SF500-52 2*8Mb
SF500-52P 2*8Mb
SG500X-24 12Mb
SG500X-24P 12Mb
SG500X-48 2*12Mb
SG500X-48P 2*12Mb
Supported SFP/SFP+ Modules
SKU Media Speed Maximum Distance
MFEFX1 Multi-mode fiber 100 Mbps 2 km
MFELX1 Single-mode fiber 100 Mbps 10 km
MFEBX1 Single-mode fiber 100 Mbps 20 km
MGBBX1 Single-mode fiber 1000 Mbps 40 km
MGBSX1 Multi-mode fiber 1000 Mbps 300 m
MGBLH1 Single-mode fiber 1000 Mbps 40 km
MGBLX1 Single-mode fiber 1000 Mbps 10 km
MGBT1 UPT cat 5 1000 Mbps 100 m
SFP-H10GB-CU1M Copper coax 5G (Sx500) / 10G (SG500X) 1 m
SFP-H10GB-CU3M Copper coax 5G (Sx500) / 10G (SG500X) 3 m
SFP-H10GB-CU5M Copper coax 5G (Sx500) / 10G (SG500X) 5 m
SFP-10G-SR Multi-mode fiber 10 Gig 300 m
SFP-10G-LR Single-mode fiber 10 Gig 10 km
SFP-10G-LRM Single-mode fiber 10 Gig 40 km
Stack Connection Options
Model Name 500 500X
500 5G copper – SFP-H10GB-CUxM
1G fiber or copper – MGBxxx
1G Base-T – embedded RJ45 (S1/S2)
5G copper – SFP-H10GB-CUxM
1G fiber or copper – MGBxxx
500X 5G copper – SFP-H10GB-CUxM
1G fiber or copper – MGBxxx
10G copper – SFP-H10GB-CUxM
10G Fiber – SFP-10G-xx
1G fiber or copper – MGBxxx
Environmental
Power 100-240V 47-63 Hz, internal, universal
Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature 32° to 104°F (0° to 40°C)
Storage temperature -4° to 158°F (-20° to 70°C)
Operating humidity 10% to 90%, relative, non-condensing
Storage humidity 10% to 90%, relative, non-condensing
Unit Dimensions (W x H x D)
SF500-24 440 x 44 x 257 mm
SF500-24P 440 x 44 x 257 mm
SF500-48 440 x 44 x 257 mm
SF500-48P 440 x 44 x 350 mm
SG500-28 440 x 44 x 257 mm
SF500-28P 440 x 44 x 257 mm
SF500-52 440 x 44 x 257 mm
SF500-52P 440 x 44 x 350 mm
SG500X-24 440 x 44 x 257 mm
SG500X-24P 440 x 44 x 350 mm
SG500X-48 440 x 44 x 257 mm
SG500X-48P 440 x 44 x 350 mm
Unit weight
SF500-24 3.09 kg
SF500-24P 3.73 kg
SF500-48 3.43 kg
SF500-48P 5.61 kg
SG500-28 3.4 kg
SF500-28P 3.95 kg
SF500-52 3.95 kg
SF500-52P 5.61 kg
SG500X-24 3.45 kg
SG500X-24P 5.25 kg
SG500X-48 4.01 kg
SG500X-48P 5.74 kg
