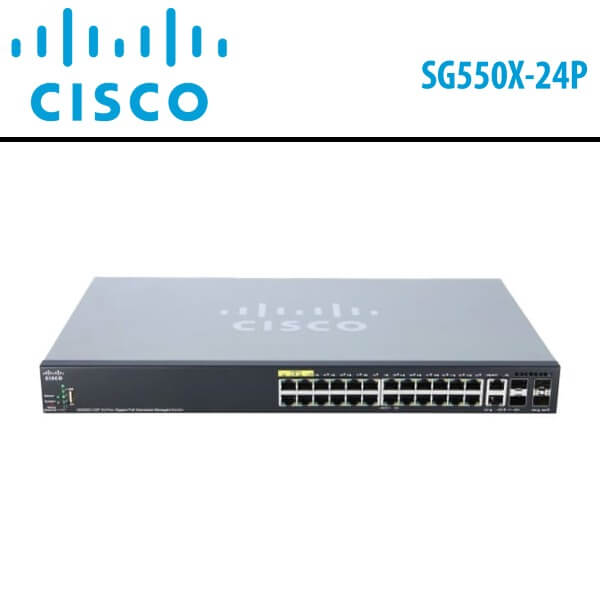

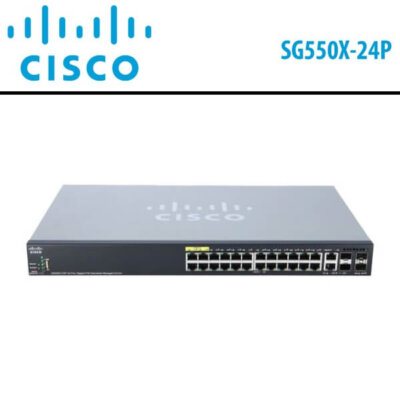

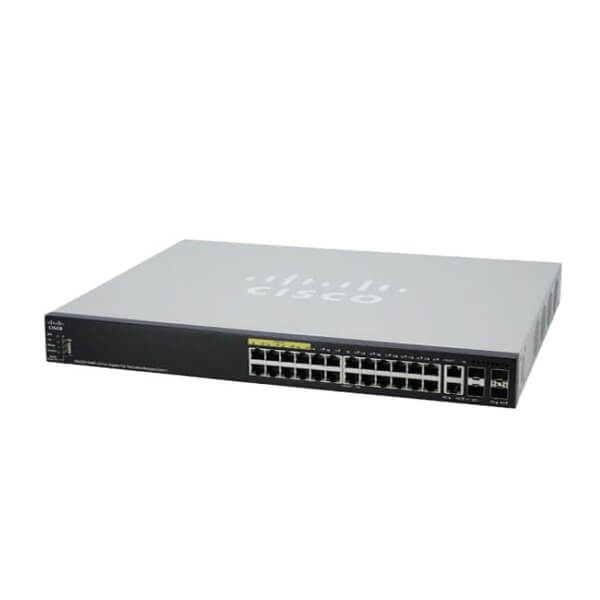

Cisco SG550X-24P Dubai

The Cisco SG550X-24P Dubai switch enhances the availability of critical applications, safeguards business information, and optimizes network bandwidth for more efficient information delivery and application support. Designed to protect your technology investment during business growth, the Cisco SF550X-24P Dubai offers true stacking capability. This allows you to seamlessly configure, manage, and troubleshoot multiple physical switches as a unified device, simplifying network expansion.

A genuine stack consolidates the data and control planes, along with the management plane, providing flexibility, scalability, and user-friendly operation as the stack operates as a single entity covering all ports across its members. These switches also prioritize the protection of your technology investment through an enhanced warranty, dedicated technical support, and the option to upgrade equipment in the future, along with receiving credit for your Cisco 550X Series switch.

In summary, the Cisco SG550X-24P Dubai establishes itself as the ideal technology foundation for a growing business by delivering an advanced feature set that caters to the needs of expanding businesses and the requirements of high-bandwidth applications and technologies.

Features and benefits

High-performance 10 Gigabit Ethernet

The Cisco SG550X-24P Dubai switch breaks the barrier of 10 Gigabit Ethernet adoption by providing affordable and flexible configurations customized for the demanding network requirements of small and medium businesses. With 10G copper ports on the SX550X switches, you can easily and cost-effectively enable 10G connections to servers and network storage devices with standard RJ-45 Ethernet cable. You can also connect your SG550X access switches to the SX550X aggregation with 10G SFP+ fiber, building a high-performance backbone to speed up the overall operation of your network.

High reliability and resiliency

The Cisco SG550X-24P Dubai switch is designed to deliver hardware redundancy at the lowest incremental cost. Power redundancy is delivered with the Cisco RPS2300 external RPS system. If power to the switch is lost (through loss of AC power or power supply failure), the switch will automatically, and instantaneously, obtain its power from the RPS. This switchover occurs so quickly that there is no loss in traffic or reboot of the device. A Cisco RPS2300 system can be connected to up to six 550X Series switches to provide redundancy. Cooling fan redundancy is delivered through preinstalled N+1 configuration. A switch can fully support all its capabilities for the life of the product with only N fans. If one of the fans fails, the spare fan automatically takes over, without causing any downtime.

The Cisco SG550X-24P Dubai switch provides an additional layer of resiliency with support for the Virtual Router Redundancy Protocol (VRRP). VRRP lets you extend the same resiliency that stacking provides for individual switches to complete network domains. By running VRRP between two stacks, you can instantly cut over from one stack to another in the event of a problem and continue operating even after a failure. The Cisco SG550X-24P Dubai switch also supports dual images, allowing you to perform software upgrades without having to worry about the network going down during the upgrade.

Power over Ethernet Plus (PoE+) and 60W PoE

Cisco SG550X-24P Dubai supports the Power over Ethernet Plus (PoE+) standard (IEEE 802.3at), providing up to 30 watts per port. The switches also support 60W PoE on selected ports to power compact switches, high-power wireless access points, or connected lighting. The power is managed in a smart fashion such that only the amount of power the endpoint needs is delivered to it and not wasted. As a result, Cisco SG550X-24P Dubai supports devices that require more power, such as 802.11ac wireless access points, video-based IP phones, surveillance cameras, and more. PoE capabilities simplify the deployment of advanced technologies by allowing you to connect and power network endpoints over a single Ethernet cable, without having to install separate power supplies. Cisco 550X Series switches are also fully backward compatible with IEEE 802.11af PoE and Cisco legacy PoE protocols.

Power efficiency

The Cisco SG550X-24P Dubai integrates a variety of power-saving features across all models, providing the industry’s most extensive energy-efficient switching portfolio. The Cisco SG550X-24P Dubai switch is designed to conserve energy by optimizing power use, which helps protects the environment and reduce your energy costs. It is eco-friendly network solution without compromising performance with the the following features :

• Support for the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods
• The latest Application-Specific Integrated Circuits (ASICs), which use low-power 28- or 40-nanometer technology and low-power, high-performance ARM CPUs
• Automatic power shutoff on ports when a link is down
• LEDs that can be turned off to save power
• Embedded intelligence to adjust signal strength based on the length of the connecting cable
• Smart fans in which fan speed is automatically adjusted according to switch temperature to decrease acoustic noise and save power

Advanced stacking

Cisco SG550X-24P Dubai provides true stacking capability, allowing you to configure, manage, and troubleshoot all switches in a stack as a single unit, with a single IP address for up to a maximum of 400 Ethernet ports. A true stack delivers a unified data and control plane, in addition to management plane, providing flexibility, scalability, and ease of use because the stack of units operates as a single entity constituting all the ports of the stack members. This capability can radically reduce complexity in a growing network environment while improving the resiliency and availability of network applications. True stacking also provides other cost savings and administrative benefits through features such as cross-stack QoS, VLANs, LAGs, and port mirroring, which clustered switches cannot support. Using standard 10G fiber or copper connections, Cisco SG550X-24P Dubai supports both local and horizontal stacking deployments and the flexibility of ring or chain topology. The Cisco SG550X-24P Dubai also has the capability to use link aggregation port as the stacking port, providing even higher stacking bandwidth for demanding applications.

Easy deployment and use

Cisco SG550X-24P Dubai is designed to be easy to use and manage by small and medium businesses, commercial customers, or the partners that serve them. Features include the following :

• Smart Network Application (SNA) is an innovative network-level monitoring and management tool embedded in the Cisco 250 to 550X Series switches. It can discover network topology, display link status, monitor events, apply configurations, and upgrade software images across multiple switches in the network.
• The FindIT Network Manager and Probe are designed to manage Cisco 100 to 500 Series switches, routers, and wireless access points. They let you proactively manage the network instead of just reacting to events. Cisco 550X Series switches support the embedded FindIT Network Probe, eliminating the need to set up a separate hardware or virtual machine on site.
• The FindIT Network Discovery Utility works through a simple toolbar on the user’s web browser to discover Cisco devices on the network and display basic device information, inventory, and new firmware updates to aid in the configuration and speed the deployment of Cisco Small Business products.
• Simple and advanced mode graphic user interfaces reduce the time required to deploy, troubleshoot, and manage the network and allow you to support sophisticated capabilities without increasing IT head count.
• Configuration wizards simplify the most common configuration tasks and provide the ultimate tool for anyone to easily set up and manage the network.
• The switches also support Textview, a full Command-Line Interface (CLI) option for customers or partners that prefer it.
• Using Auto Smart ports intelligence, the switch can detect a network device connected to any port and automatically configure the optimal security, Quality of Service (QoS), and availability on that port.
• Cisco Discovery Protocol discovers Cisco devices and allows devices to share critical configuration information, simplifying network setup and integration.
• Support for Simple Network Management Protocol (SNMP) allows you to set up and manage your switches and other Cisco devices remotely from a network management station, improving IT workflow and mass configurations.
• The USB port on the switch enables easy image and configuration transfer for faster deployment or upgrade.

Simplified IT operation

Cisco SG550X-24P Dubai helps optimize your IT operations with built-in features that simplify day-to-day network operation :

• True stacking allows you to configure, manage, and troubleshoot multiple physical switches as a single entity.
• Unlike other stacking switches that require uniform configurations, the Cisco 550X Series allows you to mix Fast Ethernet, Gigabit Ethernet, and 10 Gigabit Ethernet models in a single stack, providing total flexibility without sacrificing manageability.
• Cisco switches use common chipsets/software across all switching portfolios, so all Cisco switches within a series support the same feature set, making it easier to manage and support all switches across the network.

Highly Secure

Cisco SG550X-24P Dubai switch provides the advanced security features you need to protect your business data and keep unauthorized users off the network :

• Embedded Secure Sockets Layer (SSL) encryption protects management data traveling to and from the switch.
• Extensive Access Control Lists (ACLs) restrict sensitive portions of the network to keep out unauthorized users and guard against network attacks.
• Guest VLANs let you provide Internet connectivity to nonemployee users while isolating critical business services from guest traffic.
• Support for advanced network security applications such as IEEE 802.1X port security tightly limits access to specific segments of your network. Web-based authentication provides a consistent interface to authenticate all types of host devices and operating systems, without the complexity of deploying IEEE 802.1X clients on each endpoint.
• Advanced defense mechanisms, including dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping, detect and block deliberate network attacks. Combinations of these protocols are also referred to as IP-MAC port binding (IPMB).
• IPv6 First Hop Security extends the advanced threat protection to IPv6. This comprehensive security suite includes ND inspection, RA guard, DHCPv6 guard, and neighbor binding integrity check, providing unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks.
• Time-based ACLs and port operation restrict access to the network during predesignated times, such as business hours.
• Uniform MAC address-based security can be applied automatically to mobile users as they roam between wireless access points.
• Secure Core Technology (SCT) helps ensure that the switch is able to process management traffic in the face of a Denial-of-Service (DoS) attack.
• Private VLAN provides Layer 2 isolation between devices on the same VLAN.
• Storm control can be applied to broadcast, multicast, and unknown unicast traffic.
• Protection of management sessions is possible using RADIUS, TACACS+, and local database authentication as well as secure management sessions over SSL, SSH, and SNMPv3.
• DoS attack prevention maximizes network uptime in the presence of an attack.

Advanced Layer 3 traffic management

The Cisco SG550X-24P Dubai enables a more advanced set of traffic management capabilities to help growing businesses organize their networks more effectively and efficiently. For example, the switches provide static Layer 3 routing, allowing you to segment your network into workgroups and communicate across VLANs without degrading application performance.

With these capabilities, you can boost the efficiency of your network by offloading internal traffic-handling tasks from your router and allowing it to manage primarily external traffic and security. Additionally, Cisco SG550X-24P Dubai provides dynamic Layer 3 routing features. These capabilities help you minimize the need to manually configure routing devices and simplify the ongoing operation of the network.

IPv6 support

As the IP address scheme evolves to accommodate a growing number of network devices Cisco SG550X-24P Dubai switch can support the transition to the next generation of networking and operating systems. These switches continue to support previous-generation IPv4, allowing you to evolve to the new IPv6 standard at your own pace and helping ensure that your current network will continue to support your business applications in the future. Cisco SG550X-24P Dubai has successfully completed rigorous IPv6 testing and have received the USGv6 and IPv6 Gold certification.

Networkwide automatic voice deployment

Using a combination of Cisco Discovery Protocol, LLDP-MED, Auto Smart ports, and Voice Services Discovery Protocol (VSDP, a unique Cisco protocol), customers can deploy an end-to-end voice network dynamically. The switches in the network automatically converge around a single voice VLAN and QoS parameters and then propagate them out to the phones on the ports where they are discovered. For example, automated voice VLAN capabilities let you plug any IP phone (including third-party phones) into your IP telephony network and receive an immediate dial tone. The switch automatically configures the device with the right VLAN and QoS parameters to prioritize voice traffic.

Peace of mind and investment protection

Cisco SG550X-24P Dubai offers the reliable performance and peace of mind you expect from a Cisco switch. When you invest in the Cisco 550X Series, you gain the benefits of :

• Limited lifetime warranty with Next-Business-Day (NBD) advance replacement (where available; otherwise same-day ship)
• A solution that has been rigorously tested to help ensure optimal network uptime to keep employees connected to primary resources and productive
• A solution designed and tested to easily and fully integrate with other Cisco voice, unified communications, security, and networking products as part of a comprehensive technology platform for your business

Specifications

General
Device Type	Switch – 24 ports – L3 – managed – stackable
Enclosure Type	Rack-mountable
Subtype	Fast Ethernet
Ports	24 x 10/100 (PoE+) + 2 x 10 Gigabit SFP+ (uplink) + 2 x combo 10GBase-T (uplink)
Power Over Ethernet (PoE)	PoE+
PoE Budget	195 W
Performance	Forwarding performance (64-byte packet size) : 63.09 Mpps Switching capacity : 84.8 Gbps
Capacity	VLANs supported : 4094 QoS hardware queues : 8 IPv4 routes (static) : 7000 IPv6 routes (static) : 7000 ACL rules : 3000 IP router interfaces : 256 QoS hardware queues : 8
MAC Address Table Size	16K entries
Jumbo Frame Support	9KB
Max Units In A Stack	8
Routing Protocol	RIP-2, IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, VRRPv2, VRRPv3, CIDR
Remote Management Protocol	SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP
Encryption Algorithm	MD5, SSL
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+
Features	DHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, High Availability, Multicast Storm Control, Unicast Storm Control, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, Remote Switch Port Analyzer (RSPAN), IP-MAC binding, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Multicast VLAN Registration (MVR), dual firmware images, Class of Service (CoS), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), Denial of Service (DoS), 802.1x authentication, Duplicated Address Detection, Type of Service (ToS), DiffServ Code Point (DSCP) support, 1.5MB packet buffer, IP source guard, ARP inspection, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Secure Copy (SCP), Cisco Discovery Protocol, IGMP querier, VLAN Double Tagging (Q-in-Q), VLAN mirroring, DNS client, Voice VLAN, Secure Core Technology (SCT), LLDP-MED, Head-of-line (HOL) blocking, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, RA guard, Guest VLAN, STP BPDU Guard, User Datagram Protocol (UDP), 2+1 redundant fans
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
Processor	X ARM : 800 MHz
RAM	512 MB
Flash Memory	256 MB
Status Indicators	Port transmission speed, system, RPS (Redundant Power Supply), link/activity, fan
Expansion / Connectivity
Interfaces	24 x 100Base-TX RJ-45 PoE+ 4 x 10GBase-X SFP+ uplink 2 x 10GBase-T RJ-45 uplink 1 x console RJ-45 1 x USB Type A
Power
Power Device	Internal power supply
Power Redundancy	Yes
Voltage Required	AC 120/230 V (50/60 Hz)
Power Consumption Operational	239.2 Watt
Features	Redundant Power System (RPS) connector
Miscellaneous
Cables Included	1 x serial cable
Rack Mounting Kit	Included
MTBF	573,356 hours
Compliant Standards	UL 60950, FCC Part 15 A, CSA 22.2, FCC CFR47 Part 15 A, USGv6
Localization	North America
Dimensions & Weight
Width	17.3 in
Depth	10.1 in
Height	1.7 in
Weight	9.13 lbs
