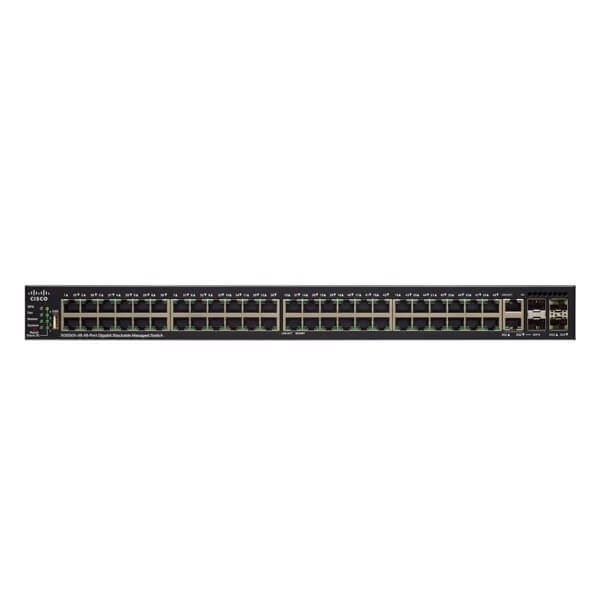

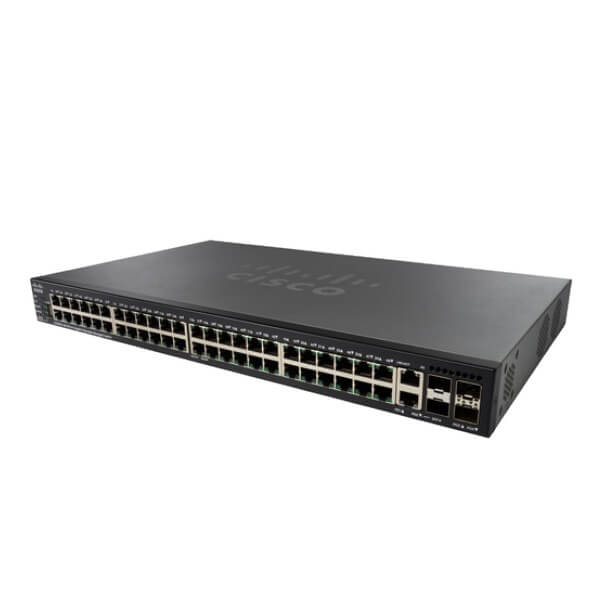

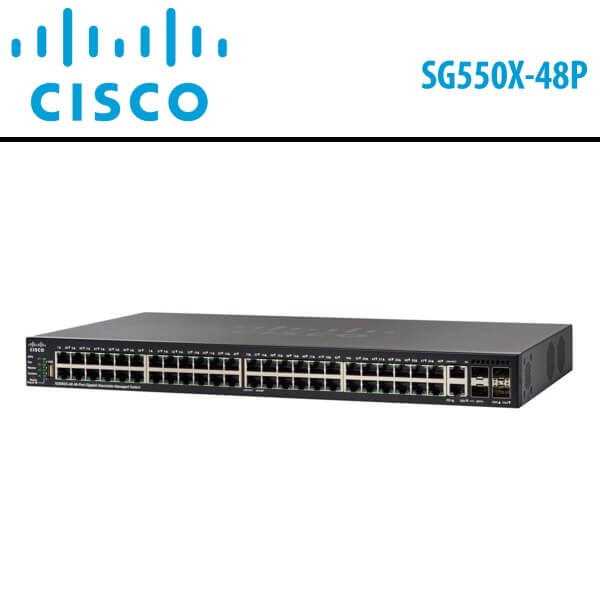

Cisco SG550X-48P Dubai

The Cisco SG550X-48P Dubai Switch represents the latest generation of stackable managed Ethernet switches, offering advanced capabilities and superior performance to meet the demands of a more challenging network environment at a cost-effective price point. Engineered to safeguard your technology investment during business expansion, the Cisco SG550X-48P Dubai sets itself apart from switches claiming stackability by truly providing stacking capability. This enables you to configure, manage, and troubleshoot multiple physical switches seamlessly as a single device, facilitating easier network expansion.

Part of Cisco’s small business line of network solutions, the Cisco SG550X-48P Dubai switch is a component of an affordable portfolio of managed switches that form a reliable foundation for your business network. Equipped with features to enhance the availability of critical business applications, safeguard sensitive information, and optimize network bandwidth for more efficient information and application delivery, the Cisco 350 series is easy to set up and use. It strikes an ideal balance between affordability and capabilities for small businesses, fostering a more efficient and better-connected workforce.

The Cisco SG550X-48P Dubai switch offers an advanced feature set tailored to the needs of growing businesses and the requirements of high-bandwidth applications and technologies. By improving the availability of critical applications, protecting business information, and optimizing network bandwidth, the Cisco SG550X-48P Dubai contributes to more effectively delivering information and supporting applications in a dynamic business environment.

Features and benefits.

High-performance 10 Gigabit Ethernet

Cisco SG550X-48P Dubai switch breaks the barrier of 10 Gigabit Ethernet adoption by providing affordable and flexible configurations customized for the demanding network requirements of small and medium businesses. With 10G copper ports on the SX550X switches, you can easily and cost-effectively enable 10G connections to servers and network storage devices with standard RJ-45 Ethernet cable. You can also connect your SG550X access switches to the SX550X aggregation with 10G SFP+ fiber, building a high-performance backbone to speed up the overall operation of your network.

High reliability and resiliency

The Cisco SG550X-48P Dubai provides an additional layer of resiliency with support for the Virtual Router Redundancy Protocol (VRRP). VRRP lets you extend the same resiliency that stacking provides for individual switches to complete network domains. By running VRRP between two stacks, you can instantly cut over from one stack to another in the event of a problem and continue operating even after a failure. The Cisco SG550X-48P Dubai also supports dual images, allowing you to perform software upgrades without having to worry about the network going down during the upgrade.

Power over Ethernet Plus (PoE+) and 60W PoE

Cisco 550X Series switches support the Power over Ethernet Plus (PoE+) standard (IEEE 802.3at), providing up to 30 watts per port. The switches also support 60W PoE on selected ports to power compact switches, high-power wireless access points, or connected lighting. The power is managed in a smart fashion such that only the amount of power the endpoint needs is delivered to it and not wasted. As a result, the switches can support devices that require more power, such as 802.11ac wireless access points, video-based IP phones, surveillance cameras, and more. PoE capabilities simplify the deployment of advanced technologies by allowing you to connect and power network endpoints over a single Ethernet cable, without having to install separate power supplies. Cisco 550X Series switches are also fully backward compatible with IEEE 802.11af PoE and Cisco legacy PoE protocols.

Power efficiency

The Cisco SG550X-48P Dubai integrates a variety of power-saving features across all models, providing the industry’s most extensive energy-efficient switching portfolio. These switches are designed to conserve energy by optimizing power use, which helps protects the environment and reduce your energy costs. They provide an eco-friendly network solution without compromising performance. Cisco 550X Series switches feature:

Support for the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods
The latest Application-Specific Integrated Circuits (ASICs), which use low-power 28- or 40-nanometer technology and low-power, high-performance ARM CPUs
Automatic power shutoff on ports when a link is down
LEDs that can be turned off to save power
Embedded intelligence to adjust signal strength based on the length of the connecting cable
Smart fans in which fan speed is automatically adjusted according to switch temperature to decrease acoustic noise and save power

Advanced stacking

The Cisco 550X Series switches provide true stacking capability, allowing you to configure, manage, and troubleshoot all switches in a stack as a single unit, with a single IP address for up to a maximum of 400 Ethernet ports. A true stack delivers a unified data and control plane, in addition to management plane, providing flexibility, scalability, and ease of use because the stack of units operates as a single entity constituting all the ports of the stack members. This capability can radically reduce complexity in a growing network environment while improving the resiliency and availability of network applications. True stacking also provides other cost savings and administrative benefits through features such as cross-stack QoS, VLANs, LAGs, and port mirroring, which clustered switches cannot support. Using standard 10G fiber or copper connections, the Cisco 550X Series supports both local and horizontal stacking deployments and the flexibility of ring or chain topology. The switches also have the capability to use link aggregation port as the stacking port, providing even higher stacking bandwidth for demanding applications.

Easy deployment and use

The Cisco SG550X-48P Dubai is designed to be easy to use and manage by small and medium businesses, commercial customers, or the partners that serve them. Features include the following:

Smart Network Application (SNA) is an innovative network-level monitoring and management tool embedded in the Cisco 250 to 550X Series switches. It can discover network topology, display link status, monitor events, apply configurations, and upgrade software images across multiple switches in the network.
The FindIT Network Manager and Probe are designed to manage Cisco 100 to 500 Series switches, routers, and wireless access points. They let you proactively manage the network instead of just reacting to events. Cisco 550X Series switches support the embedded FindIT Network Probe, eliminating the need to set up a separate hardware or virtual machine on site.
The FindIT Network Discovery Utility works through a simple toolbar on the user’s web browser to discover Cisco devices on the network and display basic device information, inventory, and new firmware updates to aid in the configuration and speed the deployment of Cisco Small Business products.
Simple and advanced mode graphic user interfaces reduce the time required to deploy, troubleshoot, and manage the network and allow you to support sophisticated capabilities without increasing IT head count.
Configuration wizards simplify the most common configuration tasks and provide the ultimate tool for anyone to easily set up and manage the network.
The switches also support Textview, a full Command-Line Interface (CLI) option for customers or partners that prefer it.
Using Auto Smart ports intelligence, the switch can detect a network device connected to any port and automatically configure the optimal security, Quality of Service (QoS), and availability on that port.
Cisco Discovery Protocol discovers Cisco devices and allows devices to share critical configuration information, simplifying network setup and integration.
Support for Simple Network Management Protocol (SNMP) allows you to set up and manage your switches and other Cisco devices remotely from a network management station, improving IT workflow and mass configurations.
The USB port on the switch enables easy image and configuration transfer for faster deployment or upgrade.

Simplified IT operation

The Cisco SG550X-48P Dubai switch helps optimize your IT operations with built-in features that simplify day-to-day network operation:

True stacking allows you to configure, manage, and troubleshoot multiple physical switches as a single entity.
Unlike other stacking switches that require uniform configurations, the Cisco 550X Series allows you to mix Fast Ethernet, Gigabit Ethernet, and 10 Gigabit Ethernet models in a single stack, providing total flexibility without sacrificing manageability.
Cisco switches use common chipsets/software across all switching portfolios, so all Cisco switches within a series support the same feature set, making it easier to manage and support all switches across the network.

Highly Secure

Cisco SG550X-48P Dubai provides the advanced security features you need to protect your business data and keep unauthorized users off the network:

Embedded Secure Sockets Layer (SSL) encryption protects management data traveling to and from the switch.
Extensive Access Control Lists (ACLs) restrict sensitive portions of the network to keep out unauthorized users and guard against network attacks.
Guest VLANs let you provide Internet connectivity to nonemployee users while isolating critical business services from guest traffic.
Support for advanced network security applications such as IEEE 802.1X port security tightly limits access to specific segments of your network. Web-based authentication provides a consistent interface to authenticate all types of host devices and operating systems, without the complexity of deploying IEEE 802.1X clients on each endpoint.
Advanced defense mechanisms, including dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping, detect and block deliberate network attacks. Combinations of these protocols are also referred to as IP-MAC port binding (IPMB).
IPv6 First Hop Security extends the advanced threat protection to IPv6. This comprehensive security suite includes ND inspection, RA guard, DHCPv6 guard, and neighbor binding integrity check, providing unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks.
Time-based ACLs and port operation restrict access to the network during predesignated times, such as business hours.
Uniform MAC address-based security can be applied automatically to mobile users as they roam between wireless access points.
Secure Core Technology (SCT) helps ensure that the switch is able to process management traffic in the face of a Denial-of-Service (DoS) attack.
Private VLAN provides Layer 2 isolation between devices on the same VLAN.
Storm control can be applied to broadcast, multicast, and unknown unicast traffic.
Protection of management sessions is possible using RADIUS, TACACS+, and local database authentication as well as secure management sessions over SSL, SSH, and SNMPv3.
DoS attack prevention maximizes network uptime in the presence of an attack.

Advanced Layer 3 traffic management

The Cisco SG550X-48P Dubai enables a more advanced set of traffic management capabilities to help growing businesses organize their networks more effectively and efficiently. For example, the switches provide static Layer 3 routing, allowing you to segment your network into workgroups and communicate across VLANs without degrading application performance. With these capabilities, you can boost the efficiency of your network by offloading internal traffic-handling tasks from your router and allowing it to manage primarily external traffic and security. Additionally, Cisco SG550X-48P Dubai provides dynamic Layer 3 routing features. These capabilities help you minimize the need to manually configure routing devices and simplify the ongoing operation of the network.

IPv6 support

As the IP address scheme evolves to accommodate a growing number of network devices, the Cisco 550X Series can support the transition to the next generation of networking and operating systems. These switches continue to support previous-generation IPv4, allowing you to evolve to the new IPv6 standard at your own pace and helping ensure that your current network will continue to support your business applications in the future. Cisco SG550X-48P Dubai has successfully completed rigorous IPv6 testing and have received the USGv6 and IPv6 Gold certification.

Networkwide automatic voice deployment

Using a combination of Cisco Discovery Protocol, LLDP-MED, Auto Smart ports, and Voice Services Discovery Protocol (VSDP, a unique Cisco protocol), customers can deploy an end-to-end voice network dynamically. The switches in the network automatically converge around a single voice VLAN and QoS parameters and then propagate them out to the phones on the ports where they are discovered. For example, automated voice VLAN capabilities let you plug any IP phone (including third-party phones) into your IP telephony network and receive an immediate dial tone. The switch automatically configures the device with the right VLAN and QoS parameters to prioritize voice traffic.

Peace of mind and investment protection

Cisco SG550X-48P Dubai offers the reliable performance and peace of mind you expect from a Cisco switch. The Cisco SG550X-48P Dubai offers the benefits of:

Limited lifetime warranty with Next-Business-Day (NBD) advance replacement (where available; otherwise same-day ship)
A solution that has been rigorously tested to help ensure optimal network uptime to keep employees connected to primary resources and productive
A solution designed and tested to easily and fully integrate with other Cisco voice, unified communications, security, and networking products as part of a comprehensive technology platform for your business

Specifications

Feature	Description
Capacity in mpps (64-byte packets)	66.66
Switching capacity (Gbps)	89.6
Power dedicated to PoE	382W
Number of ports that support PoE	48 (16 support 60W PoE)
Total system ports	48x FE + 4x 10 GE
Network ports	48x FE
Uplink ports	2x 10 GE copper/SFP+ combo + 2x SFP+
Packet buffer	3 MB
Unit dimensions (W x H x D)	440 x 44 x 350 mm (17.3 x 1.7 x 13.78 in)
Layer 3
IPv4 routing	Wirespeed routing of IPv4 packets Up to 7,168 routes and up to 256 IP interfaces
Wirespeed IPv6 static routing	Up to 1,792 routes and up to 256 IPv6 interfaces
Layer 3 interface	Configuration of Layer 3 interface on physical port, LAG, VLAN interface, or loopback interface
Security
SSH	SSH is a secure replacement for Telnet traffic. SCP also uses SSH. SSH versions 1 and 2 are supported
SSL	Secure Sockets Layer (SSL) encrypts all HTTPS traffic, allowing secure access to the browser-based management GUI in the switch
Quality of service
Priority levels	8 hardware queues
Scheduling	Strict priority and Weighted Round-Robin (WRR)
Class of service	Port based; 802.1p VLAN priority based; IPv4/v6 IP precedence/ToS/DSCP based; DiffServ; classification and remarking ACLs, trusted QoS Queue assignment based on Differentiated Services Code Point (DSCP) and class of service (802.1p/CoS)
Management
Web user interface	Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports simple and advanced mode, configuration, wizards, customizable dashboard, system maintenance, monitoring, online help, and universal search
Smart Network Application (SNA)	An innovative network-level monitoring and management tool embedded in Cisco 250 to 550X Series switches. It can discover network topology, display link status, monitor events, apply configurations, and upgrade software images across multiple switches in the network
SNMP	SNMP versions 1, 2c, and 3 with support for traps, and SNMP v3 User-based Security Model (USM)
RMON	Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
IPv4 and IPv6 dual stack	Coexistence of both protocol stacks to ease migration
Firmware upgrade	Web browser upgrade (HTTP/HTTPS) and TFTP and SCP Upgrade can be initiated through console port as well Dual images for resilient firmware upgrades
Product specifications
Console port	Cisco Standard RJ-45 console port
OOB management port	Dedicated Gigabit management port for out-of-band management on SG550XG and SX550X models
RPS	RPS connector
USB slot	USB Type-A slot on the front panel of the switch for easy file and image management
Buttons	Reset button
Cabling type	Unshielded Twisted Pair (UTP) Category 5 or better; fiber options (SMF and MMF); coaxial SFP+
LEDs	System, master, fan, RPS, stack ID, link/speed per port
Flash	256 MB
CPU	1.3 GHz (dual-core) ARM for SX550X models 800 MHz (dual-core) ARM for all other models
CPU memory	512 MB
Power	100 – 240V 47 – 63 Hz, internal, universal
Certification	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature	32° to 122°F (0° to 50°C)
Storage temperature	-4° to 158°F (-20° to 70°C)
Operating humidity	10% to 90%, relative, non-condensing
Storage humidity	10% to 90%, relative, non-condensing
