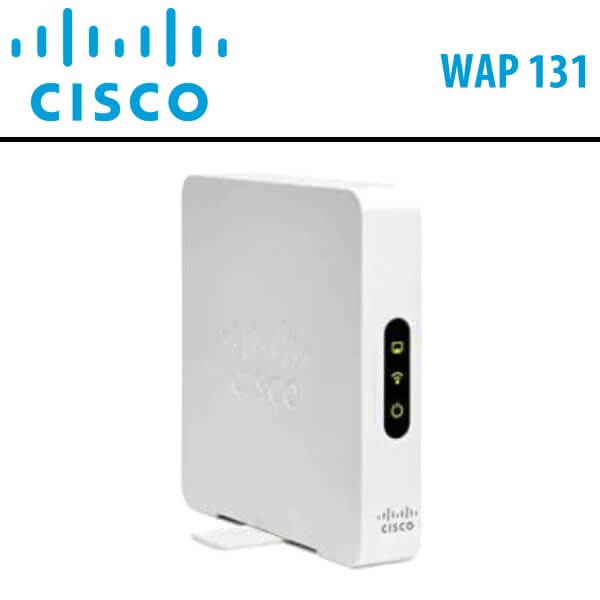

Cisco WAP131 Dubai

The Cisco WAP131 Dubai stands as a Wireless-N Dual Radio Access Point, meticulously crafted to offer a straightforward and cost-effective solution for extending secure, high-performance mobile networking to both employees and guests.

Category:

Description

Cisco WAP131 Dubai

The Cisco WAP131 Dubai stands as a Wireless-N Dual Radio Access Point, meticulously crafted to offer a straightforward and cost-effective solution for extending secure, high-performance mobile networking to both employees and guests, ensuring connectivity throughout the office. It facilitates the connection of numerous employees and is scalable to accommodate additional users as well as evolving business requirements.

Utilizing concurrent dual-band radios, the Cisco WAP131 Dubai enhances coverage and user capacity. The inclusion of a Gigabit Ethernet port allows the access point to be powered by a PoE switch, contributing to the reduction of cabling and wiring costs. Intelligent quality-of-service (QoS) features enable the prioritization of bandwidth-sensitive traffic, particularly for voice over-IP (VoIP) and video applications.

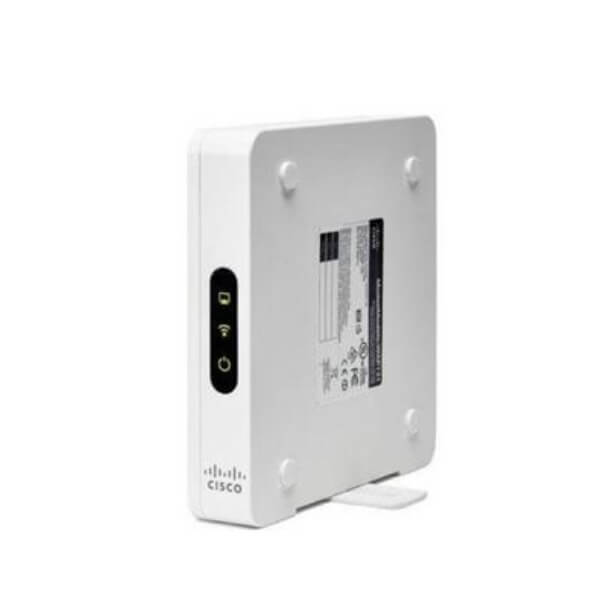

Setting up and using the Cisco Wi-Fi Dubai is a seamless process, thanks to an intuitive wizard-based configuration that ensures a quick start within minutes. Its attractive desktop design, complemented by an integrated stand, provides the flexibility to place the access point vertically or horizontally on your desk.

To bolster reliability and protect sensitive business information, the Cisco WAP131 Dubai Wireless-N Dual Radio Access Point supports both Wi-Fi Protected Access (WPA) Personal and Enterprise, encrypting all wireless transmissions with robust security. Additionally, 802.1X RADIUS authentications play a crucial role in preventing unauthorized access.

Features

  • Cisco WAP131 Dubai offers concurrent dual-band radio support for up to 300 Mbps per radio to maximize capacity and coverage.
  • Cisco Wi-Fi Dubai is equipped with a single Gigabit Ethernet LAN interface which enables a high-speed uplink to the wired network.
  • Cisco WAP131 Dubai offers robust security, including WPA2, 802.1X with RADIUS secure authentication, and rogue-access-point detection, helps protect sensitive business information.
  • Simple installation and intuitive web-based configuration and wizard enable fast, simple deployment and setup in minutes.
  • Cisco Wi-Fi Dubai boasts of a simple, desktop design with integrated stand, for easy access and placement.
  • Intelligent QoS prioritizes network traffic to help keep critical network applications running at top performance.
  • Cisco WAP131 Dubai has power-saving sleep mode and port control features which help maximize energy efficiency.
  • Workgroup Bridge mode lets you expand your network by wirelessly connecting to a second Ethernet network.
  • Cisco WAP131 Dubai has built-in support for IPv6 lets you deploy future networking applications and operating systems without costly upgrades.
  • Limited lifetime hardware warranty provides peace of mind.

Specifications

Specifications Description
Standards IEEE 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460)
Cabling type Category 5e or better
Antennas Internal antennas optimized for desktop installation with vertical orientation
LED indicators Power, WLAN, LAN
Operating system Linux
Physical Interfaces
Ports 10/100/1000 Ethernet, with support for 802.3af/at PoE, Power Port for AC adapter
Power Supply External 12V 1.5A DC power jack (Energy Star 2.0 compliant with Efficiency Level 5) and 802.3af/at PoE
Buttons Reset button, Power (on/off), Push button
Lock slot Slot for Kensington lock
LEDs Power, Wireless, Ethernet
Physical Specifications
Physical dimensions (W x D x H) 6.693 x 6.693x 1.413 in. (170 x 170 x 35.9 mm)
Weight 0.89 lb (0.40kg)
Network Capabilities
VLAN support Yes
Number of VLANs 1 management VLAN plus 8 VLANs for SSIDs
802.1X supplicant Yes
SSID-to-VLAN mapping Yes
Auto channel selection Yes
Spanning tree Yes
Load balancing Yes
IPv6
  • Yes
  • IPv6 host support
  • IPv6 RADIUS, syslog, Network Time Protocol (NTP), etc.
Layer 2 802.1Q-based VLANS, 8 active VLANS plus 1 management VLAN
Security
WPA and WPA2 Yes, including Enterprise authentication
Access control Yes, management access control list (ACL) plus MAC ACL
Secure management HTTPS
SSID broadcast Yes
Rogue-access-point detection No
Mounting and Physical Security
Mounting options Desktop only
Physical security lock Kensington lock slot
Quality of Service
Quality of service (QoS) Wi-Fi Multimedia and Traffic Specification (WMM TSPEC), Client QoS
Performance
Wireless throughput Up to 300-Mbps data rate (real-world throughput will vary)
Recommended user support Up to 32 connective users, 16 active users per radio
Configuration
Web user interface Built-in web user interface for easy browser-based configuration (HTTP/HTTPS)
Management
Management protocols Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour
Remote management Yes
Event logging Local, remote syslog, email alerts
Network diagnostics Logging and packet capture
Web firmware upgrade Firmware upgradable through web browser, imported/exported configuration file
Dynamic Host Configuration Protocol (DHCP) DHCP client
IPv6 host Yes
HTTP redirect No
Wireless
Frequency Dual concurrent radios (2.4 and 5 GHz)
Radio and modulation type Dual radio, orthogonal frequency division multiplexing (OFDM)
WLAN 802.11n

2×2 multiple-input multiple-output (MIMO) with 2 spatial streams

20, and 40 MHz for 802.11n

PHY data rate up to 600 Mbps

Data rates supported
  • 802.11a/b/g : 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2, and 1 Mbps
  • 802.11n : 6.5 to 300 Mbps
    • 20-MHz bandwidth : MCS 0-15 for supported data rates
    • 40-MHz bandwidth : MCS 0-15 for supported data rates
Frequency Band and 20-MHz Operating Channels A Regulatory Domain :
  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.240 GHz; 4 channels
  • 5.745 to 5.825 GHz; 5 channels
E Regulatory Domain:
  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.240 GHz; 4 channels

C Regulatory Domain:

  • 2.412 to 2.462 GHz; 11 channels
  • 5.745 to 5.805 GHz; 4 channels
Maximum Number of Non-overlapping Channels 2.4 GHz
  • 802.11b/g
    • 20 MHz : 3
  • 802.11n
    • 20 MHz : 3
5 GHz
  • 802.11a
    • 20 MHz : 9
  • 802.11n
    • 20 MHz : 9
    • 40 MHz : 4
Wireless isolation Wireless isolation between clients
External antennas None
Internal antennas Internal Fixed PiFA Antenna
Antenna gain in dBi
  • Maximum antenna gain of 3.4 dBi on 2.4 GHz
  • Maximum antenna gain of 4.5 dBi on 5 GHz
Wireless distribution system (WDS) Yes
802.11i Yes
Multiple SSIDs 8
Wireless VLAN map Yes
WLAN security Yes
Wi-Fi Multimedia (WMM) Yes, with unscheduled automatic power save
Operating Modes
Access point Access Point mode, WDS Bridging, Workgroup Bridge mode
Environmental
Power options
  • IEEE 802.3af/at Ethernet switch
  • Cisco Power Injector – SB-PWR-INJ2-xx
  • AC Adapter – included 12v1.5A
  • PoE Peak power : 7.42W
Compliance
  • Safety:
    • UL 60950-1
    • CAN/CSA-C22.2 No. 60950-1
    • IEC 60950-1
    • EN 60950-1
  • Radio approvals:
    • FCC Part 15.247, 15.407
    • RSS-210 (Canada)
    • EN 300.328, EN 301.893 (Europe)
    • AS/NZS 4268.2003 (Australia and New Zealand)
  • EMI and susceptibility (Class B):
    • FCC Part 15.107 and 15.109
    • ICES-003 (Canada)
    • EN 301.489-1 and -17 (Europe)
Operating temperature 0° to 40°C (32° to 104°F)
Storage temperature -20° to 70°C (-4° to 158°F)
Operating humidity 10% to 85% noncondensing
Storage humidity 5% to 90% noncondensing
System memory 128-MB RAM

128-MB Flash

Package Contents
  • Cisco WAP131 Wireless-N Dual Radio Access Point
  • AC Power Adapter
  • User guide on CD-ROM
  • Quick-start guide
  • Ethernet network cable
Minimum Requirements
  • Switch or router with PoE support, PoE injector, or AC Power Adapter
  • Web-based configuration : Java-enabled web browser
