Cisco WAP361 Dubai

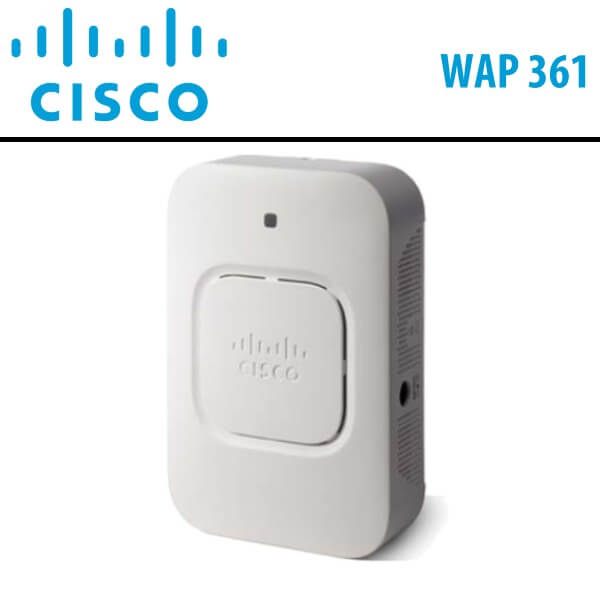

The Cisco WAP361 Dubai stands as a robust wireless access point, facilitating the connection of more devices, whether wired or wireless, and supporting the operation of additional applications. It ensures the efficiency of your network operations.

Category:

Description

Cisco WAP361 Dubai

The Cisco WAP361 Dubai stands as a robust wireless access point, facilitating the connection of more devices, whether wired or wireless, and supporting the operation of additional applications. It ensures the efficiency of your network operations without incurring exorbitant costs, making it an ideal solution for budget-conscious hospitality or classroom deployments.

With a speed of up to 1.2 Gbps, the Cisco Wi-Fi Dubai empowers businesses to boost productivity and seamlessly run next-generation applications without any performance degradation. The Cisco WAP361 Dubai includes a 5-port switch, featuring a powered-device port that enables the access point to provide power to an IP device. Additionally, a power-sourcing-equipment (PSE) port allows a backbone switch to supply power to the access point.

Quick Features :

  • Cisco WAP361 Dubai offers concurrent dual-band radio support up to 867 Mbps on a 5.0-Ghz radio and 300 Mbps on a 2.4-Ghz radio to increase capacity and coverage
  • 2×2 MIMO with two spatial streams on both 5.0 GHz and 2.4 GHz allows for maximum performance
  • Single Point Setup, a controller-less technology, simplifies the deployment and management of multiple access points, without requiring additional hardware

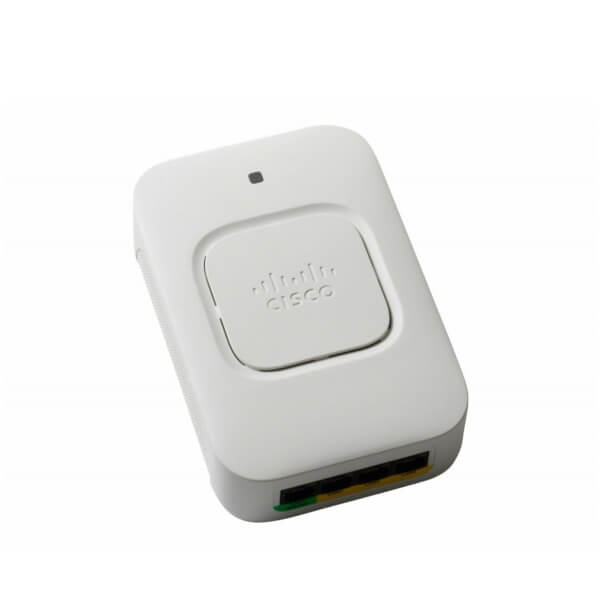

  • Cisco WAP361 Dubai has a 5-port Gigabit Ethernet LAN switch supports both PoE powered device (PD) and powered sourcing equipment (PSE) so that IP devices can be powered and the access point can be powered by the backbone switch
  • Cisco Wi-Fi Dubai offers robust security, including WPA2, 802.1X with RADIUS secure authentication, and rogue access point detection, help protect sensitive business information
  • Captive portal support facilitates highly secure, customized guest access with multiple rights and roles
  • Cisco WAP361 Dubai offers simple installation and an intuitive web-based configuration and wizard facilitate fast, simple deployment and setup in minutes
  • Cisco Wi-Fi Dubai has built-in support for PoE allows for easy installation without expensive additional wiring
  • A sleek design with multiple internal antennas and a versatile mounting kit allows for mounts directly to an electrical or data junction box
  • Intelligent quality of service (QoS) prioritizes network traffic to help keep critical network applications running at top performance
  • Cisco WAP361 Dubai has power-saving sleep mode and port control features help to increase energy efficiency
  • Workgroup Bridge mode lets you expand your network by wirelessly connecting to a second Ethernet network
  • Support for IPv6 lets you deploy future networking applications and operating systems without costly upgrades
  • A limited lifetime hardware warranty provides peace of mind

Technical Specs

Specifications Description
Standards IEEE 802.11ac, 802.11n, 802.11g, 802.11b, 802.3af/at, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460)
Cabling type Category 5e or better
Antennas Internal antennas optimized for installation on a wall or ceiling
Operating system Linux
Physical Interfaces

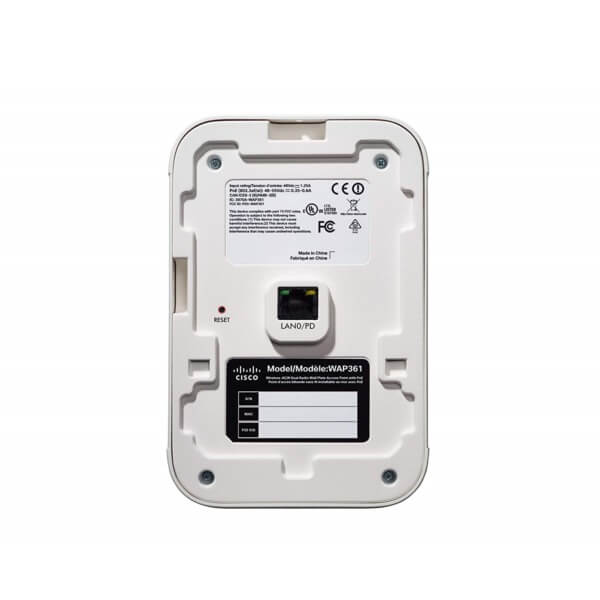

Ports 5 – 10/100/1000 Ethernet, with support for 802.3af/at PoE, power port for AC adapter (not included)
Power supply 802.3af/at PoE and external 48V/1.25A DC power adapter (not included)
Buttons Reset button
Lock slot Slot for Kensington lock
LEDs One multi-function LED
Physical Specifications
Physical dimensions (W x D x H) 6.5 x 4.33 x 1.8 in. (165 x 110 x 45.75 mm)
Weight 1.06 lbs or 480 g
Network Capabilities
VLAN support Yes
Number of VLANs 1 management VLAN plus 16 VLANs for SSIDs
802.1X supplicant Yes
SSID-to-VLAN mapping Yes
Auto-channel selection Yes
Spanning Tree Yes
Load balancing Yes
IPv6 Yes
  • IPv6 host support
  • IPv6 RADIUS, syslog, Network Time Protocol (NTP)
Layer 2 802.1Q-based VLANS, 16 active VLANS plus 1 management VLAN
Security
WPA, WPA2 Yes, including Enterprise authentication
Access control Yes, management access control list (ACL) plus MAC ACL
Secure management HTTPS
SSID broadcast Yes
Rogue access point detection Yes
Mounting and Physical Security
Multiple mounting options Mounting bracket included for easy mounting to junction box
Physical security lock Kensington lock slot
Quality of Service
QoS Wi-Fi Multimedia and Traffic Specification (WMM TSPEC), client QoS
Performance
Wireless throughput Up to 1.2-Gbps data rate (real-world throughput will vary)
Recommended user support Up to 128 connective users, 32 active users per radio
Multiple-Access Point Management
Single Point Setup Yes
Number of access points per cluster 8
Active clients per cluster 240
Configuration
Web user interface Built-in web user interface for easy, browser-based configuration (HTTP, HTTPS)
Management
Management protocols Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour
Remote management Yes
Event logging Local, remote syslog, email alerts
Network diagnostics Logging and packet capture
Web firmware upgrade Firmware upgradable through web browser, imported or exported configuration file
Dynamic Host Configuration Protocol (DHCP) DHCP client
IPv6 host Yes
HTTP redirect Yes
Wireless
Frequency Dual concurrent radios (2.4 and 5 GHz)
Radio and modulation type
  • Dual radio, orthogonal frequency division multiplexing (OFDM)
  • IEEE 802.11a/n : OFDM (BPSK, QPSK, 16 QAM, 64 QAM)
  • IEEE 802.11ac : OFDM (BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM)
WLAN
  • 802.11n/ac
  • 2×2 MIMO with 2 spatial streams at 5 GHz
  • 2×2 MIMO with 2 spatial streams at 2.4 GHz
  • 20-, 40-, and 80-Mhz channels for 802.11ac
  • 20- and 40-Mhz for 802.11n
  • PHY data rate up to 1.2 Gbps
  • 802.11 Dynamic Frequency Selection (DFS)
Data rates supported
  • 802.11a/b/g : 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2, and 1 Mbps
  • 802.11n : 6.5 to 300 Mbps
    • 20-MHz bandwidth : MCS 0-15 for supported data rates
    • 40-MHz bandwidth : MCS 0-15 for supported data rates
  • 802.11ac : 6.5 to 867 Mbps
    • 20-MHz bandwidth : MCS 0-9 for supported data rates
    • 40-MHz bandwidth : MCS 0-9 for supported data rates
    • 80-MHz bandwidth : MCS 0-9 for supported data rates
Frequency band and operating channels A Regulatory Domain :
  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.240 GHz; 4 channels
  • 5.260 to 5.320 GHz; 4 channels
  • 5.500 to 5.700 GHz; 8 channels
  • 5.745 to 5.825 GHz; 5 channels

E Regulatory Domain :

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.240 GHz; 4 channels
  • 5.260 to 5.320 GHz; 4 channels
  • 5.500 to 5.700 GHz; 8 channels

R Regulatory Domain :

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.240 GHz; 4 channels
  • 5.260 to 5.320 GHz; 4 channels
C Regulatory Domain :
  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.240 GHz; 4 channels
  • 5.260 to 5.320 GHz; 4 channels
  • 5.745 to 5.825 GHz; 5 channels

K Regulatory Domain :

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.240 GHz; 4 channels
  • 5.260 to 5.320 GHz; 4 channels
  • 5.500 to 5.620 GHz; 7 channels
  • 5.745 to 5.805 GHz; 4 channels

J Regulatory Domain :

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.240 GHz; 4 channels
  • 5.260 to 5.320 GHz; 4 channels
  • 5.500 to 5.700 GHz; 11 channels
Non-overlapping channels 2.4 GHz
  • 802.11b/g
    • 20 MHz : 3
  • 802.11n
    • 20 MHz : 3
5 GHz
  • 802.11a
    • 20 MHz : 21
  • 802.11n
    • 20 MHz : 21
    • 40 MHz : 9
  • 802.11ac
    • 20 MHz : 21
    • 40 MHz : 9
    • 80 MHz : 4
Wireless isolation Wireless isolation between clients
External antennas None
Internal antennas Internal fixed PiFA antenna
Antenna gain in dBi Maximum antenna gain of 4.35 dBi on 2.4 GHz

Maximum antenna gain of 3.96 dBi on 5 GHz

Wireless distribution system (WDS) Yes
Fast roaming Yes
Multiple SSIDs 16
Wireless VLAN map Yes
WLAN security Yes
Wi-Fi Multimedia (WMM) Yes, with unscheduled automatic power saving
Operating Modes
Access point Access point mode, WDS Bridging, Workgroup Bridge mode
Environmental
Power options
  • IEEE 802.3af/at Ethernet switch
  • Cisco power injector : SB-PWR-INJ2-xx
  • Cisco AC Adapter – SB-PWR-48V-xx (not included)
  • PoE peak power : 19.2 W (with PSE load)
Compliance Safety :
  • UL 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • IEC 60950-1
  • EN 60950-1

Radio approvals :

  • FCC Part 15.247, 15.407
  • RSS-210 (Canada)
  • EN 300.328, EN 301.893 (Europe)
  • AS/NZS 4268.2003 (Australia and New Zealand)

EMI and susceptibility (Class B) :

  • FCC Part 15.107 and 15.109
  • ICES-003 (Canada)
  • EN 301.489-1 and -17 (Europe)
Operating temperature 0° to 40°C (32° to 104°F)
Storage temperature -20° to 70°C (-4° to 158°F)
Operating humidity 10% to 85% noncondensing
Storage humidity 5% to 90% noncondensing
System memory
  • 256 MB RAM
  • 128 MB flash
Package Contents
  • WAP361 Wireless-AC/N Dual Radio Wall Plate Access Point
  • Ceiling and wall mounting kit
  • Quick-start guide
  • Ethernet network cable
