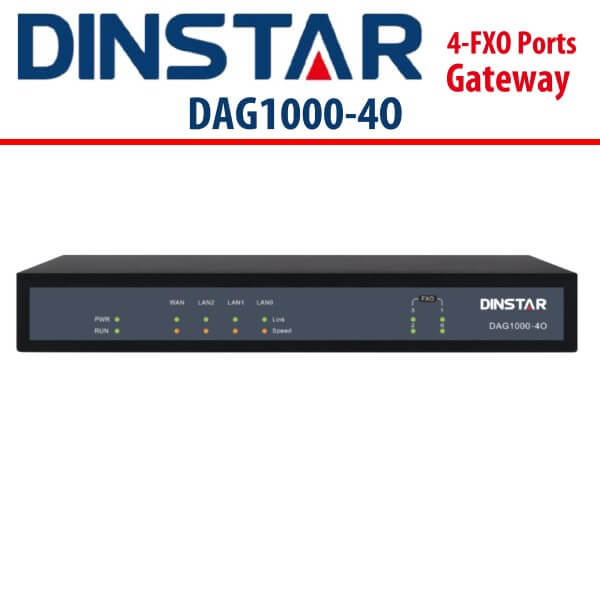

Dinstar DAG1000-4O Dubai
The Dinstar DAG1000-4O Dubai analog gateway is a device that allows you to connect traditional analog telephones and PBX systems to IP-based telephony networks. It has four FXO ports, which can be used to connect to analog PBX lines or PSTN lines. The DAG1000-4O uses the standard SIP protocol to communicate with IP telephony networks, and it is compatible with leading IMS/NGN platforms and SIP-based IP Phone systems.
The Dinstar DAG1000-4O Dubai is a low-cost and easy-to-use VoIP solution for small businesses, SOHOs, remote offices, and enterprises with multiple branches. It is easy to install and configure, and it provides high-quality voice quality.
Features :
- Primary and secondary SIP account
- Flexible FXO port groups
- Multiple SIP trunks
- Caller ID
- Flexible routing and manipulation rules
- Data/Voice/Management VLAN
- T.38 and Pass-through
- Friendly Web GUI access, easy to maintain

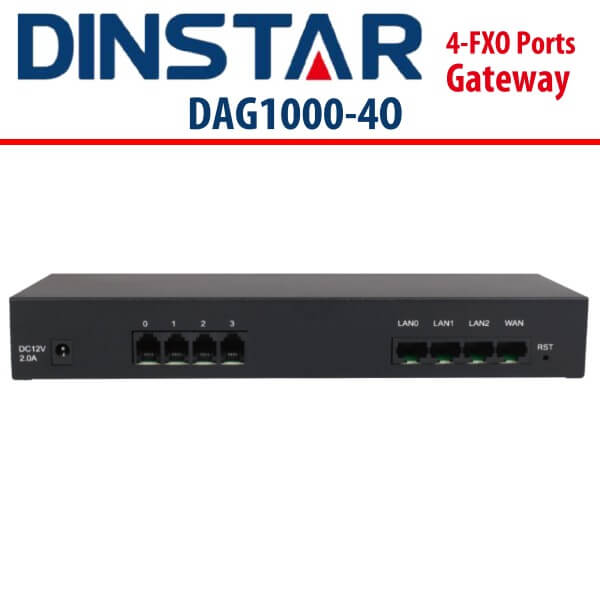

Physical Interfaces
- Telephone interface : DAG1000-4O : 4*FXO, RJ-11
- Ethernet Interface : 4*RJ-45 10/100 Base-Tx, RJ-45
Voice & Fax
- G.711A/U law, G.723.1, G.729A/B
- Comfort Noise Generation(CNG)
- Voice Activity Detection(VAD)
- Echo Cancellation(G.168)
- Adaptive (Dynamic) Jitter Buffer
- Programmable Gain Control
- T.38/Pass-through/Modem FAX mode,Up to 14.4kbps
- DTMF mode : Signal/RFC2833/INBAND
FXO Port
- Busy tone detection
- No current detection
- Voice interrupted detection
- One stage dialing
- Two stage dialing
- Polarity Reversal
- FAS(Fake billing correction )
- Auto match fixed line impedance
- Caller ID detection (BellcoreType 1&2)
Protocol
- SIP V2.0 (RFC 3261,3262,3264)
- IMS/3GPP
- SDP (RFC 2327)
- REFER (RFC 3515)
- RTP/RTCP (RFC 1889,1890)
- STUN (RFC 3489)
- ARP/RARP (RFC 826/903)
- SNTP (RFC 2030)
- DHCP/PPPoE
- TFTP/HTTP/HTTPS
- DNS/DNS SRV (RFC 1706/RFC 2782)
- VLAN 802.1P/802.1Q
Maintain & Upgrade
- Web based configuration
- Telnet configuration
- Data backup/restore
- Support English and Chinese language
- Firmware upgrade by TFTP
- Web & telnet login password modify
- Factory reset
- Automatic time synchronization
- IVR local maintenance management
Physical propertiesPacking
- Power : input : 100-240V,50-60Hz,1.2A Max @External adapter 12VDC
- Power consumption(W) : 4FXO : 12; 8FXO : 20
- Temperature(operation) : -10 ?~ 45 ?(storage) : -20 ?~80 ?
- Operation Humidity : 10% – 90% no condensation
- Dimension(w/D/H) : 242*152*40mm 1kg
Call & Routing
- FXO port group
- IP Trunk
- Primary and secondary SIP account
- 32inbound routing
- 32outbound routing
- Number manipulation
- Dial plan
Network Features
- NAT (Rout& Bridge)
- Static IP, PPPoE, DHCP
- DHCPserver
- MAC address clone
- DMZ
- IP,TCP, UDP,TFTP, FTP, TCP,ARP,RARP, Ping, NTP, SNTP, Http, DNS, Tracert
- Static/dynamic ARP
Homologation
- CE,FCC
