Dinstar DAG2000-16O Dubai

The Dinstar DAG2000-16O Dubai FXO analog gateway is designed to facilitate communication between IP-based telephony networks and traditional telephones (POTS) and PBX systems.

Category:

Description

Dinstar DAG2000-16O FXO Gateway Dubai

The Dinstar DAG2000-16O Dubai FXO analog gateway is designed to facilitate communication between IP-based telephony networks and traditional telephones (POTS) and PBX systems. This particular analog gateway is equipped with 16 FXO ports and is used to establish connections with analog PBX systems or the PSTN lines of telecom carriers. It is compatible with leading IMS/NGN platforms and SIP-based IP Phone systems, thanks to the standard SIP protocol. The Dinstar DAG2000-16O Dubai offers cost-effective and user-friendly VoIP solutions for various business types such as small and medium-sized enterprises, call centers, SOHO, remote offices, and organizations with multiple branches.

Features :

  • Primary and secondary SIP account
  • Flexible FXO port groups
  • Multiple SIP trunks
  • Caller ID
  • Flexible routing and manipulation rules
  • Data/Voice/Management VLAN
  • T.38 and Pass-through
  • Friendly Web GUI access, easy to maintain

Dinstar DAG2000-16O – Technical Specs

Physical Interfaces

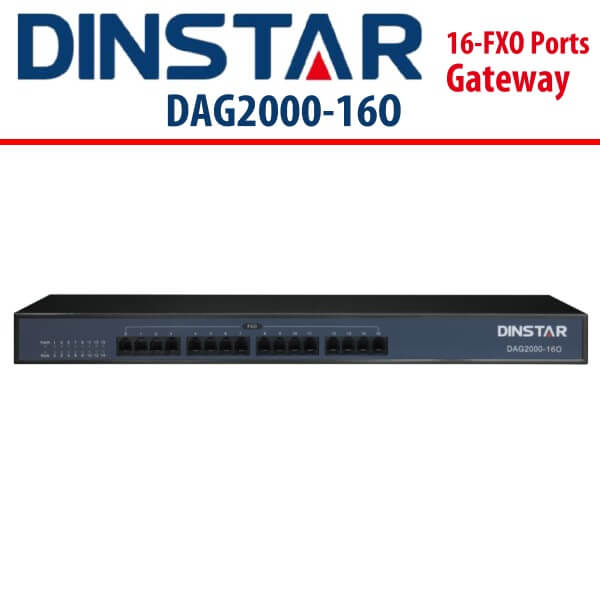

  • Telephone interface :  16FXO, RJ-11

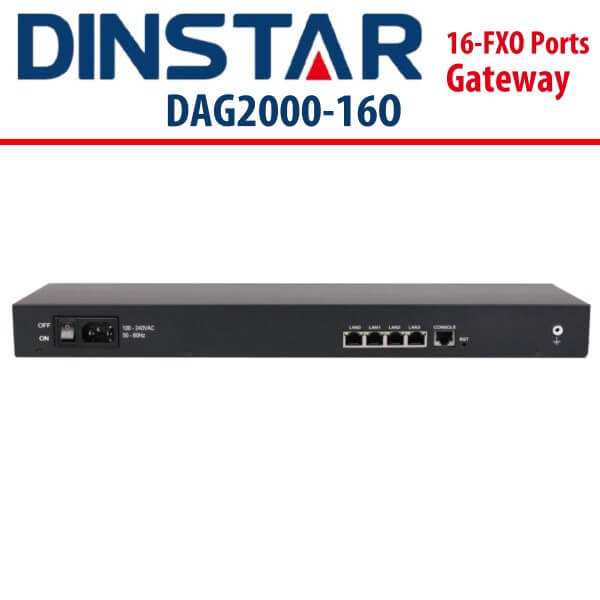

  • Ethernet Interface : 4*RJ-45 10/100 Base-Tx, RJ-45

Voice & Fax

  • G.711A/U law, G.723.1, G.729A/B
  • Comfort Noise Generation(CNG)
  • Voice Activity Detection(VAD)
  • Echo Cancellation(G.168)
  • Adaptive (Dynamic) Jitter Buffer
  • Programmable Gain Control
  • T.38/Pass-through/Modem FAX mode,Up to 14.4kbps
  • DTMF mode : Signal/RFC2833/INBAND

FXO Port

  • Busy tone detection
  • No current detection
  • Voice interrupted detection
  • One stage dialing
  • Two stage dialing
  • Polarity Reversal
  • FAS(Fake billing correction )
  • Auto match fixed line impedance
  • Caller ID detection (BellcoreType 1&2)

Protocol

  • SIP V2.0 (RFC 3261,3262,3264)
  • IMS/3GPP
  • SDP (RFC 2327)
  • REFER (RFC 3515)
  • RTP/RTCP (RFC 1889,1890)
  • STUN (RFC 3489)
  • ARP/RARP (RFC 826/903)
  • SNTP (RFC 2030)
  • DHCP/PPPoE
  • TFTP/HTTP/HTTPS
  • DNS/DNS SRV (RFC 1706/RFC 2782)
  • VLAN 802.1P/802.1Q

Maintain & Upgrade

  • Web based configuration
  • Telnet configuration
  • Data backup/restore
  • Support English and Chinese language
  • Firmware upgrade by TFTP
  • Web & telnet login password modify
  • Factory reset
  • Automatic time synchronization
  • IVR local maintenance management

Physical propertiesPacking

  • Power : input : 100 – 240V, 50 – 60Hz,1.2A Max
  • Power consumption (W) :  48
  • Temperature :
    • Operation : -10 °C ~ 45 °C
    • Storage : -20 °C~80 °C
  • Operation Humidity : 10% – 90% no condensation
  • Dimension (W/D/H) :  16FXO 442* 280* 44mm 3.0kg

Call & Routing

  • FXO port group
  • IP Trunk
  • Primary and secondary SIP account
  • 32 inbound routing rules
  • 32 outbound routing rules
  • Number manipulation
  • Dial planl

Network Features

  • Static IP, PPPoE, DHCP
  • DHCP client
  • IP,TCP, UDP,TFTP, FTP, TCP,ARP,RARP, Ping, NTP, SNTP, Http, DNS, Tracert
  • Static/dynamic ARP
