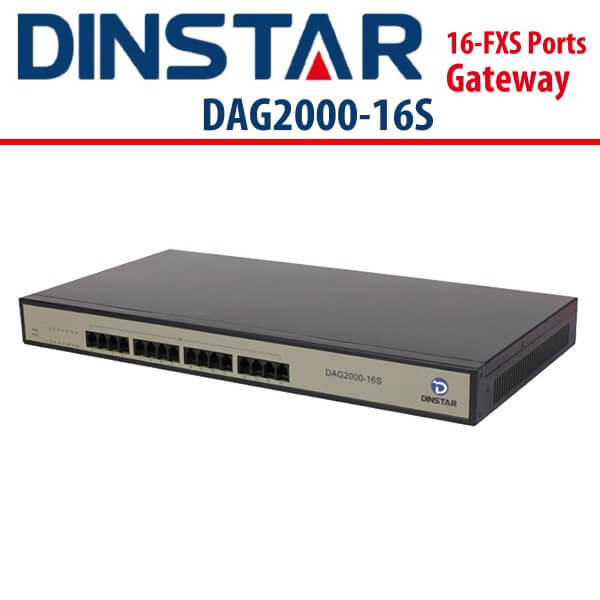

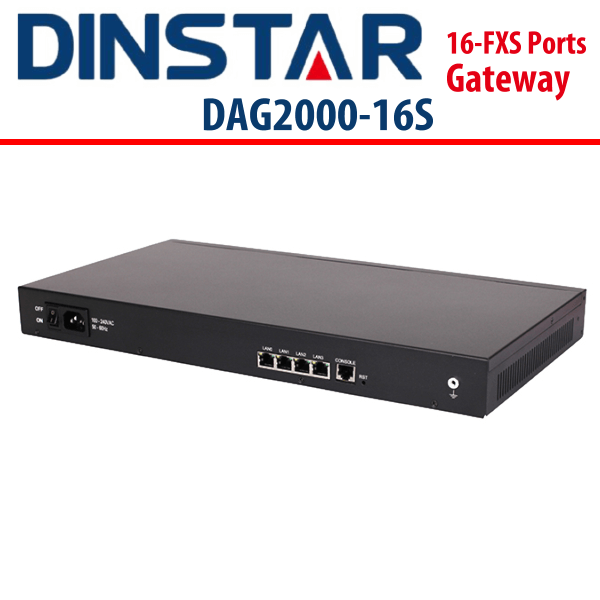

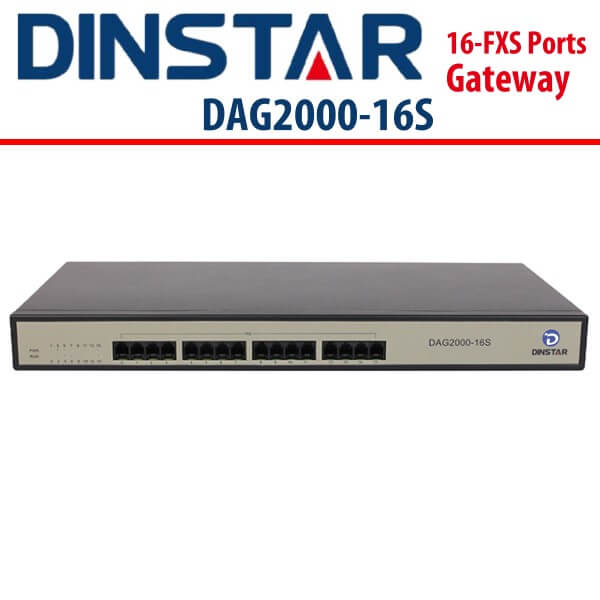

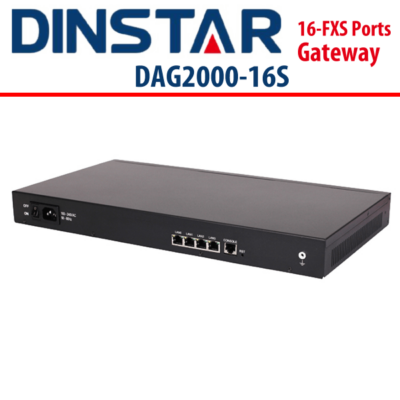

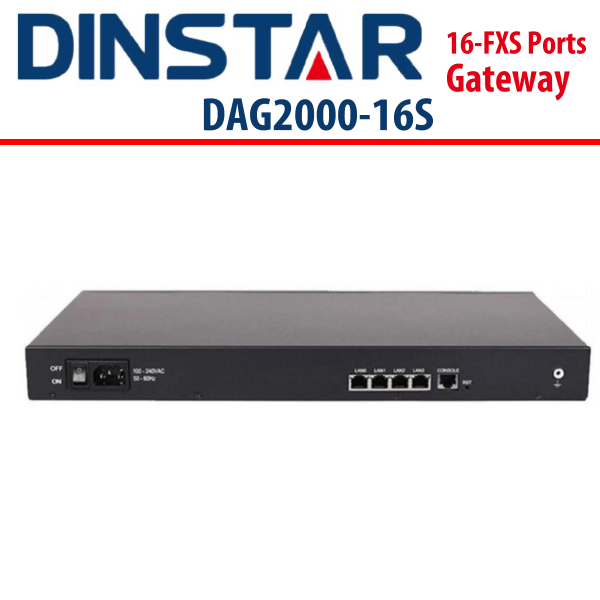

Dinstar DAG2000-16S FXS Gateway Dubai
The Dinstar DAG2000-16S Dubai is a versatile analog VoIP gateway that enables seamless connectivity between IP-based telephony networks and traditional telephones (POTS), fax machines, and PBX systems. It is compatible with leading IMS/NGN platforms and SIP-based IP Phone systems, thanks to its standard SIP protocol. This device offers 16 FXS ports, supports fax over IP, and provides flexible dial plans. It is the perfect solution for small and medium businesses, call centers, and multi-location environments that require VoIP services. The Dinstar DAG2000-16S Dubai is a 16-channel FXS VoIP gateway that operates on the SIP2.0 standard. It is fully compatible with major Softswitch and IPPBX providers worldwide, and its hardware configuration is easily expandable. It features one WAN port and three LAN ports, allowing up to four computers to share the ADSL line in an office or home setting. This Dinstar DAG2000-16S Dubai VoIP gateway is an ideal, cost-effective solution for small businesses, home offices, remote offices, and branch businesses. It enables easy integration of analog phones, faxes, and PBX systems with standard voice interfaces, delivering high-quality voice services.
Features :
- Support SIP/MGCP
- Primary/Backup SIP Servers
- Flexible Routing and Manipulation
- Support Modem/POS
- Elastix/Broadsoft Certification
- Support IPv4 and IPv6
- Data/ Voice/ Management VLAN
- SNMP/TR069/Provision
- Cloud-based Management System and Bandwidth Optimization
Dinstar DAG2000-16S – Technical Specs
Physical Interfaces
- Phone Interface : 16FXS, RJ-11
- Ethernet Interface :
- 4* RJ-45 10/100Mbps, RJ-45
Voice & Fax
- G.711A/U law, G.723.1, G.729A/B,G.726,iLBC,AMR
- Comfort Noise Generation(CNG)
- Voice Activity Detection(VAD)
- Echo Cancellation(G.168)
- Adaptive (Dynamic) Jitter Buffer
- Hook Flash
- Programmable Gain Control
- T.38/Pass-through, up to 14.4kbps
- Modem/POS
- DTMF mode : Signal/RFC2833/INBAND
FXS Port
- Connector : RJ11
- Dial Mode : DTMF and Pulse
- Pulse : 10 and 20 PPS
- Caller ID : DTMF/FSK
- Max Cable Length : 5KM
- Reversed Polarity
Protocol
- SIP V2.0 (RFC 3261,3262,3264)
- IMS/3GPP
- SDP (RFC 2327)
- REFER (RFC 3515)
- RTP/RTCP (RFC 1889,1890)
- STUN (RFC 3489)
- ARP/RARP (RFC 826/903)
- SNTP (RFC 2030)
- DHCP/PPPoE
- TFTP/HTTP/HTTPS
- DNS/DNS SRV (RFC 1706/RFC 2782)
- VLAN 802.1P/802.1Q
Supplement Service
- Call Waiting
- Blind Transfer
- Attend Transfer
- Call Pickup
- Call Forward on Busy
- Call Forward on No Reply
- Unconditional Call Forward
- Hotline
- Call Hold
- DND
- 3-way conference
- Voicemail
Call & Route
- Port Group
- IP Trunk
- Primary and Secondary SIP Account
- 32 Inbound/Outbound Routing
- Number Manipulation
- Digitmap
Network Features
- Static IP, PPPoE, DHCP Client
- IPv4, IPv6
- Static/dynamic ARP
- Traffic Shaping
- Voice/Data/Management VLAN
- DIFFServ, ToS
Environment
- Power Supply : 100 – 240V, 50 – 60Hz
- Power Consumption : 35W
- Temperature :
- (Operation) : -10 °C ~ 45 °C
- (Storage) : -20 °C ~ 80 °C
- Humidity : 10% – 90% No condensation
Dimension & Weight
- 440(L )× 230(W) × 44(H)mm 2.7kg
