Description

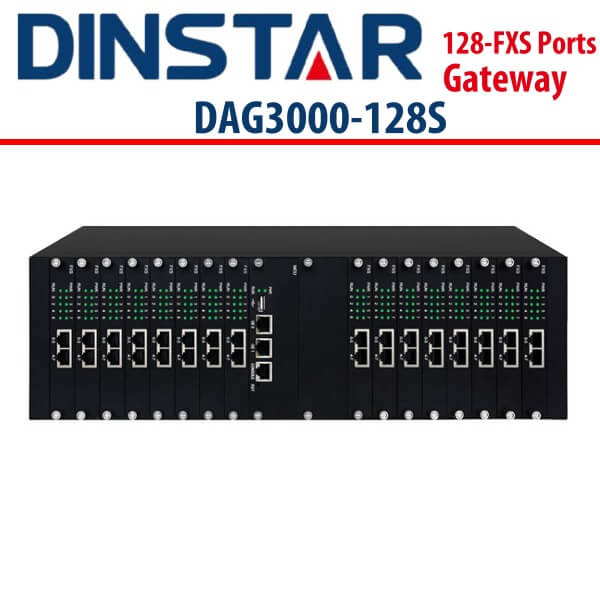

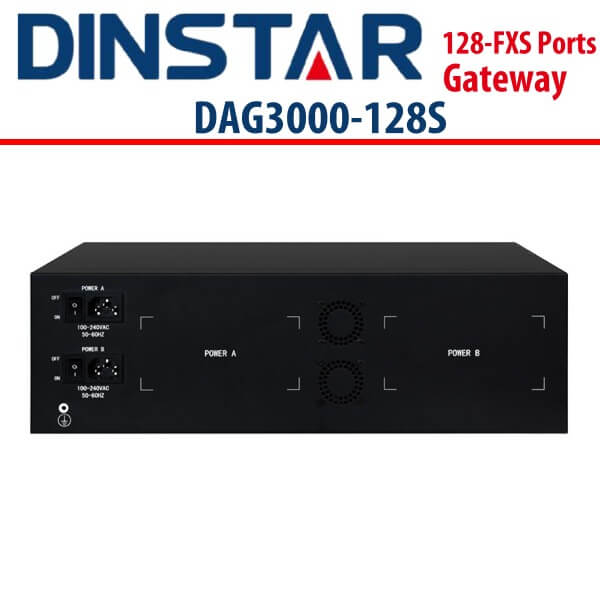

Dinstar DAG3000-128S FXS Gateway Dubai

The Dinstar DAG3000-128S Dubai is a versatile Analog VoIP Gateway that provides seamless connectivity between IP-based telephony networks and traditional telephones (POTS) and PBX systems. It features a modular hardware design that allows for the expansion of FXO ports by adding boards according to the user’s needs. Each board consists of 8 FXS/FXO ports, enabling a maximum of 128 FXS/FXO ports. The Dinstar DAG3000-128S Dubai supports the SIP protocol and is compatible with leading IMS/NGN platforms and SIP-based IP telephony systems. It is particularly well-suited for large enterprises, call centers, and multi-location environments requiring VoIP services. The Dinstar DAG3000-128S Dubai serves as a device that converts signals from IP to traditional Analog PBX. Consequently, it enables businesses to keep their existing Analog desk phones while upgrading from an Analog PBX to an IP PBX, resulting in cost savings.

Full FXS/FXO Features

IPv6, IPv4
Waiting for the call
SIP / IMS
Call transfer (Blind transfer: switch calls without notification, Attend transfer: switch calls with notification)
SIP v2.0 (RFC3261) based on UDP/TCP/TLS
Call Forwarding (Unconditional, No Answer)
Fax via T.38 and Forward
Dialing
QoS: Tagging VLAN L3 DIFFServ, 802, 1P/Q
Do Not Disturb (DND)
3-way conference
Automatic firmware upgrade and configuration over HTTP/HTTPS
Hunting Group service (find idle machines in ringing groups)
System Logs & CDR
Voicemail
Flexible routing and dialing packages
Dial Pluse
Backup and restore
MWI
SNMP / TR-069
Cable length up to 5 km
TLS/SRTP
Ring phone

Dinstar DAG3000-128S – Technical Specs

High stability and reliability

The DAG3000-128S uses an embedded operating system with a proven hardware design that provides stability for the device in operation. In addition, it has primary and secondary SIP server failover and TLS/SRTP security for highly reliable users.
