Description

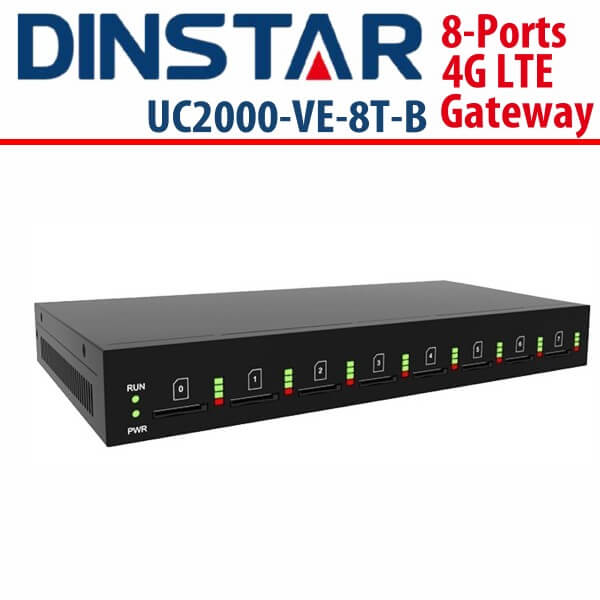

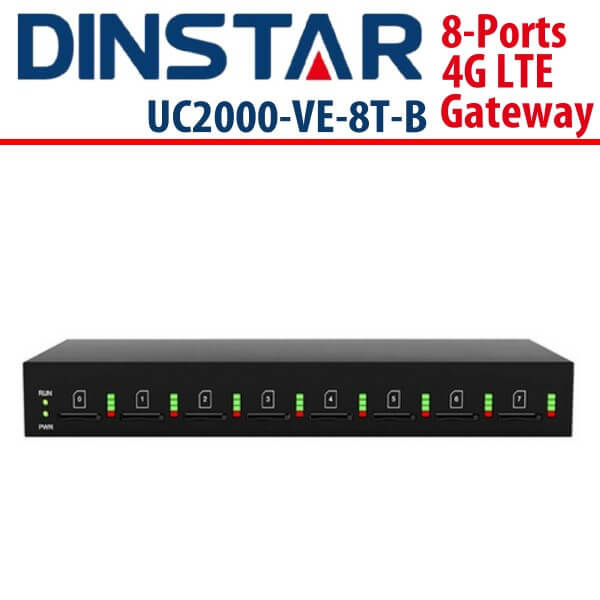

Dinstar UC2000-VE8TB 4G Gateway Dubai

The Dinstar UC2000-VE8TB Dubai model offers a convenient pop-up SIM card slot that allows users to easily change their SIM card without having to dismantle any equipment. It also has an open API which allows users to create their own application software for sending SMS/USSD messages, bulk SMS messages, or pushing text messages from email, HTTP, and other sources. The Dinstar UC2000-VE8TB Dubai multi-functional gateway is designed to facilitate successful calls between 2G/3G/4G mobile networks and VoIP networks. It excels in both software features and new hardware structure design. This gateway provides a cost-effective, user-friendly, and flexible IP telephony solution for enterprises, SMEs, and business offices. It is one of the models available in the Dinstar GSM gateway lineup.

Key Features :

8 Channels GSM or LTE
Powerful Embedded CPU
Compatible with LTE-FDD/LTE-TDD/WCDMA/GSM Networks
Compatible with Mainstream VoIP Platform
Hot Swappable SIM Cards
Voice over LTE (VoLTE)
HTTP API for SMS Application Integration
SMS to Email & Email to SMS
Flexible Dial Rules & Manipulation Rules
Auto CLIP
Remote SIMs Management (optional)

Dinstar UC2000-VE8TB Technical Specifications

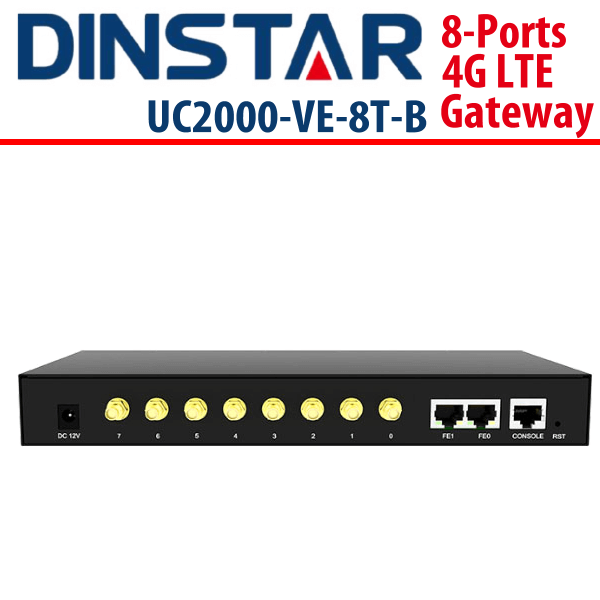

Hardware Interfaces

Mobile : 8 Channels
SIM Card slots : 8
Antennas Connectors : SMA
Ethernet Interfaces : 2*10/100/1000 Base-T, RJ45
LED Indicators : Power, RUN, Channel indicator
Console : 1* RS232 (USB-B connector)
RST/PWR Button

VoIP & Media

Protocol : SIP v2.0, RFC3261
SIP UDP/TCP/TLS
RTP/SRTP
Codecs : G.711A/U, G.723.1, G.729A/B, G.722, AMR, OPUS(TBD)
Silence Suppression
Comfort Noise Generator(CNG)
Voice Activity Detection(VAD)
Echo Cancellation
Dynamic Jitter Buffer
DTMF : RFC2833, SIP Info
Call Progress Tone Generation
Programmable Gain Control
NAT : STUN, Dynamic NAT, Static NAT

Frequency Bands(2G/3G)

UC2000-VE-4/8G : GSM Gateway : 850/900/1800/1900MHz
UC2000-VE-4/8W : WCDMA Gateway with two options
A : WCDMA 850/1900MHz and GSM 850/900/1800/1900MHz;
B : WCDMA 900/2100MHz and GSM 900/1800MHz

LTE Frequency Bands

Type A :
- FDD : B2/B4/B12
- WCDMA : B2/B4/B5
Type E :
- FDD : B1/B3/B5/B7/B8/B20
- TDD : B38/B40/B41
- WCDMA : B1/B5/B8
- GSM : 900/1800MHz
Type V : FDD : B4/B13
Type J :
- FDD : B1/B3/B8/B18/B19/B26
- TDD : B41
- WCDMA : B1/B6/B8/B19
Type AU :
- FDD : B1/B2/B3/B4/B5/B7/B8/B28
- TDD : B40
- WCDMA : B1/B2/B5/B8
- GSM : 850/900/1800/1900
