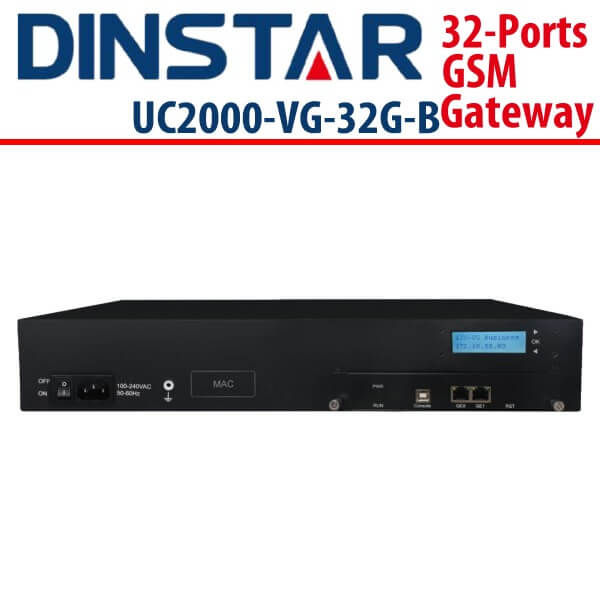

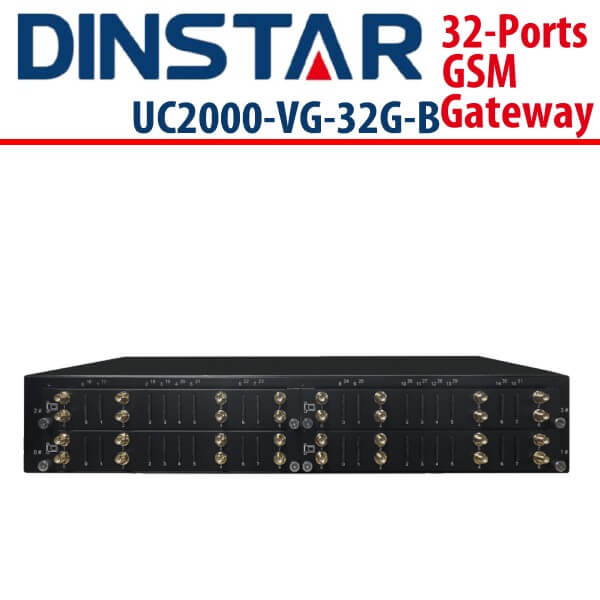

Dinstar UC2000-VG32GB GSM Gateway Dubai

The Dinstar UC2000-VG32GB Dubai is equipped with a user-friendly Web interface that provides a seamless user experience. With Dinstar SIMBank and SIMCloud, managing SIM cards remotely becomes effortless. As a standalone device, the Dinstar UC2000-VG32GB Dubai GSM Gateway is utilized by call terminators, multi-site organizations, enterprises, and areas with limited landline access, such as rural areas, to establish connections between mobile and VoIP networks and facilitate the transmission of voice and SMS. It is integrated with GSM/WCDMA/LTE connectivity and compatible with SIP protocol, making it suitable for mainstream VoIP platforms. The Dinstar UC2000-VG32GB Dubai effectively reduces telephony expenses and enables efficient communication. It is one of the many models available for Dinstar GSM gateways.

Key Features :

  • 32 GSM/CDMA/WCDMA Channels
  • Support to different mobile networks :
  • GSM : 850/900/1800/1900MHz;
  • CDMA : 800MHz; WCDMA : 850/900/1900/2100MHz
  • HTTP API for SMS Application Integration
  • SMS to Email and Email to SMS
  • Flexible Dial Rules and Manipulation Rules

Technical Specifications

Voice Processing

  • Protocol : SIP v2.0, RFC3261
  • Codecs : G.711A/U law, G.723.1, G.729A/B
  • Silence Suppression
  • Comfort Noise Generator(CNG)
  • Voice Activity Detection(VAD)
  • Echo Cancellation : G.168 with up to 128ms
  • Dynamic Jitter Buffer
  • DTMF : RFC2833, SIP Info
  • Call Progress Tone Generation
  • Programmable Gain Control
  • NAT : STUN, Dynamic NAT, Static NAT

Mobile

  • SIM Interface : 1.8v, 3.0v SIM Interface
  • Frequency Range :
    • GSM : 850/900/1800/1900MHz;
    • CDMA : 800MHz
  • WCDMA : 850/900/1900/2100MHz
  • USSD Encoding : Unicode/ASCII
  • HTTP API for SMS
  • Polarity Reversal
  • PIN Modify
  • CID/CLIR
  • SMS Send and Receive
  • SMS to Email
  • Call Waiting/Call Back
  • Call Forward
  • GSM Audio Coding : HR, FR,EFR, AMR_FR,AMR_HR

Software Features

  • Calling Type :
    • Mobile to VoIP, VoIP to Mobile
  • SIP Trunk and Trunk Group
  • Caller/Called Number Manipulation Rules
  • SIP Codes Mapping
  • White/Black List
  • PSTN Hotline
  • VoIP Hotline
  • Abnormal Call Monitor
  • Call Minutes Limitation for Ports/Single Call
  • Balance Check
  • Low Balance Alarm
  • Auto Update SIM Number
  • Random Call Interval
  • Auto CLIP
  • Signaling & RTP Encryption
  • SMPP for SMS

Network

  • Static IP, DHCP Client, PPPoE
  • Network Protocols :
  • TCP/UDP,TFTP, FTP, RTP/ RTCP, SSH,ARP,RARP,ICMP Ping, NTP, HTTP, DNS
  • Static/Dynamic ARP Request

Maintenance

  • Web/Telnet Configuration
  • Configure Backup/Restore
  • Firmware Upgrade by HTTP/TFTP
  • Factory Reset
  • CDR (10000 Lines CDRs Storage Locally)
  • Syslog/Filelog
  • Ping and Tracert
  • Traffic statistics : TCP,UDP,RTP
  • VoIP Call Statistics
  • PSTN Call statistics : ASR,ACD,PDD
  • Voice Diagnose with Loopback
  • GSM Network Test
  • IVR Customization
  • Auto Provisioning
  • SIP/RTP/PCM Capture

Physical Interface

  • Mobile : 32 Channels
  • Antennas Connectors : SMA
  • Ethernet Interfaces : 2*10/100 Base-T, RJ45
  • LED Indicators : Power, RUN, Signal Strength Indicators
  • Console : 1* RS232 115200bps

Environmental

  • Power Supply
    • Input : 100-240V,50-60Hz
  • Power Consumption : 68w
  • Temperature(Operation) : 0 ℃ ~ 45 ℃ (Storage) : -20 ℃ ~80 ℃
  • Operation Humidity : 10%-90% No Condensation
  • Dimension(W/D/H) : 440×270×75mm
  • Weight : 4.7kg
  • Package Weight : 8.2kg
